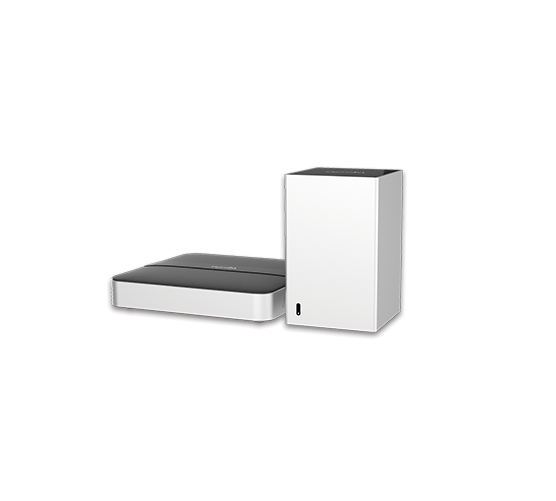

4K H.265 Mini NVR 1000 Series

4/8-CH With Ultra-mini Size

mini 1000 side 1 small
mini 1000 side 2 small
mini 1000 back small
  • 4/8-CH Network Video lnput
  • 20TB Storage & NAS
  • 4K Decoding Capabilities
  • AI VCA Management
  • POS Integration
  • ANR
  • FEATURES
  • MODELS
  • DOWNLOAD

Look Cool, Play Smooth

maxresdefault

AI VCA Management

Defined as the central management site to manage intelligent VCA, People Counting, it supports alarm and statistic to deliver prompt insight, helping improve video surveillance efficiency.

POS Integration

The combination of retail transaction data with surveillance videos makes it easy to check goods settlement, miscalculation and missing calculation, which is helpful to boost customer service and in-store competitive advantage.

Dual Stream Recording

Supporting Primary Stream and Secondary Stream recording simultaneously, Dual Stream Recording makes it possible for you to freely choose the desired streaming based on the bandwidth available.

UHD Video Display

Equipped with solid 4K decoding and display capabilities, Milesight 4K Mini NVRs can synchronously decode up to 1-CH 4K UHD and 4-CH 1080P with the finest details to guarantee real-time video monitoring.

HTML5 H.265 Streaming

The preview of the multi-channel videos via all major browsers without downloading extra plug-in is realized when Video Codec is set to H.265, making it easy for users to access the NVRs.

Flexible Storage Options

Flexible storage options including 20TB HDD and NAS offer you unparalleled versatility to address the needs for versatile storage and meet the diverse storage needs of projects of any scale.

ANR

ANR can store video data on the camera storage card when network between IPC and NVR is disconnected and retransfer the recorded video to NVR after network recovers.

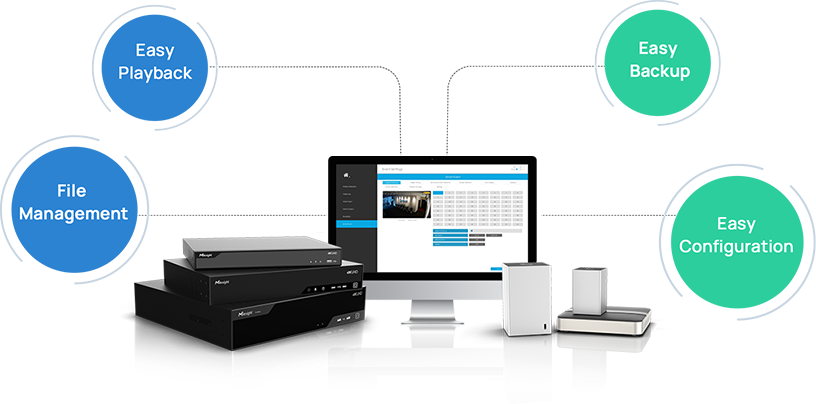

Easy-to-use Design

Featuring a range of functions including Easy Playback, Easy Backup, File Management and Easy Configuration, Milesight's NVR is made to lower the learning costs no matter for a newcomer or trained expert.

poe nvr 1000 easy to use
mini size

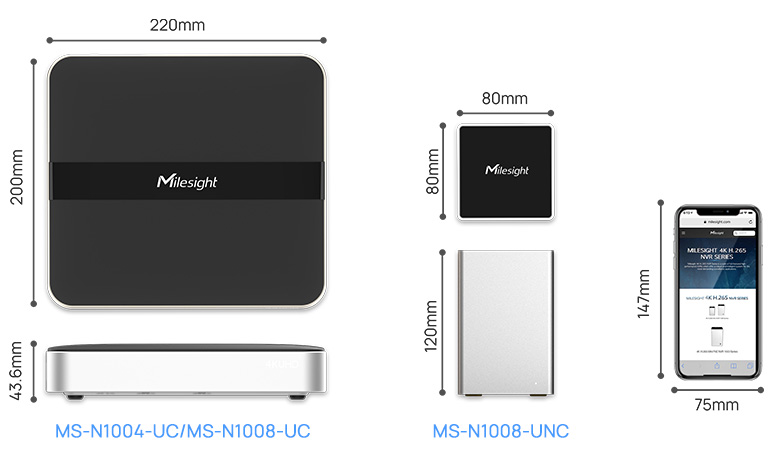

Ultra Mini Size

With ultra mini size of 220mm*200mm*43.6mm(MS-N1004-UC/MS-N1008-UC) or 80mm*80mm*120mm(MS-N1008-UNC), Mini NVRs feature compact and discreet design while with no compromise on the functionality, providing an easier way to ensure the quality video management.

Thermal Design

The metal panel on the bottom of MS-N1004-UC/MS-N1008-UC dissipates the heat effectively. Meanwhile, the ventilation holes on the side and bottom panels of MS-N1004-UC/MS-N1008-UC and the rear and bottom panels of MS-N1008-UNC maximize airflow and carry heat away, ensuring the heat to transfer under a variety of different load conditions.

Versatile Interfaces

Though developed to take up as less space as possible, the 4K H.265 Mini NVRs come with a whole array of ports such as an HDMI port, 2 USB ports and a LAN port.

MS-N1004-UC/ MS-N1008-UC

MS-N1008-UNC

  • 1. LED Indicator
  • 2. USB
  • 3. HDMI
  • 4. LAN
  • 5. Power
  • 6. Reset
  • 7. Power Button
  • 8. Ventilation Hole

Specifications

Input
Network Video Input4-CH
Bandwidth Requirement40Mbps (Incoming)40Mbps (Outgoing)
Output
HDMI Output1-CH, Resolution: 3840x2160/30Hz, 1920x1080/60Hz, 1920x1080/50Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz. (HDMI supports Audio Output)
Dual StreamSupport
Recording Resolution8MP/6MP/5MP/4MP/3MP/1080P/ UXGA/720P/D1/VGA/CIF/QCIF
Synchronous Playback1*(30fps @8MP), 1*(30fps @6MP), 1*(30fps @5MP), 2*(30fps @4MP), 2*(30fps @3MP), 4*(30fps @1080P), 4*(30fps @720P)
Format
Video CompressionH.265+/H.265(HEVC)/H.264+/H.264
Audio CompressionG.711/AAC/G.722/G.726
Sample Rate8KHz/16KHz
Storage
SATA1*SATA HDD (3.5”)
CapacityUp to 20TB capacity for each HDD
Record
Recording TypeContinuous, Event (Motion Detection, Alarm, VCA, Smart Analysis)
Playback TypeGeneral Playback, Event Playback, Tag Playback, Split Playback, Picture Playback
BackupVideo backup, Image Backup
Network
Network ProtocolsIPv4/IPv6, TCP, UDP, RTP, RTSP, RTCP, HTTP, HTTPS, DNS, DDNS, DHCP, NTP, SNTP, SMTP, SNMP, UPnP, NFS
Interface
Network Interface1*RJ45 10/100Mbps
USB Interface2*USB 2.0
General
CompatibilityONVIF, API
Advanced FunctionANR
Video AnalysisRegion Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, People Counting, Object Left, Object Removed
Keyboard ControlMilesight Keyboard(MS-K01)
Power SupplyDC 12V 2A
Consumption≤2.3W(Without HDD)
Working ConditionsTemperature: -10℃∼+55℃ / Humidity: 10%∼90%
Dimensions220mm(W)X200mm(D)X43.6mm(H)
Weight0.19Kg
Warranty3/5 Years

* Naming Convention
U - 4K
C - H.265 Compression

Input
Network Video Input8-CH
Bandwidth Requirement80Mbps (Incoming)80Mbps (Outgoing)
Output
HDMI Output1-CH, Resolution: 3840x2160/30Hz, 1920x1080/60Hz, 1920x1080/50Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz. (HDMI supports Audio Output)
Dual StreamSupport
Recording Resolution8MP/6MP/5MP/4MP/3MP/1080P/ UXGA/720P/D1/VGA/CIF/QCIF
Synchronous Playback1*(30fps @8MP), 1*(30fps @6MP), 1*(30fps @5MP), 2*(30fps @4MP), 2*(30fps @3MP), 4*(30fps @1080P), 8*(30fps @720P)
Format
Video CompressionH.265+/H.265(HEVC)/H.264+/H.264
Audio CompressionG.711/AAC/G.722/G.726
Sample Rate8KHz/16KHz
Storage
SATA1*SATA HDD (3.5”)
CapacityUp to 20TB capacity for each HDD
Record
Recording TypeContinuous, Event (Motion Detection, Alarm, VCA, Smart Analysis)
Playback TypeGeneral Playback, Event Playback, Tag Playback, Split Playback, Picture Playback
BackupVideo backup, Image Backup
Network
Network ProtocolsIPv4/IPv6, TCP, UDP, RTP, RTSP, RTCP, HTTP, HTTPS, DNS, DDNS, DHCP, NTP, SNTP, SMTP, SNMP, UPnP, NFS
Interface
Network Interface1*RJ45 10/100Mbps
USB Interface2*USB 2.0
General
CompatibilityONVIF, API
Advanced FunctionANR
Video AnalysisRegion Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, People Counting, Object Left, Object Removed
Keyboard ControlMilesight Keyboard(MS-K01)
Power SupplyDC 12V 2A
Consumption≤2.3W(Without HDD)
Working ConditionsTemperature: -10℃∼+55℃ / Humidity: 10%∼90%
Dimensions220mm(W)X200mm(D)X43.6mm(H)
Weight0.19Kg
Warranty3/5 Years

* Naming Convention
U - 4K
C - H.265 Compression

Input
Network Video Input8-CH
Bandwidth Requirement80Mbps (Incoming)80Mbps (Outgoing)
Output
HDMI Output1-CH, Resolution: 3840x2160/30Hz, 1920x1080/60Hz, 1920x1080/50Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz. (HDMI supports Audio Output)
Dual StreamSupport
Recording Resolution8MP/6MP/5MP/4MP/3MP/1080P/ UXGA/720P/D1/VGA/CIF/QCIF
Synchronous Playback1*(30fps @8MP), 1*(30fps @6MP), 1*(30fps @5MP), 2*(30fps @4MP), 2*(30fps @3MP), 4*(30fps @1080P), 8*(30fps @720P)
Format
Video CompressionH.265+/H.265(HEVC)/H.264+/H.264
Audio CompressionG.711/AAC/G.722/G.726
Sample Rate8KHz/16KHz
Storage
SATA2*SATA HDD(2.5”)
CapacityUp to 4TB capacity for each HDD
Record
Recording TypeContinuous, Event (Motion Detection, Alarm, VCA, Smart Analysis)
Playback TypeGeneral Playback, Event Playback, Tag Playback, Split Playback, Picture Playback
BackupVideo backup, Image Backup
Network
Network ProtocolsIPv4/IPv6, TCP, UDP, RTP, RTSP, RTCP, HTTP, HTTPS, DNS, DDNS, DHCP, NTP, SNTP, SMTP, SNMP, UPnP, NFS
Interface
Network Interface1*RJ45 10/100/1000Mbps
USB Interface2*USB 2.0
General
CompatibilityONVIF, API
Advanced FunctionANR
Video AnalysisRegion Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, People Counting, Object Left, Object Removed
Keyboard ControlMilesight Keyboard(MS-K01)
Power SupplyDC 12V 1.5A
Consumption≤4.1W(Without HDD)
Working ConditionsTemperature: -10℃∼+55℃ / Humidity: 10%∼90%
Dimensions80mm(W)X80mm(D)X120mm(H)
Weight0.85Kg
Warranty3/5 Years

* Naming Convention
U - 4K
C - H.265 Compression
