Sensor Configuration Tool
Streamline Configuration with Single Presses
SCT01
SCT01 Sensor Configuration Tool
Optional
- Dimensions:160 × 60 × 26.5 mm
- Protection:IP30
- Color:White
- Material:Plastic
- Weight:141g
- Applicable Products:LoraWAN Devices
- Intuitive Interface with Buttons and LED Indicators
- Large NFC Area for Easy Device Pairing
- Supports Fast Configuration
- Supports Bluetooth Connectivity for Export
- Built-In 16MB Memory, Stores Up to 50 Configuration Files
- Ideal for On-Site Deployments and Large-Scale Projects
- FEATURES
- MODELS
- ACCESSORIES
- DOWNLOAD
Efficient and Intuitive Configuration
The SCT01 is easy to use even for non-technical personnel. It features an intuitive button design for powering on/off, configuring, and upgrading firmware, with clear indicators and a buzzer providing operational feedback. The device supports fast, large-scale device configuration via NFC, saving time on manual setups and ideal for pre- or post-installation.
Enhanced NFC Capabilities
SCT01 features an expanded NFC reading area and clear zone indicators, ensuring precise positioning and reliable data transfers with a success rate over 99.9%. It effectively addresses common misalignment issues that occur when using mobile phones for NFC configurations,
Ample Storage and Bluetooth Export
The SCT01 has 16MB of built-in memory, storing up to 50 configuration files for easy device settings management. It also supports Bluetooth export for configuration files and operation logs, enabling quick data transfer and review.
6-Hour Continuous
Working Capacity
The SCT01 offers up to 6 hours of continuous read/write operations on a full charge, ensuring dependable performance. Its intelligent sleep mode conserves energy during inactivity, extending overall battery life, making it ideal for technicians on the go.

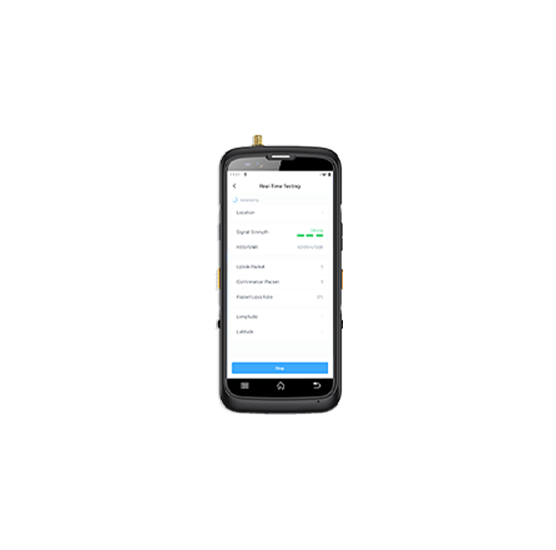

Related Products
Specifications
- SCT01
| Interfaces | |
|---|---|
| Bluetooth | Bluetooth 4.0 (BLE) for Tool Configuration Distance: 1.5 m |
| NFC | Support ISO/IEC 14443A Protocol, Reading Distance: 1-3cm |
| Slide Switch | 1 x Power On/Off Switch |
| Button | 7 x Buttons for Sensor Power On/Off, Configuration, Upgrade, etc. |
| LED Indicator | 3 x Power, 3 x Configuration Status, 6 x Button Status |
| Buzzer | Support to indicate configuration status |
| USB | 1 x USB 2.0 Type-C Port for: Sensor Configuration Tool Power & Charge Sensor Power |
| Physical Characteristics | |
| Memory | 16 MB, support to store 50 configuration files and 1 firmware file |
| Power Supply | 1. Built-in 2000 mAh Chargeable Battery 2. 5V by USB Type-C |
| Battery Life* (25°C) | Around 6 Hours (Standby Mode: Around 1 Month) |
| Operating Temperature | -20°C - 60°C |
| Relative Humidity | 0-95% (Non-condensing) |
| Ingress Protection | IP30 |
| Color & Material | White, Plastic (HB Flame-retardant) |
| Dimension | 160 × 60 × 26.5 mm (6.3 × 2.36 × 1.04 in) |
| Weight | 141 g |
* Tested under laboratory conditions and for guideline purposes only.
