H.265+ AF Motorized Mini Dome Network Camera

Redefine the MINI with AF Lens

2/5 MP · 3X Optical Zoom · 140dB WDR · 0.002Lux Ultra Low-light · IP67 · IK10 · Smart IR II · 35m IR Distance · PoE

PoE H265+ ONVIF G&Q&S&T SD Card Smart IR II Weather-
Proof
Vandal-
Proof
Built-in Microphone Starlight Super WDR Privacy Mask 3-Axis VCA

Leading-edge H.265+Compression

H.265+

Video Content Analysis (VCA)

Milesight VCA with 10 detection modes provides advanced, accurate smart video analysis for Milesight network cameras, enabling the comprehensive surveillance function and quicker response to different monitoring scenes.

VCA, IVA, IVS

IP67 & IK10

Sharply contrasting to the mini size, the AF Motorized Mini Dome Network Camera features the industry leading IP67-rated weather proofing and IK10-rated vandal proofing, which allow to protect the camera against adverse impacts to ensure the robust performance.

IP67, IK10, AF Motorized Mini Dome Camera

3X Optical Zoom

The 3X Optical Zoom can zoom in to distant subjects while still maintaining the clarity, delivering high quality video over the entire image.

3X Optical Zoom, AF Motorized Mini Dome Camera

0.002Lux Ultra Low Light

The AF Motorized Mini Dome Network Camera is able to deliver high detailed color images even in the low light environments reaching 0.002Lux (Color) or 0Lux (B/W), and near infrared light environments without any supplementary lighting.

Ultra Low-light

140dB Super WDR

Milesight’s sensor-based WDR technology allows the AF Motorized Mini Dome Network Camera to record greater scene details with true color reproduction even under the extreme back light and high contrast conditions. The ratio that the brightest light signal values divided by the darkest light signal values is up to 140dB.

Super WDR

Smart IR II Technology

To maximize the IR performance, the AF Motorized Mini Dome Network Camera innovated both in the structure and technology. The advanced Smart IR II technology guarantees superb IR performance with the combination of one High Beam and two Low Beams and adjustable illumination intensity. The infrared light transmittance is greatly increased with IR anti-reflection panel which is well designed for better IR effect.

IR of AF Motorized Mini Dome Camera

3-Axis Mechanical Design

The AF Motorized Mini Dome Network Camera features 3-axis mechanical design for fast and easy adjustment of the camera’s viewing angle, allowing you to position the camera precisely.

3-Axis Design

Advanced Built-in Microphone

With the built-in microphone which adopts the advanced codec, the AF Motorized Mini Dome Network Camera is able to provide clearer voice. It is worth mentioning that Milesight uses PTFE Membrane to safeguard the built-in microphone, ensuring IP67-rated weather proof capability for reliable performance.

Microphone, AF Motorized Mini Dome Camera

Integrated Junction Box

The well-designed Integrated Junction Box especially the Clamshell structure, ensures efficient and simple installations. It enlarges the space to make cable connection neat and as easy as a piece of cake. With the help of the rubber plugs and rubber ring which guarantee IP67-rated weather-proof capability, the Junction box is able to offer stable operation in any tough conditions.

Integrated Junction Box, AF Motorized Mini Dome Camera

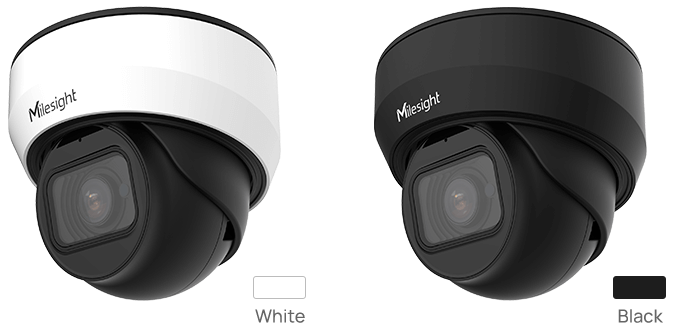

Two Colors Available

Available in White and Black, the H.265+ AF Motorized Mini Dome Network Camera provides more choices for your preference.

AF Motorized Mini Dome Camera

SIP/VoIP Support

Milesight H.265+ AF Motorized Mini Dome Network Camera features industry leading SIP/VoIP function and video streaming for mobile phones and video phones.

AF Motorized Mini Dome Camera, SIP, VoIP
  • MS-C2975-EPB
  • MS-C5375-EPB
Camera Name 2MP H.265 AF Motorized Mini Dome Network Camera
Image Sensor 1/2.8" Progressive Scan CMOS
Min. Illumination Color: 0.002Lux @F1.2, Color: 0.005Lux @F1.8, B/W: 0Lux with IR on
WDR 140dB Super WDR
Shutter Time 1/100000s∼1s
Day/Night Mode Day/Night/Auto/Customize/Schedule
IR Distance Up to 35m
S/N >55dB
Lens Lens 2.8∼8.4mm, 3X Optical Zoom
Field of View H111°∼H48°/D130°∼D55°/V60°∼V27°
Focus Control Auto/Manual
Minimum Working Distance 200∼500mm(Wide-Tele)
Aperture F1.8∼F2.7
Iris Control Auto
Video Max. Image Resolution 1920x1080
Frame Rate 30fps@(1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream 30fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180)
Tertiary Stream 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180)
Video Compression H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate 16Kbps∼16Mbps (CBR/VBR adjustable)
Privacy Masking Up to 8 areas
ROI Up to 8 areas
Image Settings Saturation/Brightness/Contrast/Sharpness
Web Access Support IE/Firefox/Chrome/Safari Browser
Audio Audio Compression G.711/AAC/G.722/G.726
Audio Sampling Rate 8/16/32/44.1/48KHz
Audio Bit Rate 16~256kbps
Two-way Audio N/A
Interface Ethernet 1*RJ45 10M/100M Ethernet Port
Audio Interface Built-in Microphone

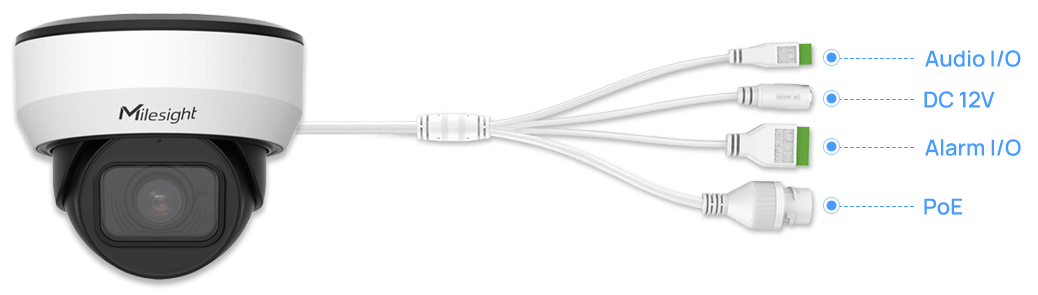

Alarm I/O 1/1(Multi-interface Version)
Network Network Storage NAS(Support NFS, SMB/CIFS), ANR
Network Protocols IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
System Storage Support microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced Function BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP Support Yes, Voice&Video-over-IP
Event Trigger Motion Detection, Network Disconnection, Audio Alarm, etc.; Motion Detection, Network Disconnection, External Input, Audio Alarm, etc.(Multi-interface Version)
Event Action FTP Upload, SMTP Upload, SD Card Record, SIP Phone, HTTP Notification, etc.; FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc.(Multi-interface Version)
Video Analysis Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Human Detection, People Counting, Object Left, Object Removed
System Compatibility ONVIF Profile G & Q & S & T, API
General Working Temperature -40℃∼60℃
Working Humidity 0∼90%(Non-condensing)
Power Supply PoE(802.3af)/DC 12V±10%
Power Consumption 3.6W MAX, 6W MAX (With IR on)
Weather Proof Up to IP67-rated for weather-resistant performance
Housing Vandal-proof IK10-rated metal housing
Dimensions Φ108mmX96.5mm
Weight 620g
Warranty 3/5 Years
Camera Name 5MP H.265 AF Motorized Mini Dome Network Camera
Image Sensor 1/2.8" Progressive Scan CMOS
Min. Illumination Color: 0.005Lux @F1.2, Color: 0.008Lux @F1.8, B/W: 0Lux with IR on
WDR 120dB Super WDR
Shutter Time 1/100000s∼1s
Day/Night Mode Day/Night/Auto/Customize/Schedule
IR Distance Up to 35m
S/N >55dB
Lens Lens 2.8∼8.4mm, 3X Optical Zoom
Field of View H101°∼H42°/D129°∼D53°/V74°∼V31°
Focus Control Auto/Manual
Minimum Working Distance 200∼500mm(Wide-Tele)
Aperture F1.8∼F2.7
Iris Control Auto
Video Max. Image Resolution 2592x1944
Frame Rate 20fps@(2592x1944), 30fps@(2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream 30fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180)
Tertiary Stream 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180)
Video Compression H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate 16Kbps∼16Mbps (CBR/VBR adjustable)
Privacy Masking Up to 8 areas
ROI Up to 8 areas
Image Settings Saturation/Brightness/Contrast/Sharpness
Web Access Support IE/Firefox/Chrome/Safari Browser
Audio Audio Compression G.711/AAC/G.722/G.726
Audio Sampling Rate 8/16KHz
Audio Bit Rate 16~96kbps
Two-way Audio N/A
Interface Ethernet 1*RJ45 10M/100M Ethernet Port
Audio Interface Built-in Microphone
Alarm I/O 1/1(Multi-interface Version)
Network Network Storage NAS(Support NFS, SMB/CIFS), ANR
Network Protocols IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
System Storage Support microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced Function BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP Support Yes, Voice&Video-over-IP
Event Trigger Motion Detection, Network Disconnection, Audio Alarm, etc.; Motion Detection, Network Disconnection, External Input, Audio Alarm, etc.(Multi-interface Version)
Event Action FTP Upload, SMTP Upload, SD Card Record, SIP Phone, HTTP Notification, etc.; FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc.(Multi-interface Version)
Video Analysis Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Human Detection, People Counting, Object Left, Object Removed
System Compatibility ONVIF Profile G & Q & S & T, API
General Working Temperature -40℃∼60℃
Working Humidity 0∼90%(Non-condensing)
Power Supply PoE(802.3af)/DC 12V±10%
Power Consumption 3.6W MAX, 6W MAX (With IR on)
Weather Proof Up to IP67-rated for weather-resistant performance
Housing Vandal-proof IK10-rated metal housing
Dimensions Φ108mmX96.5mm
Weight 620g
Warranty 3/5 Years
  • * Naming Convention
  • R - High Frame Rate (60fps)
  • P - PoE Supported
  • C - AI Series
