AI Motorized Bullet
Network Camera
Smart & Ruggedized Camera for Harsh Environments
Reliable Protection with Milesight Camera
AI Motorized Bullet
- 2/5/8MP
- AI Deep Learning
- 140dB Super WDR
- 0.005Lux Ultra Low-light
- Smart IR II with 50m IR Distance
- Motorized Zoom Lens
- IP67 & IK10
- Versatile Interfaces (Optional)
- FEATURES
- MODELS
- ACCESSORIES
- DOWNLOAD
- Home
- Mini Series
- AI Motorized Bullet Camera
AI Empowers Security
Milesight AI Camera with deep learning AI algorithms can intelligently filter objects to focus on human and vehicle detection, fitting into various situations to help level up the monitoring efficiency and security.
Superior Image Quality
With advanced image processing algorithms and SONY STARVIS sensor, it achieves excellent image performance, even in challenging lighting conditions. Its 0.005Lux Ultra Low-light, 140dB Super WDR, up to 90fps High Frame Rate and up to 4K Video Viewing Experience features make it well-suited for various special circumstances.
Motorized Zoom Lens
Equipped with motorized zoom & focus lens, the camera allows remote control of focal length, iris and focus through a lens controller, which is perfect for long distance surveillance.

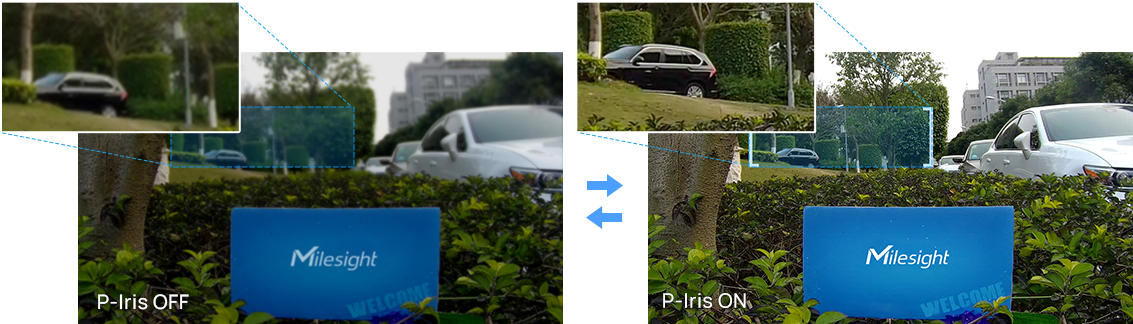

P-Iris Control
Adopting P-Iris control technology, the camera is able to optimize the iris opening under all lighting conditions, offering images with better contrast, clarity, resolution and depth of field.
IP67 & IK10
Equipped with industry-leading IP67-rated weather-proofing and IK10-rated vandal-proofing, the camera is well protected against adverse impacts to ensure the robust performance.

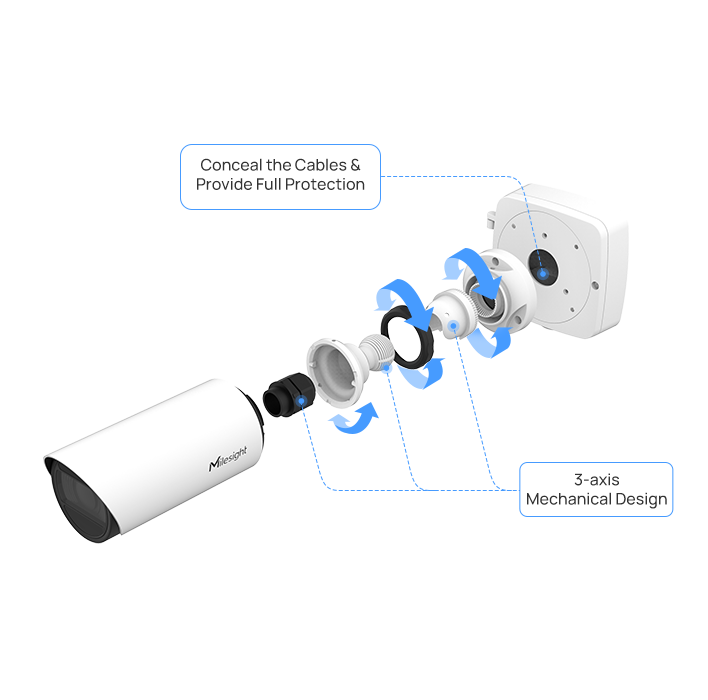

Unique Structure Design
The camera features 3-axis mechanical design for fast and easy adjustment of the viewing angle, allowing to position the camera precisely. Another structural highlight is the mounting bracket, which conceals the cables and provides full protection against any water, dust or shock damage.

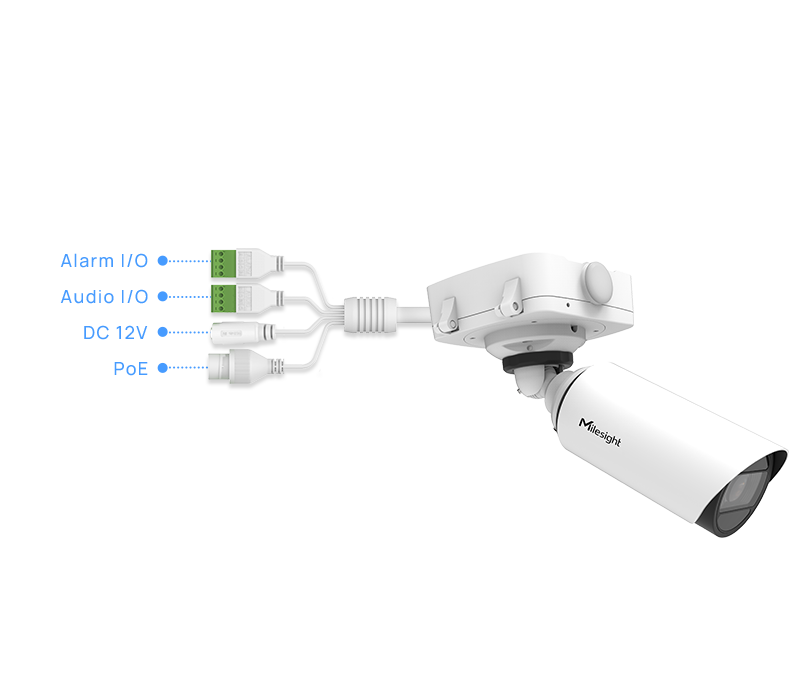

Versatile Interfaces
(Optional)
Several interfaces such as PoE, DC, Audio I/O and Alarm I/O are available in the Multi-interface Version, offering more choices for easy management and various needs.
Integrated Junction Box (Optional)
The creative clamshell design minimizes the installation troubles and enlarges the space to make cable connection a piece of cake.
Success Story
Specifications
NDAA
- MS-C2964-R(T)F(I)PE
- MS-C5364-F(I)PE
- MS-C8164-F(I)PE
- MS-C2964-FPD
- MS-C2964-RF(I)PA
- MS-C5364-F(I)PA
- MS-C8164-F(I)PA
Project Based
- MS-C5364-FPE
Non-NDAA
- MS-C2964-R(T)F(I)PC
- MS-C5364-F(I)PC
- MS-C8164-F(I)PC
| Camera | |
|---|---|
| Name | AI Motorized Bullet Network Camera |
| Image Sensor | 1/2.8″ Progressive Scan CMOS |
| Min. Illumination | Color: 0.005Lux@F1.4 B/W: 0Lux with IR on |
| WDR | 140dB Super WDR |
| Shutter Time | 1/100000s~1s |
| IR Distance | Up to 50m |
| Day/Night Mode | Day/Night/Auto/Customize/Schedule |
| S/N | >55dB |
| Lens | |
| Lens | Motorized 2.7~13.5mm/3.0~10.5mm/7~22mm@F1.4 P-Iris(Optional) |
| Mount | Φ14 |
| Field of View | H111°~H34°/D130°~D39°/V60°~V19°(2.7~13.5mm) H100°~H33°/D115°~D38°/V54°~V18°(3.0~10.5mm) H42°~H17°/D48°~D19°/V24°~V9° (7~22mm) |
| Focus Control | Auto/Manual |
| Iris Control (Optional for I Series) | Auto/Manual |
| Video | |
| Max. Image Resolution | 1920x1080 |
| Primary Stream | 60Hz: 90fps@(1920x1080)(Optional for T Series), 60fps@(1920x1080, 1280x960, 1280x720, 704x576) 50Hz: 90fps@(1920x1080)(Optional for T Series), 50fps@(1920x1080, 1280x960, 1280x720, 704x576) |
| Secondary Stream | 60Hz: 60fps@(704x576, 640x480, 640x360, 352x288, 320x240) 50Hz: 50fps@(704x576, 640x480, 640x360, 352x288, 320x240) |
| Tertiary Stream | 60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 352x288, 320x240) 50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 352x288, 320x240) |
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG |
| Video Bit Rate | 16Kbps~16Mbps(CBR/VBR Adjustable) |
| Privacy Masking | Up to 8 Areas (Mask Area and Mosaic Area are optional) |
| ROI | Up to 8 areas |
| Image Setting | Brightness/Contrast/Saturation/Sharpness |
| Interface | |
| Ethernet | 1*RJ45 10M/100M Ethernet Port |
| Audio I/O | 1/1 (Multi-interface Version) |
| Alarm I/O | 1/1 (Multi-interface Version) |
| Network | |
| Network Storage | NAS(Support NFS, SMB/CIFS), ANR |
| Protocol | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL, TLS 1.2 |
| Audio | |
| Audio Compression | G.711/AAC/G.722/G.726 |
| Audio Sampling Rate | 8/16/32/44.1/48KHz |
| Audio Bit Rate | 16~256kbps |
| Two-way Audio | Support |
| Intelligent Analytics | |
| Video Analysis | Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed |
| Face Detection&Face Attribute Recognition | Detect and capture faces, get real-time snapshots; The attributes include Age, Gender, Glasses, Mask and Cap; Support Faces Privacy Mode,the detected faces in the face detection area will be mosaic automatically |
| Object Counting & Report | Count the number of objects crossing the line, optionally human and vehicle, Support regional people counting for up to 4 detection areas |
| System | |
| Storage | Support microSD/SDHC/SDXC Card Local Storage, up to 1TB |
| Advanced Function | Heat Map, BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark |
| SIP/VoIP Support | Yes, Voice & Video-over-IP |
| Event Trigger | Motion Detection, Network Disconnection, etc. |
| Event Action | FTP Upload, SMTP Upload, SD Card Record, SIP Phone, HTTP Notification, etc. |
| System Compatibility | ONVIF Profile G & M & S & T, API |
| General | |
| Working Temperature | -40℃~60℃ |
| Working Humidity | 0~95%(Non-condensing) |
| Power Supply | PoE (802.3af) / DC 12V±10% |
| Power Consumption | 6W MAX, 10W MAX (With IR on) |
| Weather Proof | Up to IP67-rated for Weather-resistant Performance |
| Housing | Vandal-proof IK10-rated Metal Housing |
| Weight | 825g |
| Dimensions | Φ76mmX239.5mm |
| Warranty | 3/5 Years |
*Naming Convention
R - High Frame Rate (60fps)
T - High Frame Rate (90/100fps)
F - Motorized Vari-focal Lens
I - P-Iris Supported
P - PoE Supported
A/C/D/E - AI Series
| Camera | |
|---|---|
| Name | AI Motorized Bullet Network Camera |
| Image Sensor | 1/2.8″ Progressive Scan CMOS |
| Min. Illumination | Color: 0.008Lux@F1.4 B/W: 0Lux with IR on |
| WDR | 120dB Super WDR |
| Shutter Time | 1/100000s~1s |
| IR Distance | Up to 50m |
| Day/Night Mode | Day/Night/Auto/Customize/Schedule |
| S/N | >55dB |
| Lens | |
| Lens | Motorized 2.7~13.5mm/3.0~10.5mm/7~22mm@F1.4 P-Iris(Optional) |
| Mount | Φ14 |
| Field of View | H99°~H31°/ D124°~D38°/V72°~V23° (2.7~13.5mm) H89°~H31°/D111°~D38°/V66°~V23° (3.0~10.5mm) H37°~H15°/D46°~D19°/V28°~V11° (7~22mm) |
| Focus Control | Auto/Manual |
| Iris Control (Optional for I Series) | Auto/Manual |
| Video | |
| Max. Image Resolution | 2592x1944 |
| Primary Stream | 60Hz: 30fps@(2592x1944, 2592x1520), 45fps@(2048x1536), 60fps@(1920x1080, 1280x960, 1280x720) 50Hz: 25fps@(2592x1944, 2592x1520), 45fps@(2048x1536), 50fps@(1920x1080, 1280x960, 1280x720) |
| Secondary Stream | 60Hz: 30fps@(704x576, 640x480, 640x360, 352x288, 320x240) 50Hz: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240) |
| Tertiary Stream | 60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 352x288, 320x240) 50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 352x288, 320x240) |
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG |
| Video Bit Rate | 16Kbps~16Mbps(CBR/VBR Adjustable) |
| Privacy Masking | Up to 8 Areas (Mask Area and Mosaic Area are optional) |
| ROI | Up to 8 areas |
| Image Setting | Brightness/Contrast/Saturation/Sharpness |
| Interface | |
| Ethernet | 1*RJ45 10M/100M Ethernet Port |
| Audio I/O | 1/1 (Multi-interface Version) |
| Alarm I/O | 1/1 (Multi-interface Version) |
| Network | |
| Network Storage | NAS(Support NFS, SMB/CIFS), ANR |
| Protocol | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL, TLS 1.2 |
| Audio | |
| Audio Compression | G.711/AAC/G.722/G.726 |
| Audio Sampling Rate | 8/16/32/44.1/48KHz |
| Audio Bit Rate | 16~256kbps |
| Two-way Audio | Support |
| Intelligent Analytics | |
| Video Analysis | Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed |
| Face Detection&Face Attribute Recognition | Detect and capture faces, get real-time snapshots; The attributes include Age, Gender, Glasses, Mask and Cap; Support Faces Privacy Mode,the detected faces in the face detection area will be mosaic automatically |
| Object Counting & Report | Count the number of objects crossing the line, optionally human and vehicle, Support regional people counting for up to 4 detection areas |
| System | |
| Storage | Support microSD/SDHC/SDXC Card Local Storage, up to 1TB |
| Advanced Function | Heat Map, BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark |
| SIP/VoIP Support | Yes, Voice & Video-over-IP |
| Event Trigger | Motion Detection, Network Disconnection, etc. |
| Event Action | FTP Upload, SMTP Upload, SD Card Record, SIP Phone, HTTP Notification, etc. |
| System Compatibility | ONVIF Profile G & M & S & T, API |
| General | |
| Working Temperature | -40℃~60℃ |
| Working Humidity | 0~95%(Non-condensing) |
| Power Supply | PoE (802.3af) / DC 12V±10% |
| Power Consumption | 6W MAX 9W MAX (With IR on) |
| Weather Proof | Up to IP67-rated for Weather-resistant Performance |
| Housing | Vandal-proof IK10-rated Metal Housing |
| Weight | 825g |
| Dimensions | Φ76mmX239.5mm |
| Warranty | 3/5 Years |
*Naming Convention
R - High Frame Rate (60fps)
T - High Frame Rate (90/100fps)
F - Motorized Vari-focal Lens
I - P-Iris Supported
P - PoE Supported
A/C/D/E - AI Series
| Camera | |
|---|---|
| Name | AI Motorized Bullet Network Camera |
| Image Sensor | 1/2.8″ Progressive Scan CMOS |
| Camera | Min. Illumination |
| WDR | 120dB Super WDR |
| Shutter Time | 1/100000s~1s |
| IR Distance | Up to 50m |
| Day/Night Mode | Day/Night/Auto/Customize/Schedule |
| S/N | >55dB |
| Lens | |
| Lens | |
| Field of View | H99°~H31°/ D124°~D38°/V72°~V23° (2.7~13.5mm) H89°~H31°/D111°~D38°/V66°~V23° (3.0~10.5mm) H37°~H15°/D46°~D19°/V28°~V11° (7~22mm) |
| Mount | Φ14 |
| Focus Control | Auto/Manual |
| Iris Control | Auto/Manual |
| (Optional for I Series) | Auto/Manual |
| Video | |
| Max. Image Resolution | 2592x1944 |
| Primary Stream | 60Hz: 30fps@(2592x1944, 2592x1520), 45fps@(2048x1536), 60fps@(1920x1080, 1280x960, 1280x720) 50Hz: 25fps@(2592x1944, 2592x1520), 45fps@(2048x1536), 50fps@(1920x1080, 1280x960, 1280x720) |
| Secondary Stream | 60Hz: 30fps@(704x576, 640x480, 640x360, 352x288, 320x240) 50Hz: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240) |
| Tertiary Stream | 60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 352x288, 320x240) 50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 352x288, 320x240) |
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG |
| Video Bit Rate | 16Kbps~16Mbps(CBR/VBR Adjustable) |
| Privacy Masking | Up to 8 Areas (Mask Area and Mosaic Area are optional) |
| ROI | Up to 8 areas |
| Image Setting | Brightness/Contrast/Saturation/Sharpness |
| Interface | |
| Ethernet | 1*RJ45 10M/100M Ethernet Port |
| Audio I/O | 1/1 (Multi-interface Version) |
| Alarm I/O | 1/1 (Multi-interface Version) |
| Network | |
| Network Storage | NAS(Support NFS, SMB/CIFS) |
| Protocol | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL,TLS 1.2 |
| Audio | |
| Audio Compression | G.711/AAC/G.722/G.726 |
| Audio Sampling Rate | 8/16/32/44.1/48KHz |
| Audio Bit Rate | 16~256kbps |
| Intelligent | |
| Video Analysis | Intrusion Detection, Region Entrance, Region Exiting, Advanced Motion Detection, |
| Analytics | |
| Video Analysis | Line Crossing, Loitering, Object Left, Object Removed |
| Face Detection&Face Attribute Recognition | Detect and capture faces, get real-time snapshots; The attributes include Age, Gender, Glasses, Mask and Cap; Support Faces Privacy Mode, the detected faces in the face detection area will be mosaic automatically. |
| Object Counting & Report | Count the number of objects crossing the line, optionally human and vehicle, Support regional people counting for up to 4 detection areas |
| System | |
| Storage | Support Micro SD/SDHC/SDXC Card Local Storage, up to 1TB |
| Advanced Function | Heat Map, BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark |
| SIP/VoIP Support | Yes, Voice & Video-over-IP |
| Event Trigger | Motion Detection, Tamper Detection, Network Disconnection, etc. |
| Event Action | FTP Upload, SMTP Upload, SD Card Record, SIP Phone, HTTP Notification, etc. |
| System Compatibility | ONVIF Profile G & M & S & T, API |
| General | |
| Working Temperature | -40℃~60℃ |
| Working Humidity | 10%~95%(Non-condensing) |
| Power Supply | PoE (802.3af) / DC 12V±10% |
| Power Consumption | Min.: 3.1W (DC 12V), 4W(PoE), Max.: 9.7W (DC 12V), 11.1W(PoE) |
| Weight | 825g |
| Dimensions | Φ76mmX239.5mm |
| Warranty | 3/5 Years |
| Certifications | |
| EMC | CE-EMC (EN 55032, EN 55035), FCC (PART 15B) |
| Safety | CE-LVD (EN IEC 62368-1) |
| Environment | CE-ROHS (Directive (EU) 2015/863 amending 2011/65/EU) |
| Protection | IP67, IK10 |
*Naming Convention
R - High Frame Rate (60fps)
T - High Frame Rate (90/100fps)
F - Motorized Vari-focal Lens
I - P-Iris Supported
P - PoE Supported
A/C/D/E - AI Series
| Camera | |
|---|---|
| Name | AI Motorized Bullet Network Camera |
| Image Sensor | 1/2.8″ Progressive Scan CMOS |
| Min. Illumination | Color: 0.012Lux@F1.4 B/W: 0Lux with IR on |
| WDR | 120dB Super WDR |
| Shutter Time | 1/100000s~1s |
| IR Distance | Up to 50m |
| Day/Night Mode | Day/Night/Auto/Customize/Schedule |
| S/N | >55dB |
| Lens | |
| Lens | Motorized 2.7~13.5mm/3.0~10.5mm/7~22mm@F1.4 P-Iris(Optional) |
| Mount | Φ14 |
| Field of View | H99°~H31°/ D124°~D38°/V72°~V23° (2.7~13.5mm) H89°~H31°/D111°~D38°/V66°~V23° (3.0~10.5mm) H37°~H15°/D46°~D19°/V28°~V11° (7~22mm) |
| Focus Control | Auto/Manual |
| Iris Control (Optional for I Series) | Auto/Manual |
| Video | |
| Max. Image Resolution | 3840x2160 |
| Primary Stream | 60Hz: 30fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576) 50Hz: 25fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576) |
| Secondary Stream | 60Hz: 30fps@(704x576, 640x480, 640x360, 352x288, 320x240) 50Hz: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240) |
| Tertiary Stream | 60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 352x288, 320x240) 50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 352x288, 320x240) |
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG |
| Video Bit Rate | 16Kbps~16Mbps(CBR/VBR Adjustable) |
| Privacy Masking | Up to 8 Areas (Mask Area and Mosaic Area are optional) |
| ROI | Up to 8 areas |
| Image Setting | Brightness/Contrast/Saturation/Sharpness |
| Interface | |
| Ethernet | 1*RJ45 10M/100M Ethernet Port |
| Audio I/O | 1/1 (Multi-interface Version) |
| Alarm I/O | 1/1 (Multi-interface Version) |
| Network | |
| Network Storage | NAS(Support NFS, SMB/CIFS), ANR |
| Protocol | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL, TLS 1.2 |
| Audio | |
| Audio Compression | G.711/AAC/G.722/G.726 |
| Audio Sampling Rate | 8/16/32/44.1/48KHz |
| Audio Bit Rate | 16~256kbps |
| Two-way Audio | Support |
| Intelligent Analytics | |
| Video Analysis | Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed |
| Face Detection&Face Attribute Recognition | Detect and capture faces, get real-time snapshots; The attributes include Age, Gender, Glasses, Mask and Cap; Support Faces Privacy Mode,the detected faces in the face detection area will be mosaic automatically |
| Object Counting & Report | Count the number of objects crossing the line, optionally human and vehicle, Support regional people counting for up to 4 detection areas |
| System | |
| Storage | Support microSD/SDHC/SDXC Card Local Storage, up to 1TB |
| Advanced Function | Heat Map, BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark |
| SIP/VoIP Support | Yes, Voice & Video-over-IP |
| Event Trigger | Motion Detection, Network Disconnection, etc. |
| Event Action | FTP Upload, SMTP Upload, SD Card Record, SIP Phone, HTTP Notification, etc. |
| System Compatibility | ONVIF Profile G & M & S & T, API |
| General | |
| Working Temperature | -40℃~60℃ |
| Working Humidity | 0~95%(Non-condensing) |
| Power Supply | PoE (802.3af) / DC 12V±10% |
| Power Consumption | 6W MAX 9W MAX (With IR on) |
| Weather Proof | Up to IP67-rated for Weather-resistant Performance |
| Housing | Vandal-proof IK10-rated Metal Housing |
| Weight | 825g |
| Dimensions | Φ76mmX239.5mm |
| Warranty | 3/5 Years |
*Naming Convention
R - High Frame Rate (60fps)
T - High Frame Rate (90/100fps)
F - Motorized Vari-focal Lens
I - P-Iris Supported
P - PoE Supported
A/C/D/E - AI Series
| Camera | |
|---|---|
| Name | 2MP NDAA AI Motorized Bullet Network Camera |
| Image Sensor | 1/2.8" Progressive Scan CMOS |
| Min. Illumination | Color: 0.005Lux @F1.4, B/W: 0Lux with IR on |
| WDR | 120dB Super WDR |
| Shutter Time | 1/100000s∼1s |
| Day/Night Mode | Day/Night/Auto/Customize/Schedule |
| IR Distance | Up to 50m |
| S/N | >55dB |
| Lens | |
| Lens | Motorized 2.7∼13.5mm/7∼22mm @F1.4 |
| Field of View | H111°∼H34°/D130°∼D39°/V60°∼V19°(2.7∼13.5mm), H42°∼H17°/D48°∼D19°/V24°∼V9°(7∼22mm) |
| Mount | Φ14 |
| Focus Control | Auto/Manual |
| Video | |
| Max. Image Resolution | 1920x1080 |
| Primary Stream | 60Hz: 30fps@(1920x1080, 1280x960, 1280x720, 704x576) 50Hz: 25fps@(1920x1080, 1280x960, 1280x720, 704x576) |
| Secondary Stream | 60Hz: 30fps@(704x576, 640x480, 640x360, 352x288) 50Hz:25fps@(704x576, 640x480, 640x360, 352x288) |
| Tertiary Stream | 60Hz: 30fps@(1280x720, 704x576, 640x480, 640x360, 352x288) 50Hz: 25fps@(1280x720, 704x576, 640x480, 640x360, 352x288) |
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG |
| Video Bit Rate | 16Kbps∼16Mbps (CBR/VBR adjustable) |
| Privacy Masking | Up to 4 areas |
| ROI | Up to 8 areas |
| Image Settings | Saturation/Brightness/Contrast/Sharpness |
| Interface | |
| Ethernet | 1*RJ45 10M/100M Ethernet Port |
| Network | |
| Network Storage | NAS(Support NFS, SMB/CIFS), ANR |
| Network Protocols | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL, TLS 1.2 |
| Intelligent Analytics | |
| Video Analysis | Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed |
| People Counting &Report | Count the number of people entering or exiting |
| System | |
| Storage | Support microSD/SDHC/SDXC Card Local Storage, up to 1TB |
| Advanced Function | BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur |
| SIP/VoIP Support | Yes, Voice&Video-over-IP |
| Event Trigger | Motion Detection, Network Disconnection, etc. |
| Event Action | FTP Upload, SMTP Upload, SD Card Record, SIP Phone, HTTP Notification, etc. |
| System Compatibility | ONVIF Profile G & Q & S & T, API |
| General | |
| Working Temperature | -40℃∼60℃ |
| Working Humidity | 0∼90%(Non-condensing) |
| Power Supply | PoE(802.3af)/DC 12V±10% |
| Power Consumption | 3W MAX, 7W MAX (With IR on) |
| Housing | Up to IP67-rated for weather-resistant performance/ Vandal-proof IK10-rated metal housing |
| Weight | 825g |
| Dimensions | Φ76mmX239.5mm |
| Warranty | 3/5 Years |
*Naming Convention
R - High Frame Rate (60fps)
T - High Frame Rate (90/100fps)
F - Motorized Vari-focal Lens
I - P-Iris Supported
P - PoE Supported
A/C/D/E - AI Series
| Camera | |
|---|---|
| Name | 2MP AI Motorized Bullet Network Camera |
| Image Sensor | 1/2.8" Progressive Scan CMOS |
| Min. Illumination | Color: 0.005Lux @F1.4 B/W: 0Lux with IR on |
| WDR | 120dB Super WDR |
| Shutter Time | 1/100000s∼1s |
| Day/Night Mode | Day/Night/Auto/Customize/Schedule |
| IR Distance | Up to 50m |
| S/N | >55dB |
| Lens | |
| Lens | Motorized 2.7∼13.5mm/3.0∼10.5mm/7∼22mm @F1.4, P-Iris(Optional) |
| Field of View | H111°∼H34°/D130°∼D39°/V60°∼V19°(2.7∼13.5mm) H100°∼H33°/D115°∼D38°/V54°∼V18°(3∼10.5mm) H42°∼H17°/D48°∼D19°/V24°∼V9°(7∼22mm) |
| Mount | Φ14 |
| Focus Control | Auto/Manual |
| Iris Control(Optional for I Series) | Auto/Manual |
| Video | |
| Max. Image Resolution | 1920x1080 |
| Primary Stream | 60Hz: 60fps@(1920x1080, 1280x960, 1280x720, 704x576) 50Hz: 50fps@(1920x1080, 1280x960, 1280x720, 704x576) |
| Secondary Stream | 60Hz: 60fps@(704x576, 640x480, 640x360, 352x288, 320x240) 50Hz: 50fps@(704x576, 640x480, 640x360, 352x288, 320x240) |
| Tertiary Stream | 60Hz: 30fps@(1280x720, 704x576, 640x480, 640x360, 352x288, 320x240) 50Hz: 25fps@(1280x720, 704x576, 640x480, 640x360, 352x288, 320x240) |
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG |
| Video Bit Rate | 16Kbps∼16Mbps (CBR/VBR adjustable) |
| Privacy Masking | Up to 24 areas |
| ROI | Up to 8 areas |
| Image Settings | Saturation/Brightness/Contrast/Sharpness |
| Interface | |
| Ethernet | 1*RJ45 10M/100M Ethernet Port |
| Audio I/O | 1/1 (Multi-interface Version) |
| Alarm I/O | 1/1 (Multi-interface Version) |
| Network | |
| Network Storage | NAS(Support NFS, SMB/CIFS), ANR |
| Network Protocols | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL |
| Audio | |
| Audio Compression | G.711/AAC/G.722/G.726 |
| Audio Sampling Rate | 8/16/32/44.1/48KHz |
| Audio Bit Rate | 16~256kbps |
| Two-way Audio | Support |
| Intelligent Analytics | |
| Video Analysis | Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed |
| People Counting& Report | Count the number of people entering or exiting, up to 4 detection areas for regional people counting |
| System | |
| Storage | Support microSD/SDHC/SDXC Card Local Storage, up to 256G |
| Advanced Function | Heat Map, BLC, HLC, 2D DNR, 3D DNR, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark |
| SIP/VoIP Support | Yes, Voice&Video-over-IP |
| Event Trigger | Motion Detection, Network Disconnection, etc. |
| Event Action | FTP Upload, SMTP Upload, SD Card Record, SIP Phone, HTTP Notification, etc. |
| System Compatibility | ONVIF Profile G & Q & S & T, API |
| General | |
| Working Temperature | -40℃∼60℃ |
| Working Humidity | 0∼90%(Non-condensing) |
| Power Supply | PoE(802.3af)/DC 12V±10% |
| Power Consumption | 8W MAX, 10W MAX (With IR on) |
| Housing | Up to IP67-rated for weather-resistant performance/ Vandal-proof IK10-rated metal housing |
| Weight | 825g |
| Dimensions | Φ76mmX239.5mm |
| Warranty | 3/5 Years |
*Naming Convention
R - High Frame Rate (60fps)
T - High Frame Rate (90/100fps)
F - Motorized Vari-focal Lens
I - P-Iris Supported
P - PoE Supported
A/C/D/E - AI Series
| Camera | |
|---|---|
| Name | 5MP AI Motorized Bullet Network Camera |
| Image Sensor | 1/2.8" Progressive Scan CMOS |
| Min. Illumination | Color: 0.008Lux @F1.4 B/W: 0Lux with IR on |
| WDR | 120dB Super WDR |
| Shutter Time | 1/100000s∼1s |
| Day/Night Mode | Day/Night/Auto/Customize/Schedule |
| IR Distance | Up to 50m |
| S/N | >55dB |
| Lens | |
| Lens | Motorized 2.7∼13.5mm/3.0∼10.5mm/7∼22mm @F1.4, P-Iris(Optional) |
| Field of View | H99°∼H31°/D124°∼D38°/V72°∼V23°(2.7∼13.5mm) H89°∼H31°/D111°∼D38°/V66°∼V23°(3∼10.5mm) H37°∼H15°/D46°∼D19°/V28°∼V11°(7∼22mm) |
| Mount | Φ14 |
| Focus Control | Auto/Manual |
| Iris Control(Optional for I Series) | Auto/Manual |
| Video | |
| Max. Image Resolution | 2592x1944 |
| Primary Stream | 60Hz: 30fps@(2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576) 50Hz: 25fps@(2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576) |
| Secondary Stream | 60Hz: 30fps@(704x576, 640x480, 640x360, 352x288, 320x240) 50Hz: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240) |
| Tertiary Stream | 60Hz: 30fps@(1280x720, 704x576, 640x480, 640x360, 352x288, 320x240) 50Hz: 25fps@(1280x720, 704x576, 640x480, 640x360, 352x288, 320x240) |
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG |
| Video Bit Rate | 16Kbps∼16Mbps (CBR/VBR adjustable) |
| Privacy Masking | Up to 24 areas |
| ROI | Up to 8 areas |
| Image Settings | Saturation/Brightness/Contrast/Sharpness |
| Interface | |
| Ethernet | 1*RJ45 10M/100M Ethernet Port |
| Audio I/O | 1/1 (Multi-interface Version) |
| Alarm I/O | 1/1 (Multi-interface Version) |
| Network | |
| Network Storage | NAS(Support NFS, SMB/CIFS), ANR |
| Network Protocols | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL |
| Intelligent Analytics | |
| Video Analysis | Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed |
| People Counting& Report | Count the number of people entering or exiting, up to 4 detection areas for regional people counting |
| Audio | |
| Audio Compression | G.711/AAC/G.722/G.726 |
| Audio Sampling Rate | 8/16/32/44.1/48KHz |
| Audio Bit Rate | 16~256kbps |
| Two-way Audio | Support |
| System | |
| Storage | Support microSD/SDHC/SDXC Card Local Storage, up to 256G |
| Advanced Function | Heat Map, BLC, HLC, 2D DNR, 3D DNR, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark |
| SIP/VoIP Support | Yes, Voice&Video-over-IP |
| Event Trigger | Motion Detection, Network Disconnection, etc. |
| Event Action | FTP Upload, SMTP Upload, SD Card Record, SIP Phone, HTTP Notification, etc. |
| System Compatibility | ONVIF Profile G & Q & S & T, API |
| General | |
| Working Temperature | -40℃∼60℃ |
| Working Humidity | 0∼90%(Non-condensing) |
| Power Supply | PoE(802.3af)/DC 12V±10% |
| Power Consumption | 8.5W MAX, 11W MAX (With IR on) |
| Housing | Up to IP67-rated for weather-resistant performance/ Vandal-proof IK10-rated metal housing |
| Weight | 825g |
| Dimensions | Φ76mmX239.5mm |
| Warranty | 3/5 Years |
*Naming Convention
R - High Frame Rate (60fps)
T - High Frame Rate (90/100fps)
F - Motorized Vari-focal Lens
I - P-Iris Supported
P - PoE Supported
A/C/D/E - AI Series
| Camera | |
|---|---|
| Name | 4K AI Motorized Bullet Network Camera |
| Image Sensor | 1/2.8" Progressive Scan CMOS |
| Min. Illumination | Color: 0.012Lux @F1.4 B/W: 0Lux with IR on |
| WDR | 120dB Super WDR |
| Shutter Time | 1/100000s∼1s |
| Day/Night Mode | Day/Night/Auto/Customize/Schedule |
| IR Distance | Up to 50m |
| S/N | >55dB |
| Lens | |
| Lens | Motorized 2.7∼13.5mm @F1.4, P-Iris(Optional) |
| Field of View | H107°∼H33°/D125°∼D37°/V58°∼V18° |
| Mount | Φ14 |
| Focus Control | Auto/Manual |
| Iris Control(Optional for I Series) | Auto/Manual |
| Video | |
| Max. Image Resolution | 3840x2160 |
| Primary Stream | 60Hz: 30fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576) 50Hz: 25fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576) |
| Secondary Stream | 60Hz: 30fps@(704x576, 640x480, 640x360, 352x288, 320x240) 50Hz: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240) |
| Tertiary Stream | 60Hz: 30fps@(1280x720, 704x576, 640x480, 640x360, 352x288, 320x240) 50Hz: 25fps@(1280x720, 704x576, 640x480, 640x360, 352x288, 320x240) |
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG |
| Video Bit Rate | 16Kbps∼16Mbps (CBR/VBR adjustable) |
| Privacy Masking | Up to 24 areas |
| ROI | Up to 8 areas |
| Image Settings | Saturation/Brightness/Contrast/Sharpness |
| Interface | |
| Ethernet | 1*RJ45 10M/100M Ethernet Port |
| Audio I/O | 1/1 (Multi-interface Version) |
| Alarm I/O | 1/1 (Multi-interface Version) |
| Network | |
| Network Storage | NAS(Support NFS, SMB/CIFS), ANR |
| Network Protocols | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL |
| Audio | |
| Audio Compression | G.711/AAC/G.722/G.726 |
| Audio Sampling Rate | 8/16/32/44.1/48KHz |
| Audio Bit Rate | 16~256kbps |
| Two-way Audio | Support |
| Intelligent Analytics | |
| Video Analysis | Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed |
| People Counting& Report | Count the number of people entering or exiting, up to 4 detection areas for regional people counting |
| System | |
| Storage | Support microSD/SDHC/SDXC Card Local Storage, up to 256G |
| Advanced Function | Heat Map, BLC, HLC, 2D DNR, 3D DNR, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark |
| SIP/VoIP Support | Yes, Voice&Video-over-IP |
| Event Trigger | Motion Detection, Network Disconnection, etc. |
| Event Action | FTP Upload, SMTP Upload, SD Card Record, SIP Phone, HTTP Notification, etc. |
| System Compatibility | ONVIF Profile G & Q & S & T, API |
| General | |
| Working Temperature | -40℃∼60℃ |
| Working Humidity | 0∼90%(Non-condensing) |
| Power Supply | PoE(802.3af)/DC 12V±10% |
| Power Consumption | 9W MAX, 11W MAX (With IR on) |
| Housing | Up to IP67-rated for weather-resistant performance/ Vandal-proof IK10-rated metal housing |
| Weight | 825g |
| Dimensions | Φ76mmX239.5mm |
| Warranty | 3/5 Years |
*Naming Convention
R - High Frame Rate (60fps)
T - High Frame Rate (90/100fps)
F - Motorized Vari-focal Lens
I - P-Iris Supported
P - PoE Supported
A/C/D/E - AI Series
| Camera | |
|---|---|
| Name | 2MP AI Motorized Bullet Network Camera |
| Image Sensor | 1/2.8" Progressive Scan CMOS |
| Min. Illumination | Color: 0.005Lux @F1.4 B/W: 0Lux with IR on |
| WDR | 140dB Super WDR (Super WDR Pro is optional for T Series) |
| Shutter Time | 1/100000s∼1s |
| Day/Night Mode | Day/Night/Auto/Customize/Schedule |
| IR Distance | Up to 50m |
| S/N | >55dB |
| Lens | |
| Lens | Motorized 2.7∼13.5mm/3.0∼10.5mm/7∼22mm @F1.4, P-Iris(Optional) |
| Field of View | H111°∼H34°/D130°∼D39°/V60°∼V19°(2.7∼13.5mm) H100°∼H33°/D115°∼D38°/V54°∼V18°(3∼10.5mm) H42°∼H17°/D48°∼D19°/V24°∼V9°(7∼22mm) |
| Mount | Φ14 |
| Focus Control | Auto/Manual |
| Iris Control(Optional for I Series) | Auto/Manual |
| Video | |
| Max. Image Resolution | 1920x1080 |
| Primary Stream | 60Hz: 100fps@(1920x1080)(Optional for T Series), 60fps@(1920x1080, 1280x960, 1280x720, 704x576) 50Hz: 100fps@(1920x1080)(Optional for T Series), 50fps@(1920x1080, 1280x960, 1280x720, 704x576) |
| Secondary Stream | 60Hz: 60fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180) 50Hz: 50fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180) |
| Tertiary Stream | 60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180) 50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180) |
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG |
| Video Bit Rate | 16Kbps∼16Mbps (CBR/VBR adjustable) |
| Privacy Masking | Up to 28 areas(24 mask areas and 4 mosaic areas) |
| ROI | Up to 8 areas |
| Image Settings | Saturation/Brightness/Contrast/Sharpness |
| Interface | |
| Ethernet | 1*RJ45 10M/100M Ethernet Port |
| Audio I/O | 1/1 (Multi-interface Version) |
| Alarm I/O | 1/1 (Multi-interface Version) |
| Network | |
| Network Storage | NAS(Support NFS, SMB/CIFS), ANR |
| Network Protocols | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL |
| Audio | |
| Audio Compression | G.711/AAC/G.722/G.726 |
| Audio Sampling Rate | 8/16/32/44.1/48KHz |
| Audio Bit Rate | 16~256kbps |
| Two-way Audio | Support |
| Intelligent Analytics | |
| Video Analysis | Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed |
| Face Detection | Detect and capture faces, get real-time snapshots |
| People Counting& Report | Count the number of people entering or exiting, up to 4 detection areas for regional people counting |
| System | |
| Storage | Support microSD/SDHC/SDXC Card Local Storage, up to 256G |
| Advanced Function | Heat Map, BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark |
| SIP/VoIP Support | Yes, Voice&Video-over-IP |
| Event Trigger | Motion Detection, Network Disconnection, etc. |
| Event Action | FTP Upload, SMTP Upload, SD Card Record, SIP Phone, HTTP Notification, etc. |
| System Compatibility | ONVIF Profile G & Q & S & T, API |
| General | |
| Working Temperature | -40℃∼60℃ |
| Working Humidity | 0∼90%(Non-condensing) |
| Power Supply | PoE(802.3af)/DC 12V±10% |
| Power Consumption | 7W MAX, 9W MAX (With IR on) |
| Housing | Up to IP67-rated for weather-resistant performance/ Vandal-proof IK10-rated metal housing |
| Weight | 825g |
| Dimensions | Φ76mmX239.5mm |
| Warranty | 3/5 Years |
*Naming Convention
R - High Frame Rate (60fps)
T - High Frame Rate (90/100fps)
F - Motorized Vari-focal Lens
I - P-Iris Supported
P - PoE Supported
A/C/D/E - AI Series
| Camera | |
|---|---|
| Name | 5MP AI Motorized Bullet Network Camera |
| Image Sensor | 1/2.8" Progressive Scan CMOS |
| Min. Illumination | Color: 0.008Lux @F1.4 B/W: 0Lux with IR on |
| WDR | 120dB Super WDR |
| Shutter Time | 1/100000s∼1s |
| Day/Night Mode | Day/Night/Auto/Customize/Schedule |
| IR Distance | Up to 50m |
| S/N | >55dB |
| Lens | |
| Lens | Motorized 2.7∼13.5mm/3.0∼10.5mm/7∼22mm @F1.4, P-Iris(Optional) |
| Field of View | H99°∼H31°/D124°∼D38°/V72°∼V23°(2.7∼13.5mm) H89°∼H31°/D111°∼D38°/V66°∼V23°(3∼10.5mm) H37°∼H15°/D46°∼D19°/V28°∼V11°(7∼22mm) |
| Mount | Φ14 |
| Focus Control | Auto/Manual |
| Iris Control(Optional for I Series) | Auto/Manual |
| Video | |
| Max. Image Resolution | 2592x1944 |
| Primary Stream | 60Hz: 30fps@(2592x1944), 45fps@(2048x1536),60fps@(1920x1080, 1280x960, 1280x720, 704x576) 50Hz: 25fps@(2592x1944), 45fps@(2048x1536),50fps@(1920x1080, 1280x960, 1280x720, 704x576) |
| Secondary Stream | 60Hz: 30fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180) 50Hz: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180) |
| Tertiary Stream | 60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180) 50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180) |
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG |
| Video Bit Rate | 16Kbps∼16Mbps (CBR/VBR adjustable) |
| Privacy Masking | Up to 28 areas(24 mask areas and 4 mosaic areas) |
| ROI | Up to 8 areas |
| Image Settings | Saturation/Brightness/Contrast/Sharpness |
| Interface | |
| Ethernet | 1*RJ45 10M/100M Ethernet Port |
| Audio I/O | 1/1 (Multi-interface Version) |
| Alarm I/O | 1/1 (Multi-interface Version) |
| Network | |
| Network Storage | NAS(Support NFS, SMB/CIFS), ANR |
| Network Protocols | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL |
| Intelligent Analytics | |
| Video Analysis | Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed |
| Face Detection | Detect and capture faces, get real-time snapshots |
| People Counting& Report | Count the number of people entering or exiting, up to 4 detection areas for regional people counting |
| Audio | |
| Audio Compression | G.711/AAC/G.722/G.726 |
| Audio Sampling Rate | 8/16/32/44.1/48KHz |
| Audio Bit Rate | 16~256kbps |
| Two-way Audio | Support |
| System | |
| Storage | Support microSD/SDHC/SDXC Card Local Storage, up to 256G |
| Advanced Function | Heat Map, BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark |
| SIP/VoIP Support | Yes, Voice&Video-over-IP |
| Event Trigger | Motion Detection, Network Disconnection, etc. |
| Event Action | FTP Upload, SMTP Upload, SD Card Record, SIP Phone, HTTP Notification, etc. |
| System Compatibility | ONVIF Profile G & Q & S & T, API |
| General | |
| Working Temperature | -40℃∼60℃ |
| Working Humidity | 0∼90%(Non-condensing) |
| Power Supply | PoE(802.3af)/DC 12V±10% |
| Power Consumption | 7W MAX, 9W MAX (With IR on) |
| Housing | Up to IP67-rated for weather-resistant performance/ Vandal-proof IK10-rated metal housing |
| Weight | 825g |
| Dimensions | Φ76mmX239.5mm |
| Warranty | 3/5 Years |
*Naming Convention
R - High Frame Rate (60fps)
T - High Frame Rate (90/100fps)
F - Motorized Vari-focal Lens
I - P-Iris Supported
P - PoE Supported
A/C/D/E - AI Series
| Camera | |
|---|---|
| Name | 4K AI Motorized Bullet Network Camera |
| Image Sensor | 1/2.8" Progressive Scan CMOS |
| Min. Illumination | Color: 0.012Lux @F1.4 B/W: 0Lux with IR on |
| WDR | 120dB Super WDR |
| Shutter Time | 1/100000s∼1s |
| Day/Night Mode | Day/Night/Auto/Customize/Schedule |
| IR Distance | Up to 50m |
| S/N | >55dB |
| Lens | |
| Lens | Motorized 2.7∼13.5mm @F1.4, P-Iris(Optional) |
| Field of View | H107°∼H33°/D125°∼D37°/V58°∼V18° |
| Mount | Φ14 |
| Focus Control | Auto/Manual |
| Iris Control(Optional for I Series) | Auto/Manual |
| Video | |
| Max. Image Resolution | 3840x2160 |
| Primary Stream | 60Hz: 30fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576) 50Hz: 25fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576) |
| Secondary Stream | 60Hz: 30fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180) 50Hz: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180) |
| Tertiary Stream | 60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180) 50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180) |
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG |
| Video Bit Rate | 16Kbps∼16Mbps (CBR/VBR adjustable) |
| Privacy Masking | Up to 28 areas(24 mask areas and 4 mosaic areas) |
| ROI | Up to 8 areas |
| Image Settings | Saturation/Brightness/Contrast/Sharpness |
| Interface | |
| Ethernet | 1*RJ45 10M/100M Ethernet Port |
| Audio I/O | 1/1 (Multi-interface Version) |
| Alarm I/O | 1/1 (Multi-interface Version) |
| Network | |
| Network Storage | NAS(Support NFS, SMB/CIFS), ANR |
| Network Protocols | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL |
| Audio | |
| Audio Compression | G.711/AAC/G.722/G.726 |
| Audio Sampling Rate | 8/16/32/44.1/48KHz |
| Audio Bit Rate | 16~256kbps |
| Two-way Audio | Support |
| Intelligent Analytics | |
| Video Analysis | Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed |
| Face Detection | Detect and capture faces, get real-time snapshots |
| People Counting& Report | Count the number of people entering or exiting, up to 4 detection areas for regional people counting |
| System | |
| Storage | Support microSD/SDHC/SDXC Card Local Storage, up to 256G |
| Advanced Function | Heat Map, BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark |
| SIP/VoIP Support | Yes, Voice&Video-over-IP |
| Event Trigger | Motion Detection, Network Disconnection, etc. |
| Event Action | FTP Upload, SMTP Upload, SD Card Record, SIP Phone, HTTP Notification, etc. |
| System Compatibility | ONVIF Profile G & Q & S & T, API |
| General | |
| Working Temperature | -40℃∼60℃ |
| Working Humidity | 0∼90%(Non-condensing) |
| Power Supply | PoE(802.3af)/DC 12V±10% |
| Power Consumption | 8W MAX, 10W MAX (With IR on) |
| Housing | Up to IP67-rated for weather-resistant performance/ Vandal-proof IK10-rated metal housing |
| Weight | 825g |
| Dimensions | Φ76mmX239.5mm |
| Warranty | 3/5 Years |
*Naming Convention
R - High Frame Rate (60fps)
T - High Frame Rate (90/100fps)
F - Motorized Vari-focal Lens
I - P-Iris Supported
P - PoE Supported
A/C/D/E - AI Series
A01 V3 Pole Mount
- Weight: 625g
- Dimension: 140*136*46mm
- Installation Environment: For strapping cameras on poles between 102-127mm(4.1-5 inches) in diameter
A03 External Corner Bracket
- Weight: 900g
- Dimension: 170*152.5*76mm
- Installation Environment: For mounting cameras on an external corner
A63 Junction Box
- Weight: 620g
- Dimension: 134*126*40mm
- Installation Environment: For the containing of electrical connections which need to be concealed from sight and deter tampering
Documents
- Milesight AI Motorized Bullet Network Camera Datasheet-en
- Milesight AI Motorized Bullet Network Camera Datasheet-en-NDAA-E
- Milesight AI Motorized Bullet Network Camera Datasheet-en-NDAA-A
- Milesight AI Motorized Bullet Network Camera Datasheet-NDAA-D-en
- Milesight AI Motorized Bullet Network Camera NDAA-E-Datasheet-en Project Based
- Milesight Network Camera User Manual
- Milesight Network Camera User Manual AI Series
- Milesight Network Camera Quick Start Guide
