AI Motorized Dome
Network Camera
Intelligent and Robust for Mission-critical Applications
Compact Size, Stylish Design and Easy Installation
AI Motorized Dome
- 2/4/5/8MP
- AI Deep Learning
- 0.005Lux Ultra Low-light
- Smart IR II with 50m IR Distance
- Motorized Zoom Lens
- IP67 & IK10
- Versatile Interfaces
- Ultra-low Power Design
- FEATURES
- MODELS
- ACCESSORIES
- DOWNLOAD
- Milesight CCTV
- Mini Series
- AI Motorized Dome Camera
VCA: Intelligence That
Redefines Security
Designed for smarter protection, Milesight camera features advanced AI analytics focused on human and vehicle detection. It filters irrelevant objects and delivers precise detection across multiple events, such as Region Entrance, Region Exiting, Advanced Motion Detection, etc.
Discover Milesight AI Analytics TechnologyUnlock Deeper Insights with People Counting Technology
Edge AI supports accurate people counting, with metadata streamed to your backend to
deliver insights that help optimize operations and security management.
0.005Lux Ultra Low-light
Smart IR II Technology
Up to 4K Viewing Experience

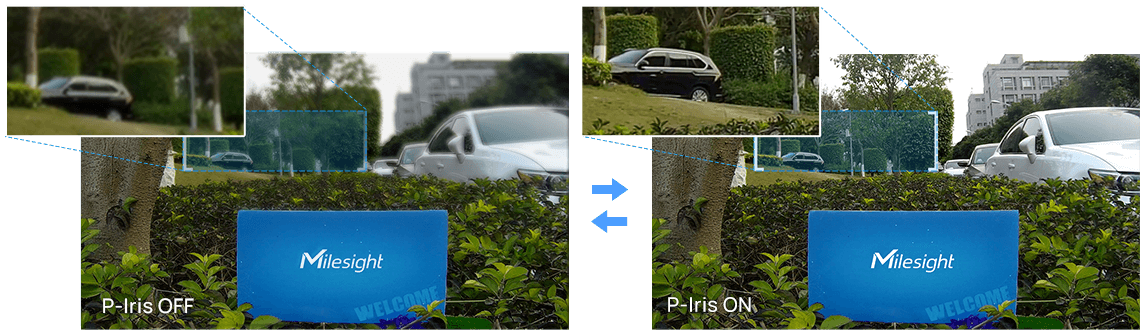

Superior Image Quality
With advanced image processing algorithms and advanced image sensor, it achieves excellent image performance, even in challenging lighting conditions. Its 0.005Lux Ultra Low-light, Smart IR II Technology, and up to 4K Video Viewing Experience features make it well-suited for various special circumstances.
Motorized Zoom Lens
Equipped with motorized zoom & focus lens, the camera allows remote control of focal length, iris and focus through a lens controller, which is perfect for long distance surveillance.
Ultra-Low Power,
Lower Deployment Costs
With power consumption reduced by 20%–40%, the Mini Series supports more cameras per switch while lowering electricity and overall deployment costs. Reduced heat generation also improves long-term stability, making it ideal for dense deployments and power-constrained locations.
IP67 & IK10
Equipped with industry-leading IP67-rated weather-proofing and IK10-rated vandal-proofing, the camera is well protected against adverse impacts to ensure the robust performance.

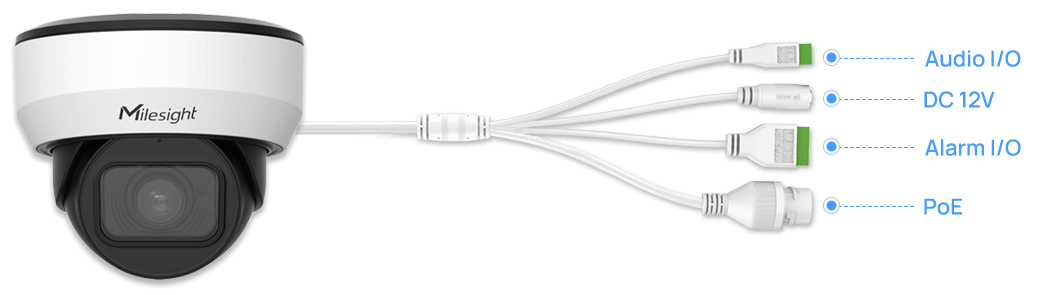

Versatile Interfaces as Standard
Equipped with PoE, DC, Audio I/O, and Alarm I/O by default, the camera supports flexible integration and simplifies deployment for a wide range of applications.
Integrated Junction Box
The creative clamshell design minimizes the installation troubles and enlarges the space to make cable connection a piece of cake.

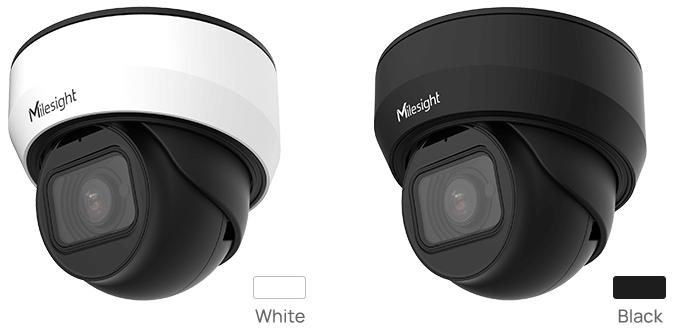

Two Colors Available
Available in White and Black, the camera provides more choices for your preference.
Success Story
Specifications
- MS-C2975-(R)FPD
- MS-C2975-FPD2
- MS-C4575-FPD
- MS-C5375-FPD
- MS-C5475-FPD2
- MS-C8175-FPD
- MS-C8175-FPD2
| Camera | |
|---|---|
| Name | 2MP NDAA AI Motorized Dome Network Camera |
| Image Sensor | 1/2.8" Progressive Scan CMOS |
| Min. Illumination | Color: 0.005Lux @F1.4 B/W: 0Lux with IR on |
| WDR | 120dB Super WDR |
| Shutter Time | 1/100000s∼1s |
| Day/Night Mode | Day/Night/Auto/Customize/Schedule |
| IR Distance | Up to 50m |
| S/N | >55dB |
| Lens | |
| Lens | Motorized 2.7∼13.5mm@F1.4 |
| Field of View | H97°~H31°/D113°~D36°/V53°~V18°(2.7~13.5mm) |
| Mount | Φ14 |
| Focus Control | Auto/Manual |
| Video | |
| Max. Image Resolution | 1920x1080 |
| Primary Stream | 60Hz: 60fps@(1920x1080)(Optional for R Series), 30fps@(1920x1080, 1280x960, 1280x720, 704x576) 50Hz: 50fps@(1920x1080)(Optional for R Series), 25fps@(1920x1080, 1280x960, 1280x720, 704x576) |
| Secondary Stream | 60Hz: 30fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192) 50Hz: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192) |
| Tertiary Stream | 60Hz: 30fps@(1280x720, 704x576, 640x480, 640x360, 352x288, 320x240, 320x192) 50Hz: 25fps@(1280x720, 704x576, 640x480, 640x360, 352x288, 320x240, 320x192) |
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG |
| Video Bit Rate | 16Kbps∼16Mbps (CBR/VBR Adjustable) |
| Image | |
| Privacy Masking | Up to 4 areas |
| ROI | Up to 8 areas |
| Image Settings | Saturation/Brightness/Contrast/Sharpness |
| Image Enhancement | BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur |
| Interface | |
| Ethernet | 1*RJ45 10M/100M Ethernet Port |
| Audio I/O | 1/1 |
| Alarm I/O | 1/1 |
| Network | |
| Network Storage | NAS (Support NFS, SMB/CIFS), ANR |
| Network Protocols | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL, TLS 1.2 |
| Audio | |
| Audio Compression | G.711/AAC/G.722/G.726 |
| Audio Sampling Rate | 8/16/32/48KHz |
| Audio Bit Rate | 16~256kbps |
| Built-in Microphone | Support |
| Intelligent Analytics | |
| Video Analysis | Region Entrance, Region Exiting, Advanced Motion Detection, Line Crossing, Loitering, Object Left, Object Removed |
| People Counting &Report | Count the number of people entering or exiting |
| Event | |
| Event Trigger | Motion Detection, Tamper Detection, External Input, External Output,Audio Alarm |
| Exception | Network Disconnection, IP Address Filtering, Record Failed, SD Card Full, SD Card Uninitialized, SD Card Error, No SD Card |
| Event Action | FTP Upload Record, SMTP Upload Record, SD Card Record, Snapshot, SIP Phone, Play Audio, HTTP Notification, External Output |
| System | |
| Storage | Support microSD/SDHC/SDXC Card Local Storage, up to 1TB |
| Advanced Function | BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur |
| SIP/VoIP Support | Yes, Voice&Video-over-IP |
| Event Trigger | Motion Detection, Network Disconnection, External Input, Audio Alarm, etc. |
| Event Action | FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc. |
| System Compatibility | ONVIF Profile M & G & S & T, API |
| General | |
| Working Temperature | -40℃∼60℃ |
| Working Humidity | 0∼90% (Non-condensing) |
| Power Supply | PoE (802.3af) / DC 12V±10% |
| Power Consumption | 5.2W MAX, 6.4W MAX (With IR on) |
| Housing | Up to IP67-rated for weather-resistant performance/ Vandal-proof IK10-rated metal housing |
| Weight | Approx. 780g |
| Dimensions | Φ130mmX115mm |
| Warranty | 3 Years / 5 Years (Optional) |
Naming Convention
R - High Frame Rate (60fps)
F - Motorized Vari-focal Lens
P - PoE Supported
D - AI Series
DX - Platform Upgrade
e.g.: D2 represents the second generation
| Camera | |
|---|---|
| Name | 4MP NDAA AI Motorized Dome Network Camera |
| Image Sensor | 1/2.8" Progressive Scan CMOS |
| Min. Illumination | Color: 0.005Lux @F1.4 B/W: 0Lux with IR on |
| WDR | 120dB Super WDR |
| Shutter Time | 1/100000s∼1s |
| Day/Night Mode | Day/Night/Auto/Customize/Schedule |
| IR Distance | Up to 50m |
| S/N | >55dB |
| Lens | |
| Lens | Motorized 2.7∼13.5mm@F1.4 |
| Field of View | H97°~H28°/D110°~D32°/ V55°~V16°(2.7~13.5mm) |
| Mount | Φ14 |
| Focus Control | Auto/Manual |
| Video | |
| Max. Image Resolution | 2688x1520 |
| Primary Stream | 60Hz: 30fps@(2688x1520, 2304x1296, 1920x1080, 1280x720) 50Hz: 25fps@(2688x1520, 2304x1296, 1920x1080, 1280x720) |
| Secondary Stream | 60Hz: 30fps@(1280x720, 704x576, 640x480) 50Hz: 25fps@(1280x720, 704x576, 640x480) |
| Tertiary Stream | 60Hz: 30fps@(1280x720, 704x576, 640x480) 50Hz: 25fps@(1280x720, 704x576, 640x480) |
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG |
| Image | |
| Video Bit Rate | 16Kbps~16Mbps(CBR/VBR Adjustable) |
| Privacy Masking | Up to 4 areas |
| ROI | Up to 8 areas |
| Image Settings | Saturation/Brightness/Contrast/Sharpness |
| Image Enhancement | BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur |
| Interface | |
| Ethernet | 1*RJ45 10M/100M Ethernet Port |
| Audio I/O | 1/1 |
| Alarm I/O | 1/1 |
| Network | |
| Network Storage | NAS (Support NFS, SMB/CIFS), ANR |
| Network Protocols | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL, TLS 1.2 |
| Audio | |
| Audio Compression | G.711/AAC/G.722/G.726 |
| Audio Sampling Rate | 8/16/32/48KHz |
| Audio Bit Rate | 16~256kbps |
| Built-in Microphone | Support |
| Intelligent Analytics | |
| Video Analysis | Region Entrance, Region Exiting, Advanced Motion Detection, Line Crossing, Loitering, Object Left, Object Removed |
| People Counting &Report | Count the number of people entering or exiting |
| Event | |
| Event Trigger | Motion Detection, Tamper Detection, External Input, External Output,Audio Alarm |
| Exception | Network Disconnection, IP Address Filtering, Record Failed, SD Card Full, SD Card Uninitialized, SD Card Error, No SD Card |
| Event Action | FTP Upload Record, SMTP Upload Record, SD Card Record, Snapshot, SIP Phone, Play Audio, HTTP Notification, External Output |
| System | |
| Storage | Support microSD/SDHC/SDXC Card Local Storage, up to 1TB |
| SIP/VoIP Support | Yes, Voice&Video-over-IP |
| System Compatibility | ONVIF Profile M & G & S & T, API |
| General | |
| Working Temperature | -40℃∼60℃ |
| Working Humidity | 0∼90% (Non-condensing) |
| Power Supply | PoE (802.3af) / DC 12V±10% |
| Power Consumption | 5.5W MAX 6.5W MAX (With IR on) |
| Housing | Up to IP67-rated for weather-resistant performance/ Vandal-proof IK10-rated metal housing |
| Weight | Approx. 780g |
| Dimensions | Φ130mmX115mm |
| Warranty | 3 Years / 5 Years (Optional) |
Naming Convention
R - High Frame Rate (60fps)
F - Motorized Vari-focal Lens
P - PoE Supported
D - AI Series
DX - Platform Upgrade
e.g.: D2 represents the second generation
| Camera | |
|---|---|
| Name | 5MP NDAA AI Motorized Dome Network Camera |
| Image Sensor | 1/2.8" Progressive Scan CMOS |
| Min. Illumination | Color: 0.008Lux @F1.4 B/W: 0Lux with IR on |
| WDR | 120dB Super WDR |
| Shutter Time | 1/100000s∼1s |
| Day/Night Mode | Day/Night/Auto/Customize/Schedule |
| IR Distance | Up to 50m |
| S/N | >55dB |
| Lens | |
| Lens | Motorized 2.7∼13.5mm@F1.4 |
| Field of View | H94°~H31°/D120°~D38°/V68°~V23°(2.7∼13.5mm) |
| Mount | Φ14 |
| Focus Control | Auto/Manual |
| Video | |
| Max. Image Resolution | 2592x1944 |
| Primary Stream | 60Hz: 30fps@(2592x1944, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576) 50Hz: 25fps@(2592x1944, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576) |
| Secondary Stream | 60Hz: 30fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192) 50Hz: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192) |
| Tertiary Stream | 60Hz: 30fps@(1280x720, 704x576, 640x480, 640x360, 352x288, 320x240, 320x192) 50Hz: 25fps@(1280x720, 704x576, 640x480, 640x360, 352x288, 320x240, 320x192) |
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG |
| Video Bit Rate | 16Kbps∼16Mbps (CBR/VBR Adjustable) |
| Image | |
| Privacy Masking | Up to 4 Areas |
| ROI | Up to 8 Areas |
| Image Settings | Saturation/Brightness/Contrast/Sharpness |
| Image Enhancement | BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur |
| Interface | |
| Ethernet | 1*RJ45 10M/100M Ethernet Port |
| Audio I/O | 1/1 |
| Alarm I/O | 1/1 |
| Network | |
| Network Storage | NAS (Support NFS, SMB/CIFS), ANR |
| Network Protocols | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL, TLS 1.2 |
| Intelligent Analytics | |
| Video Analysis | Region Entrance, Region Exiting, Advanced Motion Detection, Line Crossing, Loitering, Object Left, Object Removed |
| People Counting & Report | Count the number of people entering or exiting |
| Event | |
| Event Trigger | Motion Detection, Tamper Detection, External Input, External Output,Audio Alarm |
| Exception | Network Disconnection, IP Address Filtering, Record Failed, SD Card Full, SD Card Uninitialized, SD Card Error, No SD Card |
| Event Action | FTP Upload Record, SMTP Upload Record, SD Card Record, Snapshot, SIP Phone, Play Audio, HTTP Notification, External Output |
| Audio | |
| Audio Compression | G.711/AAC/G.722/G.726 |
| Audio Sampling Rate | 8/16/32/48KHz |
| Audio Bit Rate | 16~256kbps |
| Built-in Microphone | Support |
| System | |
| Storage | Support microSD/SDHC/SDXC Card Local Storage, up to 1TB |
| SIP/VoIP Support | Yes, Voice&Video-over-IP |
| System Compatibility | ONVIF Profile M & G & S & T, API |
| General | |
| Working Temperature | -40℃∼60℃ |
| Working Humidity | 0∼90% (Non-condensing) |
| Power Supply | PoE (802.3af) / DC 12V±10% |
| Power Consumption | 5.5W MAX 6.5W MAX (With IR on) |
| Housing | Up to IP67-rated for weather-resistant performance/ Vandal-proof IK10-rated metal housing |
| Weight | Approx. 780g |
| Dimensions | Φ130mmX115mm |
| Warranty | 3 Years / 5 Years (Optional) |
Naming Convention
R - High Frame Rate (60fps)
F - Motorized Vari-focal Lens
P - PoE Supported
D - AI Series
DX - Platform Upgrade
e.g.: D2 represents the second generation
| Camera | |
|---|---|
| Name | 4K NDAA AI Motorized Dome Network Camera |
| Image Sensor | 1/2.8" Progressive Scan CMOS |
| Min. Illumination | Color: 0.012Lux @F1.4 B/W: 0Lux with IR on |
| WDR | 120dB Super WDR |
| Shutter Time | 1/100000s∼1s |
| Day/Night Mode | Day/Night/Auto/Customize/Schedule |
| IR Distance | Up to 50m |
| S/N | >55dB |
| Lens | |
| Lens | Motorized 2.7∼13.5mm @F1.4 |
| Field of View | H110°~H29°/D129°~D33°/V59°~V16° |
| Mount | Φ14 |
| Focus Control | Auto/Manual |
| Video | |
| Max. Image Resolution | 3840x2160 |
| Primary Stream | 60Hz/50Hz: 30fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576) |
| Secondary Stream | 60Hz: 30fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192) 50Hz: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192) |
| Tertiary Stream | 60Hz: 30fps@(1280x720, 704x576, 640x480, 640x360, 352x288, 320x240, 320x192) 50Hz: 25fps@(1280x720, 704x576, 640x480, 640x360, 352x288, 320x240, 320x192) |
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG |
| Image | |
| Video Bit Rate | 16Kbps∼16Mbps (CBR/VBR Adjustable) |
| Privacy Masking | Up to 4 areas |
| ROI | Up to 8 areas |
| Image Settings | Saturation/Brightness/Contrast/Sharpness |
| Image Enhancement | BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur |
| Interface | |
| Ethernet | 1*RJ45 10M/100M Ethernet Port |
| Audio I/O | 1/1 |
| Alarm I/O | 1/1 |
| Network | |
| Network Storage | NAS Support NFS, SMB/CIFS), ANR |
| Network Protocols | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL, TLS 1.2 |
| Audio | |
| Audio Compression | G.711/AAC/G.722/G.726 |
| Audio Sampling Rate | 8/16/32/48KHz |
| Audio Bit Rate | 16~256kbps |
| Built-in Microphone | Support |
| Intelligent Analytics | |
| Video Analysis | Region Entrance, Region Exiting, Advanced Motion Detection, Line Crossing, Loitering, Object Left, Object Removed |
| People Counting &Report | Count the number of people entering or exiting |
| Event | |
| Event Trigger | Motion Detection, Tamper Detection, External Input, External Output,Audio Alarm |
| Exception | Network Disconnection, IP Address Filtering, Record Failed, SD Card Full, SD Card Uninitialized, SD Card Error, No SD Card |
| Event Action | FTP Upload Record, SMTP Upload Record, SD Card Record, Snapshot, SIP Phone, Play Audio, HTTP Notification, External Output |
| System | |
| Storage | Support microSD/SDHC/SDXC Card Local Storage, up to 1TB |
| SIP/VoIP Support | Yes, Voice&Video-over-IP |
| System Compatibility | ONVIF Profile M & G & S & T, API |
| General | |
| Working Temperature | -40℃∼60℃ |
| Working Humidity | 0∼90% (Non-condensing) |
| Power Supply | PoE (802.3af) / DC 12V±10% |
| Power Consumption | 7.4W MAX 8.4W MAX (With IR on) |
| Housing | Up to IP67-rated for weather-resistant performance/ Vandal-proof IK10-rated metal housing |
| Weight | Approx.780g |
| Dimensions | Φ130mmX115mm |
| Warranty | 3 Years / 5 Years (Optional) |
Naming Convention
R - High Frame Rate (60fps)
F - Motorized Vari-focal Lens
P - PoE Supported
D - AI Series
DX - Platform Upgrade
e.g.: D2 represents the second generation
| Camera | |
|---|---|
| Model | MS-C2975-FPD2(2MP) |
| Image Sensor | 1/2.9″ Progressive Scan CMOS |
| Min. Illumination | Color: 0.005Lux@F1.4, B/W: 0Lux with IR on |
| WDR | 120dB Super WDR |
| Shutter Time | 1/100000s~1s |
| IR Distance | Up to 50m |
| Day/Night Mode | Day/Night/Auto/Customize/Schedule |
| S/N | >55dB |
| Lens | |
| Lens | Motorized 2.7~13.5mm@F1.4 |
| Field of View | H96.6°~H34.7°/D115.7°~D39.0°/V51.7°~V19.5° |
| Mount | Φ14 |
| Focus Control | Auto/Manual |
| Video | |
| Max. Image Resolution | 1920x1080 |
| Primary Stream | 60Hz: 30fps@(1920x1080, 1280x960, 1280x720, 704x576) 50Hz: 25fps@(1920x1080, 1280x960, 1280x720, 704x576) |
| Secondary Stream | 60Hz: 30fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192)50Hz: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192) |
| Tertiary Stream | 60Hz: 30fps@(1280x720, 704x576, 640x480, 640x360, 352x288, 320x240, 320x192) 50Hz: 25fps@(1280x720, 704x576, 640x480, 640x360, 352x288, 320x240, 320x192) |
| Video Compression | Primary Stream & Tertiary Stream: H.265+/H.265(HEVC)/H.264+/H.264 Secondary Stream: H.265+/H.265(HEVC)/H.264+/H.264/MJPEG |
| Video Bit Rate | 16Kbps~16Mbps (CBR/VBR Adjustable) |
| Image | |
| Privacy Masking | Up to 4 Areas |
| ROI | Up to 8 Areas |
| Image Setting | Brightness/Contrast/Saturation/Sharpness |
| Image Enhancement | BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur |
| Interface | |
| Ethernet | 1*RJ45 10M/100M Ethernet Port |
| Audio I/O | 1/1 |
| Alarm I/O | 1/1 |
| Network | |
| Network Storage | NAS (Support NFS, SMB/CIFS), ANR |
| Protocol | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, LLDP, VPN, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL, TLS 1.2 |
| Audio | |
| Audio Compression | G.711/AAC/G.722/G.726 |
| Audio Sampling Rate | 8/16/32/48KHz |
| Audio Bit Rate | 16~256kbps |
| Built-in Microphone | Support |
| Intelligent Analytics | |
| Video Analysis | Region Entrance, Region Exiting, Advanced Motion Detection, Line Crossing, Loitering, Object Left, Object Removed |
| Object Counting & Report | Count the number of objects crossing the line,optionally human and vehicle. Support regional people counting for up to 4 detection areas. |
| Basic Events | |
| Event Trigger | Motion Detection, Tamper Detection, External Input, External Output, Audio Alarm |
| Exception | Network Disconnection, IP Address Filtering, Record Failed, SD Card Full, SD Card Uninitialized, SD Card Error, No SD Card |
| Event Action | FTP Upload Record, SMTP Upload Record, SD Card Record, Snapshot, SIP Phone, Play Audo, HTTP Notification, External Output |
| System | |
| Storage | Support microSD/SDHC/SDXC Card Local Storage, up to 1TB |
| SIP/VoIP Support | Yes, Voice & Video-over-IP |
| System Compatibility | ONVIF Profile G & S & T & M, API |
| General | |
| Working Temperature | -40℃~60℃ |
| Working Humidity | 0~90% (Non-condensing) |
| Power Supply | PoE (802.3af) / DC 12V±10% |
| Power Consumption | PoE: 2.5W MIN, 4.8W MAX (With IR on) DC 12V: 1.6W MIN, 4W MAX (With IR on) |
| Housing | Vandal-proof IK10-rated Metal Housing/Up to IP67-rated for Weather-resistant Performance |
| Weight | Approx. 780g |
| Dimensions | Φ130mmX115mm |
| Warranty | 3 Years/5 Years (Optional) |
| Certifications | |
| EMC | CE-EMC (EN 55032, EN 55035), FCC (PART 15B), RC (AS/NZS CISPR 32:2015+AMD 1:2020) |
| Safety | CE-LVD (EN IEC 62368-1), RCM (AS/NZS 62368.1) |
| Environment | CE-ROHS (Directive (EU)2015/863 amending 2011/65/EU) |
| Protection | IP67, IK10 |
Naming Convention
R - High Frame Rate (60fps)
F - Motorized Vari-focal Lens
P - PoE Supported
D - AI Series
DX - Platform Upgrade
e.g.: D2 represents the second generation
| Camera | |
|---|---|
| Model | MS-C5475-FPD2(5MP) |
| Image Sensor | 1/2.65″ Progressive Scan CMOS |
| Min. Illumination | Color: 0.008Lux@F1.4, B/W: 0Lux with IR on |
| WDR | 120dB Super WDR |
| Shutter Time | 1/100000s~1s |
| IR Distance | Up to 50m |
| Day/Night Mode | Day/Night/Auto/Customize/Schedule |
| S/N | >55dB |
| Lens | |
| Lens | Motorized 2.7~13.5mm@F1.4 |
| Field of View | H111.7°~H37.8°/D128.5°~D44.1°/V59.8°~V20.2° |
| Mount | Φ14 |
| Focus Control | Auto/Manual |
| Video | |
| Max. Image Resolution | 2960x1664 |
| Primary Stream | 60Hz: 30fps@(2960x1664, 2688x1520, 1920x1080, 1280x720, 704x576) 50Hz: 25fps@(2960x1664, 2688x1520, 1920x1080, 1280x720, 704x576) |
| Secondary Stream | 60Hz: 30fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192) 50Hz: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192) |
| Tertiary Stream | 60Hz: 30fps@(1280x720, 704x576, 640x480, 640x360, 352x288, 320x240, 320x192) 50Hz: 25fps@(1280x720, 704x576, 640x480, 640x360, 352x288, 320x240, 320x192) |
| Video Compression | Primary Stream & Tertiary Stream: H.265+/H.265(HEVC)/H.264+/H.264 Secondary Stream: H.265+/H.265(HEVC)/H.264+/H.264/MJPEG |
| Video Bit Rate | 16Kbps~16Mbps (CBR/VBR Adjustable) |
| Image | |
| Privacy Masking | Up to 4 Areas |
| ROI | Up to 8 Areas |
| Image Setting | Brightness/Contrast/Saturation/Sharpness |
| Image Enhancement | BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur |
| Interface | |
| Ethernet | 1*RJ45 10M/100M Ethernet Port |
| Audio I/O | 1/1 |
| Alarm I/O | 1/1 |
| Network | |
| Network Storage | NAS (Support NFS, SMB/CIFS), ANR |
| Protocol | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, LLDP, VPN, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL, TLS 1.2 |
| Audio | |
| Audio Compression | G.711/AAC/G.722/G.726 |
| Audio Sampling Rate | 8/16/32/48KHz |
| Audio Bit Rate | 16~256kbps |
| Built-in Microphone | Support |
| Intelligent Analytics | |
| Video Analysis | Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed |
| Object Counting & Report | Count the number of objects crossing the line,optionally human and vehicle. Support regional people counting for up to 4 detection areas. |
| Event | |
| Basic Event | Motion Detection, Tamper Detection, External Input, External Output, Audio Alarm |
| Exception | Network Disconnection, IP Address Filtering, Record Failed, SD Card Full, SD Card Uninitialized, SD Card Error, No SD Card |
| Event Action | FTP Upload Record, SMTP Upload Record, SD Card Record, Snapshot, SIP Phone, Play Audio, HTTP Notification, External Output |
| System | |
| Storage | Support microSD/SDHC/SDXC Card Local Storage, up to 1TB |
| SIP/VoIP Support | Yes, Voice & Video-over-IP |
| System Compatibility | ONVIF Profile G & S & T & M, API |
| General | |
| Working Temperature | -40℃~60℃ |
| Working Humidity | 0~90% (Non-condensing) |
| Power Supply | PoE (802.3af)/DC 12V±10% |
| Power Consumption | PoE: 2.8W MIN, 5.3W MAX (With IR on) DC 12V: 1.7W MIN, 4.2W MAX (With IR on) |
| Housing | Vandal-proof IK10-rated Metal Housing/Up to IP67-rated for Weather-resistant Performance |
| Weight | Approx. 780g |
| Dimensions | Φ130mmX115mm |
| Warranty | 3 Years/5 Years (Optional) |
| Certifications | |
| EMC | CE-EMC (EN 55032, EN 55035), FCC (PART 15B), RC (AS/NZS CISPR 32:2015+AMD 1:2020) |
| Safety | CE-LVD (EN IEC 62368-1), RCM (AS/NZS 62368.1) |
| Environment | CE-ROHS (Directive (EU)2015/863 amending 2011/65/EU) |
| Protection | IP67, IK10 |
Naming Convention
R - High Frame Rate (60fps)
F - Motorized Vari-focal Lens
P - PoE Supported
D - AI Series
DX - Platform Upgrade
e.g.: D2 represents the second generation
| Camera | |
|---|---|
| Model | MS-C8175-FPD2(4K) |
| Image Sensor | 1/2.7″ Progressive Scan CMOS |
| Min. Illumination | Color: 0.012Lux@F1.4, B/W: 0Lux with IR on |
| WDR | 120dB Super WDR |
| Shutter Time | 1/100000s~1s |
| IR Distance | Up to 50m |
| Day/Night Mode | Day/Night/Auto/Customize/Schedule |
| S/N | >55dB |
| Lens | |
| Lens | Motorized 2.7~13.5mm@F1.4 |
| Field of View | H114.7°~H41.6°/D131.1°~D45.6°/V62.8°~V22.6° |
| Mount | Φ14 |
| Focus Control | Auto/Manual |
| Video | |
| Max. Image Resolution | 3840x2160 |
| Primary Stream | 60Hz/50Hz: 25fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576) |
| Secondary Stream | 60Hz/50Hz: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192) |
| Tertiary Stream | 60Hz/50Hz: 25fps@(1280x720, 704x576, 640x480, 640x360, 352x288, 320x240, 320x192) |
| Video Compression | Primary Stream & Tertiary Stream: H.265+/H.265(HEVC)/H.264+/H.264 Secondary Stream: H.265+/H.265(HEVC)/H.264+/H.264/MJPEG |
| Video Bit Rate | 16Kbps~16Mbps (CBR/VBR Adjustable) |
| Image | |
| Privacy Masking | Up to 4 Areas |
| ROI | Up to 8 Areas |
| Image Setting | Brightness/Contrast/Saturation/Sharpness |
| Image Enhancement | BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur |
| Interface | |
| Ethernet | 1*RJ45 10M/100M Ethernet Port |
| Audio I/O | 1/1 |
| Alarm I/O | 1/1 |
| Network | |
| Network Storage | NAS (Support NFS, SMB/CIFS), ANR |
| Protocol | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, LLDP, VPN, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL, TLS 1.2 |
| Audio | |
| Audio Compression | G.711/AAC/G.722/G.726 |
| Audio Sampling Rate | 8/16/32/48KHz |
| Audio Bit Rate | 16~256kbps |
| Built-in Microphone | Support |
| Intelligent Analytics | |
| Video Analysis | Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed |
| Object Counting & Report | Count the number of objects crossing the line,optionally human and vehicle. Support regional people counting for up to 4 detection areas. |
| Event | |
| Basic Event | Motion Detection, Tamper Detection, External Input, External Output, Audio Alarm |
| Exception | Network Disconnection, IP Address Filtering, Record Failed, SD Card Full, SD Card Uninitialized, SD Card Error, No SD Card |
| Event Action | FTP Upload Record, SMTP Upload Record, SD Card Record, Snapshot, SIP Phone, Play Audio, HTTP Notification, External Output |
| System | |
| Storage | Support microSD/SDHC/SDXC Card Local Storage, up to 1TB |
| SIP/VoIP Support | Yes, Voice & Video-over-IP |
| System Compatibility | ONVIF Profile G & S & T & M, API |
| General | |
| Working Temperature | -40℃~60℃ |
| Working Humidity | 0~90% (Non-condensing) |
| Power Supply | PoE (802.3af)/DC 12V±10% |
| Power Consumption | PoE: 3.4W MIN, 5.8W MAX (With IR on) DC 12V: 2.4W MIN, 4.7W MAX (With IR on) |
| Housing | Vandal-proof IK10-rated Metal Housing/Up to IP67-rated for Weather-resistant Performance |
| Weight | Approx. 780g |
| Dimensions | Φ130mmX115mm |
| Warranty | 3 Years/5 Years (Optional) |
| Certifications | |
| EMC | CE-EMC (EN 55032, EN 55035), FCC (PART 15B), RC (AS/NZS CISPR 32:2015+AMD 1:2020) |
| Safety | CE-LVD (EN IEC 62368-1), RCM (AS/NZS 62368.1) |
| Environment | CE-ROHS (Directive (EU)2015/863 amending 2011/65/EU) |
| Protection | IP67, IK10 |
Naming Convention
R - High Frame Rate (60fps)
F - Motorized Vari-focal Lens
P - PoE Supported
D - AI Series
DX - Platform Upgrade
e.g.: D2 represents the second generation
A01 V3 Pole Mount
- Weight: 625g
- Dimension: 140*136*46mm
- Installation Environment: For strapping cameras on poles between φ105-127mm(4.1-5 inches) in diameter
A03 External Corner Bracket
- Weight: 900g
- Dimension: 180*152.5*76mm
- Installation Environment: For mounting cameras on an external corner
A42-L Extension Lever
- Weight: 330g
- Dimension: Φ 47.5*255mm
- Installation Environment: Used as extensions for pendant mount
A71 Wall Mount
- Weight: 530g
- Dimension: 162*124*78mm
- Installation Environment: Used to install cameras on an wall or vertical structure
A76 V2 Pendant Mount
- Weight: 620g
- Dimension: Φ 145*L (L is default as 290mm, also can be extended with A42-L)
- Installation Environment: Used to install cameras on a ceiling or horizontal structure
A83 V2 Junction Box
- Weight: 640g
- Dimension: Φ145*177.7*58mm
- Installation Environment: For the containing of electrical connections which need to be concealed from sight and deter tampering
Technical Documents
Firmware
Technical Documents
- Milesight AI Motorized Dome Network Camera NDAA Datasheet-en(MS-Cxxxx-xxD2)
- Milesight Network Camera User Manual(MS-Cxxxx-xxD2)
- Milesight AI Motorized Mini Dome Network Camera Quick Start Guide(MS-Cxxxx-xxD2)
- Milesight AI Motorized Dome Network Camera NDAA Datasheet-en(MS-Cxxxx-xxD)
- Milesight Network Camera User Manual(MS-Cxxxx-xxD)
- Milesight AI Motorized Mini Dome Network Camera Quick Start Guide(MS-Cxxxx-xxD)
- Milesight AI Motorized Dome Network Camera NDAA-Datasheet-en Project Based
Firmware
Applicable Model: MS-Cxxxx-xxD
Version: 51.7.0.78-r3
