AI 4X/12X Pro Bullet Plus Network Camera

Experience the All-round and Powerful Functions

2/5/8MP · AI · 4X/12X Optical Zoom · 3 in 1 Super WDR Pro · 1/1.8" STARVIS Starlight Sensor · 0.001Lux Ultra Low-light · 100fps · IP67 · IK10 · Smart IR II · 180m IR Distance · PoE

AI Heat Map 4K PoE H265+ ONVIF G&Q&S&T SD Card Smart IR II Weather-
Proof
Vandal-
Proof
Starlight Super WDR Privacy Mask 3-Axis

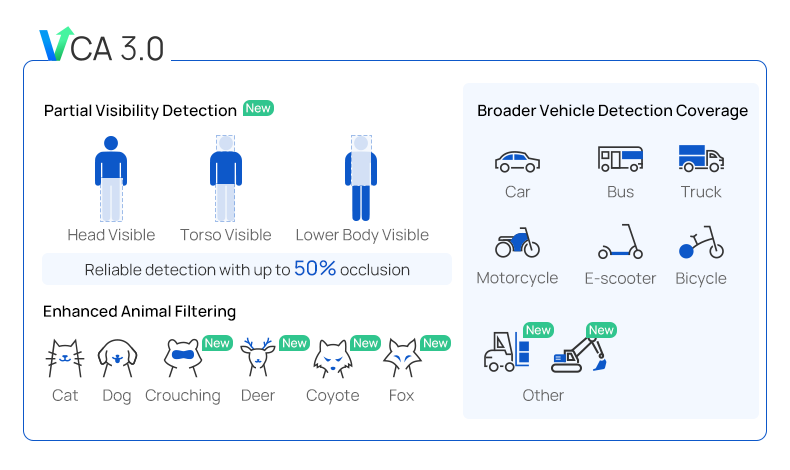

AI Video Analytics

Milesight AI Camera Series can intelligently filter objects to focus on human and vehicle detection in multiple events such as Region Entrance, Region Exiting, Loitering, Advanced Motion Detection, etc.

AI VCA

People Counting

High accuracy and real-time people counting based on AI algorithm, with statistic reports for further analysis, helps to make fast decisions on security management and increase the operational efficiency of the business.

AI people counting

Face Detection

Face Detection function detects human faces in the monitoring scene and captures the snapshots, which greatly enhances the monitoring efficiency and benefits the large population related industries such as public security, access control and business management.

Smart Face Detection

Advanced Heat Map

With scenario-adaptable and flexible configurations, Milesight Advanced Heat Map is embedded into the AI series which can analyze customers' movement to reveal insights for better business management with the intuitive and accurate statistical analysis results in time or space pattern as needed.

Heat Map

Leading-edge H.265+ Compression

H.265+

4X/12X Optical Zoom

The 4X/12X Optical Zoom can zoom in to distant objects while still maintaining the clarity, delivering high quality video over the entire image.

12X Optical Zoom

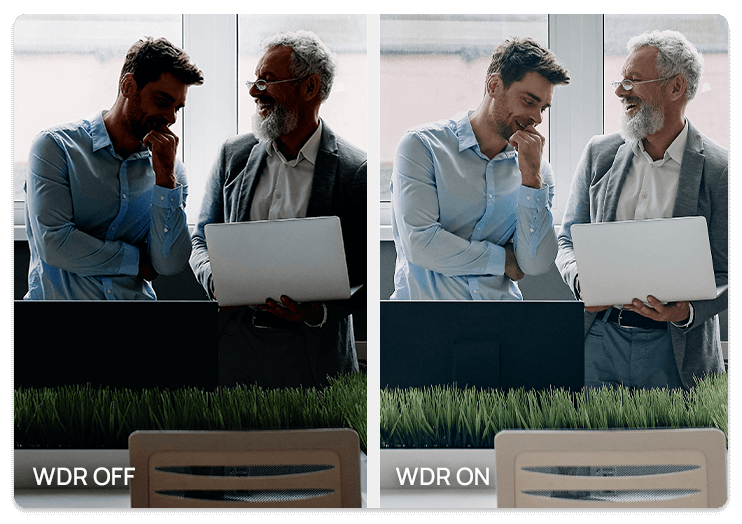

3 in 1 Super WDR Pro - 140dB

Milesight upgraded 3 in 1 Super WDR Pro outputs three frames each line, which is able to bring more details especially moving subjects. What’s more, it greatly improves image quality for reducing smear and noisy points. The ratio that the brightest light signal values divided by the darkest light signal values is up to 140dB.

AI WDR

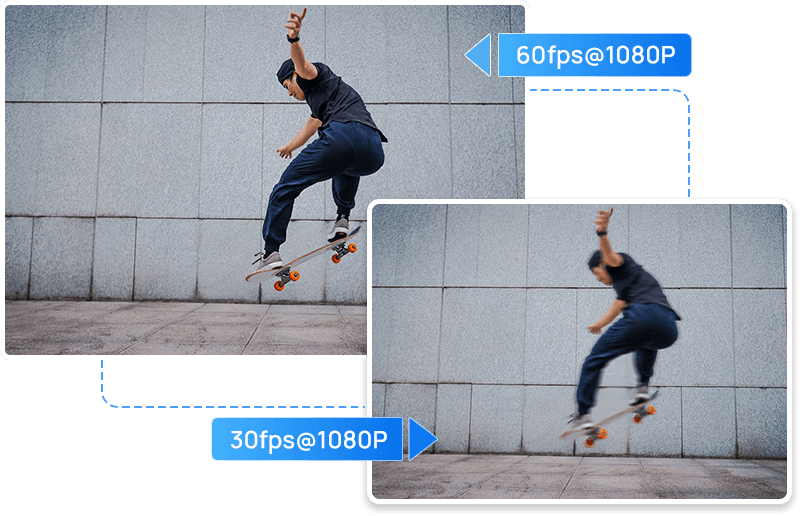

100fps High Frame Rate

With the industry leading frame rate reaching 100fps, Milesight Network Camera can easily catch images with no latency despite of the high-speed movement.

AI high frame rate

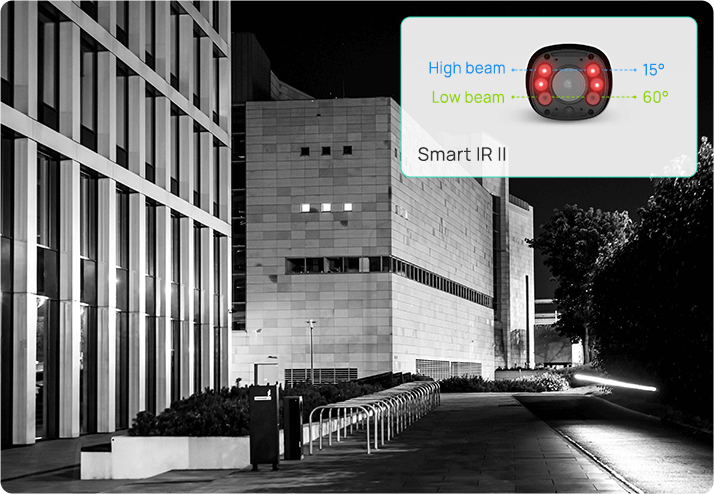

Smart IR II Technology

The IR LEDs technology has been upgraded to provide videos with a viewing range of up to 180m. Four LEDs on the top work as High Beam, while the other two on the bottom as Low Beam for better image clarity and quality regardless of the object distance. Also, the Low Beam and High Beam’s brightness can be adjusted manually or automatically on the basis of the zoom ratio.

smart IR bullet camera

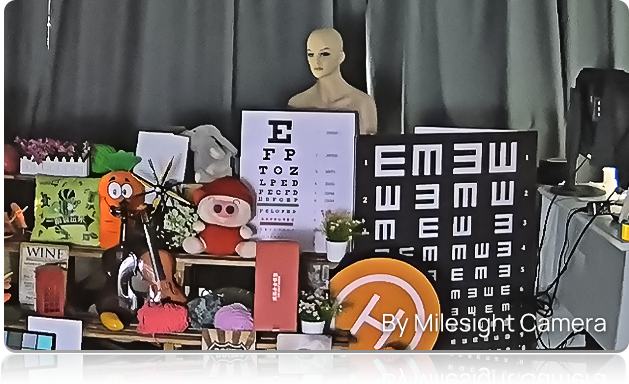

1/1.8" STARVIS Starlight Sensor

Adopting the top-notch Sony STARVIS Starlight Sensor, Milesight Network Camera improves every aspect of image quality. The high sensitive sensor allows the camera to achieve excellent video quality in 4K with better low-light sensitivity.

Starlight Sensor AI Bullet

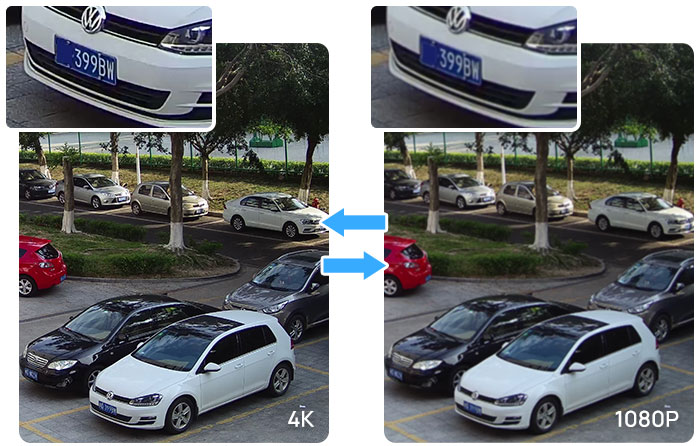

4K Video Viewing Experience

Milesight AI 4X/12X Pro Bullet Plus Network Camera delivers up to 4K resolution (3840*2160, effectively four times that of Full HD) at 30 frames per second (fps), providing users with ultra-high-definition video viewing experience.

4k AI Bullet

IP67 & IK10

Sharply contrasting to the mini size, the AI 4X/12X Pro Bullet Plus Network Camera features the industry leading IP67-rated weather proofing and IK10-rated vandal proofing, which allow to protect the camera against adverse impacts to ensure the robust performance.

IP67 IK10 ai bullet camera

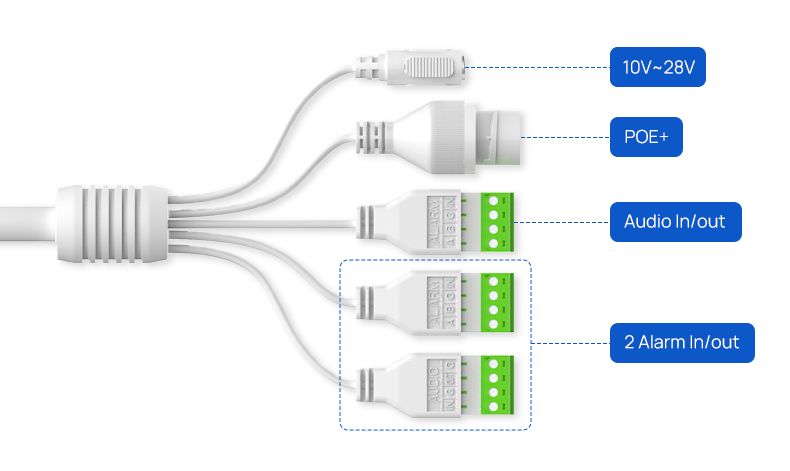

Integrated Cable Management Bracket

In the base, there are power interface, PoE port and other interfaces. Thanks to integrated cable management, it takes no effort in installation.

bracket

Integrated Junction Box

A: The creative clamshell design minimizes the installation troubles and enlarges the space to make cable connection a piece of cake.
B: The round design of the junction box conceals the cables inside, making it look more neat and clear.

bullet camera junction box

SIP/VoIP Support

Milesight AI 4X/12X Pro Bullet Plus Network Camera features industry leading SIP/VoIP function and video streaming for mobile phones and video phones.

SIP camrea
  • MS-C2866-X4R(T)PA
  • MS-C2966-X12R(T)PA
  • MS-C5366-X12PA
  • MS-C8266-X4PA
  • MS-C2866-X4TPC
  • MS-C2966-X12(R)(T)PC
  • MS-C5366-X12PC
  • MS-C8266-X4PC
Camera Name 2MP AI 4X Pro Bullet Plus Network Camera
Image Sensor 1/2" Progressive Scan CMOS
Min. Illumination Color: 0.001Lux @F1.2, Color: 0.002Lux @F1.6, B/W: 0Lux with IR on
WDR 120dB Super WDR
Shutter Time 1/100000s∼1s
Day/Night Mode Day/Night/Auto/Customize/Schedule
IR Distance Up to 180m
S/N >55dB
Lens Lens 8~32mm, 4X Optical Zoom
Field of View H44°~H13°/D51°~D15°/V25°~V7°
Mount Φ14
Focus Control Auto/Manual
Aperture F1.6-F1.7
Iris Control Auto
Video Max. Image Resolution 1920x1080
Frame Rate 60Hz: 90fps@(1920x1080)(Optional for T Series), 60fps@(1920x1080, 1280x960, 1280x720, 704x576)
50Hz: 90fps@(1920x1080)(Optional for T Series), 50fps@(1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream 60Hz: 90fps@(704x576)(Optional for T Series), 60fps@(704x576, 640x480, 640x360, 352x288, 320x240)
50Hz: 90fps@(704x576)(Optional for T Series), 50fps@(704x576, 640x480, 640x360, 352x288, 320x240)
Tertiary Stream 60Hz: 30fps@(1280x720, 704x576, 640x480, 640x360, 352x288, 320x240)
50Hz: 25fps@(1280x720, 704x576, 640x480, 640x360, 352x288, 320x240)
Video Compression H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate 16Kbps∼16Mbps (CBR/VBR adjustable)
Privacy Masking Up to 24 areas
ROI Up to 8 areas
Image Settings Saturation/Brightness/Contrast/Sharpness
Web Access Support IE/Firefox/Chrome/Safari Browser
Audio Audio Compression G.711/AAC/G.722/G.726
Audio Sampling Rate 8/16/32/44.1/48KHz
Audio Bit Rate 16~256kbps
Two-way Audio Support
Interface Ethernet 1*RJ45 10M/100M Ethernet Port
Audio I/O 1/1
Alarm I/O 1/1
Network Network Storage NAS(Support NFS, SMB/CIFS), ANR
Network Protocols IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
Intelligent Analytics Video Analysis Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
People Counting& Report Count the number of people entering or exiting, up to 4 detection areas for regional people counting
System Storage Support microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced Function BLC, HLC, 2D DNR, 3D DNR, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP Support Yes, Voice&Video-over-IP
Event Trigger Motion Detection, Network Disconnection, External Input, Audio Alarm, etc.
Event Action FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc
System Compatibility ONVIF Profile G & Q & S & T, API
General Working Temperature -40℃∼60℃/-60℃∼60℃(Optional for Heater Version)
Working Humidity 0∼90%(Non-condensing)
Power Supply PoE (802.3at) / DC 12V±10%
Power Consumption 7W MAX, 13W MAX (With IR on)
10W Max (With Heater on)
Heater on: below 10℃, Heater off: above 25℃
Surge Protection 4KV
Weather Proof Up to IP67-rated for weather-resistant performance
Housing Vandal-proof IK10-rated metal housing
Dimensions 320mmX134mmX126mm
Weight 1445.8g
Warranty 3/5 Years
Camera Name 2MP AI 12X Pro Bullet Plus Network Camera
Image Sensor 1/2.8" Progressive Scan CMOS
Min. Illumination Color: 0.002Lux @F1.2, Color: 0.005Lux @F1.6, B/W: 0Lux with IR on
WDR 120dB Super WDR
Shutter Time 1/100000s∼1s
Day/Night Mode Day/Night/Auto/Customize/Schedule
IR Distance Up to 180m
S/N >55dB
Lens Lens 5.3~64mm, 12X Optical Zoom
Field of View H61°~H5°/D69°~D5°/V36°~V2°
Mount Φ14
Focus Control Auto/Manual
Aperture F1.6~F2.8
Iris Control Auto
Video Max. Image Resolution 1920x1080
Frame Rate 60Hz: 90fps@(1920x1080)(Optional for T Series), 60fps@(1920x1080, 1280x960, 1280x720, 704x576)
50Hz: 90fps@(1920x1080)(Optional for T Series), 50fps@(1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream 60Hz: 90fps@(704x576)(Optional for T Series), 60fps@(704x576, 640x480, 640x360, 352x288, 320x240)
50Hz: 90fps@(704x576)(Optional for T Series), 50fps@(704x576, 640x480, 640x360, 352x288, 320x240)
Tertiary Stream 60Hz: 30fps@(1280x720, 704x576, 640x480, 640x360, 352x288, 320x240)
50Hz: 25fps@(1280x720, 704x576, 640x480, 640x360, 352x288, 320x240)
Video Compression H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate 16Kbps∼16Mbps (CBR/VBR adjustable)
Privacy Masking Up to 24 areas
ROI Up to 8 areas
Image Settings Saturation/Brightness/Contrast/Sharpness
Web Access Support IE/Firefox/Chrome/Safari Browser
Audio Audio Compression G.711/AAC/G.722/G.726
Audio Sampling Rate 8/16/32/44.1/48KHz
Audio Bit Rate 16~256kbps
Two-way Audio Support
Interface Ethernet 1*RJ45 10M/100M Ethernet Port
Audio I/O 1/1
Alarm I/O 1/1
Network Network Storage NAS(Support NFS, SMB/CIFS), ANR
Network Protocols IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
Intelligent Analytics Video Analysis Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
People Counting& Report Count the number of people entering or exiting, up to 4 detection areas for regional people counting
System Storage Support microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced Function BLC, HLC, 2D DNR, 3D DNR, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP Support Yes, Voice&Video-over-IP
Event Trigger Motion Detection, Network Disconnection, External Input, Audio Alarm, etc.
Event Action FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc
System Compatibility ONVIF Profile G & Q & S & T, API
General Working Temperature -40℃∼60℃/-60℃∼60℃(Optional for Heater Version)
Working Humidity 0∼90%(Non-condensing)
Power Supply PoE (802.3at) / DC 12V±10%
Power Consumption 7W MAX, 13W MAX (With IR on)
10W Max (With Heater on)
Heater on: below 10℃, Heater off: above 25℃
Surge Protection 4KV
Weather Proof Up to IP67-rated for weather-resistant performance
Housing Vandal-proof IK10-rated metal housing
Dimensions 320mmX134mmX126mm
Weight 1447g
Warranty 3/5 Years
Camera Name 5MP AI 12X Pro Bullet Plus Network Camera
Image Sensor 1/2.8" Progressive Scan CMOS
Min. Illumination Color: 0.005Lux @F1.2, Color: 0.008Lux @F1.6, B/W: 0Lux with IR on
WDR 120dB Super WDR
Shutter Time 1/100000s∼1s
Day/Night Mode Day/Night/Auto/Customize/Schedule
IR Distance Up to 150m
S/N >55dB
Lens Lens 5.3~64mm, 12X Optical Zoom
Field of View H57°~H4°/D69°~D5°/V44°~V1°
Mount Φ14
Focus Control Auto/Manual
Aperture F1.6~F2.8
Iris Control Auto
Video Max. Image Resolution 2592x1944
Frame Rate 60Hz: 30fps@(2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)
50Hz: 25fps@(2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream 60Hz: 30fps@(704x576, 640x480, 640x360, 352x288, 320x240)
50Hz: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240)
Tertiary Stream 60Hz: 30fps@(1280x720, 704x576, 640x480, 640x360, 352x288, 320x240)
50Hz: 25fps@(1280x720, 704x576, 640x480, 640x360, 352x288, 320x240)
Video Compression H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate 16Kbps∼16Mbps (CBR/VBR adjustable)
Privacy Masking Up to 24 areas
ROI Up to 8 areas
Image Settings Saturation/Brightness/Contrast/Sharpness
Web Access Support IE/Firefox/Chrome/Safari Browser
Audio Audio Compression G.711/AAC/G.722/G.726
Audio Sampling Rate 8/16/32/44.1/48KHz
Audio Bit Rate 16~256kbps
Two-way Audio Support
Interface Ethernet 1*RJ45 10M/100M Ethernet Port
Audio I/O 1/1
Alarm I/O 1/1
Network Network Storage NAS(Support NFS, SMB/CIFS), ANR
Network Protocols IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
Intelligent Analytics Video Analysis Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
People Counting& Report Count the number of people entering or exiting, up to 4 detection areas for regional people counting
System Storage Support microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced Function BLC, HLC, 2D DNR, 3D DNR, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP Support Yes, Voice&Video-over-IP
Event Trigger Motion Detection, Network Disconnection, External Input, Audio Alarm, etc.
Event Action FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc
System Compatibility ONVIF Profile G & Q & S & T, API
General Working Temperature -40℃∼60℃/-60℃∼60℃(Optional for Heater Version)
Working Humidity 0∼90%(Non-condensing)
Power Supply PoE (802.3at) / DC 12V±10%
Power Consumption 8W MAX, 13W MAX (With IR on)
10W Max (With Heater on)
Heater on: below 10℃, Heater off: above 25℃
Surge Protection 4KV
Weather Proof Up to IP67-rated for weather-resistant performance
Housing Vandal-proof IK10-rated metal housing
Dimensions 320mmX134mmX126mm
Weight 1447g
Warranty 3/5 Years
Camera Name 4K AI 4X Pro Bullet Plus Network Camera
Image Sensor 1/1.8" Progressive Scan CMOS
Min. Illumination Color: 0.006Lux @F1.2, Color: 0.009Lux @F1.6, B/W: 0Lux with IR on
WDR 120dB Super WDR
Shutter Time 1/100000s∼1s
Day/Night Mode Day/Night/Auto/Customize/Schedule
IR Distance Up to 180m
S/N >55dB
Lens Lens 8~32mm, 4X Optical Zoom
Field of View H44°~H13°/D51°~D15°/V25°~V7°
Mount Φ14
Focus Control Auto/Manual
Aperture F1.6-F1.7
Iris Control Auto
Video Max. Image Resolution 3840x2160
Frame Rate 60Hz: 30fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)
50Hz: 25fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream 60Hz: 30fps@(704x576, 640x480, 640x360, 352x288, 320x240)
50Hz: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240)
Tertiary Stream 60Hz: 30fps@(1280x720, 704x576, 640x480, 640x360, 352x288, 320x240)
50Hz: 25fps@(1280x720, 704x576, 640x480, 640x360, 352x288, 320x240)
Video Compression H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate 16Kbps∼16Mbps (CBR/VBR adjustable)
Privacy Masking Up to 24 areas
ROI Up to 8 areas
Image Settings Saturation/Brightness/Contrast/Sharpness
Web Access Support IE/Firefox/Chrome/Safari Browser
Audio Audio Compression G.711/AAC/G.722/G.726
Audio Sampling Rate 8/16/32/44.1/48KHz
Audio Bit Rate 16~256kbps
Two-way Audio Support
Interface Ethernet 1*RJ45 10M/100M Ethernet Port
Audio I/O 1/1
Alarm I/O 1/1
Network Network Storage NAS(Support NFS, SMB/CIFS), ANR
Network Protocols IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
Intelligent Analytics Video Analysis Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
People Counting& Report Count the number of people entering or exiting, up to 4 detection areas for regional people counting
System Storage Support microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced Function BLC, HLC, 2D DNR, 3D DNR, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP Support Yes, Voice&Video-over-IP
Event Trigger Motion Detection, Network Disconnection, External Input, Audio Alarm, etc.
Event Action FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc
System Compatibility ONVIF Profile G & Q & S & T, API
General Working Temperature -40℃∼60℃/-60℃∼60℃(Optional for Heater Version)
Working Humidity 0∼90%(Non-condensing)
Power Supply PoE (802.3at) / DC 12V±10%
Power Consumption 8W MAX, 13W MAX (With IR on)
10W Max (With Heater on)
Heater on: below 10℃, Heater off: above 25℃
Surge Protection 4KV
Weather Proof Up to IP67-rated for weather-resistant performance
Housing Vandal-proof IK10-rated metal housing
Dimensions 320mmX134mmX126mm
Weight 1445.8g
Warranty 3/5 Years
Camera Name 2MP AI 4X Pro Bullet Plus Network Camera
Image Sensor 1/2" Progressive Scan CMOS
Min. Illumination Color: 0.001Lux @F1.2, Color: 0.002Lux @F1.6, B/W: 0Lux with IR on
WDR 140dB Super WDR Pro
Shutter Time 1/100000s∼1s
Day/Night Mode Day/Night/Auto/Customize/Schedule
IR Distance Up to 180m
S/N >55dB
Lens Lens 8~32mm, 4X Optical Zoom
Field of View H44°~H13°/D51°~D15°/V25°~V7°
Mount Φ14
Focus Control Auto/Manual
Aperture F1.6-F1.7
Iris Control Auto
Video Max. Image Resolution 1920x1080
Frame Rate 60Hz: 100fps@(1920x1080), 60fps@(1920x1080, 1280x960, 1280x720, 704x576)
50Hz: 100fps@(1920x1080), 50fps@(1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream 60Hz: 60fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180)
50Hz: 50fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180)
Tertiary Stream 60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180)
50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180)
Video Compression H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate 16Kbps∼16Mbps (CBR/VBR adjustable)
Privacy Masking Up to 28 areas(24 mask areas and 4 mosaic areas)
ROI Up to 8 areas
Image Settings Saturation/Brightness/Contrast/Sharpness
Web Access Support IE/Firefox/Chrome/Safari Browser
Audio Audio Compression G.711/AAC/G.722/G.726
Audio Sampling Rate 8/16/32/44.1/48KHz
Audio Bit Rate 16~256kbps
Two-way Audio Support
Interface Ethernet 1*RJ45 10M/100M Ethernet Port
Audio I/O 1/1
Alarm I/O 1/1
Network Network Storage NAS(Support NFS, SMB/CIFS), ANR
Network Protocols IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
Intelligent Analytics Video Analysis Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
Face Detection Detect and capture faces, get real-time snapshots
People Counting& Report Count the number of people entering or exiting, up to 4 detection areas for regional people counting
System Storage Support microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced Function BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP Support Yes, Voice&Video-over-IP
Event Trigger Motion Detection, Network Disconnection, External Input, Audio Alarm, etc.
Event Action FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc
System Compatibility ONVIF Profile G & Q & S & T, API
General Working Temperature -40℃∼60℃/-60℃∼60℃(Optional for Heater Version)
Working Humidity 0∼90%(Non-condensing)
Power Supply PoE (802.3at) / DC 12V±10%
Power Consumption 8W MAX
14W MAX (With IR on)
10W Max (With Heater on)
Heater on: below 10℃, Heater off: above 25℃
Surge Protection 4KV
Weather Proof Up to IP67-rated for weather-resistant performance
Housing Vandal-proof IK10-rated metal housing
Dimensions 320mmX134mmX126mm
Weight 1445.8g
Warranty 3/5 Years
Camera Name 2MP AI 12X Pro Bullet Plus Network Camera
Image Sensor 1/2.8" Progressive Scan CMOS
Min. Illumination Color: 0.002Lux @F1.2, Color: 0.005Lux @F1.6, B/W: 0Lux with IR on
WDR 140dB Super WDR (Super WDR Pro is optional for T Series)
Shutter Time 1/100000s∼1s
Day/Night Mode Day/Night/Auto/Customize/Schedule
IR Distance Up to 180m
S/N >55dB
Lens Lens 5.3~64mm, 12X Optical Zoom
Field of View H61°~H5°/D69°~D5°/V36°~V2°
Mount Φ14
Focus Control Auto/Manual
Aperture F1.6~F2.8
Iris Control Auto
Video Max. Image Resolution 1920x1080
Frame Rate 60Hz: 100fps@(1920x1080)(Optional for T Series), 60fps@(1920x1080, 1280x960, 1280x720, 704x576)
50Hz: 100fps@(1920x1080)(Optional for T Series), 50fps@(1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream 60Hz: 60fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180)
50Hz: 50fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180)
Tertiary Stream 60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180)
50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180)
Video Compression H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate 16Kbps∼16Mbps (CBR/VBR adjustable)
Privacy Masking Up to 28 areas(24 mask areas and 4 mosaic areas)
ROI Up to 8 areas
Image Settings Saturation/Brightness/Contrast/Sharpness
Web Access Support IE/Firefox/Chrome/Safari Browser
Audio Audio Compression G.711/AAC/G.722/G.726
Audio Sampling Rate 8/16/32/44.1/48KHz
Audio Bit Rate 16~256kbps
Two-way Audio Support
Interface Ethernet 1*RJ45 10M/100M Ethernet Port
Audio I/O 1/1
Alarm I/O 1/1
Network Network Storage NAS(Support NFS, SMB/CIFS), ANR
Network Protocols IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
Intelligent Analytics Video Analysis Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
Face Detection Detect and capture faces, get real-time snapshots
People Counting& Report Count the number of people entering or exiting, up to 4 detection areas for regional people counting
System Storage Support microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced Function BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP Support Yes, Voice&Video-over-IP
Event Trigger Motion Detection, Network Disconnection, External Input, Audio Alarm, etc.
Event Action FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc
System Compatibility ONVIF Profile G & Q & S & T, API
General Working Temperature -40℃∼60℃/-60℃∼60℃(Optional for Heater Version)
Working Humidity 0∼90%(Non-condensing)
Power Supply PoE (802.3at) / DC 12V±10%
Power Consumption 8W MAX
14W MAX (With IR on)
10W Max (With Heater on)
Heater on: below 10℃, Heater off: above 25℃
Surge Protection 4KV
Weather Proof Up to IP67-rated for weather-resistant performance
Housing Vandal-proof IK10-rated metal housing
Dimensions 320mmX134mmX126mm
Weight 1447g
Warranty 3/5 Years
Camera Name 5MP AI 12X Pro Bullet Plus Network Camera
Image Sensor 1/2.8" Progressive Scan CMOS
Min. Illumination Color: 0.005Lux @F1.2, Color: 0.008Lux @F1.6, B/W: 0Lux with IR on
WDR 120dB Super WDR
Shutter Time 1/100000s∼1s
Day/Night Mode Day/Night/Auto/Customize/Schedule
IR Distance Up to 180m
S/N >55dB
Lens Lens 5.3~64mm, 12X Optical Zoom
Field of View H57°~H4°/D69°~D5°/V44°~V1°
Mount Φ14
Focus Control Auto/Manual
Aperture F1.6~F2.8
Iris Control Auto
Video Max. Image Resolution 2592x1944
Frame Rate 60Hz: 30fps@(2592x1944), 45fps@(2048x1536),60fps@(1920x1080, 1280x960, 1280x720, 704x576)
50Hz: 25fps@(2592x1944), 45fps@(2048x1536),50fps@(1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream 60Hz: 30fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180)
50Hz: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180)
Tertiary Stream 60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180)
50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180)
Video Compression H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate 16Kbps∼16Mbps (CBR/VBR adjustable)
Privacy Masking Up to 28 areas(24 mask areas and 4 mosaic areas)
ROI Up to 8 areas
Image Settings Saturation/Brightness/Contrast/Sharpness
Web Access Support IE/Firefox/Chrome/Safari Browser
Audio Audio Compression G.711/AAC/G.722/G.726
Audio Sampling Rate 8/16/32/44.1/48KHz
Audio Bit Rate 16~256kbps
Two-way Audio Support
Interface Ethernet 1*RJ45 10M/100M Ethernet Port
Audio I/O 1/1
Alarm I/O 1/1
Network Network Storage NAS(Support NFS, SMB/CIFS), ANR
Network Protocols IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
Intelligent Analytics Video Analysis Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
Face Detection Detect and capture faces, get real-time snapshots
People Counting& Report Count the number of people entering or exiting, up to 4 detection areas for regional people counting
System Storage Support microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced Function BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP Support Yes, Voice&Video-over-IP
Event Trigger Motion Detection, Network Disconnection, External Input, Audio Alarm, etc.
Event Action FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc
System Compatibility ONVIF Profile G & Q & S & T, API
General Working Temperature -40℃∼60℃/-60℃∼60℃(Optional for Heater Version)
Working Humidity 0∼90%(Non-condensing)
Power Supply PoE (802.3at) / DC 12V±10%
Power Consumption 8W MAX, 13W MAX (With IR on)
10W Max (With Heater on)
Heater on: below 10℃, Heater off: above 25℃
Surge Protection 4KV
Weather Proof Up to IP67-rated for weather-resistant performance
Housing Vandal-proof IK10-rated metal housing
Dimensions 320mmX134mmX126mm
Weight 1447g
Warranty 3/5 Years
Camera Name 4K AI 4X Pro Bullet Plus Network Camera
Image Sensor 1/1.8" Progressive Scan CMOS
Min. Illumination Color: 0.006Lux @F1.2, Color: 0.009Lux @F1.6, B/W: 0Lux with IR on
WDR 120dB Super WDR
Shutter Time 1/100000s∼1s
Day/Night Mode Day/Night/Auto/Customize/Schedule
IR Distance Up to 180m
S/N >55dB
Lens Lens 8~32mm, 4X Optical Zoom
Field of View H44°~H13°/D51°~D15°/V25°~V7°
Mount Φ14
Focus Control Auto/Manual
Aperture F1.6-F1.7
Iris Control Auto
Video Max. Image Resolution 3840x2160
Frame Rate 60Hz: 30fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)
50Hz: 25fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream 60Hz: 30fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180)
50Hz: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180)
Tertiary Stream 60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180)
50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180)
Video Compression H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate 16Kbps∼16Mbps (CBR/VBR adjustable)
Privacy Masking Up to 28 areas(24 mask areas and 4 mosaic areas)
ROI Up to 8 areas
Image Settings Saturation/Brightness/Contrast/Sharpness
Web Access Support IE/Firefox/Chrome/Safari Browser
Audio Audio Compression G.711/AAC/G.722/G.726
Audio Sampling Rate 8/16/32/44.1/48KHz
Audio Bit Rate 16~256kbps
Two-way Audio Support
Interface Ethernet 1*RJ45 10M/100M Ethernet Port
Audio I/O 1/1
Alarm I/O 1/1
Network Network Storage NAS(Support NFS, SMB/CIFS), ANR
Network Protocols IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
Intelligent Analytics Video Analysis Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
Face Detection Detect and capture faces, get real-time snapshots
People Counting& Report Count the number of people entering or exiting, up to 4 detection areas for regional people counting
System Storage Support microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced Function BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP Support Yes, Voice&Video-over-IP
Event Trigger Motion Detection, Network Disconnection, External Input, Audio Alarm, etc.
Event Action FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc
System Compatibility ONVIF Profile G & Q & S & T, API
General Working Temperature -40℃∼60℃/-60℃∼60℃(Optional for Heater Version)
Working Humidity 0∼90%(Non-condensing)
Power Supply PoE (802.3at) / DC 12V±10%
Power Consumption 8W MAX, 14W MAX (With IR on)
10W Max (With Heater on)
Heater on: below 10℃, Heater off: above 25℃
Surge Protection 4KV
Weather Proof Up to IP67-rated for weather-resistant performance
Housing Vandal-proof IK10-rated metal housing
Dimensions 320mmX134mmX126mm
Weight 1445.8g
Warranty 3/5 Years
  • * Naming Convention
  • R - High Frame Rate (60fps)
  • T - High Frame Rate (90/100fps)
  • P - PoE Supported
  • A/C - AI Series
MIGHT BE INTERESTED IN

Contact Us

Contact Us

Verify Code

Contact Us to Get More Information

If you are interested in Milesight, please leave us a message.

Verify Code
TOP

Stay up to date with our latest products, solutions and news


Verify Code
