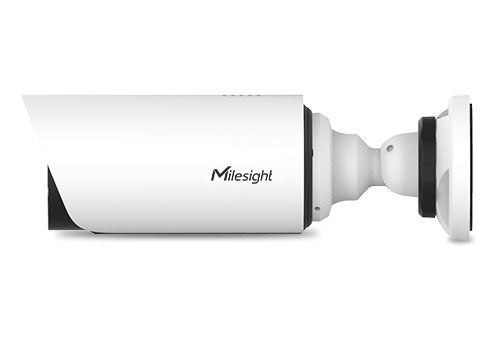

NDAA AI Motorized Bullet Network Camera

Smart & Ruggedized Camera for Harsh Environments

2/5/8MP · AI · 120dB Super WDR · 0.002Lux Ultra Low-light · 60fps · IP67 · IK10 · Smart IR II · 50m IR Distance · PoE · Versatile Interfaces

NDAA AI Heat Map 4K PoE H265+ ONVIF G&Q&S&T SD Card Smart IR II Weather-
Proof
Vandal-
Proof
Starlight Super WDR Privacy Mask 3-Axis
  • slide1

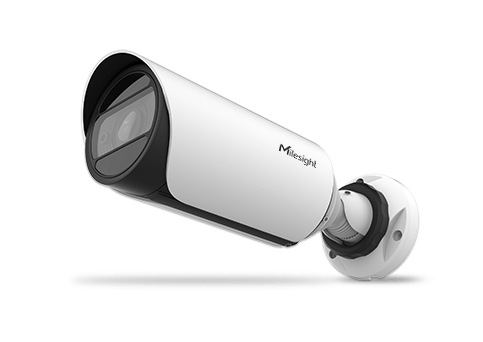

  • slide2

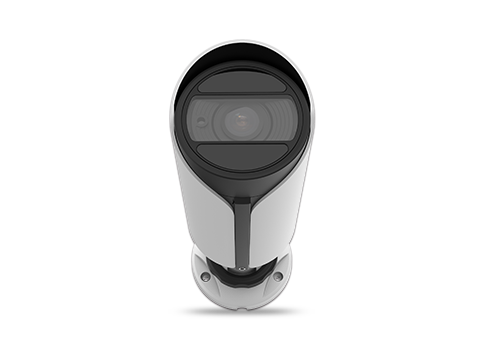

  • slide3

NDAA Compliant

This model is compliant with the NDAA (National Defense Authorization Act). It does not use or deploy critical components including SoCs produced by NDAA banned component vendors, which is recommended for enterprises and critical applications where compliance is essential.

NDAA

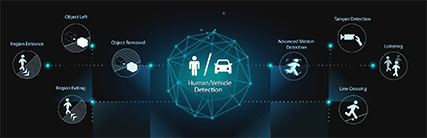

AI Video Analytics

Milesight AI Camera Series can intelligently filter objects to focus on human and vehicle detection in multiple events such as Region Entrance, Region Exiting, Loitering, Advanced Motion Detection, etc.

AI VCA

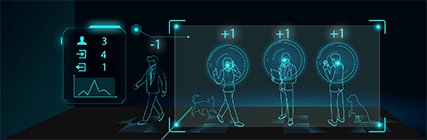

People Counting

High accuracy and real-time people counting based on AI algorithm, with statistic reports for further analysis, helps to make fast decisions on security management and increase the operational efficiency of the business.

AI people counting

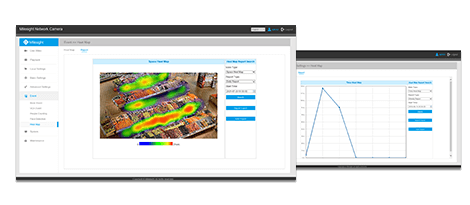

Advanced Heat Map

With scenario-adaptable and flexible configurations, Milesight Advanced Heat Map is embedded into the AI series which can analyze customers' movement to reveal insights for better business management with the intuitive and accurate statistical analysis results in time or space pattern as needed.

Advanced Heat Map

Leading-edge H.265+ Compression

H.265+

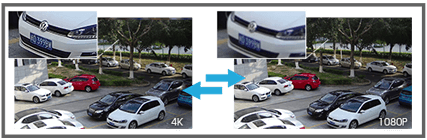

4K Video Viewing Experience

Milesight NDAA AI Motorized Bullet Network Camera delivers up to 4K resolution (3840*2160, effectively four times that of Full HD), providing users with ultra-high-definition video viewing experience.

4K security camera, 4K ip camera, 4K cctv camera

Advanced Motorized Lens

With flexible motorized lens (2.7~13.5mm), the camera is able to capture distant subjects rather than fixing on the specific scene with no flexibility. The ultra wide angle lens brings wider field of view to broaden horizons, leaving the narrow view experiences behind.

Advanced Motorized Lens

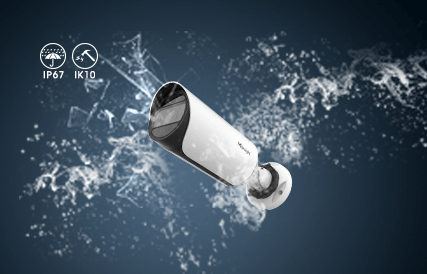

IP67 & IK10

Sharply contrasting to the mini size, the NDAA AI Motorized Bullet Network Camera features the industry leading IP67-rated weather proofing and IK10-rated vandal proofing, which allow to protect the camera against adverse impacts to ensure the robust performance.

IP67, IK10, ndaa ai motorized bullet camera

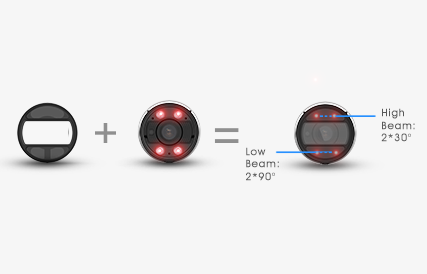

Smart IR II Technology

To maximize the IR performance, the NDAA AI Motorized Bullet Network Camera innovated both in the structure and technology. The advanced Smart IR II technology guarantees superb IR performance with the combination of two High Beams and two Low Beams and adjustable illumination intensity. The infrared light transmittance is greatly increased with IR anti-reflection panel which is well designed for better IR effect.

IR of ndaa ai motorized bullet camera

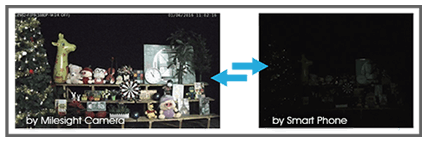

0.002Lux Ultra Low-light

The NDAA AI Motorized Bullet Network Camera is able to deliver high detailed color images even in the low light environments reaching 0.002Lux (Color) or 0Lux (B/W), and near infrared light environments without any supplementary lighting.

Ultra Low-light

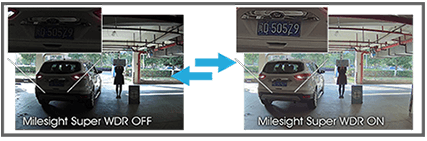

120dB Super WDR

Milesight's sensor-based WDR technology allows the camera to record greater scene details with true color reproduction even under the extreme back light and high contrast conditions. The ratio that the brightest light signal values divided by the darkest light signal values is up to 120dB.

Super WDR

60fps

Milesight NDAA AI Network Camera offers high frame rate including 2MP@60fps, 5MP@30fps and 4K@30fps, which enables the camera to easily catch images with no latency despite the high-speed movement.

High Frame Rate

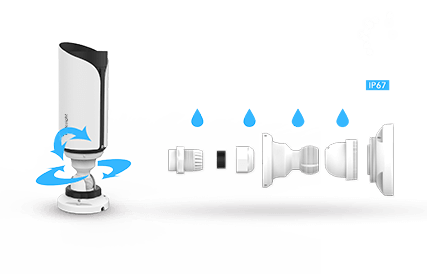

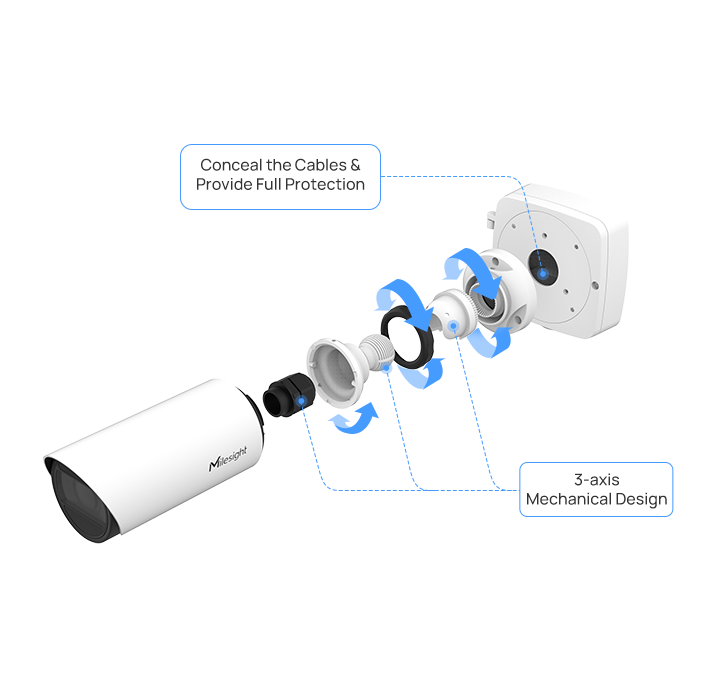

Unique Structure Design

The camera features 3-axis mechanical design for fast and easy adjustment of the camera's viewing angle, allowing to position the camera precisely. Another highlight of the structure lies in the mounting bracket which is able to conceal the cables, offering a well-rounded protection of the cable from any water, dust or shock damages.

3-Axis Design& IP67,ndaa ai motorized bullet camera

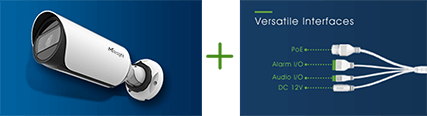

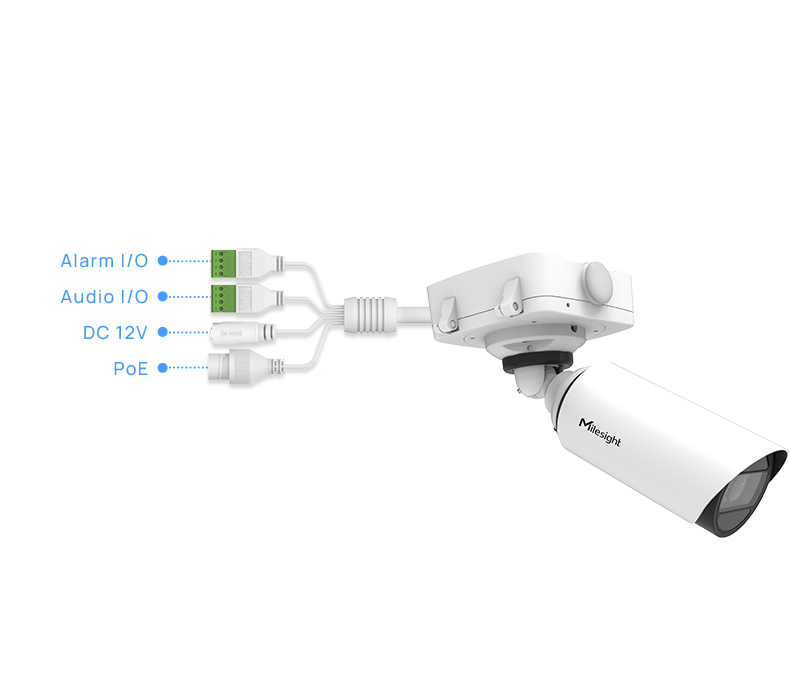

Versatile Interfaces

Several interfaces such as PoE, DC, Audio I/O and Alarm I/O are available in the Multi-interface Version, offering more choices for easy management and various needs.

Versatile Interfaces

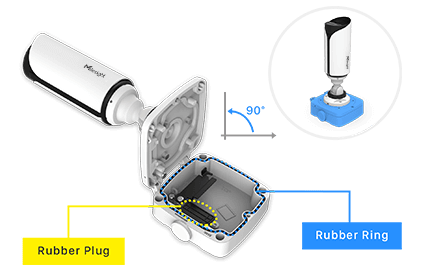

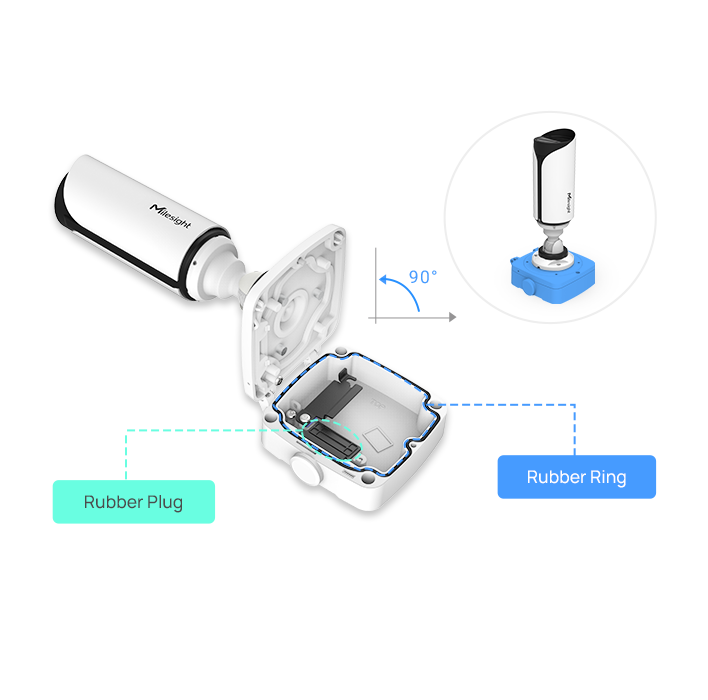

Integrated Junction Box (Optional)

The well-designed Integrated Junction Box especially the Clamshell structure, ensures efficient and simple installations. It enlarges the space to make cable connection neat and as easy as a piece of cake. With the help of the rubber plugs and rubber ring which guarantee IP67-rated weather-proof capability, the Integrated Junction Box is able to offer stable operation in any tough conditions.

Integrated Junction Box, ndaa ai motorized bullet camera

SIP/VoIP Support

Milesight NDAA AI Motorized Bullet Network Camera features industry leading SIP/VoIP function and video streaming for mobile phones and video phones.

ndaa ai motorized bullet camera, SIP, VoIP
  • MS-C2964-R(T)F(I)PE
  • MS-C5364-F(I)PE
  • MS-C8164-F(I)PE
  • MS-C2964-FPD
  • MS-C2964-RF(I)PA
  • MS-C5364-F(I)PA
  • MS-C8164-F(I)PA
CameraNameAI Motorized Bullet Network Camera
Image Sensor1/2.8″ Progressive Scan CMOS
Min. IlluminationColor: 0.005Lux@F1.4
B/W: 0Lux with IR on
WDR140dB Super WDR
Shutter Time1/100000s~1s
IR DistanceUp to 50m
Day/Night ModeDay/Night/Auto/Customize/Schedule
S/N>55dB
LensLensMotorized 2.7~13.5mm/3.0~10.5mm/7~22mm@F1.4

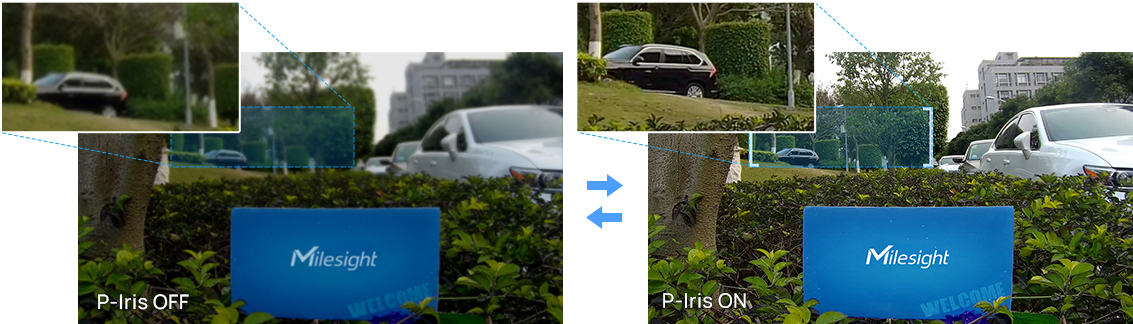

P-Iris(Optional)
MountΦ14
Field of ViewH111°~H34°/D130°~D39°/V60°~V19°(2.7~13.5mm)
H100°~H33°/D115°~D38°/V54°~V18°(3.0~10.5mm)
H42°~H17°/D48°~D19°/V24°~V9° (7~22mm)
Focus ControlAuto/Manual
Iris Control (Optional for I Series)Auto/Manual
VideoMax. Image Resolution1920x1080
Primary Stream60Hz: 90fps@(1920x1080)(Optional for T Series), 60fps@(1920x1080, 1280x960, 1280x720, 704x576)
50Hz: 90fps@(1920x1080)(Optional for T Series), 50fps@(1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream60Hz: 60fps@(704x576, 640x480, 640x360, 352x288, 320x240)
50Hz: 50fps@(704x576, 640x480, 640x360, 352x288, 320x240)
Tertiary Stream60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 352x288, 320x240)
50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 352x288, 320x240)
Video CompressionH.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate16Kbps~16Mbps(CBR/VBR Adjustable)
Privacy MaskingUp to 8 Areas (Mask Area and Mosaic Area are optional)
ROIUp to 8 areas
Image SettingBrightness/Contrast/Saturation/Sharpness
InterfaceEthernet1*RJ45 10M/100M Ethernet Port
Audio I/O1/1 (Multi-interface Version)
Alarm I/O1/1 (Multi-interface Version)
NetworkNetwork StorageNAS(Support NFS, SMB/CIFS), ANR
ProtocolIPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
AudioAudio CompressionG.711/AAC/G.722/G.726
Audio Sampling Rate8/16/32/44.1/48KHz
Audio Bit Rate16~256kbps
Two-way AudioSupport
Intelligent AnalyticsVideo AnalysisRegion Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
Face Detection&Face Attribute RecognitionDetect and capture faces, get real-time snapshots; The attributes include Age, Gender, Glasses, Mask and Cap; Support Faces Privacy Mode,the detected faces in the face detection area will be mosaic automatically
People Counting&ReportCount the number of people entering or exiting, up to 4 detection areas for regional people counting
SystemStorageSupport microSD/SDHC/SDXC Card Local Storage, up to 1TB
Advanced FunctionHeat Map, BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP SupportYes, Voice & Video-over-IP
Event TriggerMotion Detection, Network Disconnection, etc.
Event ActionFTP Upload, SMTP Upload, SD Card Record, SIP Phone, HTTP Notification, etc.
System CompatibilityONVIF Profile G & M & S & T, API
GeneralWorking Temperature-40℃~60℃
Working Humidity0~95%(Non-condensing)
Power SupplyPoE (802.3af) / DC 12V±10%
Power Consumption6W MAX, 10W MAX (With IR on)
Weather ProofUp to IP67-rated for Weather-resistant Performance
HousingVandal-proof IK10-rated Metal Housing
Weight825g
DimensionsΦ76mmX239.5mm
Warranty3/5 Years
CameraNameAI Motorized Bullet Network Camera
Image Sensor1/2.8″ Progressive Scan CMOS
Min. IlluminationColor: 0.008Lux@F1.4
B/W: 0Lux with IR on
WDR120dB Super WDR
Shutter Time1/100000s~1s
IR DistanceUp to 50m
Day/Night ModeDay/Night/Auto/Customize/Schedule
S/N>55dB
LensLensMotorized 2.7~13.5mm/3.0~10.5mm/7~22mm@F1.4
P-Iris(Optional)
MountΦ14
Field of ViewH99°~H31°/ D124°~D38°/V72°~V23° (2.7~13.5mm)
H89°~H31°/D111°~D38°/V66°~V23° (3.0~10.5mm)
H37°~H15°/D46°~D19°/V28°~V11° (7~22mm)
Focus ControlAuto/Manual
Iris Control (Optional for I Series)Auto/Manual
VideoMax. Image Resolution2592x1944
Primary Stream60Hz: 30fps@(2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)
50Hz: 25fps@(2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream60Hz: 30fps@(704x576, 640x480, 640x360, 352x288, 320x240)
50Hz: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240)
Tertiary Stream60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 352x288, 320x240)
50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 352x288, 320x240)
Video CompressionH.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate16Kbps~16Mbps(CBR/VBR Adjustable)
Privacy MaskingUp to 8 Areas (Mask Area and Mosaic Area are optional)
ROIUp to 8 areas
Image SettingBrightness/Contrast/Saturation/Sharpness
InterfaceEthernet1*RJ45 10M/100M Ethernet Port
Audio I/O1/1 (Multi-interface Version)
Alarm I/O1/1 (Multi-interface Version)
NetworkNetwork StorageNAS(Support NFS, SMB/CIFS), ANR
ProtocolIPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
AudioAudio CompressionG.711/AAC/G.722/G.726
Audio Sampling Rate8/16/32/44.1/48KHz
Audio Bit Rate16~256kbps
Two-way AudioSupport
Intelligent AnalyticsVideo AnalysisRegion Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
Face Detection&Face Attribute RecognitionDetect and capture faces, get real-time snapshots; The attributes include Age, Gender, Glasses, Mask and Cap; Support Faces Privacy Mode,the detected faces in the face detection area will be mosaic automatically
People Counting&ReportCount the number of people entering or exiting, up to 4 detection areas for regional people counting
SystemStorageSupport microSD/SDHC/SDXC Card Local Storage, up to 1TB
Advanced FunctionHeat Map, BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP SupportYes, Voice & Video-over-IP
Event TriggerMotion Detection, Network Disconnection, etc.
Event ActionFTP Upload, SMTP Upload, SD Card Record, SIP Phone, HTTP Notification, etc.
System CompatibilityONVIF Profile G & M & S & T, API
GeneralWorking Temperature-40℃~60℃
Working Humidity0~95%(Non-condensing)
Power SupplyPoE (802.3af) / DC 12V±10%
Power Consumption6W MAX
9W MAX (With IR on)
Weather ProofUp to IP67-rated for Weather-resistant Performance
HousingVandal-proof IK10-rated Metal Housing
Weight825g
DimensionsΦ76mmX239.5mm
Warranty3/5 Years
CameraNameAI Motorized Bullet Network Camera
Image Sensor1/2.8″ Progressive Scan CMOS
Min. IlluminationColor: 0.012Lux@F1.4
B/W: 0Lux with IR on
WDR120dB Super WDR
Shutter Time1/100000s~1s
IR DistanceUp to 50m
Day/Night ModeDay/Night/Auto/Customize/Schedule
S/N>55dB
LensLensMotorized 2.7~13.5mm/3.0~10.5mm/7~22mm@F1.4
P-Iris(Optional)
MountΦ14
Field of ViewH99°~H31°/ D124°~D38°/V72°~V23° (2.7~13.5mm)
H89°~H31°/D111°~D38°/V66°~V23° (3.0~10.5mm)
H37°~H15°/D46°~D19°/V28°~V11° (7~22mm)
Focus ControlAuto/Manual
Iris Control (Optional for I Series)Auto/Manual
VideoMax. Image Resolution3840x2160
Primary Stream60Hz: 30fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)
50Hz: 25fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream60Hz: 30fps@(704x576, 640x480, 640x360, 352x288, 320x240)
50Hz: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240)
Tertiary Stream60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 352x288, 320x240)
50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 352x288, 320x240)
Video CompressionH.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate16Kbps~16Mbps(CBR/VBR Adjustable)
Privacy MaskingUp to 8 Areas (Mask Area and Mosaic Area are optional)
ROIUp to 8 areas
Image SettingBrightness/Contrast/Saturation/Sharpness
InterfaceEthernet1*RJ45 10M/100M Ethernet Port
Audio I/O1/1 (Multi-interface Version)
Alarm I/O1/1 (Multi-interface Version)
NetworkNetwork StorageNAS(Support NFS, SMB/CIFS), ANR
ProtocolIPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
AudioAudio CompressionG.711/AAC/G.722/G.726
Audio Sampling Rate8/16/32/44.1/48KHz
Audio Bit Rate16~256kbps
Two-way AudioSupport
Intelligent AnalyticsVideo AnalysisRegion Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
Face Detection&Face Attribute RecognitionDetect and capture faces, get real-time snapshots; The attributes include Age, Gender, Glasses, Mask and Cap; Support Faces Privacy Mode,the detected faces in the face detection area will be mosaic automatically
People Counting&ReportCount the number of people entering or exiting, up to 4 detection areas for regional people counting
SystemStorageSupport microSD/SDHC/SDXC Card Local Storage, up to 1TB
Advanced FunctionHeat Map, BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP SupportYes, Voice & Video-over-IP
Event TriggerMotion Detection, Network Disconnection, etc.
Event ActionFTP Upload, SMTP Upload, SD Card Record, SIP Phone, HTTP Notification, etc.
System CompatibilityONVIF Profile G & M & S & T, API
GeneralWorking Temperature-40℃~60℃
Working Humidity0~95%(Non-condensing)
Power SupplyPoE (802.3af) / DC 12V±10%
Power Consumption6W MAX
9W MAX (With IR on)
Weather ProofUp to IP67-rated for Weather-resistant Performance
HousingVandal-proof IK10-rated Metal Housing
Weight825g
DimensionsΦ76mmX239.5mm
Warranty3/5 Years
CameraName2MP NDAA AI Motorized Bullet Network Camera
Image Sensor1/2.8" Progressive Scan CMOS
Min. IlluminationColor: 0.005Lux @F1.4, B/W: 0Lux with IR on
WDR120dB Super WDR
Shutter Time1/100000s∼1s
Day/Night ModeDay/Night/Auto/Customize/Schedule
IR DistanceUp to 50m
S/N>55dB
LensLensMotorized 2.7∼13.5mm/7∼22mm @F1.4
Field of ViewH111°∼H34°/D130°∼D39°/V60°∼V19°(2.7∼13.5mm), H42°∼H17°/D48°∼D19°/V24°∼V9°(7∼22mm)
MountΦ14
Focus ControlAuto/Manual
VideoMax. Image Resolution1920x1080
Primary Stream60Hz: 30fps@(1920x1080, 1280x960, 1280x720, 704x576)
50Hz: 25fps@(1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream60Hz: 30fps@(704x576, 640x480, 640x360, 352x288)
50Hz:25fps@(704x576, 640x480, 640x360, 352x288)
Tertiary Stream60Hz: 30fps@(1280x720, 704x576, 640x480, 640x360, 352x288) 50Hz: 25fps@(1280x720, 704x576, 640x480, 640x360, 352x288)
Video CompressionH.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate16Kbps∼16Mbps (CBR/VBR adjustable)
Privacy MaskingUp to 4 areas
ROIUp to 8 areas
Image SettingsSaturation/Brightness/Contrast/Sharpness
InterfaceEthernet1*RJ45 10M/100M Ethernet Port
NetworkNetwork StorageNAS(Support NFS, SMB/CIFS), ANR
Network ProtocolsIPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
Intelligent AnalyticsVideo AnalysisRegion Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
SystemStorageSupport microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced FunctionBLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur
SIP/VoIP SupportYes, Voice&Video-over-IP
Event TriggerMotion Detection, Network Disconnection, etc.
Event ActionFTP Upload, SMTP Upload, SD Card Record, SIP Phone, HTTP Notification, etc.
System CompatibilityONVIF Profile G & Q & S & T, API
GeneralWorking Temperature-40℃∼60℃
Working Humidity0∼90%(Non-condensing)
Power SupplyPoE(802.3af)/DC 12V±10%
Power Consumption3W MAX, 7W MAX (With IR on)
HousingUp to IP67-rated for weather-resistant performance/ Vandal-proof IK10-rated metal housing
Weight825g
DimensionsΦ76mmX239.5mm
Warranty3/5 Years
CameraName2MP NDAA AI Motorized Bullet Network Camera
Image Sensor1/2.8" Progressive Scan CMOS
Min. IlluminationColor: 0.002Lux @F1.2, Color: 0.005Lux @F1.4, B/W: 0Lux with IR on
WDR120dB Super WDR
Shutter Time1/100000s∼1s
Day/Night ModeDay/Night/Auto/Customize/Schedule
IR DistanceUp to 50m
S/N>55dB
LensLensMotorized 2.7∼13.5mm/3.0∼10.5mm/7∼22mm @F1.4
P-Iris(Optional)
Field of ViewH111°∼H34°/D130°∼D39°/V60°∼V19°(2.7∼13.5mm), H100°∼H33°/D115°∼D38°/V54°∼V18°(3∼10.5mm), H42°∼H17°/D48°∼D19°/V24°∼V9°(7∼22mm)
MountΦ14
Focus ControlAuto/Manual
Iris Control(Optional for I Series)Auto/Manual
VideoMax. Image Resolution1920x1080
Frame Rate60Hz: 60fps@(1920x1080, 1280x960, 1280x720, 704x576)
50Hz: 50fps@(1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream60Hz: 60fps@(704x576, 640x480, 640x360, 352x288, 320x240)
50Hz: 50fps@(704x576, 640x480, 640x360, 352x288, 320x240)
Tertiary Stream60Hz: 30fps@(1280x720, 704x576, 640x480, 640x360, 352x288, 320x240)
50Hz: 25fps@(1280x720, 704x576, 640x480, 640x360, 352x288, 320x240)
Video CompressionH.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate16Kbps∼16Mbps (CBR/VBR adjustable)
Privacy MaskingUp to 24 areas
ROIUp to 8 areas
Image SettingsSaturation/Brightness/Contrast/Sharpness
InterfaceEthernet1*RJ45 10M/100M Ethernet Port
Audio I/O1/1 (Multi-interface Version)
Alarm I/O1/1 (Multi-interface Version)
NetworkNetwork StorageNAS(Support NFS, SMB/CIFS), ANR
Network ProtocolsIPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
AudioAudio CompressionG.711/AAC/G.722/G.726
Audio Sampling Rate8/16/32/44.1/48KHz
Audio Bit Rate16~256kbps
Two-way AudioSupport
Intelligent AnalyticsVideo AnalysisRegion Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
People Counting& ReportCount the number of people entering or exiting, up to 4 detection areas for regional people counting
SystemStorageSupport microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced FunctionBLC, HLC, 2D DNR, 3D DNR, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP SupportYes, Voice&Video-over-IP
Event TriggerMotion Detection, Network Disconnection, etc.
Event ActionFTP Upload, SMTP Upload, SD Card Record, SIP Phone, HTTP Notification, etc.
System CompatibilityONVIF Profile G & Q & S & T, API
GeneralWorking Temperature-40℃∼60℃
Working Humidity0∼90%(Non-condensing)
Power SupplyPoE(802.3af)/DC 12V±10%
Power Consumption8W MAX, 10W MAX (With IR on)
HousingUp to IP67-rated for weather-resistant performance/ Vandal-proof IK10-rated metal housing
Weight825g
DimensionsΦ76mmX239.5mm
Warranty3/5 Years
CameraName5MP NDAA AI Motorized Bullet Network Camera
Image Sensor1/2.8" Progressive Scan CMOS
Min. IlluminationColor: 0.005Lux @F1.2, Color: 0.008Lux @F1.4, B/W: 0Lux with IR on
WDR120dB Super WDR
Shutter Time1/100000s∼1s
Day/Night ModeDay/Night/Auto/Customize/Schedule
IR DistanceUp to 50m
S/N>55dB
LensLensMotorized 2.7∼13.5mm/3.0∼10.5mm/7∼22mm @F1.4
P-Iris(Optional)
Field of ViewH99°∼H31°/D124°∼D38°/V72°∼V23°(2.7∼13.5mm), H89°∼H31°/D111°∼D38°/V66°∼V23°(3∼10.5mm), H37°∼H15°/D46°∼D19°/V28°∼V11°(7∼22mm)
MountΦ14
Focus ControlAuto/Manual
Iris Control(Optional for I Series)Auto/Manual
VideoMax. Image Resolution2592x1944
Frame Rate60Hz: 30fps@(2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)
50Hz: 25fps@(2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream60Hz: 30fps@(704x576, 640x480, 640x360, 352x288, 320x240)
50Hz: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240)
Tertiary Stream60Hz: 30fps@(1280x720, 704x576, 640x480, 640x360, 352x288, 320x240)
50Hz: 25fps@(1280x720, 704x576, 640x480, 640x360, 352x288, 320x240)
Video CompressionH.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate16Kbps∼16Mbps (CBR/VBR adjustable)
Privacy MaskingUp to 24 areas
ROIUp to 8 areas
Image SettingsSaturation/Brightness/Contrast/Sharpness
InterfaceEthernet1*RJ45 10M/100M Ethernet Port
Audio I/O1/1 (Multi-interface Version)
Alarm I/O1/1 (Multi-interface Version)
NetworkNetwork StorageNAS(Support NFS, SMB/CIFS), ANR
Network ProtocolsIPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
Intelligent AnalyticsVideo AnalysisRegion Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
People Counting& ReportCount the number of people entering or exiting, up to 4 detection areas for regional people counting
AudioAudio CompressionG.711/AAC/G.722/G.726
Audio Sampling Rate8/16/32/44.1/48KHz
Audio Bit Rate16~256kbps
Two-way AudioSupport
SystemStorageSupport microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced FunctionBLC, HLC, 2D DNR, 3D DNR, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP SupportYes, Voice&Video-over-IP
Event TriggerMotion Detection, Network Disconnection, etc.
Event ActionFTP Upload, SMTP Upload, SD Card Record, SIP Phone, HTTP Notification, etc.
System CompatibilityONVIF Profile G & Q & S & T, API
GeneralWorking Temperature-40℃∼60℃
Working Humidity0∼90%(Non-condensing)
Power SupplyPoE(802.3af)/DC 12V±10%
Power Consumption8.5W MAX, 11W MAX (With IR on)
HousingUp to IP67-rated for weather-resistant performance/ Vandal-proof IK10-rated metal housing
Surge Protection2KV
MTBF6.25 Years
Weight825g
DimensionsΦ76mmX239.5mm
Warranty3/5 Years
CameraName4K NDAA AI Motorized Bullet Network Camera
Image Sensor1/2.8" Progressive Scan CMOS
Min. IlluminationColor: 0.01Lux @F1.2, Color: 0.012Lux @F1.4, B/W: 0Lux with IR on
WDR120dB Super WDR
Shutter Time1/100000s∼1s
Day/Night ModeDay/Night/Auto/Customize/Schedule
IR DistanceUp to 50m
S/N>55dB
LensLensMotorized 2.7∼13.5mm @F1.4
P-Iris(Optional)
Field of ViewH107°∼H33°/D125°∼D37°/V58°∼V18°
MountΦ14
Focus ControlAuto/Manual
Iris Control(Optional for I Series)Auto/Manual
VideoMax. Image Resolution3840x2160
Frame Rate60Hz: 30fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)
50Hz: 25fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream60Hz: 30fps@(704x576, 640x480, 640x360, 352x288, 320x240)
50Hz: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240)
Tertiary Stream60Hz: 30fps@(1280x720, 704x576, 640x480, 640x360, 352x288, 320x240)
50Hz: 25fps@(1280x720, 704x576, 640x480, 640x360, 352x288, 320x240)
Video CompressionH.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate16Kbps∼16Mbps (CBR/VBR adjustable)
Privacy MaskingUp to 24 areas
ROIUp to 8 areas
Image SettingsSaturation/Brightness/Contrast/Sharpness
InterfaceEthernet1*RJ45 10M/100M Ethernet Port
Audio I/O1/1 (Multi-interface Version)
Alarm I/O1/1 (Multi-interface Version)
NetworkNetwork StorageNAS(Support NFS, SMB/CIFS), ANR
Network ProtocolsIPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
AudioAudio CompressionG.711/AAC/G.722/G.726
Audio Sampling Rate8/16/32/44.1/48KHz
Audio Bit Rate16~256kbps
Two-way AudioSupport
Intelligent AnalyticsVideo AnalysisRegion Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
People Counting& ReportCount the number of people entering or exiting, up to 4 detection areas for regional people counting
SystemStorageSupport microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced FunctionBLC, HLC, 2D DNR, 3D DNR, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP SupportYes, Voice&Video-over-IP
Event TriggerMotion Detection, Network Disconnection, etc.
Event ActionFTP Upload, SMTP Upload, SD Card Record, SIP Phone, HTTP Notification, etc.
System CompatibilityONVIF Profile G & Q & S & T, API
GeneralWorking Temperature-40℃∼60℃
Working Humidity0∼90%(Non-condensing)
Power SupplyPoE(802.3af)/DC 12V±10%
Power Consumption9W MAX, 11W MAX (With IR on)
HousingUp to IP67-rated for weather-resistant performance/ Vandal-proof IK10-rated metal housing
Weight825g
DimensionsΦ76mmX239.5mm
Warranty3/5 Years
  • * Naming Convention
  • R - High Frame Rate (60fps)
  • S - 20fps@4K Series
  • F - Motorized Vari-focal Lens
  • I - P-Iris Supported(Opitonal)
  • P - PoE Supported
  • A/D/E - AI Series
MIGHT BE INTERESTED IN

If you are interested in Milesight, please leave us a message.

Verify Code

Contact Us

Contact Us

Verify Code

Contact Us to Get More Information
