NDAA AI Motorized Dome Network Camera

Intelligent and Robust for Mission-critical Applications

2/5/8MP · AI · 60fps · 120dB Super WDR · 50m IR Distance · 0.002Lux Ultra Low-light · IP67 · IK10 · PoE

NDAA AI 4K PoE H265+ ONVIF G&Q&S&T SD Card Weather-
Proof
Vandal-
Proof
Starlight Super WDR Privacy Mask 3-Axis Motion Detection

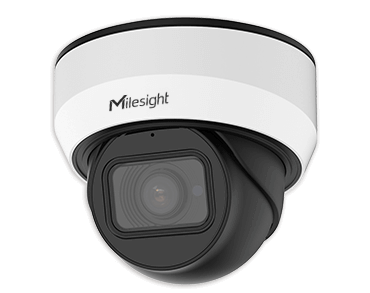

  • slide1

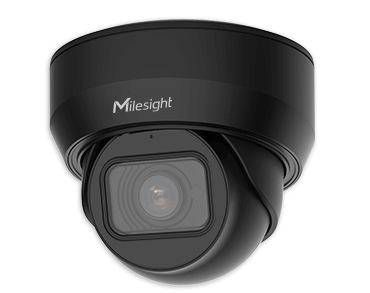

  • slide2
  • slide3

NDAA Compliant

This model is compliant with the NDAA (National Defense Authorization Act). It does not use or deploy critical components including SoCs produced by NDAA banned component vendors, which is recommended for enterprises and critical applications where compliance is essential.

NDAA

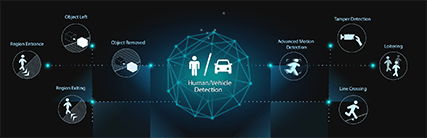

AI Video Analytics

Milesight AI Camera Series can intelligently filter objects to focus on human and vehicle detection in multiple events such as Region Entrance, Region Exiting, Loitering, Advanced Motion Detection, etc.

AI VCA

Leading-edge H.265+ Compression

H.265+

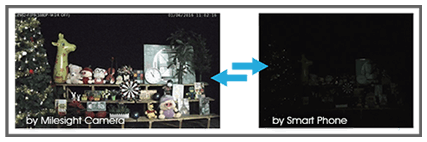

0.002Lux Ultra Low Light

With the starlight premium technology, Milesight NDAA AI Camera Series is able to deliver high detailed color images even in the low light environments reaching 0.002Lux (Color) or 0Lux (B/W), and near infrared light environments without any supplementary lighting.

low-light

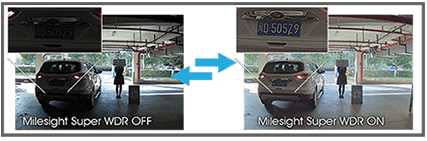

120dB Super WDR

Milesight's sensor-based WDR technology allows the camera to record greater scene details with true color reproduction even under the extreme back light and high contrast conditions. The ratio that the brightest light signal values divided by the darkest light signal values is up to 120dB.

Super WDR

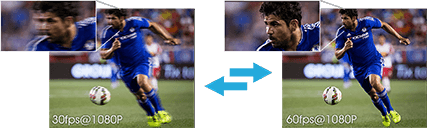

60fps

Milesight NDAA AI Network Camera offers high frame rate including 2MP@60fps, 5MP@30fps and 4K@30fps, which enables the camera to easily catch images with no latency despite the high-speed movement.

High Frame Rate

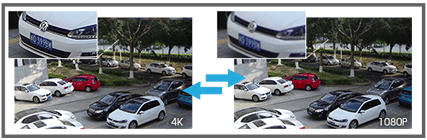

4K Video Viewing Experience

Milesight NDAA AI Motorized Dome Network Camera delivers up to 4K resolution (3840*2160, effectively four times that of Full HD) at 20 frames per second (fps), providing users with ultra-high-definition video viewing experience.

4k NDAA AI dome

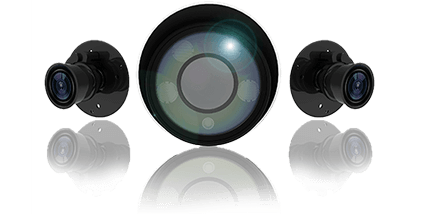

Motorized Zoom Lens

Equipped with motorized zoom & focus lens, Milesight NDAA AI Motorized Dome Network Camera allows remote control of focal length, iris and focus through the use of a lens controller, which is perfect for long distance surveillance in areas such as parking lots, highways and ports.

camera lens dome

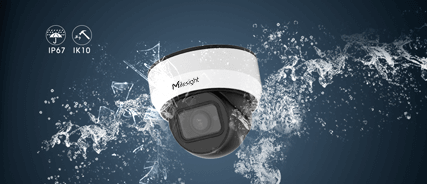

IP67 & IK10

Supporting IP67-rated weather proofing and IK10-rated vandal proof which are the leading level of the industry, the NDAA AI Motorized Dome Network Camera is well protected against adverse impacts to ensure the performance.

IP67 & IK10

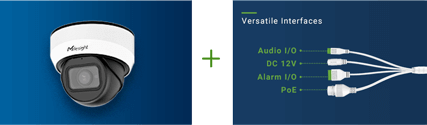

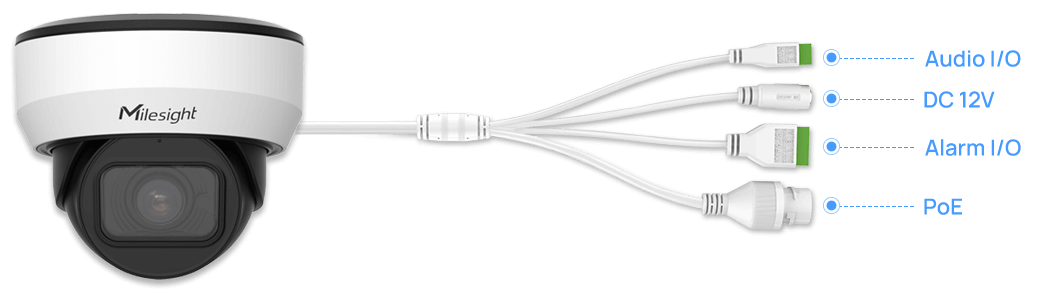

Versatile Interfaces

Several interfaces such as PoE, DC, Audio I/O and Alarm I/O are available in the Multi-interface Version, offering more choices for easy management and various needs.

ndaa ai motorized dome camera

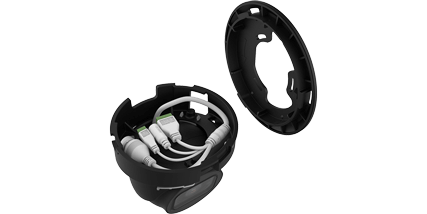

Integrated Junction Box

Coming with the concealed cable winding design, the integrated junction box not only ensures the NDAA AI Motorized Dome Network Camera a simplified installation with better aesthetics and professional look of the video surveillance system, but also provides higher operation stability.

mounting bracket

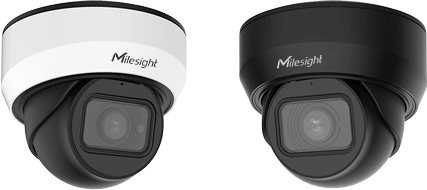

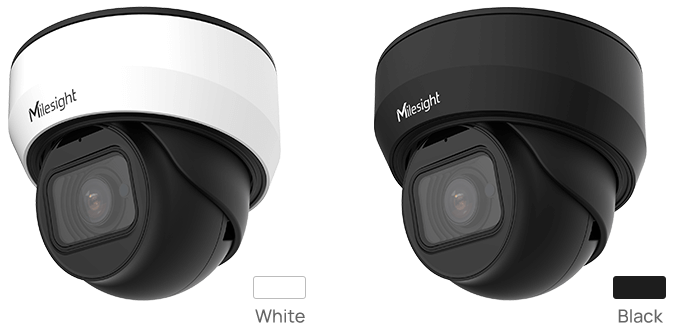

Two Colors Available

Available in White and Black, the NDAA AI Motorized Dome Network Camera provides more choices for your preference.

ndaa ai motorized dome camera

SIP/VoIP Support

Milesight NDAA AI Motorized Dome Network Camera features industry leading SIP/VoIP function and video streaming for mobile phones and video phones.

SIP dome camera
  • MS-C2975-RFPD
  • MS-C5375-FPD
  • MS-C8175-(S)FPD
CameraName2MP NDAA AI Motorized Dome Network Camera
Image Sensor1/2.8" Progressive Scan CMOS
Min. IlluminationColor: 0.002Lux @F1.2, Color: 0.005Lux @F1.4, B/W: 0Lux with IR on
WDR120dB Super WDR
Shutter Time1/100000s∼1s
Day/Night ModeDay/Night/Auto/Customize/Schedule
IR DistanceUp to 50m
S/N>55dB
LensLensMotorized 2.7∼13.5mm/7∼22mm @F1.4
Field of ViewH111°∼H34°/D130°∼D39°/V60°∼V19°(2.7∼13.5mm), H42°∼H17°/D48°∼D19°/V24°∼V9°(7∼22mm)
MountΦ14
Focus ControlAuto/Manual
Iris-
VideoMax. Image Resolution1920x1080
Frame Rate60Hz: 60fps@(1920x1080, 1280x960, 1280x720, 704x576)
50Hz: 50fps@(1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream60Hz: 30fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192)
50Hz: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192)
Tertiary Stream60Hz: 30fps@(1280x720, 704x576, 640x480, 640x360, 352x288, 320x240, 320x192)
50Hz: 25fps@(1280x720, 704x576, 640x480, 640x360, 352x288, 320x240, 320x192)
Video CompressionH.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate16Kbps∼16Mbps (CBR/VBR adjustable)
Privacy MaskingUp to 4 areas
ROIUp to 8 areas
Image SettingsSaturation/Brightness/Contrast/Sharpness
InterfaceEthernet1*RJ45 10M/100M Ethernet Port
Audio I/OBuilt-in Microphone; 1/1 (Multi-interface Version)
Alarm I/O1/1 (Multi-interface Version)
NetworkNetwork StorageNAS(Support NFS, SMB/CIFS), ANR
Network ProtocolsIPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
AudioAudio CompressionG.711/AAC/G.722/G.726
Audio Sampling Rate8/16/32/48KHz
Audio Bit Rate16~256kbps
Two-way AudioSupport
Intelligent AnalyticsVideo AnalysisRegion Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
SystemStorageSupport microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced FunctionBLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur
SIP/VoIP SupportYes, Voice&Video-over-IP
Event TriggerMotion Detection, Network Disconnection, External Input, Audio Alarm, etc.
Event ActionFTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc.
System CompatibilityONVIF Profile G & Q & S & T, API
GeneralWorking Temperature-40℃∼60℃
Working Humidity0∼90%(Non-condensing)
Power SupplyPoE(802.3af)/DC 12V±10%
Power Consumption5.2W MAX, 6.4W MAX (With IR on)
HousingUp to IP67-rated for weather-resistant performance/ Vandal-proof IK10-rated metal housing
Weight780g
DimensionsΦ130mmX115mm
Warranty3/5 Years
CameraName5MP NDAA AI Motorized Dome Network Camera
Image Sensor1/2.8" Progressive Scan CMOS
Min. IlluminationColor: 0.005Lux @F1.2, Color: 0.008Lux @F1.4, B/W: 0Lux with IR on
WDR120dB Super WDR
Shutter Time1/100000s∼1s
Day/Night ModeDay/Night/Auto/Customize/Schedule
IR DistanceUp to 50m
S/N>55dB
LensLensMotorized 2.7∼13.5mm/7∼22mm @F1.4
Field of ViewH99°∼H31°/D124°∼D38°/V72°∼V23°(2.7∼13.5mm), H37°∼H15°/D46°∼D19°/V28°∼V11°(7∼22mm)
MountΦ14
Focus ControlAuto/Manual
Iris Control-
VideoMax. Image Resolution2592x1944
Frame Rate60Hz: 30fps@(2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)
50Hz: 25fps@(2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream60Hz: 30fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192)
50Hz: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192)
Tertiary Stream60Hz: 30fps@(1280x720, 704x576, 640x480, 640x360, 352x288, 320x240, 320x192)
50Hz: 25fps@(1280x720, 704x576, 640x480, 640x360, 352x288, 320x240, 320x192)
Video CompressionH.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate16Kbps∼16Mbps (CBR/VBR adjustable)
Privacy MaskingUp to 4 areas
ROIUp to 8 areas
Image SettingsSaturation/Brightness/Contrast/Sharpness
InterfaceEthernet1*RJ45 10M/100M Ethernet Port
Audio I/OBuilt-in Microphone; 1/1 (Multi-interface Version)
Alarm I/O1/1 (Multi-interface Version)
NetworkNetwork StorageNAS(Support NFS, SMB/CIFS), ANR
Network ProtocolsIPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
Intelligent AnalyticsVideo AnalysisRegion Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
AudioAudio CompressionG.711/AAC/G.722/G.726
Audio Sampling Rate8/16/32/48KHz
Audio Bit Rate16~256kbps
Two-way AudioSupport
SystemStorageSupport microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced FunctionBLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur
SIP/VoIP SupportYes, Voice&Video-over-IP
Event TriggerMotion Detection, Network Disconnection, External Input, Audio Alarm, etc.
Event ActionFTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc.
System CompatibilityONVIF Profile G & Q & S & T, API
GeneralWorking Temperature-40℃∼60℃
Working Humidity0∼90%(Non-condensing)
Power SupplyPoE(802.3af)/DC 12V±10%
Power Consumption5.5W MAX, 6.5W MAX (With IR on)
HousingUp to IP67-rated for weather-resistant performance/ Vandal-proof IK10-rated metal housing
Surge Protection2KV
Weight780g
DimensionsΦ130mmX115mm
MTBF6.25 Years
Warranty3/5 Years
CameraName4K NDAA AI Motorized Dome Network Camera
Image Sensor1/2.8" Progressive Scan CMOS
Min. IlluminationColor: 0.01Lux @F1.2, Color: 0.012Lux @F1.4, B/W: 0Lux with IR on
WDR120dB Super WDR
Shutter Time1/100000s∼1s
Day/Night ModeDay/Night/Auto/Customize/Schedule
IR DistanceUp to 50m
S/N>55dB
LensLensMotorized 2.7∼13.5mm @F1.4
Field of ViewH107°∼H33°/D125°∼D37°/V58°∼V18°
MountΦ14
Focus ControlAuto/Manual
Iris Control-
VideoMax. Image Resolution3840x2160
Frame Rate60Hz: 30fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)
50Hz: 25fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576), 20fps@(3840x2160)(Optional for S Series)
Secondary Stream60Hz: 30fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192)
50Hz: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192)
Tertiary Stream60Hz: 30fps@(1280x720, 704x576, 640x480, 640x360, 352x288, 320x240, 320x192)
50Hz: 25fps@(1280x720, 704x576, 640x480, 640x360, 352x288, 320x240, 320x192)
Video CompressionH.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate16Kbps∼16Mbps (CBR/VBR adjustable)
Privacy MaskingUp to 4 areas
ROIUp to 8 areas
Image SettingsSaturation/Brightness/Contrast/Sharpness
InterfaceEthernet1*RJ45 10M/100M Ethernet Port
Audio I/OBuilt-in Microphone; 1/1 (Multi-interface Version)
Alarm I/O1/1 (Multi-interface Version)
NetworkNetwork StorageNAS(Support NFS, SMB/CIFS), ANR
Network ProtocolsIPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
AudioAudio CompressionG.711/AAC/G.722/G.726
Audio Sampling Rate8/16/32/48KHz
Audio Bit Rate16~256kbps
Two-way AudioSupport
Intelligent AnalyticsVideo AnalysisRegion Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
SystemStorageSupport microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced FunctionBLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur
SIP/VoIP SupportYes, Voice&Video-over-IP
Event TriggerMotion Detection, Network Disconnection, External Input, Audio Alarm, etc.
Event ActionFTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc.
System CompatibilityONVIF Profile G & Q & S & T, API
GeneralWorking Temperature-40℃∼60℃
Working Humidity0∼90%(Non-condensing)
Power SupplyPoE(802.3af)/DC 12V±10%
Power Consumption7.4W MAX, 8.4W MAX (With IR on)
HousingUp to IP67-rated for weather-resistant performance/ Vandal-proof IK10-rated metal housing
Weight780g
DimensionsΦ130mmX115mm
Warranty3/5 Years
  • * Naming Convention
  • R - High Frame Rate (60fps)
  • S - 20fps@4K Series
  • F - Motorized Vari-focal Lens
  • P - PoE Supported
  • D - AI Series
