H.265+ Vandal-proof Motorized Mini Bullet Network Camera

Ruggedized Camera for Harsh Environments

2/5MP · 140dB Super WDR · 0.001Lux Ultra Low-light · IP67 · IK10 · Smart IR II · 50m IR Distance · PoE · Versatile Interfaces

PoE H265+ ONVIF G&Q&S&T SD Card Smart IR II Weather-
Proof
Vandal-
Proof
Starlight Super WDR Privacy Mask 3-Axis VCA

Leading-edge H.265+Compression

H.265+

Video Content Analysis (VCA)

Milesight VCA with 10 detection modes provides advanced, accurate smart video analysis for Milesight network cameras, enabling the comprehensive surveillance function and quicker response to different monitoring scenes.

VCA, IVA, IVS

Advanced Motorized Lens

With flexible motorized lens (2.7~13.5mm), the camera is able to capture distant subjects rather than fixing on the specific scene with no flexibility. The ultra wide angle lens brings wider field of view to broaden horizons, leaving the narrow view experiences behind.

wide angle

IP67 & IK10

Sharply contrasting to the mini size, the Vandal-proof Motorized Mini Bullet Network Camera features the industry leading IP67-rated weather proofing and IK10-rated vandal proofing, which allow to protect the camera against adverse impacts to ensure the robust performance.

IP67, IK10, Vandal-proof Motorized Mini Bullet Camera

Smart IR II Technology

To maximize the IR performance, the Vandal-proof Motorized Mini Bullet Network Camera innovated both in the structure and technology. The advanced Smart IR II technology guarantees superb IR performance with the combination of two High Beams and two Low Beams and adjustable illumination intensity. The infrared light transmittance is greatly increased with IR anti-reflection panel which is well designed for better IR effect.

IR of Vandal-proof Motorized Mini Bullet Camera

0.002Lux Ultra Low-light

The Vandal-proof Motorized Mini Bullet Network Camera is able to deliver high detailed color images even in the low light environments reaching 0.002Lux (Color) or 0Lux (B/W), and near infrared light environments without any supplementary lighting.

Ultra Low-light

140dB Super WDR

Milesight’s sensor-based WDR technology allows the Network Camera to record greater scene details with true color reproduction even under the extreme back light and high contrast conditions. The ratio that the brightest light signal values divided by the darkest light signal values is up to 140dB.

Difference between 3 in 1 Super WDR Pro and Regular WDR,3 in 1 Super WDR, WDR, Super WDR

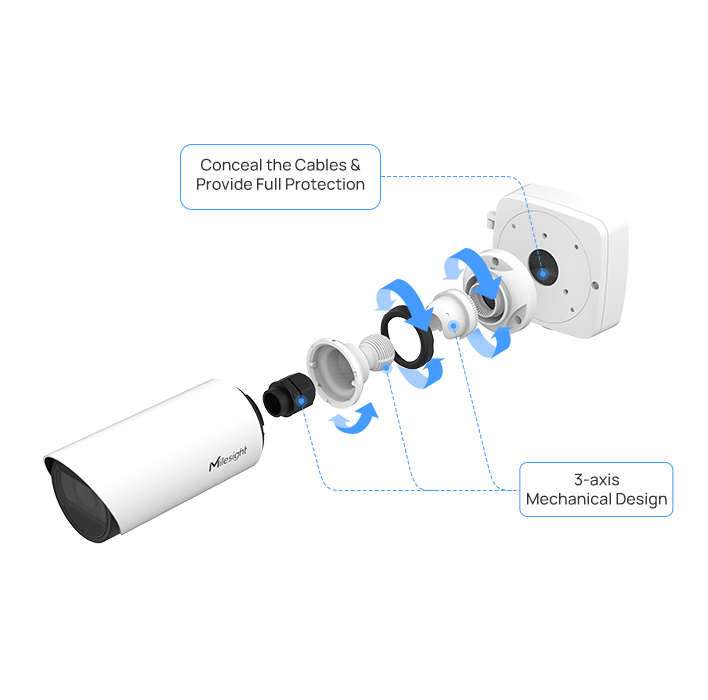

Unique Structure Design

The camera features 3-axis mechanical design for fast and easy adjustment of the camera’s viewing angle, allowing to position the camera precisely. Another highlight of the structure lies in the mounting bracket which is able to conceal the cables, offering a well-rounded protection of the cable from any water, dust or shock damages.

3-Axis Design& IP67, Vandal-proof Motorized Mini Bullet Camera

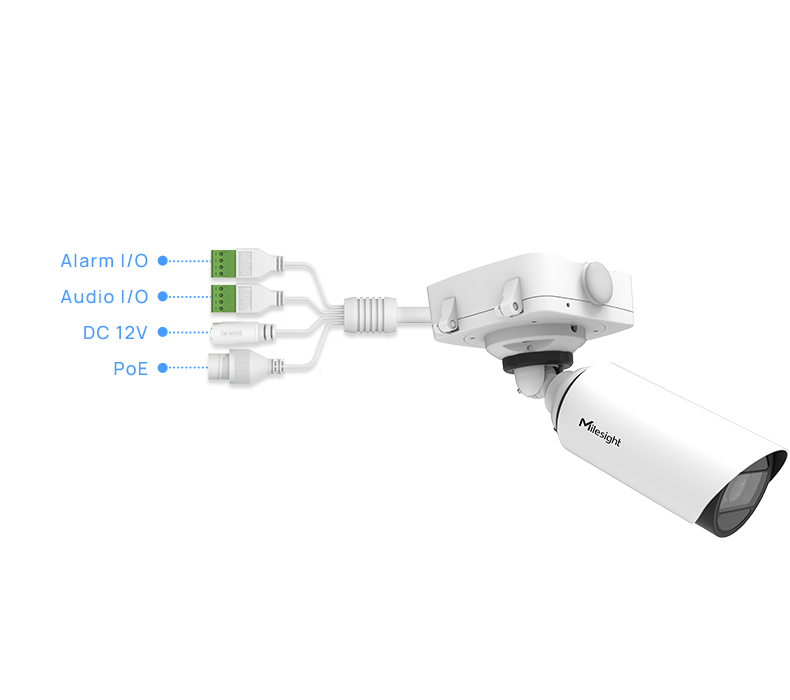

Versatile Interfaces

Several interfaces such as PoE, DC, Audio I/O and Alarm I/O are available in the Multi-interface Version, offering more choices for easy management and various needs.

Versatile Interfaces

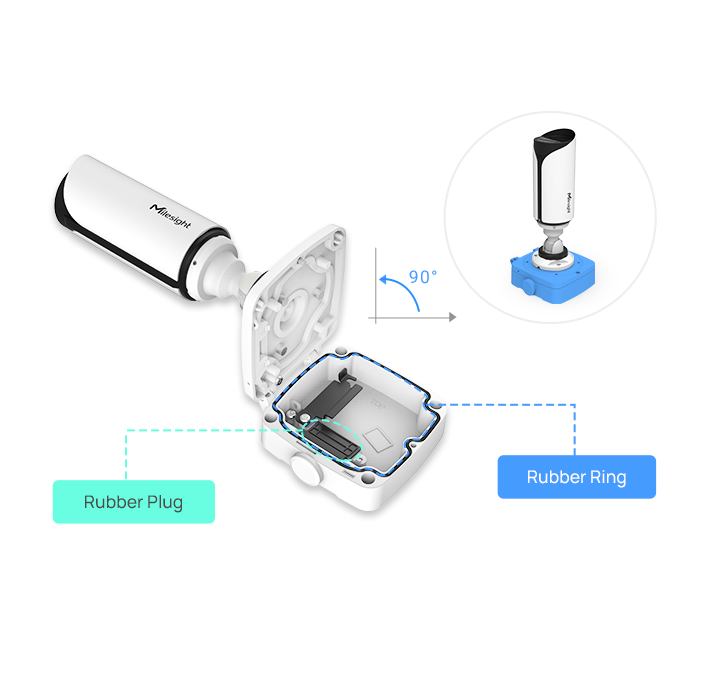

Integrated Junction Box (Optional)

The well-designed Integrated Junction Box especially the Clamshell structure, ensures efficient and simple installations. It enlarges the space to make cable connection neat and as easy as a piece of cake. With the help of the rubber plugs and rubber ring which guarantee IP67-rated weather-proof capability, the Integrated Junction Box is able to offer stable operation in any tough conditions.

Integrated Junction Box, Vandal-proof Motorized Mini Bullet Camera

SIP/VoIP Support

Milesight H.265+ Vandal-proof Motorized Mini Bullet Network Camera features industry leading SIP/VoIP function and video streaming for mobile phones and video phones.

Vandal-proof Motorized Mini Bullet Camera, SIP, VoIP
  • MS-C2964-F(I)PB
  • MS-C5364-F(I)PB
Camera Name 2MP H.265 Vandal-proof Motorized Mini Bullet Network Camera
Image Sensor 1/2.8" Progressive Scan CMOS
Min. Illumination Color: 0.002Lux @F1.2, Color: 0.005Lux @F1.4, B/W: 0Lux with IR on
WDR 140dB Super WDR (Super WDR Pro is optional for Q & T Series)
Shutter Time 1/100000s∼1s
Day/Night Mode Day/Night/Auto/Customize/Schedule
IR Distance Up to 50m
S/N >55dB

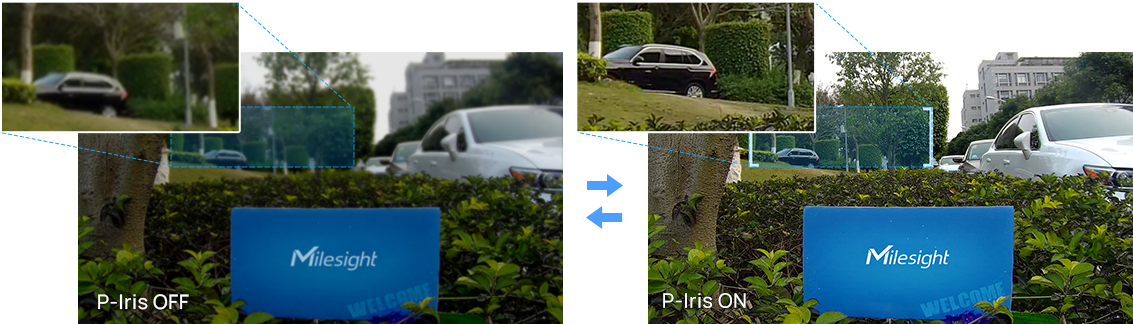

Lens Lens Motorized 2.7∼13.5mm/3.0∼10.5mm/7∼22mm @F1.4, P-Iris(Optional)
Field of View H111°∼H34°/D130°∼D39°/V60°∼V19°(2.7∼13.5mm), H100°∼H33°/D115°∼D38°/V54°∼V18°(3∼10.5mm), H42°∼H17°/D48°∼D19°/V24°∼V9°(7∼22mm)
Mount Φ14
Focus Control Auto/Manual
Iris Control(Optional for I Series) Auto/Manual
Video Max. Image Resolution 1920x1080
Frame Rate 30fps@(1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream 30fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180)
Tertiary Stream 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180)
Video Compression H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate 16Kbps∼16Mbps (CBR/VBR adjustable)
Privacy Masking Up to 8 areas
ROI Up to 8 areas
Image Settings Saturation/Brightness/Contrast/Sharpness
Web Access Support IE/Firefox/Chrome/Safari Browser
Interface Ethernet 1*RJ45 10M/100M Ethernet Port
Audio I/O 1/1 (Multi-interface Version)
Alarm I/O 1/1 (Multi-interface Version)
Network Network Storage NAS(Support NFS, SMB/CIFS), ANR
Network Protocols IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
Audio Audio Compression G.711/AAC/G.722/G.726
Audio Sampling Rate 8/16/32/44.1/48KHz
Audio Bit Rate 16~256kbps
Two-way Audio Support
System Storage Support microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced Function BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP Support Yes, Voice&Video-over-IP
Event Trigger Motion Detection, Network Disconnection, etc.
Event Action FTP Upload, SMTP Upload, SD Card Record, SIP Phone, HTTP Notification, etc.
Video Analysis Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Human Detection, People Counting, Object Left, Object Removed
System Compatibility ONVIF Profile G & Q & S & T, API
General Working Temperature -40℃∼60℃
Working Humidity 0∼90%(Non-condensing)
Power Supply PoE(802.3af)/DC 12V±10%
Power Consumption 8W MAX, 11.5W MAX (With IR on)
Weather Proof Up to IP67-rated for weather-resistant performance
Housing Vandal-proof IK10-rated metal housing
Dimensions Φ76mmX239.5mm
Weight 825g
Warranty 3/5 Years
Camera Name 5MP H.265 Vandal-proof Motorized Mini Bullet Network Camera
Image Sensor 1/2.8" Progressive Scan CMOS
Min. Illumination Color: 0.005Lux @F1.2, Color: 0.008Lux @F1.4, B/W: 0Lux with IR on
WDR 120dB Super WDR
Shutter Time 1/100000s∼1s
Day/Night Mode Day/Night/Auto/Customize/Schedule
IR Distance Up to 50m
S/N >55dB
Lens Lens Motorized 2.7∼13.5mm/3.0∼10.5mm/7∼22mm @F1.4, P-Iris(Optional)
Field of View H99°∼H31°/D124°∼D38°/V72°∼V23°(2.7∼13.5mm), H89°∼H31°/D111°∼D38°/V66°∼V23°(3∼10.5mm), H37°∼H15°/D46°∼D19°/V28°∼V11°(7∼22mm)
Mount Φ14
Focus Control Auto/Manual
Iris Control(Optional for I Series) Auto/Manual
Video Max. Image Resolution 2592x1944
Frame Rate 20fps@(2592x1944), 30fps@(2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream 30fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180)
Tertiary Stream 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180)
Video Compression H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate 16Kbps∼16Mbps (CBR/VBR adjustable)
Privacy Masking Up to 8 areas
ROI Up to 8 areas
Image Settings Saturation/Brightness/Contrast/Sharpness
Web Access Support IE/Firefox/Chrome/Safari Browser
Interface Ethernet 1*RJ45 10M/100M Ethernet Port
Audio I/O 1/1 (Multi-interface Version)
Alarm I/O 1/1 (Multi-interface Version)
Network Network Storage NAS(Support NFS, SMB/CIFS), ANR
Network Protocols IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
Audio Audio Compression G.711/AAC/G.722/G.726
Audio Sampling Rate 8/16KHz
Audio Bit Rate 16~96kbps
Two-way Audio Support
System Storage Support microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced Function BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP Support Yes, Voice&Video-over-IP
Event Trigger Motion Detection, Network Disconnection, etc.
Event Action FTP Upload, SMTP Upload, SD Card Record, SIP Phone, HTTP Notification, etc.
Video Analysis Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Human Detection, People Counting, Object Left, Object Removed
System Compatibility ONVIF Profile G & Q & S & T, API
General Working Temperature -40℃∼60℃
Working Humidity 0∼90%(Non-condensing)
Power Supply PoE(802.3af)/DC 12V±10%
Power Consumption 8.5W MAX, 12W MAX (With IR on)
Weather Proof Up to IP67-rated for weather-resistant performance
Housing Vandal-proof IK10-rated metal housing
Dimensions Φ76mmX239.5mm
Weight 825g
Warranty 3/5 Years
  • * Naming Convention
  • F - Motorized Vari-focal Lens
  • I - P-Iris Supported
  • P - PoE Supported
  • B - H.265 Compression
