64/128-CH Video Surveillance Appliance

Lower Deployment Cost for Large-scale Project Management

64/128-CH · Windows-based · 12*20TB Storage · N+M Failover · RAID 0/1/5/6/10/50/60 · 3-year Warranty

VMS
Inside
Windows
Licensed
N+M
Failover
Multi-server
System
Dual-Giga
Network
RAID
Supported
  • Milesight 3D ToF people counter

Pre-loaded with Latest Milesight VMS Enterprise

Milesight VMS Surveillance Appliance is pre-loaded with latest Milesight VMS Enterprise, creating a new shape for the VMS display. It only takes a few minutes to setup and you won't have to spend time picking out the hardware.

Pre-loaded with Latest
									Milesight VMS Enterprise

Up to 12*20TB of Capacity

Storage with a high capacity is feasible. Offer up to 12*20TB of capacity in cost-effective storage, which is appropriate for medium-to-large-scale projects. (Hard disk is not included.)

Up to 12*20TB of Capacity

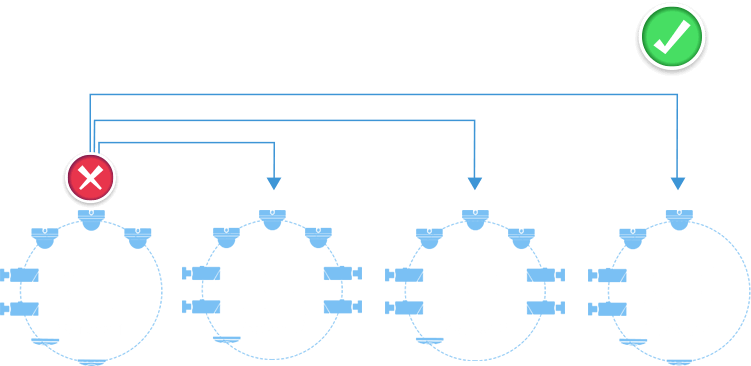

N+M Failover

In case of a server failure, other servers with N+M Failover function will take over the cameras and ensure continuous recording and boosting risk resistance.

N+M Failover

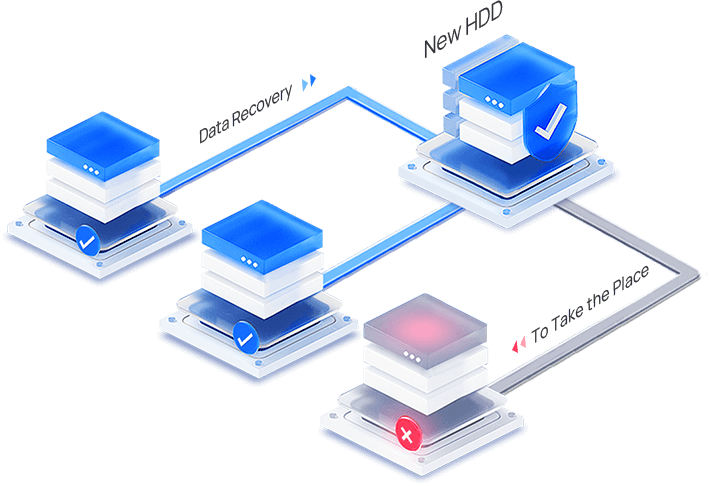

RAID 0/1/5/6/10/50/60

Industry-leading RAID 0/1/5/6/10/50/60 could be configured at the beginning of setup based on the specific redundancy and performance requirements, which enables multiple data security protection.

RAID 0/1/5/6/10/50/60

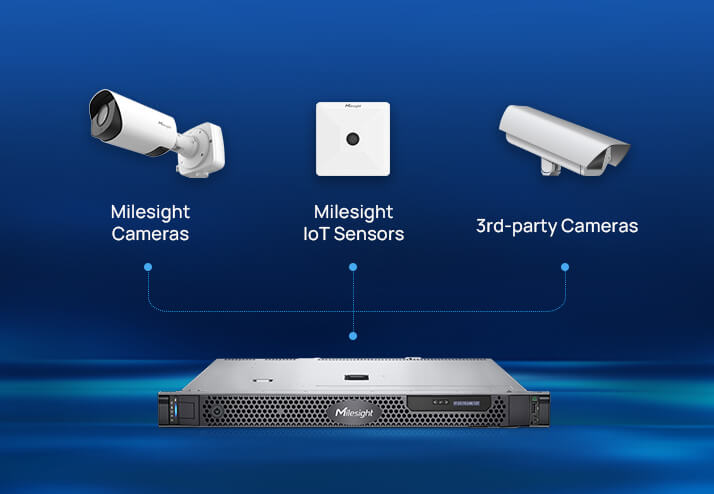

High Compatibility

High Compatibility

Up to 128 channels of video stream per server is supported for Milesight VMS Surveillance Appliance, and it is fully compatible with Milesight network cameras, sensors and 3rd party network cameras.

Service Guarantee

Service Guarantee

Milesight VMS Surveillance Appliance comes with a 3-year warranty to guarantee after-sales service, and on-site support and next business day service to maximize experience of the product.

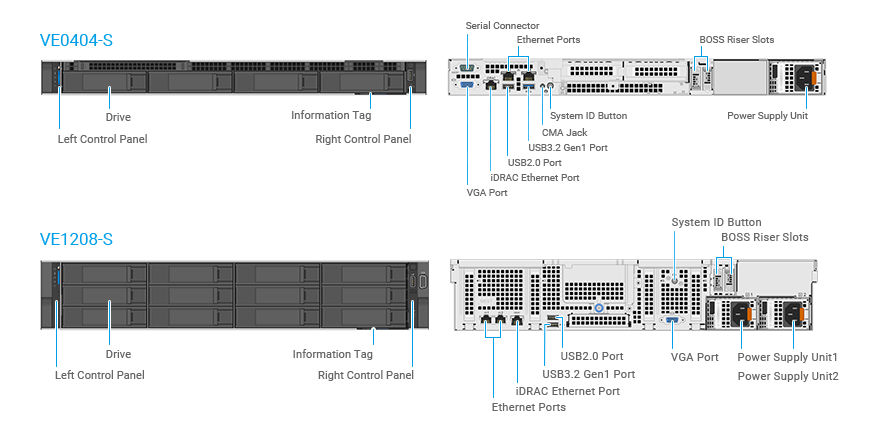

Versatile Interfaces

A whole array of ports provides all necessary features of effective surveillance.

Various Installation Modes
  • VE0404-S
  • VE1208-S
ModelVE0404-S
DevicesIncluded Cameras Access License64
RecordingRecording Schedule64
Playback Rate
(Multiple Connections)
Up to 700 Mbps
Recording Rate
(Multiple Connections)
Up to 600 Mbps
Event & AlarmEvent and Alarm Rules1000
Concurrent Accesses via
Clients, App Clients
100
Users1000
Roles100
Local ViewingLocal ViewingNot Supported
SystemMain Processor1*Quad-Core Intel® Xeon® Processor
Memory8GB UDIMM 3200MT/s ECC parity.
Extendable up to 128GB
Network Interface1 GbE RJ-45 ports *2
RAID Support (Optional)Option 1: RAID 0/1/10
Option 2: RAID 0/1/5/6/10/50/60
Operating SystemMicrosoft Windows 10 IoT Enterprise 64bit
Out-of-band ManagementiDRAC 9 Enterprise
Auxiliary InterfaceHDD Drives
(Video Data)
4*3.5" SAS or SATA
hot-swappable
SSD Drive
(Operating System)
240GB*1 M.2 SSD
CapacityUp to 20TB capacity for each disk
Recording Storage CapacityUp to 80TB raw;
40TB effective(RAID 1)
USB InterfaceFront panel: 1*USB 2.0
Rear panel: 1*USB 2.0, 1*USB 3.0
Video OutputVGA*1
GPU OptionsNot Supported
PCIe Support1*8 Gen4 (x16 connector) low profile, half length
1*8 Gen4 (x8 connector) low profile, half length
1*4 Gen4 (x8 connector) for dedicated PERC only
GeneralPower Input100 to 240 VAC, 50/60 Hz, auto-switching
Power InputSingle 600W Mixed Mode
Consumption≤140 W (without HDD)
Working Temperature5°C to 45°C (41°F to 113°F);
Working Humidity8% to 90% RH (no freezing and no condensation)
Chassis1U rack server
Dimension (W x D x H)Height - 42.8mm(1.69 inches)
Width - 482mm(18.97 inches)
Depth - 585.3mm(23.04 inches) - without bezel
598.94mm(23.58 inches) - with bezel
WeightMax13.14 kg (28.96 lbs.)
Warranty3-year NBD (Next Business Day) with onsite parts delivery service.
ModelVE1208-S
DevicesIncluded Cameras Access License128
RecordingRecording Schedule128
Playback Rate
(Multiple Connections)
Up to 700 Mbps
Recording Rate
(Multiple Connections)
Up to 600 Mbps
Event & AlarmEvent and Alarm Rules1000
Concurrent Accesses via
Clients, App Clients
100
Users1000
Roles100
Local ViewingLocal ViewingNot Supported
SystemMain Processor1*Octa-Core Intel® Xeon® Silver Processor
Memory16GB (1*16GB) UDIMM 3200MT/s ECC parity.
Extendable up to 1TB
Network Interface1 GbE RJ-45 ports *2
RAID SupportRAID 0/1/5/6/10/50/60
Operating SystemMicrosoft Windows 10 IoT Enterprise 64bit
Out-of-band ManagementiDRAC 9 Enterprise
Auxiliary InterfaceHDD Drives
(Video Data)
12*3.5" SAS or SATA
hot-swappable
SSD Drive
(Operating System)
240GB*2 M.2 SSD, RAID1
CapacityUp to 20TB capacity for each disk
Recording Storage CapacityUp to 240TB raw;
160TB effective(RAID 60)
USB InterfaceFront panel: 1*USB 2.0
Rear panel: 1*USB 2.0, 1*USB 3.0
Video OutputVGA*2
GPU OptionsNot Supported
PCIe Support3*16 Gen4 (x16 connector) full height, half length
1*4 Gen3 (x8 connector) full height, half length
GeneralPower Input100 to 240 VAC, 50/60 Hz, auto-switching
Power InputDual 800W Mixed Mode
Consumption≤140 W (without HDD)
Working Temperature5°C to 45°C (41°F to 113°F);
Working Humidity8% to 90% RH (no freezing and no condensation)
Chassis2U rack server
Dimension (W x D x H)Height - 86.8mm(3.41 inches)
Width - 482mm(18.97 inches)
Depth - 707.78mm(27.85 inches) - without bezel
721.62mm(28.4 inches) - with bezel
WeightMax28.76 kg (63.40 lbs.)
Warranty3-year NBD (Next Business Day) with onsite parts delivery service.
