AI 360° Panoramic
Fisheye Network Camera

More Than 360° View, See Every Detail

fisheye 3 small
fisheye 1 small
fisheye 2 small
  • True 12MP Panoramic Imaging (3520×3520)
  • Up to 20m IR Distance
  • ePTZ Auto-tracking
  • 4-Mic Sound Assisted Location
  • VCA 2.0 & MSense AI Analytics
  • 360° Digital Rotation for Easy Installation
  • All-metal Housing with Anti-tamper Design
  • FEATURES
  • MODELS
  • ACCESSORIES
  • DOWNLOAD

Brand New Fisheye, Reinvented to Do More

The brand-new Milesight AI Fisheye camera represents a complete evolution, delivering a powerful next‑generation fisheye solution with all-around upgrades in imaging, AI intelligence, tracking performance, installation flexibility, and durability.

Superior Imaging

True 12MP panoramic imaging, up to 20m IR

Simplified Installation

360° digital rotation & all‑metal protection

Smarter Tracking

ePTZ Auto-tracking & 4-mic sound assisted location

Advanced AI Intelligence

VCA 2.0 & MSense analytics

Enhanced Performance

Advanced decoding capability & edge distortion correction

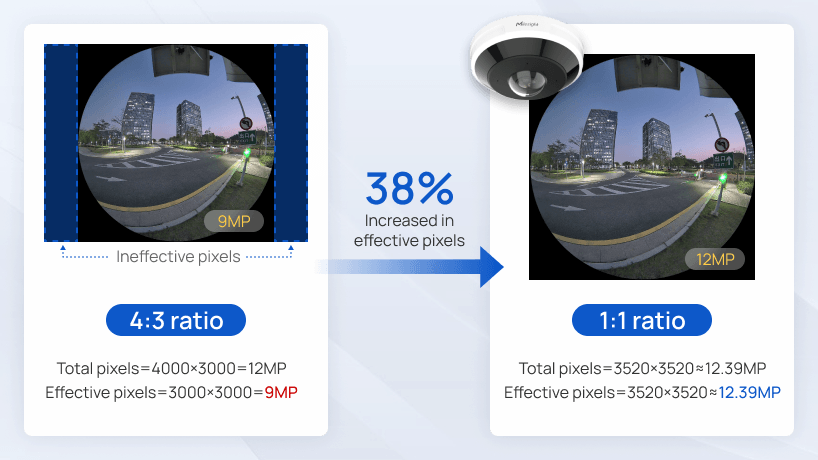

True 12MP Panoramic Imaging,
38% More Effective Pixels

Traditional fisheye cameras often suffer from ineffective pixel areas caused by the circular fisheye image format, resulting in lower usable resolution despite the claimed megapixels.

Milesight AI Fisheye delivers a true 3520×3520 panoramic image with optimized pixel utilization, achieving 38% more effective pixels for clearer panoramic views and sharper image details.

true 12 mp
tracking

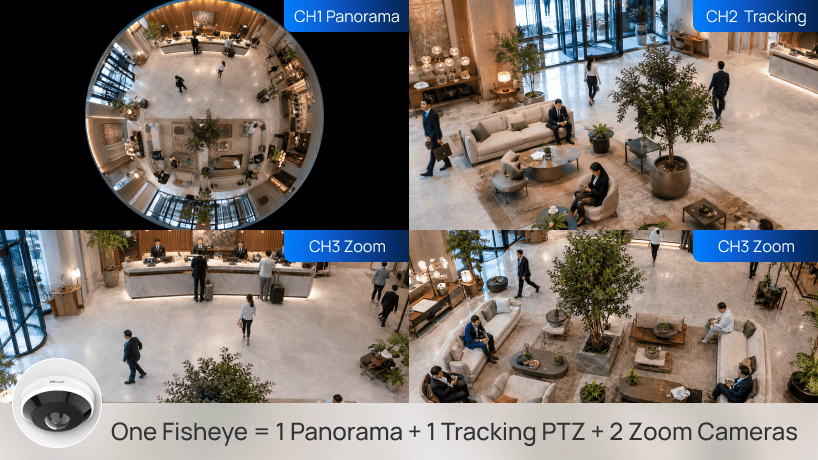

One Camera, Multiple Views
with ePTZ Auto-tracking

Milesight AI Fisheye goes beyond panoramic monitoring by combining a full-scene overview, ePTZ auto-tracking, and detailed zoom views in one camera.

With 1O3R dewarping mode, one fisheye camera can replace multiple cameras
by delivering:

  • 1CH Panoramic View for complete scene awareness
  • 1CH Auto-tracking View for following moving targets
  • 2CH Zoom Views for focused details

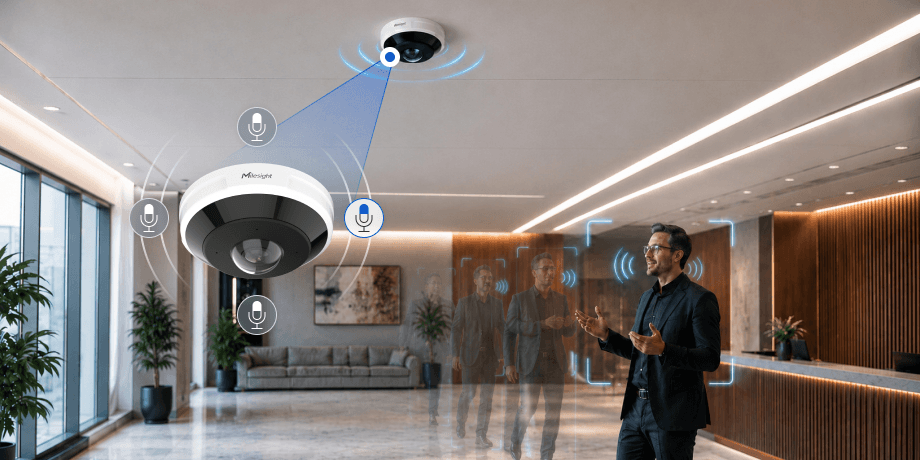

Track What You Hear with 4-MIC
Sound Assisted Location

Equipped with 4 built-in microphones, Milesight AI Fisheye Camera can detect sound direction and identify the location of audio sources. Combined with ePTZ Auto-tracking, it automatically follows targets from the sound direction for faster and smarter audio‑visual response.

sound
digital rotation

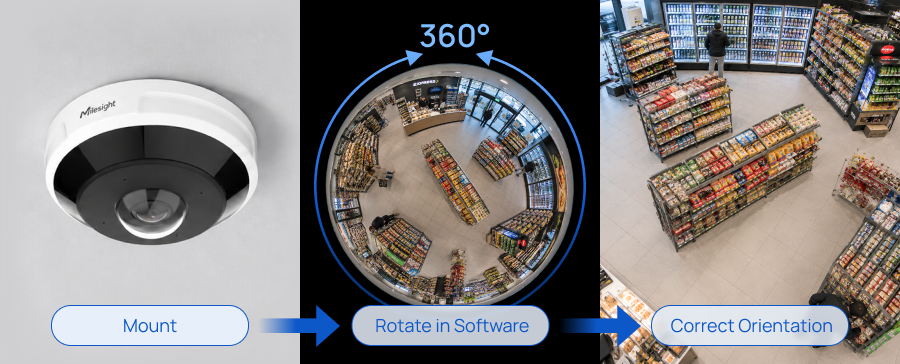

Install Freely with
360° Digital Rotation

Traditional fisheye cameras require precise installation direction alignment. Any incorrect positioning may result in improper image orientation and costly reinstallation.

Milesight AI Fisheye introduces 360° digital rotation, allowing installers to adjust image orientation directly through software after installation. No direction alignment is required during mounting, reducing installation complexity and improving deployment efficiency.

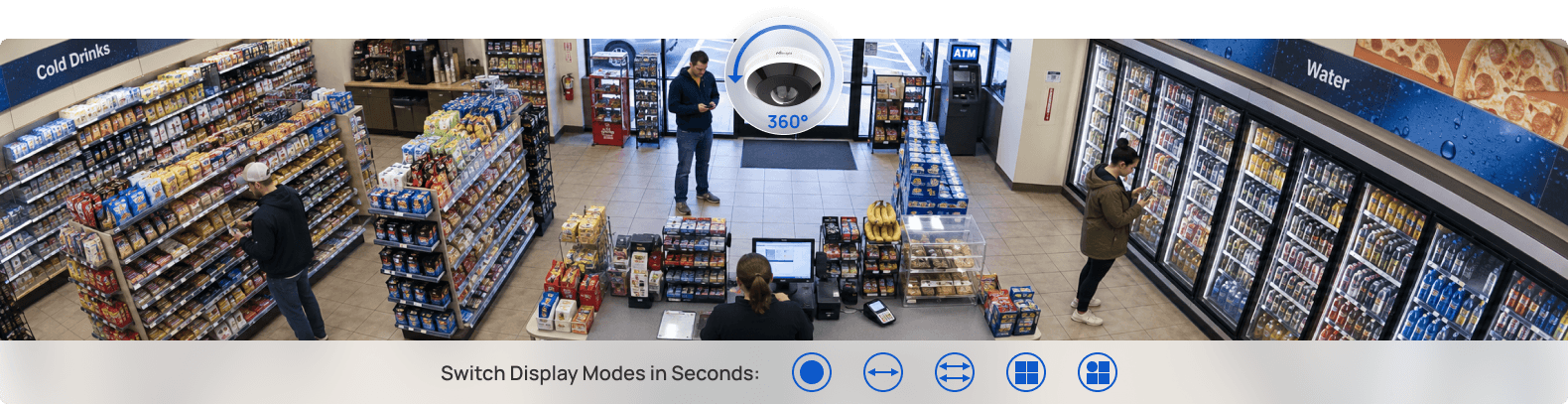

Powerful Decoding Capability, Switch Views in Seconds

Powered by enhanced decoding capability, Milesight AI Fisheye camera supports multiple display modes including 1O, 1P, 2P, 4R, and 1O3R. Users can switch between different views with one click and complete mode switching within seconds, without restarting the device, ensuring faster configuration and smoother monitoring.

dewarping mode

One Camera, Two AI Engines:
VCA 2.0 & MSense AI

Powered by VCA 2.0 and MSense, Milesight cameras deliver smarter AI performance for both core security detection and enriched vertical applications. VCA 2.0 focuses on security-specific accuracy with lower false alarms, while MSense expands AI capabilities for more scenario‑based intelligence.

Discover Milesight AI Technology

Endless Possibilities Across Diverse Scenarios

Milesight AI Fisheye camera delivers powerful 360° visibility, intelligent analytics, and multi-view monitoring to address diverse security needs.

retail
bus
interrogation

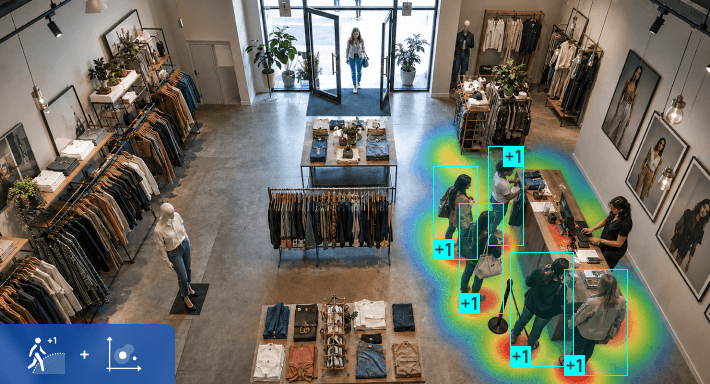

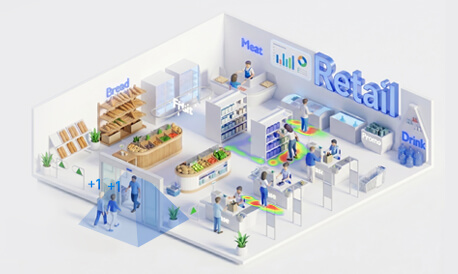

Smart Retail & Store Intelligence

With 360° coverage, 1O3R multi-view monitoring, ePTZ Auto-tracking, and AI analytics, Milesight AI Fisheye helps retailers reduce camera deployment while gaining deeper insights into customer behavior. From queue management and customer flow analysis to product placement optimization, it enables smarter store operations and helps maximize revenue opportunities.

Explore successful stories

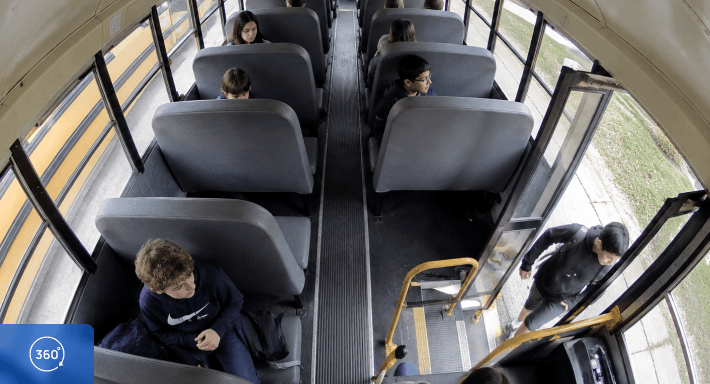

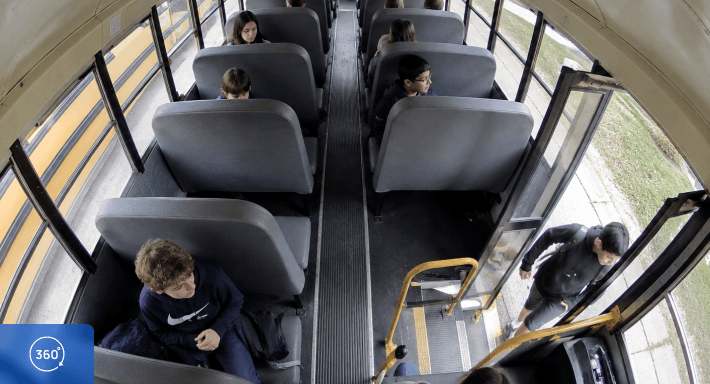

On-board Security

Provide smarter vehicle protection with 360° cabin coverage, sound-assisted event tracking, and flexible deployment. With 360° digital rotation and open integration capabilities, Milesight AI Fisheye Camera simplifies installation and connects seamlessly with existing vehicle management systems.

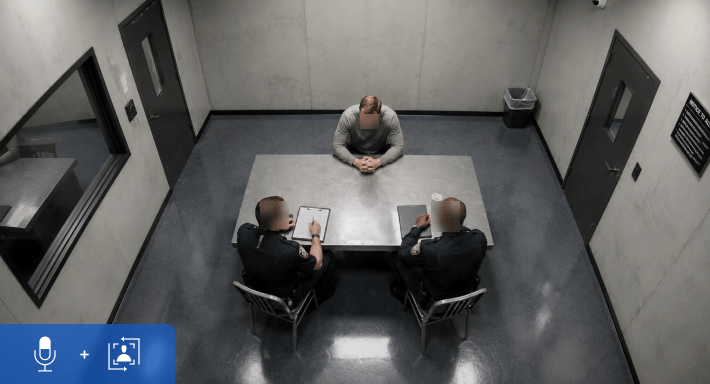

Critical Security & Interrogation Rooms

With 360° coverage, sound-assisted location, intelligent tracking, and an all-metal IK10 vandal-resistant design, Milesight AI Fisheye captures every detail in sensitive environments while ensuring reliable audio-visual evidence and long-term durability.

Integrated All-metal Design for Enhanced Protection

Featuring an integrated all-metal housing, Milesight AI Fisheye delivers superior durability and resistance against tampering and physical damage,
helping ensure reliable operation in demanding security environments.

Two Kinds of Compatible Modes

Bundle-stream Mode combines all channels into one for easy compatibility with NVR or VMS. Multi-channel Mode sends each original channel separately, allowing individual modifications.

Open Integration for Flexible
Security Workflows

Milesight Camera is designed for deep third-party integration, enabling seamless connection with leading VMS and security platforms. Core functions such as live view, fisheye dewarping, and AI metadata can be smoothly integrated into existing security workflows, helping users manage video, control cameras, and respond to events more efficiently from a unified platform.

Explore More Panoramic Cameras

From 180° panoramic to 360° fisheye and multi-sensor camera, Milesight offers a complete panoramic camera portfolio to meet diverse coverage needs. Choose the right solution for every scenario with flexible designs and powerful imaging capabilities.

related product

Single Sensor

Dual Sensor

Multiple Sensor

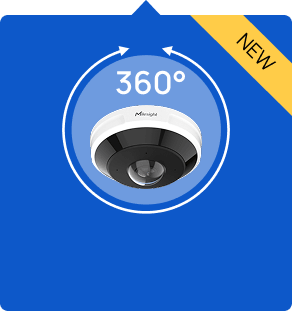

fisheye camera

AI 360° Panoramic Fisheye
Network Camera

180 bullet

AI 180° Panoramic
Mini Bullet Network Camera

180 dome

AI 180° Panoramic Mini Dome
Network Camera

dual sensor camera

AI TrueColor Dual-sensor 180°
Panoramic Network Camera

multi sensor

AI Multi-directional
Network Camera

Specifications

Camera
Name8MP NDAA AI 360° Fisheye Network Camera
Image Sensor1/1.8″ Progressive Scan CMOS
Min. IlluminationColor: 0.005Lux @F1.2, Color: 0.008Lux @F1.8, B/W: 0Lux with IR on
WDR120dB Super WDR
MountM12
Field of ViewCeiling Mount:360°; Wall Mount:180°; Flat Mount:360°
Shutter Time1/100000s∼1s
Day/Night ModeDay/Night/Auto/Customize/Schedule
IR DistanceUp to 15m
S/N>55dB
Display
Mount ModeCeiling Mount / Wall Mount / Flat Mount
Decoding ModeOn-board Dewarping/Client-side Dewarping
Display Mode11 display modes in total.
Client-side Dewarping:
Ceiling Mount: 1O, 1P, 2P, 4R, 1O3R, 1P1R, 1P4R, 1P6R, 1O8R
Wall Mount: 1O, 1P, 4R, 1O3R, 1P1R, 1P4R
Table Mount: 1O, 1P, 2P, 4R, 1O3R, 1P1R, 1P4R, 1P6R, 1O8R
On-board Dewarping:
Ceiling Mount: 1O, 1P, 2P, 4R, 1O3R, 1P3R, 1O1P3R
Wall Mount: 1O, 1P, 4R, 1O3R, 1P3R, 1O1P3R
Table Mount: 1O, 1P, 2P, 4R, 1O3R, 1P3R, 1O1P3R
Note:
1. Only Fisheye in Multi-Channel Mode supports 1O1P3R.
2. The above letters O, P and R are explained as follows: O----Fisheye View; P----180° Fisheye View; 2P----2*180° Panoramic View; R----PTZ
Video
Max. Input Resolution3840x2160
Primary StreamFisheye View:
60Hz: 30fps@(2144x2144, 2048x2048, 1920x1920, 1280x1280)
50Hz: 25fps@(2144x2144, 2048x2048, 1920x1920, 1280x1280)
Secondary StreamFisheye View:
60Hz: 30fps@(1280x960, 1024x1024, 736x736, 576x576)
50Hz: 25fps@(1280x960, 1024x1024, 736x736, 576x576)
Video CompressionH.265+/H.265(HEVC)/H.264+/H.264
Video Bit Rate16Kbps∼16Mbps (CBR/VBR Adjustable)
Privacy MaskingUp to 24 areas
ROIUp to 8 areas
Image SettingsSaturation/Brightness/Contrast/Sharpness
Web AccessSupport IE/Firefox/Chrome/Safari Browser
Audio
Audio CompressionG.711/AAC/G.722/G.726
Audio Sampling Rate8/16/32/44.1/48KHz
Audio Bit Rate16~256kbps
Two-way AudioSupport
Interface
Ethernet1*RJ45 10M/100M/1000M Ethernet Port
Audio I/OBuilt-in Microphone; 1/1 (Multi-interface Version)
Alarm I/O1/1 (Multi-interface Version)
Network
Network StorageNAS(Support NFS, SMB/CIFS), ANR
Network ProtocolsIPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
Intelligent Analytics
Video AnalysisRegion Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
People Counting&ReportCount the number of people entering or exiting, up to 4 detection areas for regional people counting
System
StorageSupport microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced FunctionAuto Tracking, Heat Map, BLC, HLC, 2D DNR, 3D DNR, AWB, IP Address Filtering, AGC, Anti-flicker, Deblur, Watermark
SIP/VoIP SupportYes, Voice&Video-over-IP
Event TriggerMotion Detection, Network Disconnection, Audio Alarm, External Input(Only for Multi-interface Version), etc.
Event ActionFTP Upload, SMTP Upload, SD Card Record, External Output(Only for Multi-interface Version), SIP Phone, HTTP Notification, etc.
System CompatibilityONVIF Profile G & Q & S & T, API
General
Working Temperature-40℃∼60℃
Working Humidity0∼90%(Non-condensing)
Power SupplyPoE(802.3af)/DC 12V±10%
Power Consumption6W MAX, 8W MAX(With IR on)
Weather ProofUp to IP67-rated for Weather-resistant Performance
HousingVandal-proof IK10-rated metal housing
DimensionsΦ140mmX45.4mm
Weight700g
Warranty3 Years / 5 Years (Optional)

* Naming Convention
82 - 4K(1/1.8")
96 - 12MP(1/1.7")
121 - 12MP (1/1.6")
74 - Fisheye Camera
Y - Speaker& Mic
P - PoE Supported
A/G - AI Platform
1 - Platform Generation
e.g.:G1 represents the first generation

Camera
Name12MP AI 360° Fisheye Network Camera
Image Sensor1/1.7" Progressive Scan CMOS
Min. IlluminationColor: 0.01Lux @F1.2, Color: 0.05Lux @F2.8, B/W: 0Lux with IR on
WDR120dB Super WDR
Lens1.98mm@F2.8
MountM12
Field of ViewCeiling Mount:360°; Wall Mount:180°; Flat Mount:360°
Shutter Time1/100000s∼1s
Day/Night ModeDay/Night/Auto/Customize/Schedule
IR DistanceUp to 15m
S/N>55dB
Display
Mount ModeCeiling Mount / Wall Mount / Flat Mount
Decoding ModeOn-board Dewarping/Client-side Dewarping
Display Mode11 display modes in total. Client-side Dewarping: Ceiling Mount: 1O, 1P, 2P, 4R, 1O3R, 1P1R, 1P4R, 1P6R, 1O8R Wall Mount: 1O, 1P, 4R, 1O3R, 1P1R, 1P4R Table Mount: 1O, 1P, 2P, 4R, 1O3R, 1P1R, 1P4R, 1P6R, 1O8R On-board Dewarping: Ceiling Mount: 1O, 1P, 2P, 4R, 1O3R, 1P3R, 1O1P3R Wall Mount: 1O, 1P, 4R, 1O3R, 1P3R, 1O1P3R Table Mount: 1O, 1P, 2P, 4R, 1O3R, 1P3R, 1O1P3R Note: 1. Only Fisheye in Multi-Channel Mode supports 1O1P3R. 2. The above letters O, P and R are explained as follows: O----Fisheye View; P----180° Fisheye View; 2P----2*180° Panoramic View; R----PTZ
Video
Max. Input Resolution4000x3000
Primary StreamFisheye View: 60Hz: 30fps@(3000x3000, 2560x2560, 1920x1920, 1280x1280)
50Hz: 25fps@(3000x3000, 2560x2560, 1920x1920, 1280x1280)
Secondary StreamFisheye View: 60Hz: 30fps@(1280x960, 1024x1024, 736x736, 576x576)
50Hz: 25fps@(1280x960, 1024x1024, 736x736, 576x576)
Video CompressionH.265+/H.265(HEVC)/H.264+/H.264
Video Bit Rate16Kbps∼16Mbps (CBR/VBR Adjustable)
Privacy MaskingUp to 24 areas
ROIUp to 8 areas
Image SettingsSaturation/Brightness/Contrast/Sharpness
Web AccessSupport IE/Firefox/Chrome/Safari Browser
Audio
Audio CompressionG.711/AAC/G.722/G.726
Audio Sampling Rate8/16/32/44.1/48KHz
Audio Bit Rate16~256kbps
Two-way AudioSupport
Interface
Ethernet1*RJ45 10M/100M/1000M Ethernet Port
Audio I/OBuilt-in Microphone and Audio Input/Output interface
Alarm I/O1/1
Network
Network StorageNAS(Support NFS, SMB/CIFS), ANR
Network ProtocolsIPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
Intelligent Analytics
Video AnalysisRegion Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
People Counting&ReportCount the number of people entering or exiting, up to 4 detection areas for regional people counting
System
StorageSupport microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced FunctionAuto Tracking, Heat Map, BLC, HLC, 2D DNR, 3D DNR, AWB, IP Address Filtering, AGC, Anti-flicker, Deblur, Watermark
SIP/VoIP SupportYes, Voice&Video-over-IP
Event TriggerMotion Detection, Network Disconnection, External Input, Audio Alarm, etc.
Event ActionFTP upload, SMTP upload, SD card record, External Output, SIP Phone, HTTP Notification, etc.
System CompatibilityONVIF Profile G & Q & S & T, API
General
Working Temperature-40℃∼60℃
Working Humidity0∼90%(Non-condensing)
Power SupplyPoE(802.3af)/DC 12V±10%
Power Consumption6W MAX, 11W MAX(With IR on)
Weather ProofUp to IP67-rated for Weather-resistant Performance
HousingVandal-proof IK10-rated metal housing
DimensionsΦ140mmX45.4mm
Weight700g
Warranty3 Years / 5 Years (Optional)

* Naming Convention
82 - 4K(1/1.8")
96 - 12MP(1/1.7")
121 - 12MP (1/1.6")
74 - Fisheye Camera
Y - Speaker& Mic
P - PoE Supported
A/G - AI Platform
1 - Platform Generation
e.g.:G1 represents the first generation

Camera
Image Sensor1/1.6” Progressive Scan CMOS
Min. IlluminationColor:0.008Lux@F2.0, B/W: 0Lux with IR on
WDR120db
Shutter Time1/100000s~1s
DORI DistanceD: 34.67m; O: 13.87m; R: 6.93m; I: 3.47m (Wall Mount)
D: 50.55m; O: 20.22m; R: 10.11m; I: 5.05m (Ceiling Mount)
S/N＞55dB
Lens
Lens1.7mm@F2.0
ApertureF2.0
Field of ViewCeilingMount:360°;WallMount:180°;FlatMount:360°
Iris TypeFixed
MountM12
Illuminator
Illuminator Number4（IR）
IR Wave Length850nm
IR Distance20m
Illuminator On/Off ControlAuto/Manual
Video
Max. Image Resolution3520x3520
Primary StreamFisheye View:
60Hz:30fps@(3520x3520,3024x3024,2560x2560,2048x2048)
50Hz:25fps@(3520x3520,3024x3024,2560x2560,2048x2048)
Secondary StreamFisheye View:
60Hz:30fps@(720x720,480x480)
50Hz:25fps@(720x720,480x480)
Video CompressionH.265+/H.265(HEVC)/H.264+/H.264
Video Bit Rate16Kbps~16Mbps(CBR/VBRAdjustable)
Privacy MaskingUpto 8 Areas
ROIUpto 8 Areas
Image SettingBrightness/Contrast/Saturation/Sharpness
RotationSupport Digital rotation(0°–359°, 1° step)
Image EnhancementFisheye View: WDR, BLC, HLC, 2D DNR, 3D DNR, AWB, Defog, AGC, Anti-flicker, Deblur
Fisheye
Mount ModeCeiling Mount, Wall Mount, Pedestal Mount
Decoding ModeOn-board Decoding
Display ModeFisheye View, 180° Panorama View, Dual-Channel 180° Panoramic View, 4PTZ, Fisheye + 3PTZ
Transfer ModeBundle-Stream Mode, Multi-Channel Mode
ePTZSupports target tracking in both 180° Panoramic View and PTZ View.
Triggering modes: Manual tracking, VCA event-triggered tracking, Sound-Assisted Localization tracking, and Auto Tracking.
Interface
Ethernet1*RJ45 10M/100M/1000M Ethernet Port
Alarm I/O2/2
Audio I/O1/1
Built-in MicrophoneYes, 4 built-in microphones
Built-in SpeakerYes, 1 built-in speaker
Network
Network StorageNAS(SupportNFS,SMB/CIFS)
ProtocolIPv4/IPv6,ARP,TCP,UDP,RTCP,RTP,LLDP,RTSP,RTSPS/SRTP,RTMP,HTTP,HTTPS,DNS,DDNS,DHCP,FTP,NTP,SMTP,SNMP, UPnP,Bonjour,SIP,VPN,PPPoE,VLAN,802.1x,QoS,IGMP,ICMP,SSL,TLS 1.2
Audio
Audio CompressionG.711/AAC/G.722/G.726
Audio Sampling Rate8/16/32/44.1/48KHz
Audio Bit Rate16~256kbps
Two-way AudioSupport
Intelligent Analytics
Video AnalysisVCA2.0:Intrusion Detection,Region Entrance,Region Exiting,Advanced Motion Detection, Line Crossing,Loitering,Object Left,Object Removed
Attribute ExtractionReal-time capture of humans and vehicles. Recognizes attributes: upper/lower clothing color, hat, vehicle type (bicycle, car, motorcycle, bus, truck, e-scooter).
Object Counting & ReportSupports line crossing counting for humans and vehicles; regional people counting for up to 4 areas.
Heat MapThe built-in statistical behavior analysis enables you to identify the busiest areas within the environment.
Privacy ProtectionSupports automatic mosaic overlay for faces and human bodies. Supported on main/sub stream; compatible with H.265/H.264. Available only in fisheye view.
Sound ClassificationDetect gunshot, glass-break,and screaming

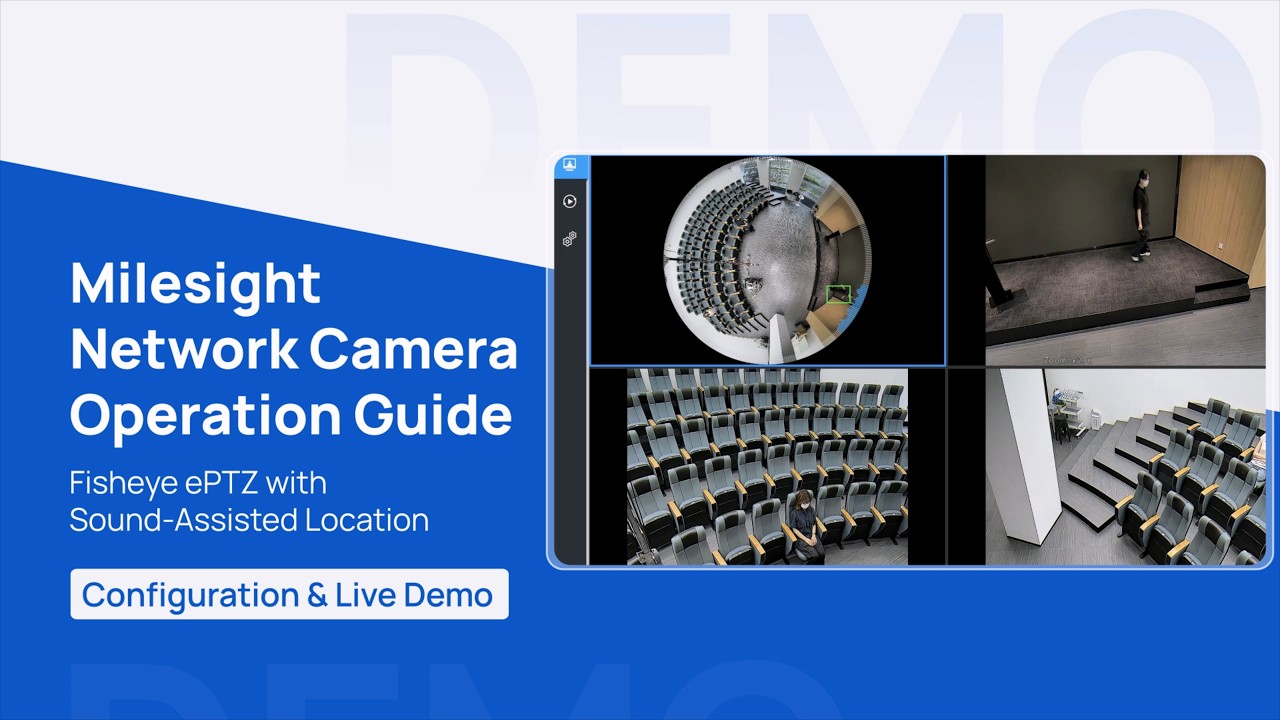

Sound Assisted LocationLocalizes human sound source and triggers tracking in PTZ view.
Event
One-Click DisarmSupport
Basic EventMotion Detection, Tamper Detection, Audio Alarm, External Input, External Output, etc.
ExceptionNetwork Disconnection, IP Address Conflict, Record Failed, SD Card Full, SD Card Uninitialized, SD Card Error, No SD Card,etc.
Event ActionFTP Upload Record, SMTP Upload Record, SD Card Record, Snapshot, SIP Phone, Play Audio, External Output, HTTP Notification, etc.
System
On-Board StorageSupports dual Micro SD/SDHC/SDXC card slots, each up to 1TB, with independent hardware and partitioned storage.
Advanced FunctionIP Address Filtering, Watermark
SIP/VoIP SupportYes, Voice & Video-over-IP
TPM2.0Secure element (FIPS 140-3 level 3, CC EAL 4+）
System CompatibilityONVIF Profile G & M & S & T, Milesight API
General
Working Temperature-40℃~60℃ (-40°F to 140°F)
Working Humidity0~90%(Non-condensing)
Power SupplyPoE(802.3af)/DC 12V±10%
Power ConsumptionMin.:5.6W(DC),7.2W(PoE)
Max.:9.9W(DC),11.9W(PoE)
Surge Protection4KV
Net Weight733.7g（1.62 lb）
Gross Weight1000.6g（2.21 lb）
Dimensions140mm x 140mm x 61mm
Warranty5 Years
Certifications
EMCCE-EMC(EN IEC 61000-3-2:2019+A2:2024,EN 61000-3-3:2013+A2:2021+AC:2022-01,EN 55032:2015+A1:2020,EN 55035:2017+A11:2020)
FCC 47 CFR Part 15 Subpart B
SafetyCE-LVD (EN IEC 62368-1:2024 + A11:2024)
EnvironmentCE RoHS:Directive 2011/65/EU amended by (EU) 2015/863
ProtectionIP67（IEC 60529:2019）
IK10（IEC 62262:2021）

* Naming Convention
82 - 4K(1/1.8")
96 - 12MP(1/1.7")
121 - 12MP (1/1.6")
74 - Fisheye Camera
Y - Speaker& Mic
P - PoE Supported
A/G - AI Platform
1 - Platform Generation
e.g.:G1 represents the first generation

A01 V3 Pole Mount

  • Weight: 625g
  • Dimension: 140*136*46mm
  • Installation Environment: For strapping cameras on poles between φ105-127mm(4.1-5 inches) in diameter

A03 External Corner Bracket

  • Weight: 900g
  • Dimension: 180*152.5*76mm
  • Installation Environment: For mounting cameras on an external corner

A42-L Extension Lever

  • Weight: 330g
  • Dimension: Φ 47.5*255mm
  • Installation Environment: Used as extensions for pendant mount

A72 V2 Wall Mount

  • Weight: 575g
  • Dimension: 242*145*133mm
  • Installation Environment: For wall or parapet installations

A76 V2 Pendant Mount

  • Weight: 620g
  • Dimension: Φ 145*L (L is default as 290mm, also can be extended with A42-L)
  • Installation Environment: Used to install cameras on a ceiling or horizontal structure

A83 V2 Junction Box

  • Weight: 640g
  • Dimension: Φ145*177.7*58mm
  • Installation Environment: For the containing of electrical connections which need to be concealed from sight and deter tampering

Documents

Get in Touch about
Your Needs

  • End User
  • Installer
  • Reseller
  • System Integrator
  • Distributor
  • Consultant
  • Managed Service Provider
  • Yes, I have an active project.
  • Not yet, but planning for the next 3-6 months.
  • No, I am just researching for now
Verify Code

If you are interested in Milesight, please leave us a message.

Verify Code

Contact Us

Contact Us

Verify Code

Contact Us to Get More Information
