4G Solar-powered Varifocal
Security Camera

All-in-One Security, Always-On Anywhere

sp112 1 small
sp112 2 small
sp112 3 small
  • 4G + Solar-powered for Quick Installation
  • Up to 962Wh Battery & 2*100W Solar Panel
  • 32X Hybrid Zoom: 4X Optical × 8X Digital
  • VCA 2.0 & Object Counting & PPE Detection
  • Built-in High-Accuracy GPS Module
  • Flexible Power Management with 4 Working Modes
  • Up to 38.6-Day Battery Runtime (AOV Mode)
  • Nano SIM & eSIM Supported
  • FEATURES
  • MODELS
  • ACCESSORIES
  • DOWNLOAD

Security Where Power and
Network Are Limited

Traditional security deployments often face challenges in remote areas where power supply and network access are unavailable. Milesight 4G Solar-powered Varifocal Security Camera provides an all-in-one solution with solar power, battery pack, 4G cellular connectivity, and flexible Wi-Fi connection, enabling fast deployment without complex cabling.

38.6-Day Battery Runtime
Without Sunlight

Even without solar charging, the ultra-low-power Milesight Solar-powered Camera can operate for up to 38.6 days in AOV mode, with Night IR, AI motion detection, 4G transmission, and continuous recording enabled—ensuring dependable security through prolonged cloudy or rainy weather.

Go Greener with
Ultra-Low Power

Milesight Solar-Powered Camera delivers energy-efficient security with power consumption as low as 0.5 W in AOV mode and just 0.03 W in standby mode—extending battery runtime while reducing carbon emissions for a greener, more sustainable future.

Energy-Saving or High Performance?
Flexible for Your Needs

Working Mode

Frame Rate

AI/ANPR Events

Motion
Detection

External I/O

Device
Exception Alerts

Performance
Mode

FuIl

Power Saving
Mode

Half

AOV Mode

1fps when no target;up
to half when triggered

-

Standby Mode

Half

-
-

Milesight Solar-Powered Camera offers flexible configuration to meet your
security and power needs:

Performance Mode

Deliver full-frame-rate video, AI analytics, motion detection, and complete event monitoring for scenarios requiring continuous surveillance.

Power Saving Mode

Reduce power consumption while maintaining essential monitoring capabilities, achieving a balance between image performance, AI detection, and battery life.

AOV Mode

Keep monitoring around the clock with ultra-low power consumption. When activity is detected, the camera enhances image performance to capture critical evidence, ideal for remote perimeter security.

Standby Mode

Minimize power consumption while supporting remote wake-up via Call, MQTT, and TCP, as well as scheduled snapshot tasks for long-term unattended deployment.

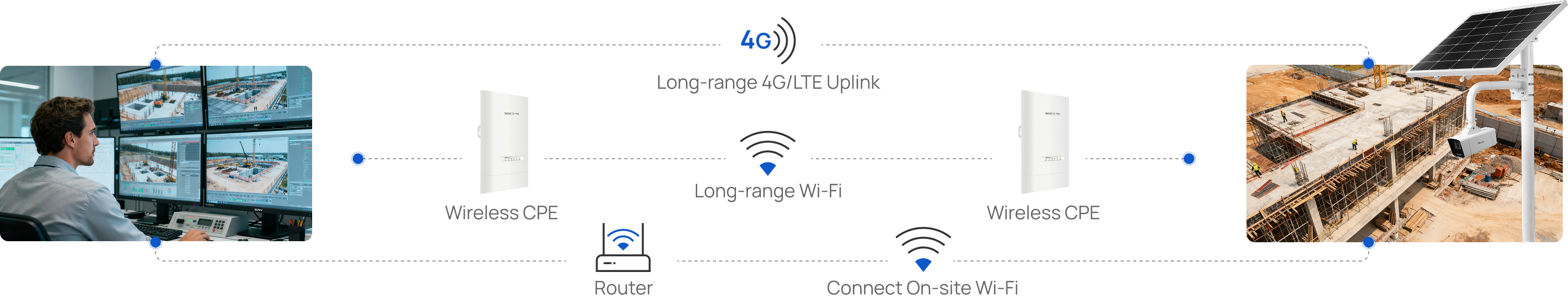

Flexible Connectivity for Remote Surveillance

From 4G LTE to Wi-Fi and wireless CPE, Milesight 4G Solar-powered Camera provides versatile connectivity options for
reliable deployment in locations with limited network infrastructure.

  • Global 4G LTE:

    Stay connected in remote areas with global LTE support and flexible Nano SIM & eSIM options.

  • On-site Wi-Fi Connection:

    Connect through existing Wi-Fi networks for flexible deployment and reduced cellular data usage.

  • Long-Range Wireless Deployment with CPE:

    Extend network coverage across large areas with wireless CPE for simplified installation and reliable remote connectivity.

connectivity

Connect to Your Preferred Security Ecosystem

Milesight 4G Solar-powered Camera enables seamless integration with cloud platforms and third-party VMS through built-in DTC, P2P Tunnel,
and VPN support. Even in 4G environments without fixed public IP, it simplifies remote access and accelerates system integration.

ecosystem
DTC
Direct Cloud Integration

Connect directly to cloud VMS through the embedded agent in the camera with plug-and-play deployment.

P2P Tunnel
Remote VMS Access Without Fixed IP

Enable easy remote access to third-party VMS in 4G networks without static public IP or complex network configuration.

VPN
Secure Enterprise Connectivity

Build secure VPN connections between remote cameras and customer networks for reliable enterprise deployment.

All-in-one Kit with All-around Features

The comprehensive design of Milesight all-in-one kit ensures complete, standalone and AI-enabled functionality, making it ideal for remote and off-grid security.

Solar Panel

Up to 2*100W solar panels

Battery

Up to 962Wh ternary lithium battery

GPS

Built-in high-accuracy GPS module

4G/Wi-Fi Connectivity

Fast & reliable data transmission

Camera

  • 4MP/0.0008Lux/120dB Super WDR
  • 32X Hybrid Zoom (4X Optical × 8X Digital)
  • 30m IR distance
  • Up to 1TB local storage

AI Events

  • VCA 2.0
  • Object Counting
  • PPE
  • Human/vehicle/non-motorized vehicle classification

Reliability

  • IP67
  • Battery protection system ensures working in -20°C to +60℃

Enhancing Security Across Various Scenarios

Remote Perimeter Security

Protect remote sites with always-on monitoring, AI intrusion detection, and reliable solar-powered operation.

Construction & Industrial Sites

Improve site safety with PPE detection, human & vehicle analytics, and flexible off-grid deployment.

Mining & Critical Infrastructure

Secure isolated areas with long-range connectivity, extended battery life, and intelligent event monitoring.

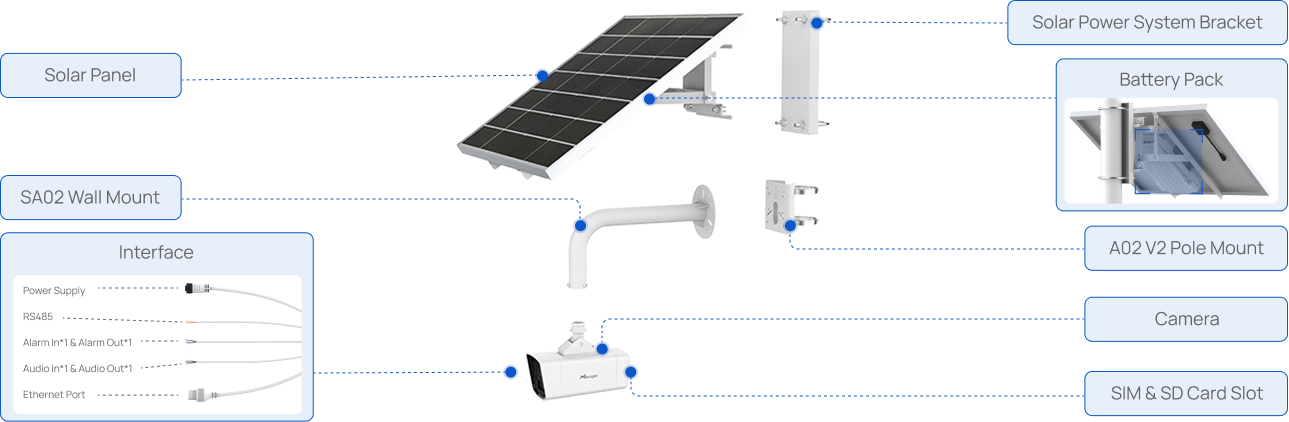

Complete Off-Grid Camera Kit, Ready to Deploy

Milesight delivers a complete solar camera kit, including solar panel, battery pack, mounting accessories and camera body. With built-in SIM/SD card slot and unified interface design, everything is plug & play.

structure

Related Products

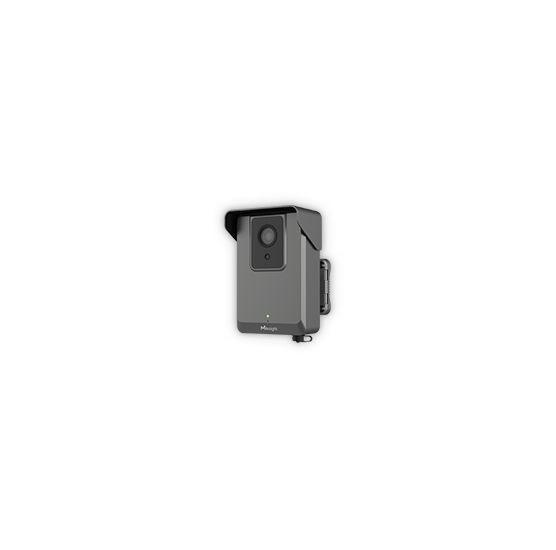

4glpr

4G Solar-powered Traffic Sensing Network Camera

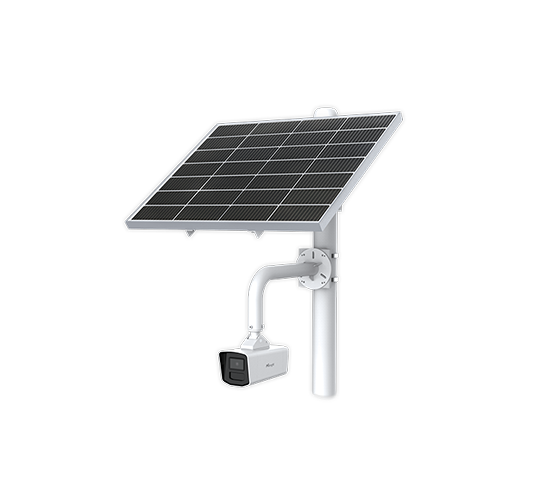

4g product

4G Solar-powered ANPR Camera

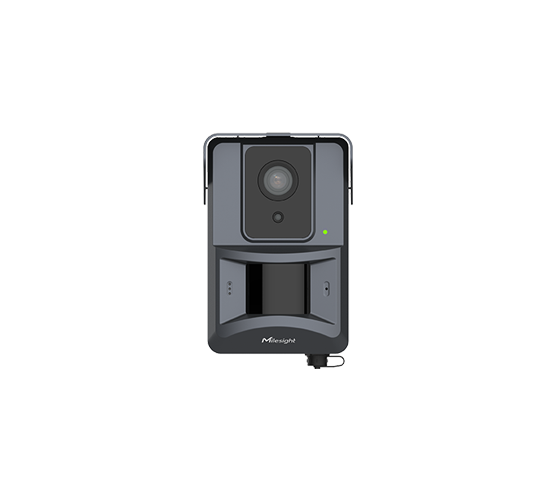

pid

4G Solar-powered Perimeter Sensing Camera

Specifications

Camera
Image Sensor1/1.8″ Progressive Scan CMOS
Min. IlluminationColor: 0.0008Lux@F1.2
B/W: 0Lux with IR on
WDR120dB Super WDR
Shutter Time1/100000s~1s
Day/Night ModeDay/Night/Auto/Customize/Schedule
IR Wave Length850nm
IR DistanceUp to 30 m
S/N>55dB
DORID: 69.3-149m / O: 27.3-58.7m / R: 13.6-29.3m / I: 14.7-16.82m
SVCPDOOO (Recognize): W:67.4, T:160.1; O (Observe): W:33.7, T:80.1; D (Detect): W:16.9, T:40.0; P (Process): W:10.8, T:25.6; C (Classify): W:5.4, T:12.8; V (View): W:2.7, T:6.4; S (Signal): W:0.9, T:2.1
Lens
LensMotorized 2.8mm~12mm@F1.2
MountΦ16
Camera Angle AdjustmentPan: 0°~ 360°; Tilt: -35°~ 70°
Field of ViewH:107.3°-47.8°; V:57.3°-27°; D:124.9°-54.9°
Close Focus Distance0.5m
Focus ControlAuto / Manual
ApertureF1.2
Iris Typefixed
Video
Max. Image Resolution4MP (2688*1520)
Primary StreamPerformance Mode：
60Hz: max 30fps@(2688*1520, 2304*1296, 1920*1080, 1280*720)
50Hz: max 25fps@(2688*1520, 2304*1296, 1920*1080, 1280*720)
Power Saving Mode/AOV Mode/Standy Mode：
60Hz: max 15fps@(2688*1520, 2304*1296, 1920*1080, 1280*720)
50Hz: max 12fps@(2688*1520, 2304*1296, 1920*1080, 1280*720)
Secondary StreamPerformance Mode：
60Hz: max 30fps@(1280*720, 704*576, 640*480)
50Hz: max 25fps@(1280*720, 704*576, 640*480)
Power Saving Mode/AOV Mode/Standy Mode：
60Hz: max 15fps@(1280*720, 704*576, 640*480)
50Hz: max 12fps@(1280*720, 704*576, 640*480)
Video CompressionH.265+/H.265(HEVC)/H.264+/H.264
Video Bit Rate16Kbps~8Mbps(CBR/VBR Adjustable)
Privacy MaskingUp to 8 Areas (Mask Area and Mosaic Area are optional)
ROIUp to 8 areas
Image SettingBrightness/Contrast/Saturation/Sharpness
Image RotationOff, Rotating 180°, Flip Horizontal, Flip Vertical, Clockwise 90°, Anticlockwise 90°
Image EnhancementBLC, HLC, 2D DNR, 3D DNR, AGC, Defog, AWB, Deblur, Anti-flicker, LDC, EIS
Hybrid ZoomUp to 32X
Web AccessWiFi/VPN/Milesight P2P Tunnel
Audio
Audio CompressionG.711/AAC/G.722/G.726
Audio Sampling Rate8/16/32/44.1/48KHz
Audio Bit Rate16~256kbps
Interface
Alarm I/OInput *1, Output *1
Audio I/OInput *1, Output *1
Ethernet1*RJ45 10M/100M Ethernet Port
RS4852
Wireless Network
WLAN802.11n/802.11g
CellularLTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B25/B26/B28/B66
LTE-TDD: B38/B39/B40/B41
UMTS: B1/B2/B4/B5/B6/B8/B19
GSM: B2/B3/B5/B8
SIM CardNano SIM
eSIMSupport
Note: Cannot be used simultaneously with physical SIM.
ProtocolVPN(General VPN/Milesight VPN/Wireguard VPN/IPSec VPN/Tailscale VPN), Milesight P2P Tunnel, IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DHCP, FTP, NTP, SMTP, SNMP, SIP, QoS, IGMP, ICMP, TLS 1.2, TLS 1.3
Intelligent Analytics
Object Counting & ReportCount the number of objects crossing the line, optionally human/vehicle/e-scooter/bicycle. Support regional people counting for up to 2 detection areas.
Video AnalysisIntrusion Detection, Advanced Motion Detection, Line Crossing, Loitering, Object Left, Tamper Detection
PPE DetectionMatch/Mismatch Modes; Supports Hard Hat & Hi-Vis Vest
System
Work ModePerformance Mode: Ensures optimal video image quality and AI algorithm effectiveness.
Power Saving Mode: Adjusts video image quality, frame rate, bitrate, and other parameters to save power.
AOV Mode: Supports detecting moving targets Only; the frame rate lowers when no target is detected and increases when a target is detected.
Standby Mode: Support remote wake-up and timing snapshot tasks only.
Wake Up MethodCall, MQTT or TCP
GPSBuilt-in High-accuracy GPS Module
StorageSupport microSD/SDHC/SDXC card local storage (up to 1TB) with secure encryption support.
Event TriggerIntelligent Analytics, External Input, etc.
Event ActionHTTP Post, FTP Upload, SMTP Upload, SD Card Record, External Output, Snapshot, Play Audio, Alarm to SIP Phone, etc.
System CompatibilityONVIF Profile G & M & S & T, API
General
Working Temperature-40 °C to 60 °C (-40°F to 140°F)
Working Humidity0~95% (Non-condensing)
Power SupplyDC 12V±10%
Power ConsumptionPerformance Mode: 2.46W
Power Saving Mode: 2.01W
AOV Mode: 0.53W
Standby Mode: 0.03W
*Note: Minimum power consumption in each mode.*
Power ManagerSupports power consumption reporting and data export.
Surge Protection4KV
Weather ProofUp to IP67-rated for Weather-resistant Performance
Camera Dimensions120*120*260 mm
Weight2.31kg

Solar Power System
NameS100 Solar Power System
Solar Panel Modules in KitDefault: 1 units;
Optional: 2 units
Charge
PV Power100W
PV Input Voltage18V
MaterialMonocrystalline silicon
Energy Storage
Battery TypeNMC
Battery Capacity50AH
Total Energy555Wh
Battery Life9 days (without data transmission),

6 days (with data transmission)
Deep Cycles＞1000
Nominal Voltage11.1V
Discharge
Output Voltage9~12.6V DC
Maximum Output Current10A
Discharge Depth95%DOD
Function
Battery HeatingCharging current > 2A and lower than -5℃ turns on
Protection TypeOvercurrent/ Overvoltage/Short Circuit/ Undervoltage/ Temperature
Charging Temperature Range0℃~60℃
Discharging Temperature Range-20℃~65℃
Status IndicatorLED (charging status, battery status, output status)
Interface
CommunicationRS485
Output MethodM12 5-pin Connector
Output Line Length1.5m
Supported CablesDual Device Power Splitter Cable

Bridge Data & Power Cable (RS485 & DC Output)

Main Power Cable
General Parameters
WaterproofIP66
Humidity Range4-100% (no condensation)
Cooling MethodNatural Heat Dissipation
Hazardous Material Classification9
Shell MaterialGalvanized Steel + Plastic
Fixed WayHanging Rod / Wall Mounting
Product Dimensions765*630*69 mm

825*690*105 mm (with Package)
Weight13kg
Warranty2 years
CertificateUN38.3/MSDS/CE/ROHS

Solar Power System
NameS100 Solar Power System
Solar Panel Modules in KitDefault: 1 units;
Optional: 2 units
Charge
PV Power100W
PV Input Voltage18V
MaterialMonocrystalline silicon
Energy Storage
Battery TypeNMC
Battery Capacity90AH
Total Energy962Wh
Battery Life17 days (without data transmission),

11 days (with data transmission)
Deep Cycles＞1000
Nominal Voltage11.1V
Discharge
Output Voltage9~12.6V DC
Maximum Output Current10A
Discharge Depth95%DOD
Function
Battery HeatingCharging current > 2A and lower than -5℃ turns on
Protection TypeOvercurrent/ Overvoltage/Short Circuit/ Undervoltage/ Temperature
Charging Temperature Range0℃~60℃
Discharging Temperature Range-20℃~65℃
Status IndicatorLED (charging status, battery status, output status)
Interface
CommunicationRS485
Output MethodM12 5-pin Connector
Output Line Length1.5m
Supported CablesDual Device Power Splitter Cable

Bridge Data & Power Cable (RS485 & DC Output)

Main Power Cable
General Parameters
WaterproofIP66
Humidity Range4-100% (no condensation)
Cooling MethodNatural Heat Dissipation
Hazardous Material Classification9
Shell MaterialGalvanized Steel + Plastic
Fixed WayHanging Rod / Wall Mounting
Product Dimensions765*630*112.5 mm

825*690*140 mm (with Package)
Weight16kg
Warranty2 years
CertificateUN38.3/MSDS/CE/ROHS

A02 V2 Pole Mount

  • Weight: 1kg
  • Dimension: 180*138.5*47mm
  • Installation Environment: For strapping cameras on poles between φ67–127 mm (2.6–5 inches) in diameter

SA02 Wall Mount

  • Weight: 2.2kg
  • Dimension: 150*260*400mm
  • Installation Environment: For wall or parapet installations

S100B55 Solar Power System

  • Weight: 13kg
  • Dimension: 765*630*69mm(825*690*105mm with Package)
  • Installation Environment: Generating and providing electricity for cameras, equipped with wall-mount and pole-mount brackets by default

S100B96 Solar Power System

  • Weight: 16kg
  • Dimension: 765*630*112.5mm(825*690*140mm with Package)
  • Installation Environment: Generating and providing electricity for cameras, equipped with wall-mount and pole-mount brackets by default

S100 Expansion Module

  • Weight: 15kg
  • Dimension: 825*690*140 mm (Packaging Dimensions)
  • Installation Environment: Model: SA100;For expanding solar energy receiving area to improve conversion efficiency. Includes a 100W Solar Panel and Mounting Bracket.

Solar Power System Bracket

  • Weight: 3.5kg
  • Dimension: 220*217.5*30 mm
  • Installation Environment: Model: BJ-N;For easier solar-powered system installation.

Documents

Get in Touch about
Your Needs

  • End User
  • Installer
  • Reseller
  • System Integrator
  • Distributor
  • Consultant
  • Managed Service Provider
  • Video Surveillance
  • Road Traffic
  • Parking
  • Smart Buildings
  • Smart Retail
  • Industrial Routers
  • Other IoT Solutions
Verify Code

If you are interested in Milesight, please leave us a message.

Verify Code

Contact Us

Contact Us

Verify Code

Contact Us to Get More Information
