Mobile Solar Surveillance Trailers

Finding the Best Outdoor-Ready CCTV for Trailers

Get Project Consultation
  • Components
  • Benefits
  • Applications
  • Technologies
  • Products

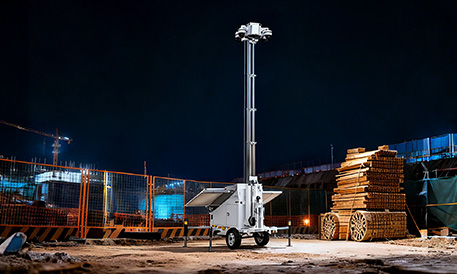

What is a Mobile Solar
Security Trailer?

trailer

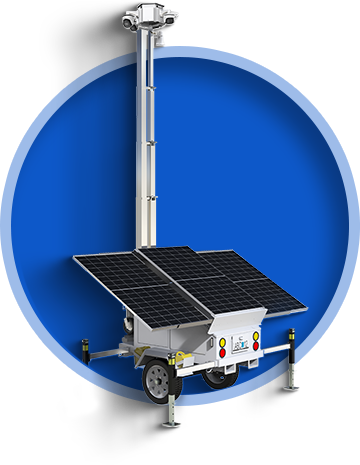

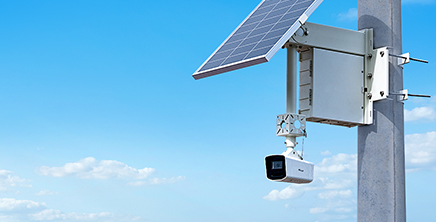

A mobile solar security trailer is a portable, self-powered and easily relocatable CCTV trailer for remote or off-grid areas. With Milesight cameras on the mast, the mobile surveillance trailer delivers on‑edge AI, low-power outdoor CCTV and multi-camera coverage on a single mobile surverlliance unit, without relying on existing infrastructure, trenching or cabling.
It is ideal for a construction sites, roadworks, large outdoor car parks, temporary events and other flexible or short-term deployments.

Essential Modules Built into Solar CCTV Trailers

CCTV with edge-AI

On-site NVR/
VMS Server

Solar Power &
Battery Pack

Loudspeaker and
Strobe Lights

4G/5G Cellular
Network System

Power &
Network Control System

Key Benefits of Mobile Solar CCTV Trailers in Off-grid Sites

For remote or temporary projects, a mobile solar security trailer is a reusable asset that can be redeployed from site to site, delivering 24/7 CCTV at roughly
one-tenth of the cost of manned guarding, while still capturing every event on video.
So what exactly makes a CCTV trailer so effective? Let's take a closer look at the main benefits.

From Setup to Surveillance in Minutes

A Milesight cctv trailer is an all-in-one, plug & play solution: drive on site, raise the mast and start working. It can be relocated as construction phases move, car parks change layout or events finish, keeping coverage where you need it most.

AI Threat Detection Without AI Box

Edge-AI Milesight cameras on the mobile surveillance trailer run suspicious behavior and intrusion detection, LPR and more directly on the device. This removes the need for a separate AI box or Cloud AI, cutting hardware cost, power consumption, data costs and system complexity in off-grid sites.

Remote Monitoring and Alerting from Anywhere

With 4G/5G on board, each mobile solar security trailer becomes a remote surveillance trailer that you can view and manage from anywhere. Monitoring center receive real-time alerts and clips instead of patrolling in person, enabling one team to supervise multiple sites at once.

Multi-Camera Setup for Comprehensive Security

One mobile surveillance camera trailer can host several Milesight cameras, panoramic, PTZ, LPR and more, on a single unit. This delivers wide coverage, vehicle control and safety monitoring in parallel, turning one mobile security trailer into a multi-functional outdoor CCTV platform.

Industry Use Cases for Remote Surveillance Trailer

A remote surveillance trailer, such as a mobile solar security trailer, can be reused across industries and projects, following changing risks instead of staying fixed in one place.

construction
temporary event
retail parking
infrastructure
on street parking
campus

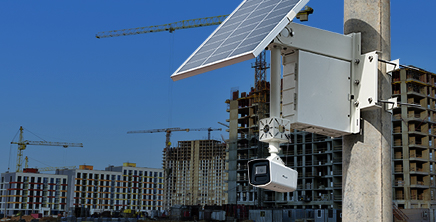

Construction Site Security

On construction sites, a mobile surveillance trailer helps monitor PPE compliance, process progress and worker safety, while deters and records theft of tools, materials and heavy equipment in open, off-grid areas, delivering 24/7 security without building a fixed CCTV system.

Discover now

Temporary Event and Crowd Management

For festivals, concerts and temporary events, a portable surveillance trailer can be towed in, set up within minutes and moved on afterwards. The trailer then tracks crowd flow, spots incidents and provides live and recorded video across entrances, queues and car parks.

Retail and Outdoor Parking Lot Security

In retail and outdoor parking lots, a mobile CCTV trailer reduces catalytic converter theft, car break-ins and night-time crime, while AI LPR and parking-occupancy analytics support bay monitoring, parking enforcement and strong visual deterrence after hours.

Discover now

Utilities and Critical Infrastructure Monitoring

For remote gas, oil, water, or power facilities, a remote surveillance trailer delivers rapid deployment and continuous monitoring without relying on existing infrastructure, helping operators detect trespassing, tampering and vandalism early.

Traffic and Parking Enforcement

Deployed roadside, a mobile CCTV trailer observes congestion, over-speed driving and incident hotspots, while AI and LPR support on-street parking enforcement, illegal parking detection in urban city.

Campus Safety

On campuses and educational sites, a mobile surveillance camera trailer extends protection beyond open layouts, walkways and car parks, and helps reduce trespassing, vandalism, theft and violence at late-night and after-school hours.

Inside Technology Behind Milesight Surveillance Trailer Camera

Engineered for
Outdoor Environments

Edge AI for
Active Deterrence

All-Angle Visibility with
PTZ Control & Panoramic

Open Platform for
Easy System Integration

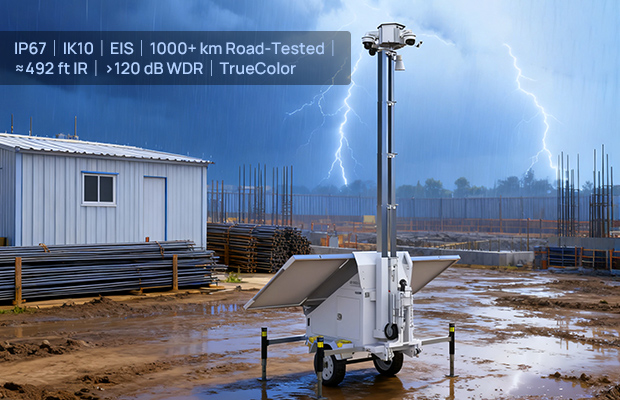

Trailer mobility & stability:

IP67, IK10, DIS, over 1000+ KM trailer-proven testing, and PTZ dome protection keep video steady and hardware safe on swaying masts in trailer outdoor use.

Handles tough lighting:

Patented anti-reflective IR (up to ≈492 ft / 150 m), >120 dB WDR and AI ISP true full-color imaging keep mobile surveillance trailer footage clear in backlight, rain/fog and even complete darkness.

From efficient chipsets to intelligent software controls, Milesight cameras are engineered to minimise power draw on solar security trailers, extending battery life and runtime in off-grid sites.

out door ready
AI VCA (Video content analysis):

On-camera analytics deliver ultra-low false alarms with AI detection up to 75 m even on fixed-lens models, and support 20+ metadata types and rich suspicious-event detection. This turns each mobile CCTV trailer into a smart, event-driven security unit instead of relying on constant manual watching or additional AI box.

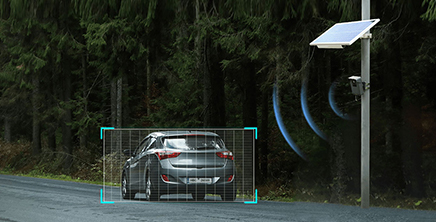

AI LPR (License plate recognition):

Built-in AI LPR captures and recognizes plates on access roads and car parks directly from the solar camera trailer, enabling access control, violation management and automated alerts without a separate AI box.

ai
Precision PTZ & zoom:

Stable PTZ motors and multiple levels of optical/digital zoom deliver smooth control and minimal image shift, making them ideal for mobile CCTV trailers that are frequently relocated from site to site.

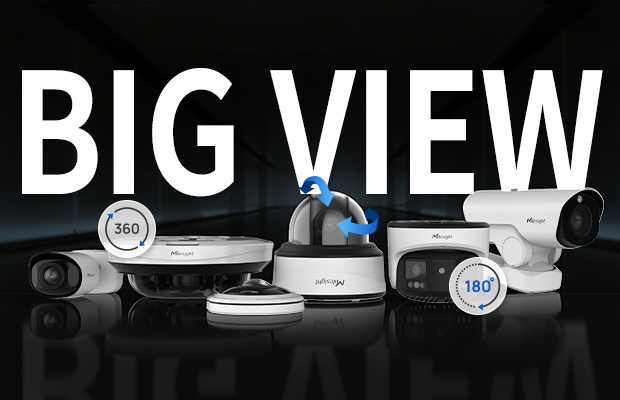

Seamless panoramic:

180° mini-sized camera or dual-sensor (180°W / 58°H) and 360° multi-directional or fisheye cameras provide seamless, wide-area views, reducing blind spots on each surveillance trailer.

big view

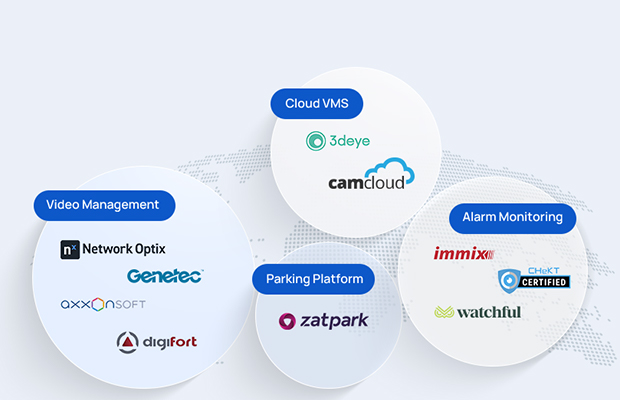

VMS compatibility:

Milesight takes an open approach and actively builds deep one-to-one integrations with leading VMS platforms via drivers or plug-ins, so the mobile surveillance trailer can drop straight into existing control rooms.

Alarm system compatibility:

Support for alarm inputs/outputs lets the solar security trailer connect to on-site alarm systems, making it easy to centralize alarm management and build unified responses.

Audio I/O, Alarm I/O, RS485 and other interfaces give integrators flexibility to connect loudspeakers, strobes and external devices on the security trailer with minimal extra hardware.

Flexible Camera Choices in Every Solar Mobile Surveillance Trailer

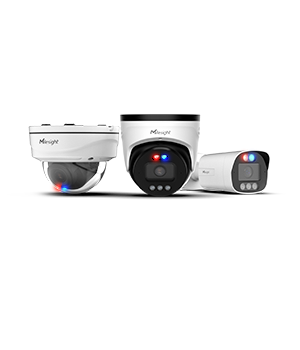

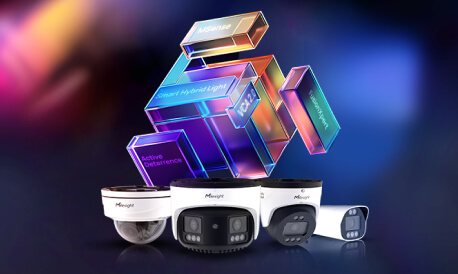

truecolor

Q series camera

Full-color imaging with built-in audio-light deterrence delivers visible, proactive protection on any mobile surveillance trailer.

dual 180

180° panoramic camera

Industry-leading dual-sensor stitched panorama provides 180° wide coverage with true full-color detail, giving both overview and evidence in a single view.

ptz

PTZ dome/bullet
camera

Up to 23× optical zoom and industry-grade PTZ motors offer stable control from the mast of a mobile security trailer, ideal for tracking at long range.

pro bullet camera

Pro bullet plus camera

Motorized or AF lens, enriched advanced AI events, enhanced image quality and rich interfaces make it a ideal choice for high-demand trailer deployments.

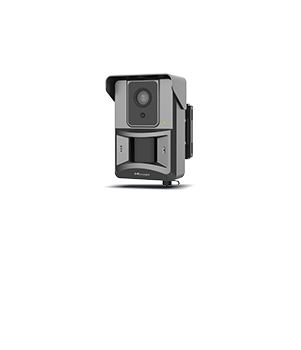

pid camera

PID camera

PIR + AOV + Edge AI visual verification creates a virtual perimeter that filters false alarms.

pmc

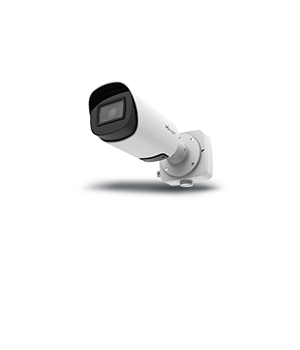

Parking management
camera

Up to 100-space occupancy detection feeds your parking lot surveillance system with clear, per-bay status and enforcement from a single mobile surveillance camera trailer.

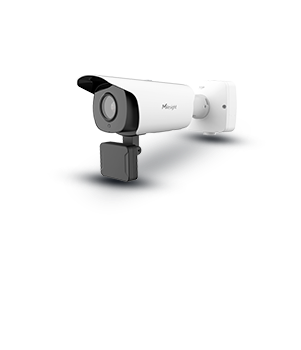

radar camera

Radar LPR camera

Combines video and radar sensing to detect and track moving targets more reliably, supporting speed and approach detection on roads or open yards.

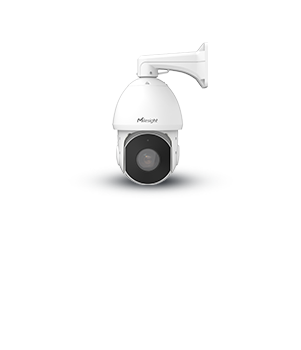

lpr speed dome

Speed dome LPR camera

Up to 99% LPR accuracy with 630ft long-distance LPR, capturing plates and attributes across multi-lane vehicles.

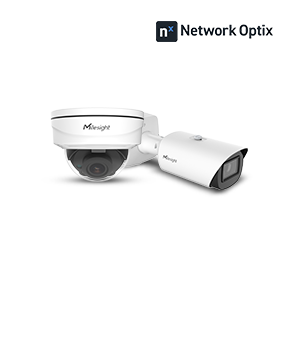

openvision camera

OpenVision camera

An embedded Nx VMS server inside the camera for plug-and-play deployment, no separate NVR, faster installation on CCTV trailers.

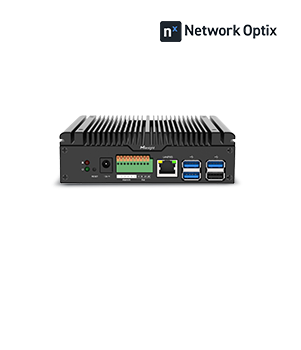

openvision server

OpenVision server

Compact, low-power consumption edge server with local storage for centralized recording and remote management.

case infra

America

case road

America

Success Story

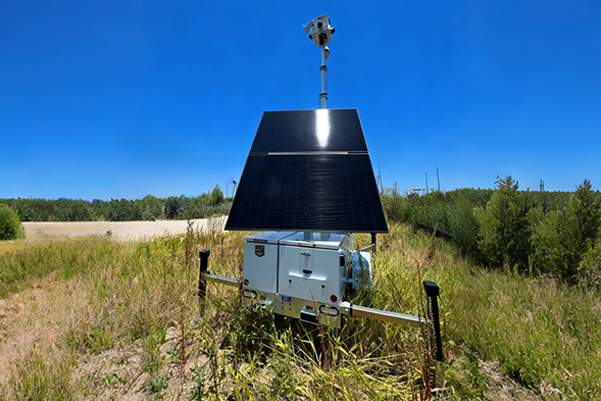

Cost-Effective Facility Protection Without Fixed Infrastructure

Challenges

A remote off-grid equipment yard in rural America had no power or network for traditional wired CCTV. Previous wired cameras delivered limited, low-quality coverage with high one-off install costs and no real deterrent against suspicious intruders, while manned guarding required a high monthly spend.

Solution

A solar-powered mobile CCTV trailer with Milesight cameras was deployed. The solar security trailer delivers on-edge AI detection, local recording and 4G remote access in a single unit, without trenching, poles or racks.

Result

End users gained continuous protection for remote, off-grid facilities, with AI-enhanced detection, evidence capture and remote monitoring. The mobile solar security trailer can be redeployed between sites, improving security coverage while reducing 80% per site infrastructure and guarding costs.

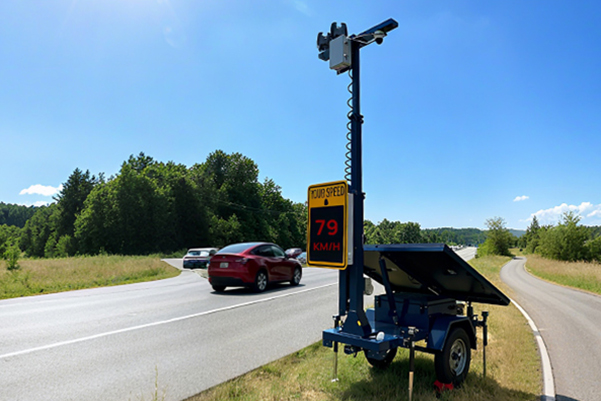

Reducing Congestion with Radar-Enabled Mobile CCTV Trailers

Challenges

Busy local roads and approaches to towns needed a flexible way to slow down speeding drivers without building permanent poles, power or roadside cabinets at every hotspot.

Solution

A trailer-mounted radar LPR camera combined with a variable message sign was deployed as a mobile surveillance unit. The mobile CCTV trailer detects approaching vehicle speed and plates, then pushes real-time speed and congestion warnings on the display to encourage drivers to slow down.

Result

Authorities can reposition the mobile surveillance trailer between high-risk corridors, and have reported fewer speeding incidents where the trailer was deployed, all without fixed infrastructure.

Related Resources

FAQs

Q: How quickly can a solar surveillance trailer be deployed?

A mobile solar security trailer can typically be towed on site and go from setup to live CCTV in minutes, stabilizers down, mast up, power on. There's no trenching, cabling or permanent poles required for the mobile CCTV trailer.

Q: How long can the trailer operate without sunlight or external power?

Runtime depends on the battery pack, solar array and camera load, but with Milesight's low-power camera design, a properly sized solar camera trailer is engineered for 24/7 operation with enough autonomy to bridge low-sun or cloudy days, without any external power source.

Q: How are data and video footage stored and accessed remotely?

Video can be recorded on-camera, on an NVR or on an edge server inside the solar security trailer. With 4G/5G or Wi-Fi, users can access live and recorded footage from the remote surveillance trailer through their VMS or web/mobile clients.

Q: Is the mobile solar surveillance trailer NDAA-compliant and certified for CE/RoHS?

A mobile solar surveillance trailer solutions can be built using NDAA-compliant cameras and components, and products are available with CE and RoHS certifications to meet regional project requirements, check with your local Milesight partner for specific models.

Q: How live monitoring works with solar surveillance trailers?

Operators connect to the solar security camera trailer over 4G/5G or Wi-Fi, then view live streams, receive AI alarms and control PTZ from their VMS or monitoring centre, turning each mobile CCTV trailer into a fully supervised, off-grid security unit.

Q: How many cameras can be added to a surveillance trailer?

A mobile surveillance trailer typically carries 3–4 cameras on a single mast, usually including at least one PTZ or panoramic camera for wide-area overview, plus other cameras for detail views. Depending on the trailer design and power budget, the mobile CCTV trailer can be tailored with different camera mixes to deliver multi-functional coverage from one security trailer.

Q: Can I integrate existing cameras or systems with Milesight trailer surveillance platform?

Yes. Milesight cameras on the mobile surveillance trailer support open protocols and deep VMS integrations, and the platform can work alongside existing VMS, alarm systems.

Q: How does a trailer-edge AI camera compare to using an external AI box for mobile surveillance trailers?

  • Much lower power: Edge-AI camera ≤ 15 W vs. AI box 20–43 W, delivering up to 60% power savings and as much as 2× longer trailer battery runtime on a mobile solar security trailer.
  • Wide operating range: –40 to 60 °C camera operating range keeps analytics stable on outdoor, moving mobile CCTV trailers in harsh climates.
  • Simpler, faster installs: Only a single network cable to the camera, using up to 3× less space and creating fewer failure points than a separate AI box.
  • Lower bandwidth & latency: Analytics run at the edge and only metadata and verified clips are sent to the backend, reducing bandwidth, lowering data costs and improving responsiveness for remote surveillance trailer deployments.

Q: Can the trailer be customised (camera types, mast height, audio/visual deterrent systems)?

Yes. A mobile security trailer can be configured with different mast heights, camera mixes (Milesight provides PTZ, panoramic, LPR, PID with various lens options), loudspeakers, strobe lights and network/storage options to match each site's risk profile and budget.
