Battery-Free Maintenance. No Worries. The Engineering Behind WT102's Self-Powered Reliability

For anyone who has spent years scheduling battery replacements across dozens of installations, a self-powered thermostat sounds almost too good to be true. The Milesight Smart Radiator Thermostat WT102 was built to change that. The question it was designed to answer is not just, "Does it work?" But "Will it keep working, no matter what?"

That reliability matters more than ever. HVAC systems account for 30 to 40% of electricity consumption in commercial and residential buildings, and IoT-based monitoring and control can cut that figure by 20 to 25%. Capturing those savings depends on devices that actually deliver. We have heard your "what-ifs." What if the radiator runs cold? What if the system hibernates too long? Real peace of mind comes from engineering facts, not just a "maintenance-free" label. This deep dive addresses those exact concerns and shows why WT102 is the answer.

Q1: How can a thermostat remain stable without a battery?

A: WT102 achieves industrial-grade stability by abandoning the continuous drain model for an intermittent energy management strategy.

Debunking the “Always-On” Myth

Many assume a thermostat consumes high power constantly. In reality, temperature control is a series of brief, infrequent events: sensing the temperature, making a decision, and triggering the motor. The WT102 can spend 95% of its time in a micro-power sleep mode, acting as a diligent energy saver.

The Energy Reservoir Strategy

During long standby periods, WT102 continuously harvests tiny amounts of thermal energy and stores it in high-capacity supercapacitors. This creates a buffer: while the inflow from the radiator might be a trickle, the reservoir accumulates enough energy to handle high-flow bursts required for motor movement or wireless communication.

How this works for WT102:

In short, WT102 replaces chemical uncertainty with predictable physics, ensuring that your heating control remains robust and reliable for years to come. What happens when heat supply is intermittent or the heating season ends entirely? Q2 and Q3 address exactly that.

Q2: What if the radiator temperature is low or only runs for a few hours a day?

A: Thermoelectric energy harvesting is designed for real-world HVAC conditions, not laboratory ideals. WT102 is engineered to thrive even on fragmented heat sources. In practice, that means low radiator temperatures, short daily heating windows, and everything in between.

Ultra-Low Harvesting Threshold

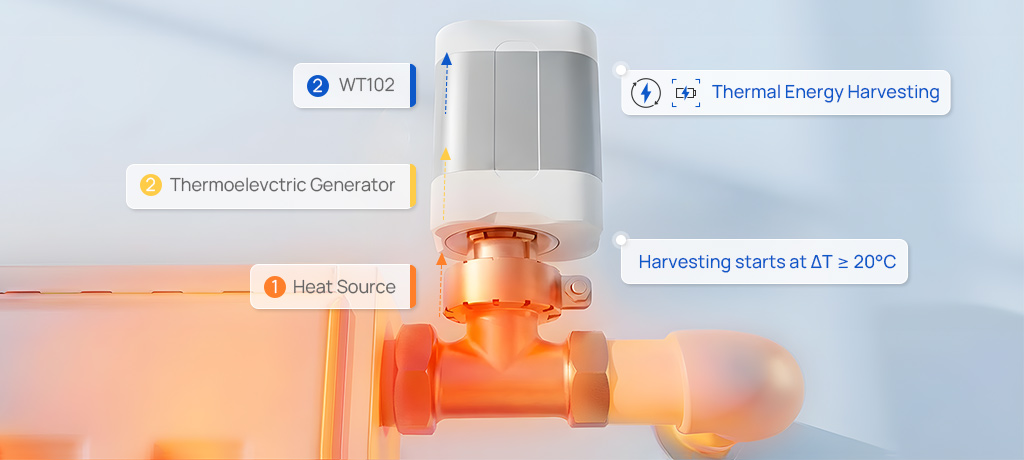

Many assume self-powering requires scorching hot radiators. The self-powered WT102 features a highly sensitive harvesting module that activates with just a 20°C temperature difference between the radiator surface and ambient air. This low threshold keeps WT102 charging even when water temperature is relatively low.

Efficient Charging in Narrow Windows

In buildings with intermittent heating, WT102 makes full use of every active heating window to fast-charge its internal storage.

The daily energy budget is lean. A few hours of active heating provides enough buffered power to sustain WT102's intelligence and communication for 24 hours. Like an efficient solar-powered watch, it does not need constant exposure. It needs only brief windows to stay fully operational.

This on-demand harvesting ensures that as long as your heating system runs, WT102 remains powered.

Q3: What happens after a 6-month summer? Will I need to manually charge it to "jump-start" the heating season?

A: The short answer is no, WT102 wakes itself up when winter returns.

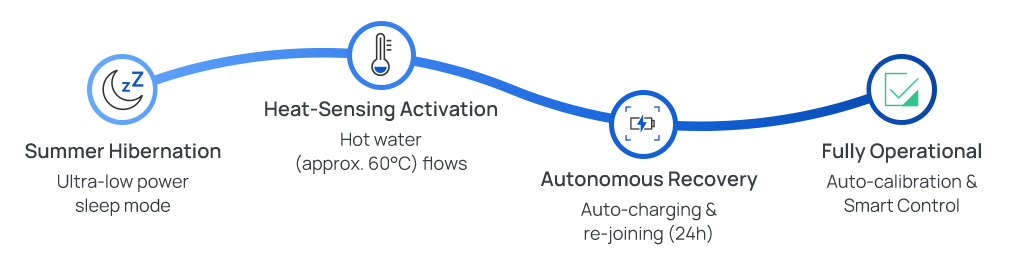

The Self-Healing Mechanism

While many self-powered products require manual USB activation after a long dormant summer, the WT102 is designed for True Autonomous Recovery.

• Heat-Sensing Activation: When the heating season begins and hot water (approx. 60°C) flows through the valve, the built-in self-starting circuit begins charging automatically.
• Automatic Rejoining: Within 24 hours, the device wakes up, rejoins the network, and performs motor calibration; zero human intervention is required.

Forced Heating Mode: Built-In Freeze Protection

• Safety Prioritization: If the voltage falls below 3.0 V, the system intelligently focuses all available energy on maintaining the Forced Heating Mode.
• Asset Protection: By locking the valve at a 50% open position, WT102 ensures constant water flow to protect pipes from freezing in worst-case scenarios. The device automatically resumes normal smart control once the voltage recovers to 3.1 V.

No manual wake-ups. No hidden labor costs.

Q4: What if the network goes down? Will my heating system stop working?

A: No. The WT102 is designed with Local Autonomy to ensure your heating remains fully operational regardless of your network status.

• Local Decision-Making: Temperature regulation logic resides directly on the device. The WT102 autonomously senses, decides, and adjusts the valve, ensuring room comfort is maintained without the need for constant external commands.
• Predictable Energy Consumption: By processing logic locally, the device avoids unnecessary, high-power radio transmissions. This keeps the energy drain on the supercapacitor minimal and highly predictable.
• Offline Resilience: Even if the LoRaWAN® network experiences an outage or poor signal, the WT102 continues to follow your pre-set schedules and comfort levels.

ACEEE research confirms that building energy management systems that retain local control logic reduce energy use by 10 to 25% while maintaining occupant comfort. You get the intelligence of a connected system with the reliability of a standalone device, exactly the kind of resilience our Smart HVAC Solution is built around.

Conclusion

Every question in this deep dive points to the same answer. WT102 replaces chemical uncertainty with predictable physics, making true maintenance-free operation and rock-solid reliability two sides of the same coin. No hidden service costs, no seasonal interventions, no single point of failure. Just a thermostat that runs steadily, autonomously, and indefinitely.
