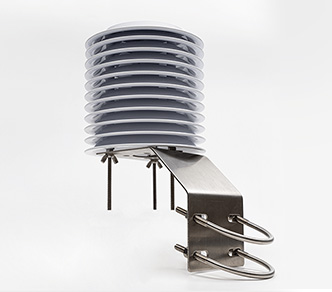

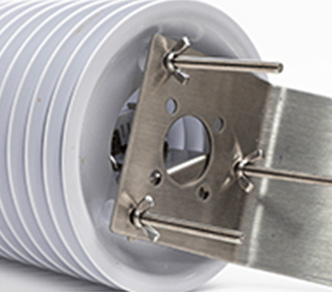

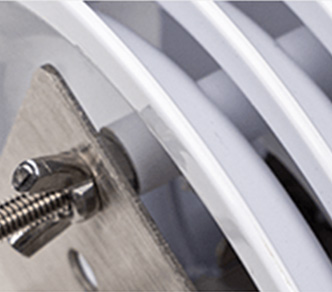

Sensor Shelter & Stand Kit

Customizable

• Size:⌀ 180×180mm
• Material:PC ABS & Stainless Steel Screws
• Applicable Products:EM320-TH

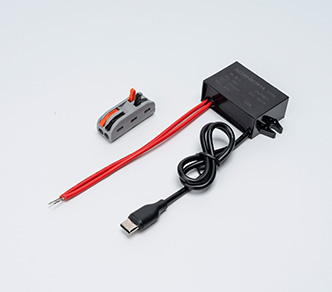

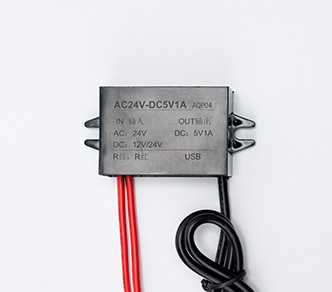

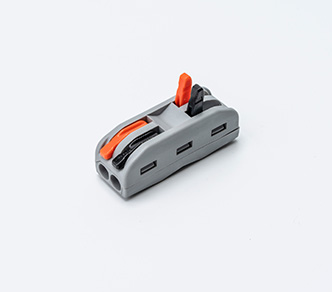

PC24051 AC/DC-DC Power Converter Kit

Customizable

• Output Voltage:5V
• Output Current:1A
• Output Port:Type-C
• Applicable Products:TS301/TS302/UC100 UC100 (EA)

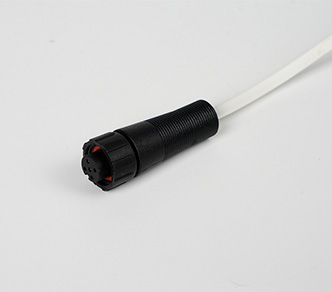

SP13-125-150 TH Sensor

Optional

• Maximum Temperature Range:125℃
• Accuracy:Temp: ± 0.3°C (-40°C~0°C), ± 0.2°C (0°C~65°C) ± 0.5°C (65°C~125°C); Humidity: ± 2% RH
• Cable Length:1.5m
• Applicable Products:TS602/TS301/TS302

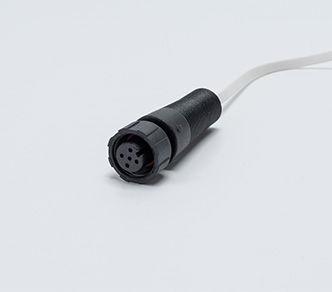

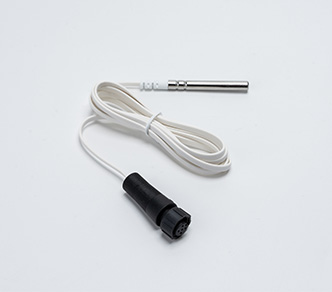

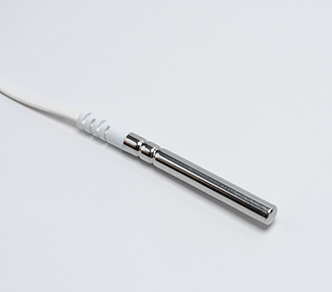

SP12-125-150 Independent Calibration DS18B20 Probe

Optional

• Measuring Range:-40℃~125℃
• Accuracy:± 0.5°C(10°C ~ 85°C), ± 2°C(-40°C ~ -10°C, 85°C ~ 125°C)
• Cable Length:1.5m
• Applicable Products:TS201/TS602/TS301/TS302

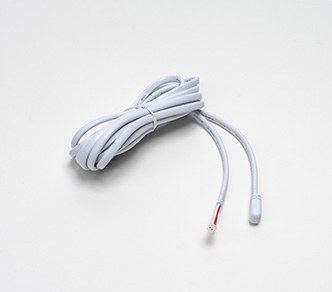

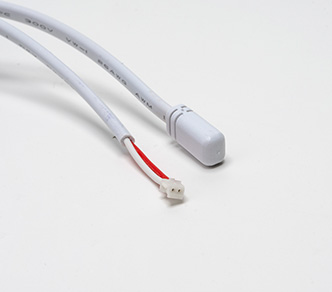

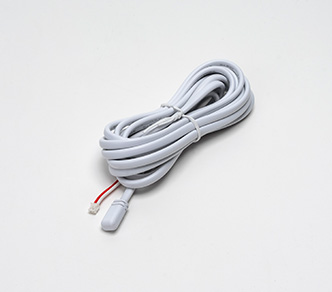

External Negative Temperature Coefficient Sensor

Optional

• Measuring Range:-40—105℃
• Resistance (25℃):10K±1％
• B-Constant (25/50℃):3950±1％
• Cable Length:2.5m
• Applicable Products:WT303 WT304

Magnetic Mounting Kit

Optional

• Applicable Products:WS201

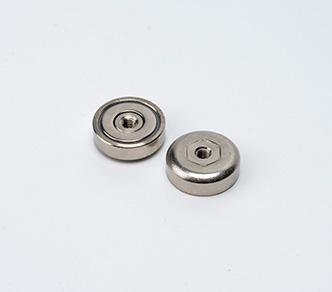

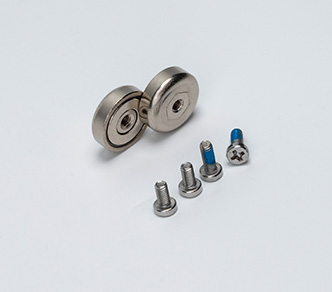

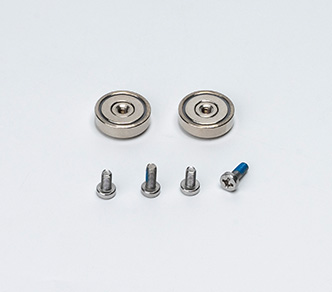

MN1605 Magnetic Nut

Customizable

• Size:16(D) * 15(H)mm
• Applicable Products:TS301/TS302/TS201/TS201-TH/TS602

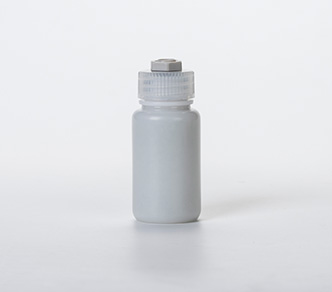

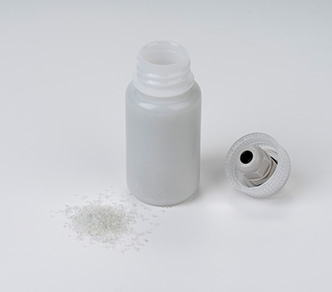

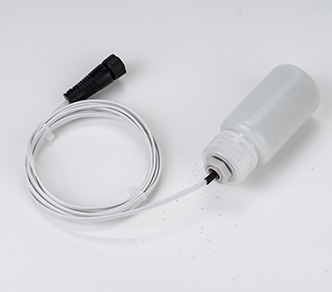

TB3984 Glass Bead Thermal Buffer Bottle

Optional

• Size:Φ39 * 84mm
• Applicable Products:TS301/TS302/TS201/TS602

• *Only the thermal buffer bottle is included. The probe is sold separately.

Thermal Buffer Mounting Bracket

Customizable

• Applicable Products:TS301/TS302/TS602

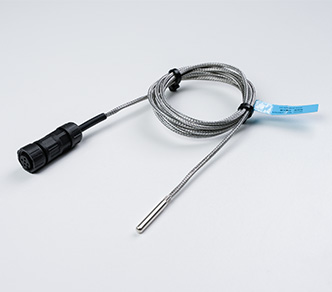

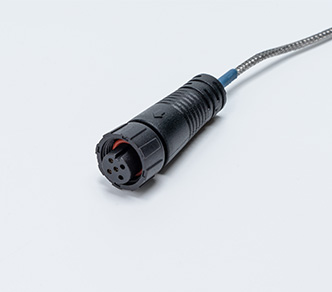

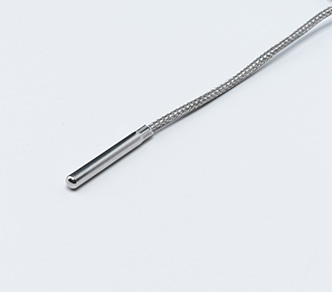

SP11 Regular Version PT100 Probe

Optional

• P/N:B05-125-200
• Probe Grade:B
• Measuring Range:-40 °C ~ 125 °C
• Accuracy:± 0.5°C (-40°C~40°C), ± 1°C (40°C~125°C)
• Length:5cm
• Cable Length:200cm
• Applicable Products:TS301/TS302/TS602

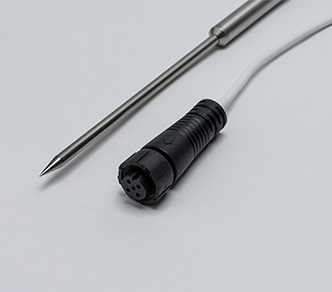

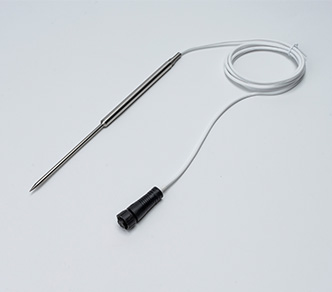

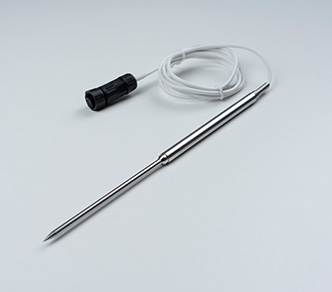

SP11 Food Applications PT100 Probe

Optional

• P/N:AF10-125-150
• Probe Grade:A
• Measuring Range:-40 °C ~ 125 °C
• Accuracy:± 0.4°C
• Length:10cm
• Cable Length:150cm
• Remarks:Food grade probe
• Applicable Products:TS301/TS302/TS602

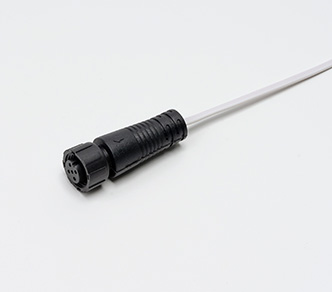

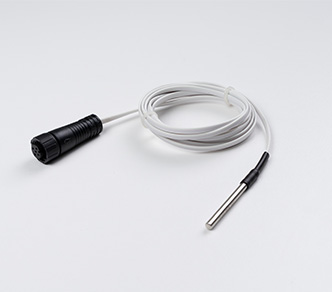

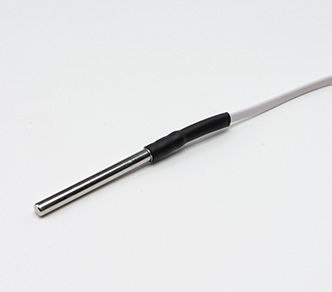

SP11 Industrial Applications PT100 Probe

Optional

• P/N:A05-500-150
• Probe Grade:A
• Measuring Range:-50°C ~ 500°C
• Accuracy:± 0.4°C (-50°C~125°C), ± 1.15°C (125°C~500°C)
• Length:5cm
• Cable Length:150cm
• Applicable Products:TS301/TS302/TS602

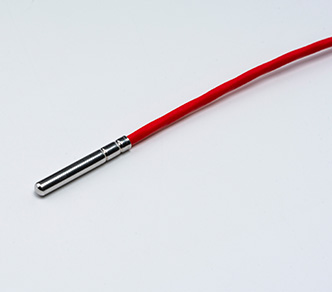

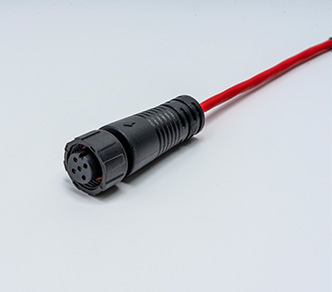

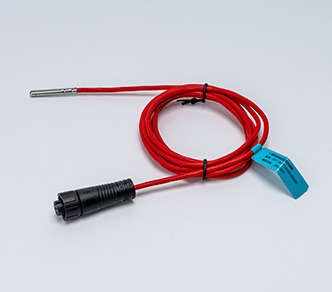

SP11 Low Temperature Application PT100 Probe

Optional

• P/N:A03-050-150
• Probe Grade:A
• Measuring Range:-200 °C ~ 50 °C
• Accuracy:± 0.5°C (-175°C~50°C), ± 0.55°C (-200°C~-175°C)
• Length:3cm
• Cable Length:150cm
• Applicable Products:TS301/TS302/TS602

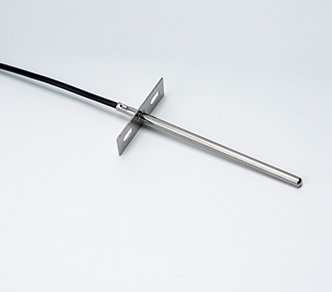

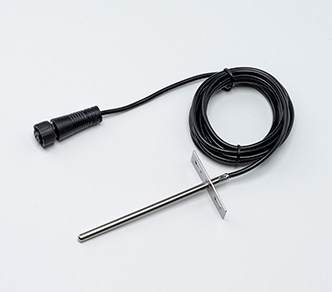

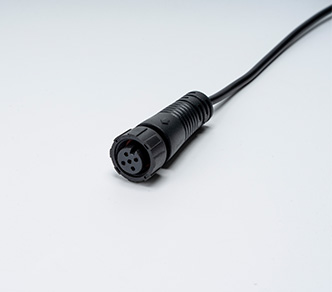

SP11 Pipe Monitoring Application PT100 Probe

Optional

• P/N:A09-085-200-B046
• Probe Grade:A
• Measuring Range:-20 ℃ ~ 85℃
• Accuracy:± 0.4°C
• Length:9cm
• Cable Length:200cm
• Remarks:With 46mm baffle
• Applicable Products:TS301/TS302

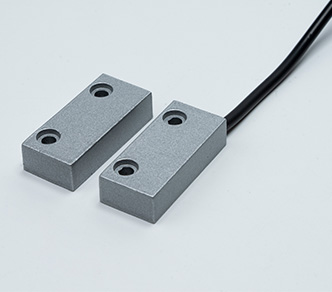

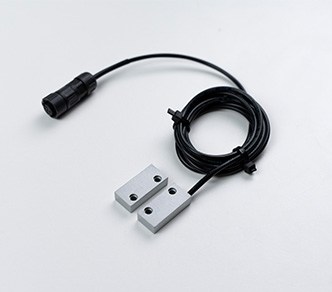

SS21 Magnetic Contact Switch Sensor

Optional

• P/N:PN03-150
• Max Sensing Distance:3cm
• Cable Length:150cm
• Applicable Products:TS301/TS302

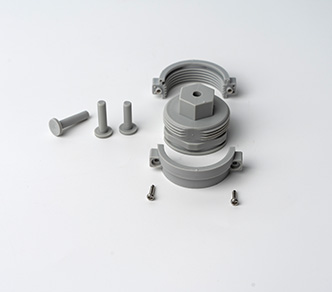

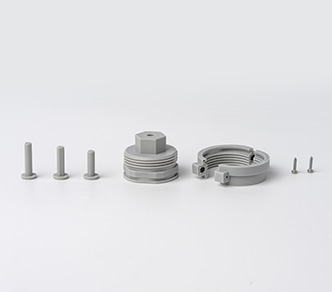

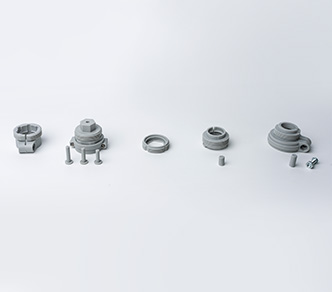

TRA3015 M30 X 1.5 mm Valve Adapter Kits

Optional

• Size: 30 x 1.5mm
• Applicable Products:WT101
• Adapter Valve Types:Danfoss: RA, RAVL, RAV / Giacomini: GIA / Standard Thread: M28 x 1.5

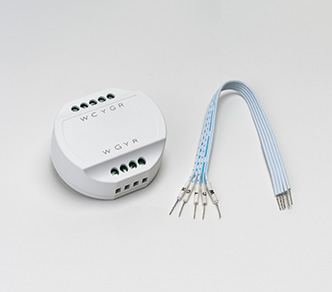

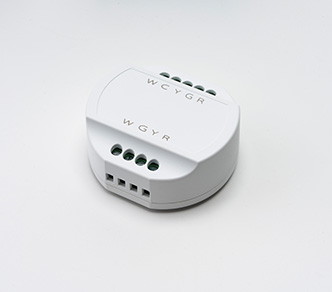

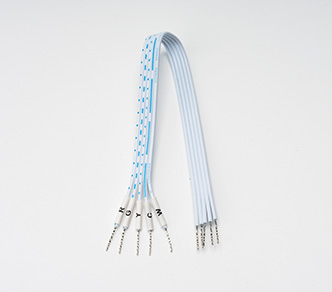

TPA0124 C-Wire Power Extender Kit

Customizable

• Wire Terminals:R, G, Y, W
• Material:PC+ABS
• Size:58 × 53.5 × 23.7 mm
• Applicable Products: WT201

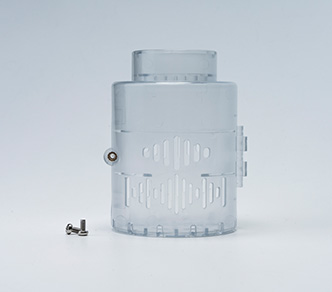

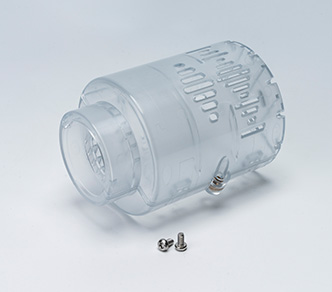

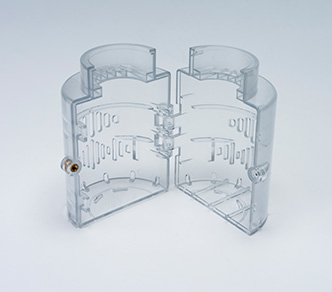

TRC01 Plastic Protective Anti-vandal Cover for Thermostat Radiator

Customizable

• Size:⌀ 67 ×95 mm
• Material:Plastic
• Applicable Products:WT101

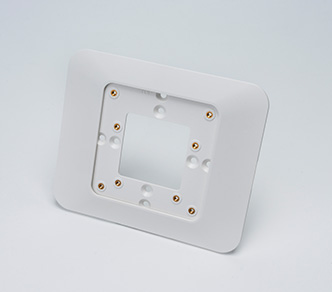

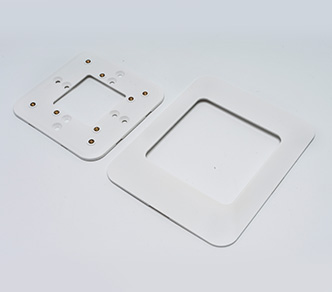

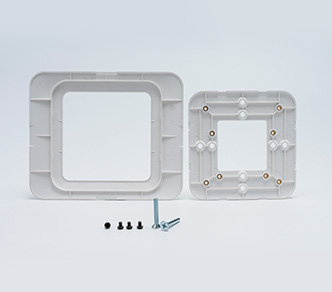

WP01 Wall Plate Kit

Optional

• Size:106 × 106 × 4 mm/150 × 150 × 6 mm
• Material:PC+GF
• Applicable Products:WT303/WT304/WT401

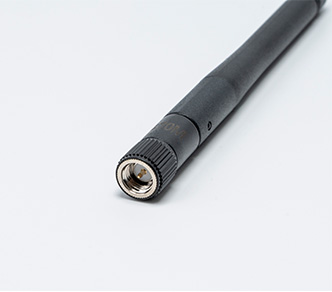

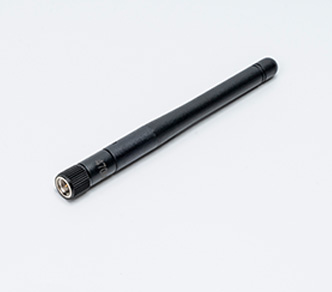

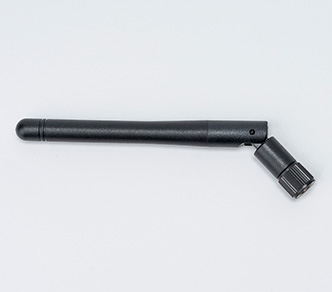

LoRaWAN® Magnetic Antenna

Optional

• Frequency Range:470 MHz
• Gain:2 dBi
• Connector Type:SMA-J
• Height:185.35 mm
• Color:Black
• Cable Length:1.5m
• Applicable Products:CT101/CT103/CT105/CT303/CT305/CT310

LoRaWAN® Magnetic Antenna

Optional

• Frequency Range:860-930 MHz
• Gain:≤1dBi
• Connector Type:SMA-J
• Height:111 mm
• Color:Black
• Cable Length:1.5m
• Applicable Products:CT101/CT103/CT105/CT303/CT305/CT310

LoRaWAN® Magnetic Antenna

Optional

• Type:Omni
• Frequency Range:868M/915M
• Connector Type:SMA-J
• Dimensions:29*225mm
• Color:Black
• Applicable Products:UG56/UC300

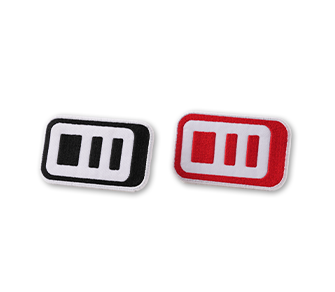

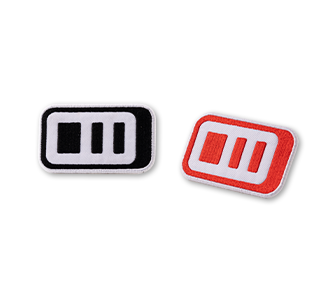

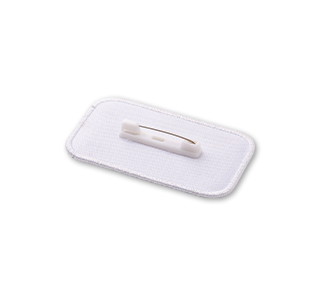

VA04 Multifunctional Staff Badge

• Application:Staff exclusion for people count
• Applicable models:VS125 series

• Multi-option support
• Privacy and security: identification anonymize
• Only available from firmware V1.0.4 or higher

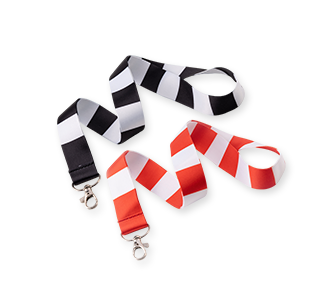

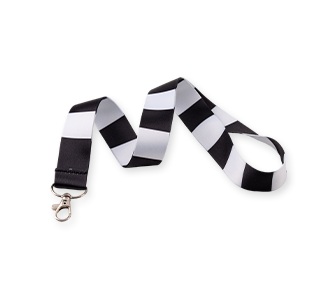

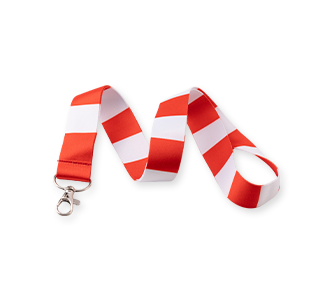

VA21 Staff Lanyard

• Application:Staff exclusion for people count
• Applicable models:VS125 series

• Privacy and security: identification anonymize
• Only available from firmware V1.0.2 or higher

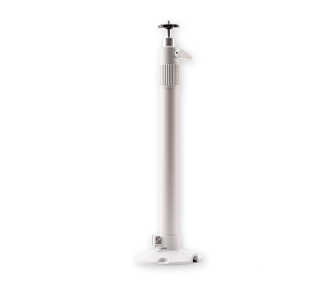

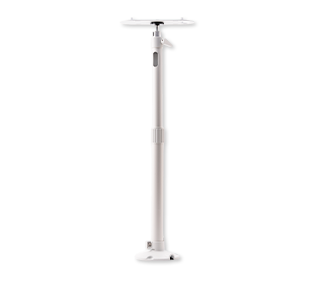

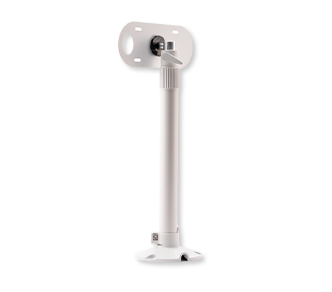

VB01 Multifunctional Bracket

• Application:Lintel mount, height adjustment for ceiling mount
• Applicable models:VS125 series, VS13X series, VS351, VS126

• Material: Aluminum
• Two optional extension range: 0.4m-0.6m or 2.05m-3m
• Adjustable head bracket (Tilt 90°, swivel 360º)

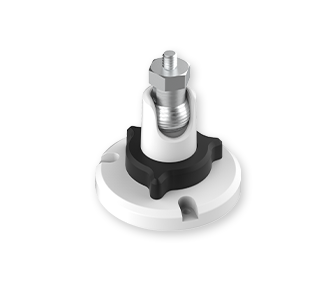

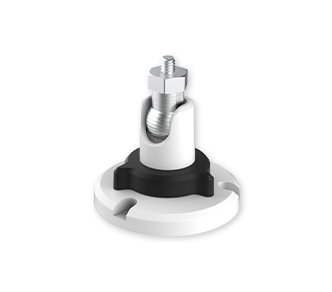

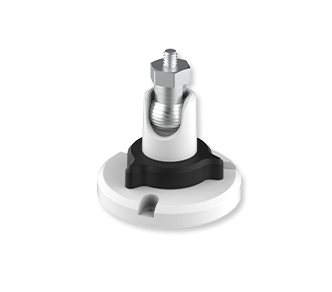

VB02 Adjustable Angle Ceiling-mounted Bracket

• Application:Ceiling mount bracket with pivot that allows to tilt the sensor
• Applicable models:VS125 series, VS13X series,VS126

• Material: Aluminum
• Standard 1/4-inch threaded hole interface

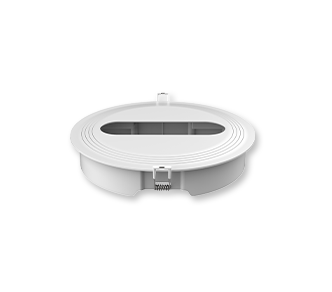

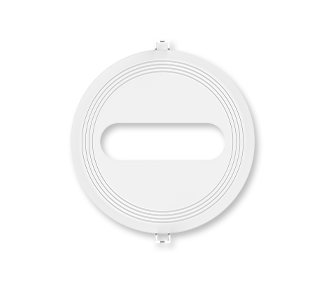

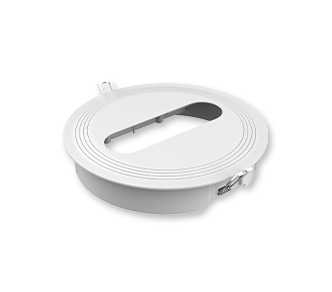

VC01 Flush Mount Cover

• Application:Flush mount in suspended ceilings, housing for an elegant finish
• Applicable models:VS125/VS125-LW

• Material: Plastic
• Dual color options (White/Black)

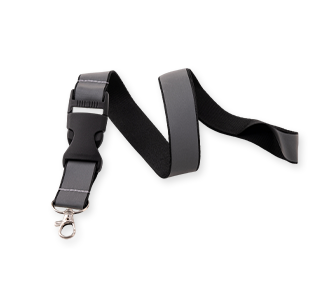

VA31 Staff Lanyard

• Application:Staff exclusion for people count
• Applicable models:VS13X series

• Reflective strap
• Privacy and security: identification anonymize
• Only available from VS133 1.0.2 and later, or VS135 1.0.5-r2 and later.

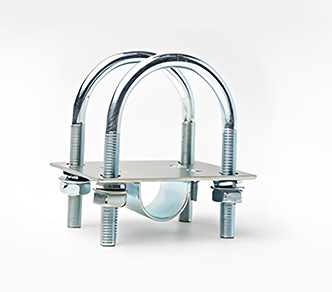

GA01 130cm LoRaWAN® Fiber-Glass S-N Antenna Kit

Customizable

• P/N:FSN1300
• Dimension:Φ25x1300mm
• Type:Omni
• Interface:Antenna: N-J; RF Cable: SMA-J
• Gain:860-868MHz, 8dBi; 902-928MHz, 8.5dBi
• Color:White(Antenna), Black(Cable)
• Cable Length:1m
• Applicable Products:UG56

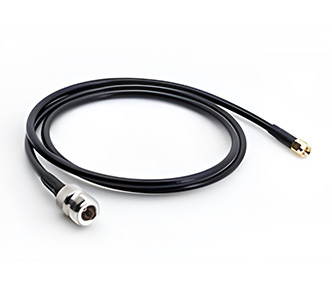

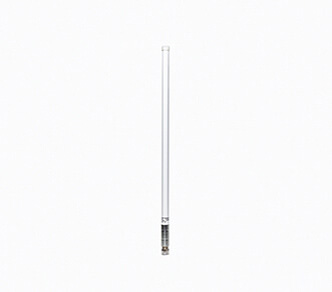

GA01 60cm LoRaWAN® Fiber-Glass S-N Antenna Kit

Customizable

• P/N:FSN600
• Height:600 mm
• Type:Omni
• Interface:Antenna: N-J; RF Cable: SMA-J-N-K
• Gain:863-870MHz, 4-5dBi; 902-928MHz,4-5dBi
• Color:White(Antenna), Black(Cable)
• Cable Length:1m
• Applicable Products:UG56

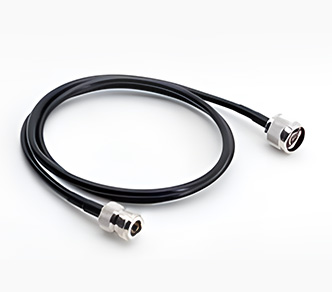

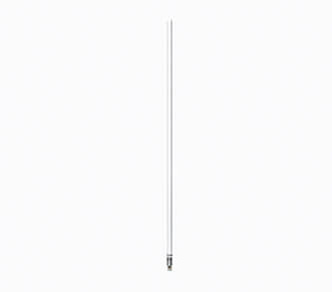

GA01 130cm LoRaWAN® Fiber-Glass N-N Antenna Kit

Customizable

• P/N:FNN1300
• Dimension:Φ25x1300mm
• Type:Omni
• Interface:Antenna: N-J; RF Cable: N-J-N-K
• Gain:860-868MHz, 8dBi; 902-928MHz,8.5dBi
• Color: White(Antenna), Black(Cable)
• Cable Length:1m
• Applicable Products:UG65/UG67

GA01 60cm LoRaWAN® Fiber-Glass N-N Antenna Kit

Optional

• P/N:FNN600
• Type:Omni
• Gain:4-5dBi@863-870MHz; 4-5dBi@902-928MHz
• Interface:Antenna: N-J; RF Cable: N-J-N-K
• Height:600 mm
• Cable Length:1m
• Color:White(Antenna), Black(Cable)
• Applicable Products:UG65

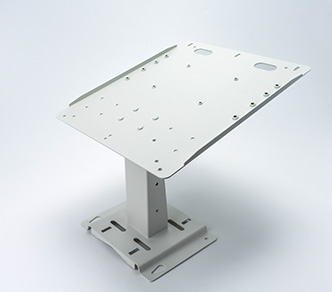

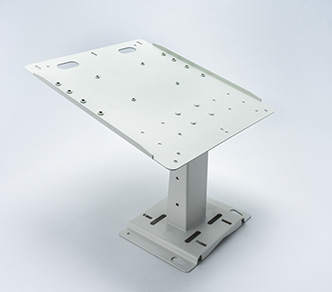

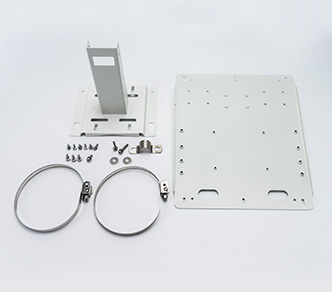

SB3826 Solar Panel Mounting Bracket Kit

Optional

• Size:380*260 mm
• Applicable Products:SG50

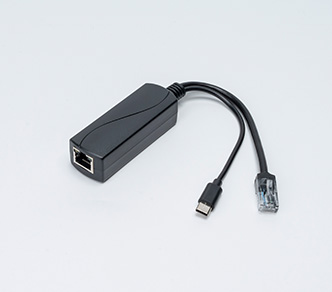

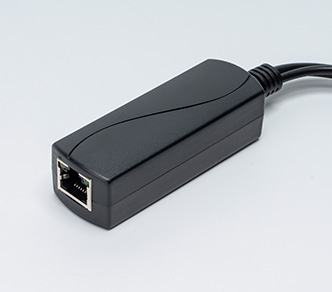

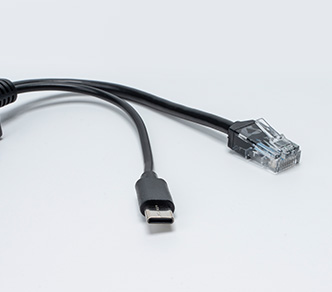

PS2401 Gigabit Type-C PoE Splitter (5V 2.4A)

Optional

• Output Voltage:5V
• Output Current: 2.4A
• Output Port:Type-C
• Applicable Products:UG63/HL31/GS601

SP01 Type-C Cable (1m) and Power Adapter

Optional

• P/N: C1000
• Output Voltage:5V
• Output Current:1.5A
• Output Port:Type-C
• Cable Length:1m
• Applicable Products:UG56/UG63/VS121/VS121-P

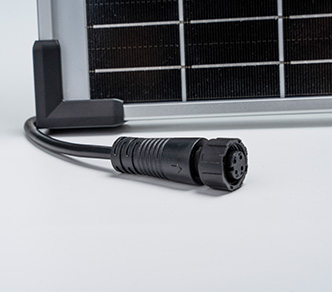

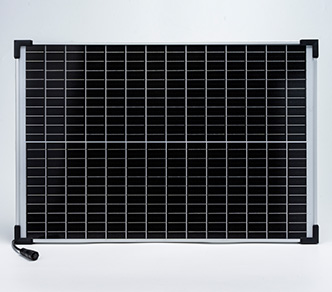

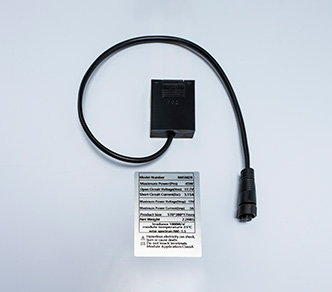

SP1545 15V 45W Monocrystalline Solar Panel

Optional

• Operating Voltage:15V
• Maximum Power:45W
• Applicable Products:SG50

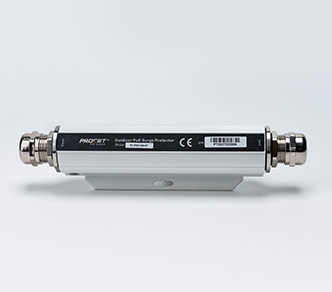

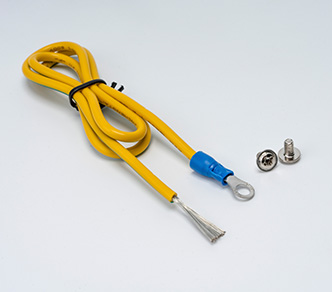

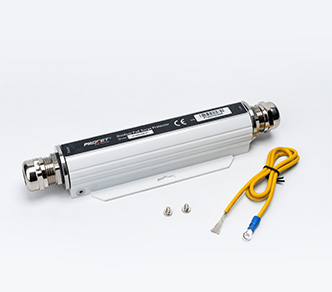

GL01 Gigabit Outdoor Waterproof PoE Lightning Arrester

Customizable

• P/N:PT-PR01GB-OT
• Size:209 × 53 × 37.5 mm
• Material:Aluminum
• Color:White
• Applicable Products: UG67

GL02 Outdoor N-head Antenna Lightning Arrester

Customizable

• P/N:R25N70F
• Size:⌀ 25 ×63 mm
• Material:Copper
• Applicable Products:UG67

GW01 Waterproof Enclosure Box

Customizable

• P/N:K56
• Applicable Products:UG56

DIN Rail Kit

Optional

• Applicable Products:UR32L/UR32S/UR32/UR35/EM500 Series

Magnetic Cellular Antenna

Customizable

• Type:Omni
• Frequency Range:700-960 MHz / 1710-2700 MHz
• Gain:2.5 / 3 dBi
• Connector Type:SMA-J
• Height:224 mm
• Color:Black
• Cable Length:2 m
• Applicable Products:UR32/UR32L/UR35/UR41/UR75/UR32S/UG56

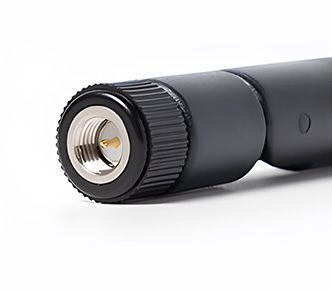

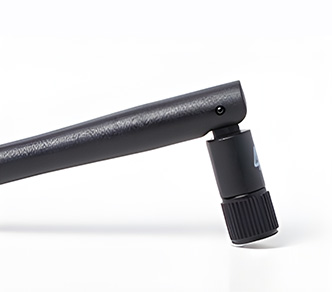

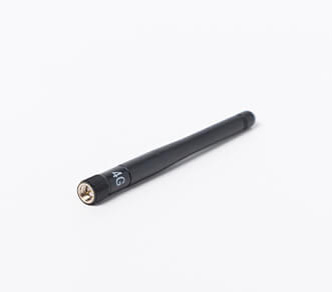

RA02 108mm Stubby Cellular Antenna

Optional

• P/N:S108
• Type: Omni
• Gain:2dBi@791-2700Mhz
• Connector Type:SMA-J
• Height: 108mm
• Color:Black
• Applicable Products:UR41/UC300

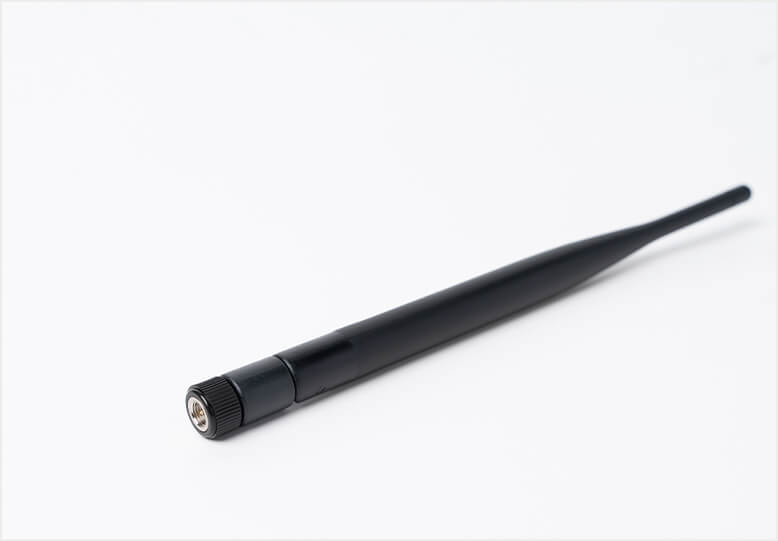

RA02 229mm Stubby Celluar Antenna

Optional

• P/N:S229
• Type: Omni
• Frequency Range:600MHz-6GHz
• Connector Type:SMA-J
• Height: 229mm
• Color:Black
• Applicable Products:UR75/UF31

RA02 All-in-one 5G Antenna

Customizable

• P/N:YB0007BA
• Dimension:φ120*43mm
• Cable Length:0.5m
• Applicable Products:UR75

RA03 GPS Antenna

Optional

• Applicable Products:UF31/UR32/UR35/UR41/UR75

RB01 Wall Mounting Bracket

Customizable

• P/N:SGCC128
• Dimension:128*42.5*1 mm
• Material:Stainless Steel
• Installation:Wall or Pole Mounting
• Applicable Products:UR35/UR75

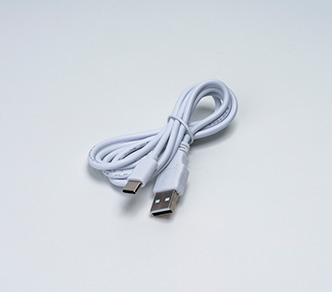

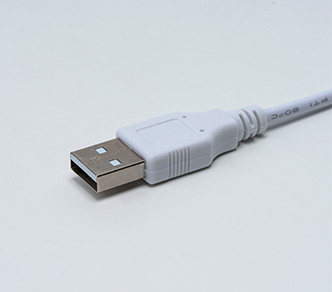

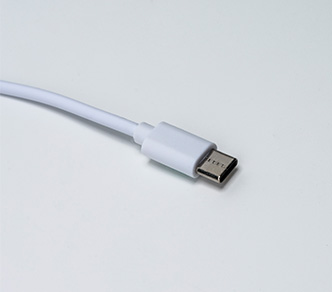

RC01 USB 2.0 Cable (C to A)

Optional

• P/N:CA01
• Connector A:USB Type-A Male
• Connector B:USB Type-C
• Color:White
• Length:1.2m
• Applicable Products:UR41

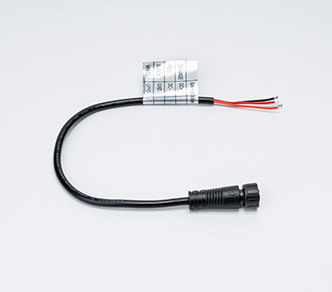

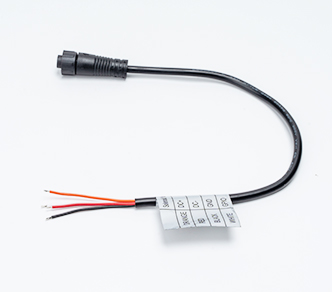

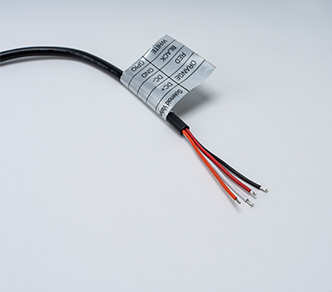

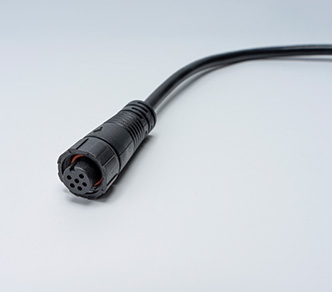

Power Cable (50cm)

Optional

• Length: 50 cm
• Connector Type:M12 A-Coded Male
• Applicable Products:UC511

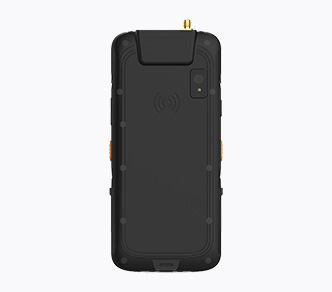

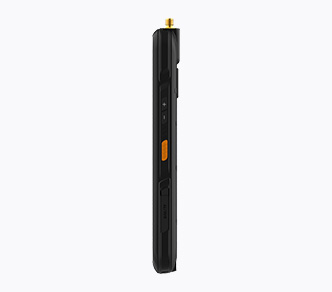

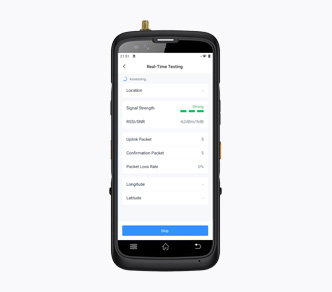

FT101 Milesight Field Tester

Optional

• Display:5.72-inch TP LCD Touch Screen
• Color:Black
• Protection:IP65
• Memory:4GB RAM + 64GB ROM
• Weight:242 g
• Expansion:1 × Micro SD Slot
• Interfaces:1 × USB 3.0 Type-C Port
• Applicable Products:LoraWAN Devices

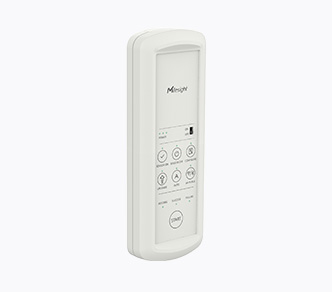

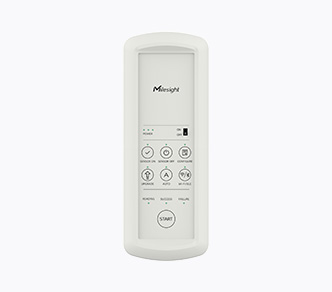

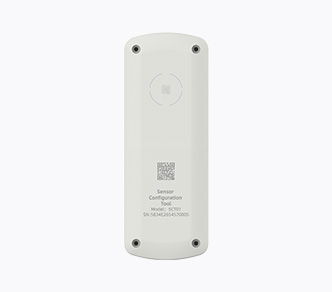

SCT01 Sensor Configuration Tool

Optional

• Dimensions:160 × 60 × 26.5 mm
• Protection:IP30
• Color:White
• Material:Plastic
• Weight:141g
• Applicable Products:LoraWAN Devices

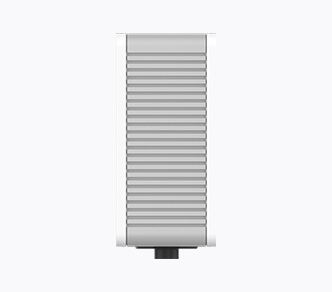

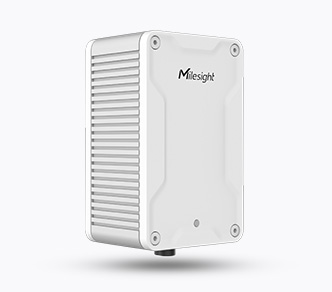

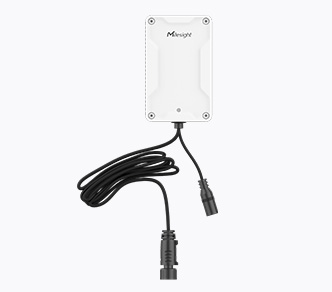

12000mAh IP67 UPS Battery Backup Kit (M12 Version)

Optional

• P/N:M12
• Output Voltage:5V
• Output Current:2A
• Output Port:Type-C
• Applicable Products:UG67

12000mAh IP67 UPS Battery Backup Kit (Type-C Version)

Optional

• P/N:Type-C
• Output Voltage:5V
• Output Current:2A
• Output Port:Type-C
• Applicable Products:UG65/UR41/UR75/UF51/UG56/X1/X5/UF31/UG63

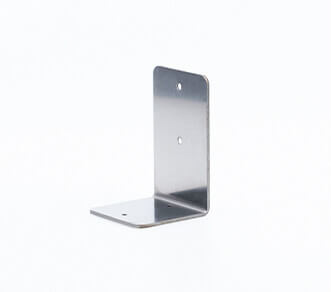

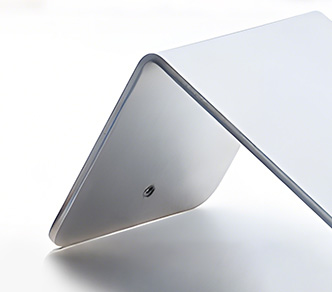

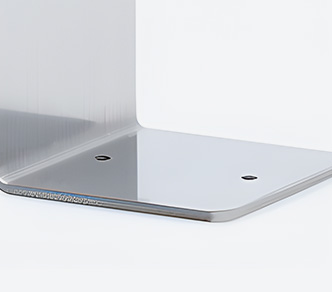

RB02 L-Shape Wall Mounting Bracket

Customizable

• P/N:SUS304-72
• Dimension:72*45*45mm
• Material:Stainless Steel
• Installation:Wall or Pole Mounting
• Applicable Products:UR32L/UR32/UR32S

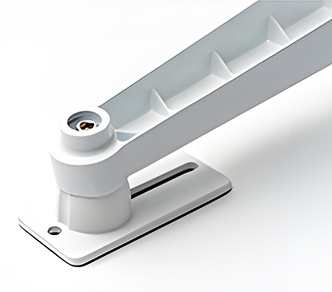

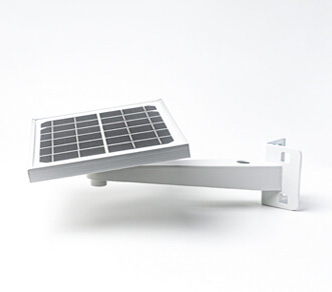

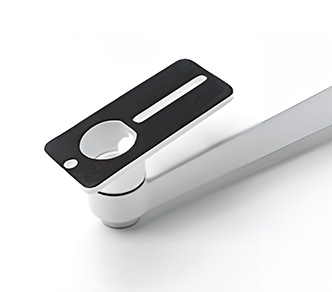

CS0X Solar Panel Kit

Optional

• P/N:K023
• Installation Method:Pole-mount
• Applicable Products:UC501/UC511

CS0X Solar Panel Kit

Optional

• P/N:K024
• Installation Method:Wall-mount
• Applicable Products:UC501/UC511

RM02 4 x 1.5m Cellular Magnetic Mounts (1 to 4 Optional)

Optional

• P/N:M1500
• Length:1.5m
• Interface:SMA-J
• Applicable Products:UR75

RM02 5m Cellular Magnetic Mounts

Customizable

• P/N:M5000
• Length:5m
• Interface:SMA-J
• Applicable Products:UR75

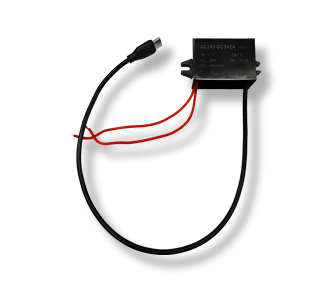

PC2405102 AC/DC-DC 5V2A Power Converter

Optional

• Output Voltage:5V
• Output Current:2A
• Output Port:Type-C
• Applicable Products:UG56

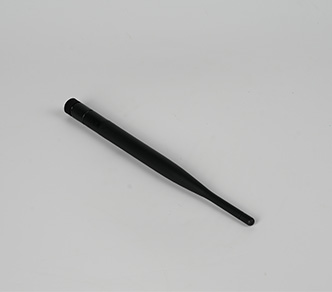

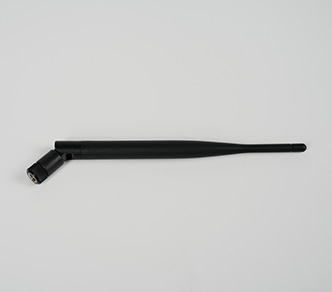

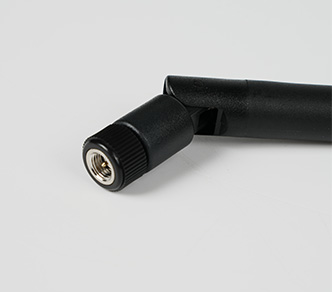

RA02 195mm Stubby Cellular Antenna

Optional

• P/N:S195
• Type:Omni
• Gain:0.46 dBi@791-960MHz 2 69dBi@1710 2.69dBi@1710-2690MHz
• Interface:SMA-J
• Height:195mm
• Color:Black
• Applicable Products:UR32L/UR32/UR35/UR41

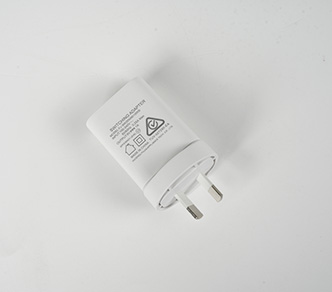

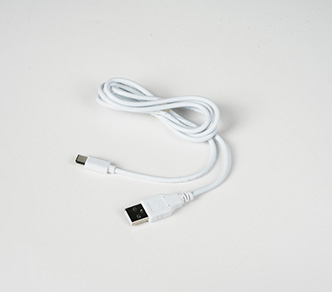

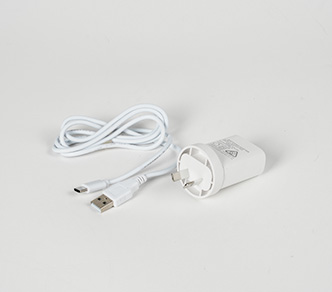

PA31205 AC-DC Power Adapter with USB-A to Type-C Cable (1.2m)

Optional

• Output Voltage:5V
• Output Current:1A
• Output Port:Type-C
• Cable Length:1.2m
• Applicable Products:TS301/TS302

RC02 USB 3.0 Cable (C to C)

Customizable

• P/N:CC01
• Type:USB Type-C to Type-C Cable
• Color:Black
• Length:1 m
• Specification:USB 3.0, 4A
• Applicable Products:UF51/UR75

RC02 USB 3.0 Cable (A to C)

Customizable

• P/N:AC01
• Type:USB Type-A to Type-C Cable
• Specification:USB 3.0, 4A
• Color:Black
• Length:1 m
• Applicable Products:UF51/UR75

Wi-Fi Antenna

Optional

• Gain:2.4 GHz, 3.5dBi; 5 GHz, 6dBi
• Connector Type:SMA Female Jack (internal thread, internal hole)
• Color:Black
• Height:171 mm
• Applicable Products:UR32S/UR35/UR32/UR75

Theft-Deterrent Collar

• Material:Metal
• Applicable Products:WT101/WT102

TRC011 Plastic Protective Anti-vandal Cover for Thermostat Radiator

Customizable

• Size:70.4 × 105.4 × 60.4 mm
• Material:Plastic
• Applicable Porducts:WT102

NS102585-105-11 USB-C Negative Temperature Coefficient Sensor

Optional

• Maximum Temperature Range:105℃
• Resistance (25°C):10kΩ ± 1%
• B-Constant (25/85°C):2585K ± 1%
• Cable Length:1m
• Applicable Products:WT102/CT101/CT103/CT105/CT303/CT305/CT310

Metal Valve Adapter Kits

Optional

• Material:Metal
• Applicable Products:WT101/WT102
• Adapter Valve Types:RA, RAV, RAVL, Giacomini,Herz, Comap, TA, markaryd (Other types of adapters available upon request)
