4K H.265 Pro NVR 5000 Series

16/32 Channels NVR with 4K UHD Performance

20TB Storage · 4K Ultra HD · Dual Stream · HDMI · Fisheye Mode Compatibility · ONVIF

Pro NVR 5000
Pro NVR 5000
Pro NVR 5000
Pro NVR 5000
  • Input

    Network Video Input

    Bandwidth Requirement

    16-CH

    160Mbps (Incoming)

    160Mbps (Outgoing)

    Output

    HDMI Output

    VGA Output

    Dual Stream

    Recording Resolution

    Synchronous Playback

    1-CH, Resolution: 3840x2160/30Hz, 1920x1080/60Hz, 1920x1080/50Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz. (HDMI supports Audio Output)

    1-CH, Resolution: 1920x1080/60Hz, 1920x1080/50Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz.

    Support

    8MP/6MP/5MP/4MP/3MP/1080P/UXGA/720P/D1/VGA/CIF/QCIF

    2*(30fps @8MP), 2*(30fps@6MP), 3*(20fps@5MP), 4*(20fps @4MP), 5*(30fps @3MP), 8*(30fps @1080P), 16*(30fps @720P)

    Format

    Video Compression

    Audio Format

    H.265+/H.265(HEVC)/H.264+/H.264

    G.711/AAC

    Storage

    SATA

    Capacity

    2*SATA HDD (3.5”)

    Up to 10TB capacity for each HDD

    Record

    Synchronous Recording

    Recording Type

    Snapshot

    Playback

    Backup

    16*5MP

    Manual Recording, Timing Recording, Motion Detection Recording, Alarm Recording, Motion Detection or Alarm Recording, Motion Detection and Alarm Recording

    Manual Snapshot

    Video Playback, Image Playback

    Video Backup, Image Backup

    Network

    Network Protocols

    IPv4/IPv6, TCP, UDP, RTP, RTSP, RTCP, HTTP, HTTPS, DNS, DDNS, DHCP, NTP, SNTP, SMTP, SNMP, UPnP, NFS

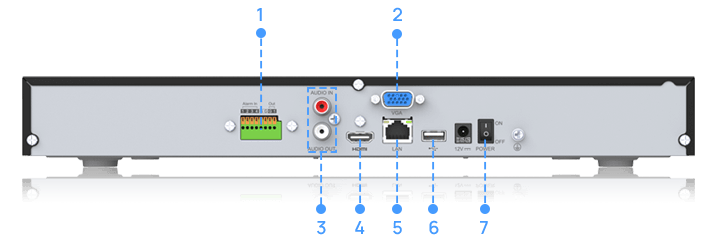

    Interface

    Network Interface

    USB Interface

    Audio Input/Output

    Alarm Input

    Alarm Output

    1*RJ45 100M/1000M

    1*USB 3.0; 2*USB 2.0

    -/1*RCA

    4-CH

    1-CH

    General

    Compatibility

    Power Supply

    Consumption

    Working Conditions

    Dimensions

    Weight

    Warranty

    ONVIF

    DC 12V 3.33A

    ≤10W(Without HDD)

    Temperature: -10℃∼+55℃ Humidity: 10%∼90%

    440mm(W)X251mm(D)X44.4mm(H), Rack Mountable Chassis(1.0U Standard)

    2.6Kg

    3/5 Years

  • Input

    Network Video Input

    Bandwidth Requirement

    32-CH

    256Mbps (Incoming)

    256Mbps (Outgoing)

    Output

    HDMI Output

    VGA Output

    Dual Stream

    Recording Resolution

    Synchronous Playback

    1-CH, Resolution: 3840x2160/60Hz, 3840x2160/30Hz, 1920x1080/60Hz, 1920x1080/50Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz. (HDMI supports Audio Output)

    1-CH, Resolution: 1920x1080/60Hz, 1920x1080/50Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz.

    Support

    12MP/8MP/6MP/5MP/4MP/3MP/1080P/ UXGA/720P/D1/VGA/CIF/QCIF

    4*(30fps @8MP), 5*(30fps@6MP), 6*(20fps@5MP), 8*(20fps @4MP), 10*(30fps @3MP), 16*(30fps @1080P), 32*(30fps @720P)

    Format

    Video Compression

    Audio Format

    H.265+/H.265(HEVC)/H.264+/H.264

    G.711/AAC

    Storage

    SATA

    Capacity

    2*SATA HDD (3.5”)

    Up to 10TB capacity for each HDD

    Record

    Synchronous Recording

    Recording Type

    Snapshot

    Playback

    Backup

    32*5MP

    Manual Recording, Timing Recording, Motion Detection Recording

    Manual Snapshot

    Video Playback, Image Playback

    Video Backup, Image Backup

    Network

    Network Protocols

    IPv4/IPv6, TCP, UDP, RTP, RTSP, RTCP, HTTP, HTTPS, DNS, DDNS, DHCP, NTP, SNTP, SMTP, SNMP, UPnP, NFS

    Interface

    Network Interface

    USB Interface

    Audio Input/Output

    1*RJ45 100M/1000M

    1*USB 3.0; 2*USB 2.0

    1*RCA/1*RCA

    General

    Compatibility

    Power Supply

    Consumption

    Working Conditions

    Dimensions

    Weight

    Warranty

    ONVIF

    DC 12V 3.33A

    ≤15W(Without HDD)

    Temperature: -10℃∼+55℃ Humidity: 10%∼90%

    440mm(W)X251mm(D)X44.4mm(H), Rack Mountable Chassis(1.0U Standard)

    2.6Kg

    3/5 Years

  • * Naming Convention

      U - 4K

      T/H - H.265 Compression
