H.265+ Vandal-proof Mini Bullet Network Camera

Robust Camera with Ultra Wide Angle Lens

2/5MP · 140dB WDR · 0.002Lux Ultra Low-light · IP67 · IK10 · Smart IR II · 30m IR Distance · PoE

PoE H265+ ONVIF G&Q&S&T SD Card Smart IR II Weather-
Proof
Vandal-
Proof
Starlight Super WDR Privacy Mask 3-Axis VCA

Leading-edge H.265+ Compression

H.265+

Video Content Analysis (VCA)

Milesight VCA with 10 detection modes provides advanced, accurate smart video analysis for Milesight network cameras, enabling the comprehensive surveillance function and quicker response to different monitoring scenes.

VCA, IVA, IVS

IP67 & IK10

Supporting IP67-rated weather proofing and IK10-rated vandal proof which are the leading level of the industry, the H.265+ Vandal-proof Mini Bullet Network Camera is well protected against adverse impacts to ensure the performance.

IP67, IK10, Vandal-proof Mini Bullet Camera

0.002Lux Ultra Low-light

The starlight camera is able to deliver high detailed color images even in the low light environments reaching 0.002Lux (Color) or 0Lux (B/W), and near infrared light environments without any supplementary lighting.

Ultra Low-light

140dB Super WDR

Milesight's sensor-based WDR technology allows the camera to record greater scene details with true color reproduction even under the extreme back light and high contrast conditions. The ratio that the brightest light signal values divided by the darkest light signal values is up to 140dB.

Super WDR

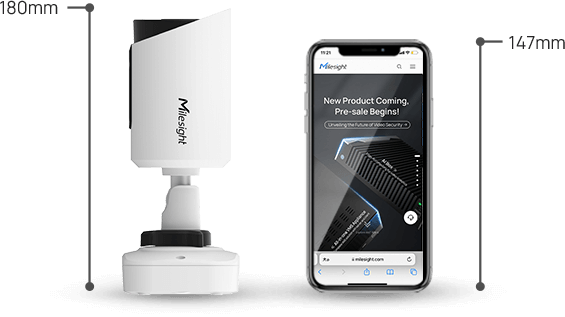

Inimitable Mini Bullet

Sticking to the original design language, the H.265+ Vandal-proof Mini Bullet Network Camera is redesigned while maintain Milesight style. The weight and size are greatly reduced from 765g to 450g and from 76mm x 208mm to 64mm x 160mm respectively, which makes the camera a truly MINI bullet with no compromise on the functionality.

Inimitable Mini Bullet

Revolutionary IR Performance

To maximize the IR performance, the H.265+ Vandal-proof Mini Bullet Network Camera innovated both in the structure and technology. The advanced Smart IR II technology guarantees IR performance with adjustable illumination intensity. The infrared light transmittance is greatly increased with IR anti reflection panel which is well designed for better IR effect.

IR of Vandal-proof Mini Bullet Camera

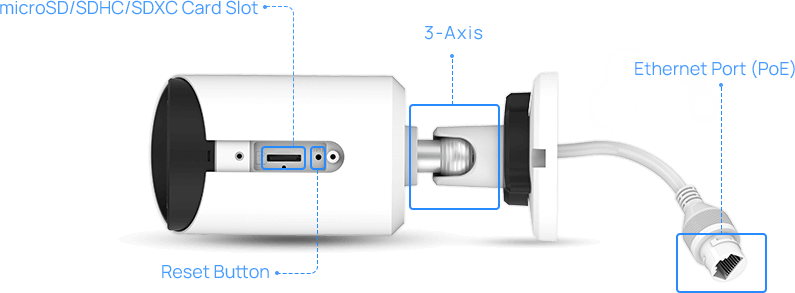

Unique Structure Design

User friendly design of SD card slot and reset button offers maximum enjoyment of usability and extensibility. At the rear, it is a 3-axis adjustable bracket, which perfectly meets tidy and flexible installation needs.

Vandal-proof Mini Bullet Camera

Integrated Junction Box (Optional)

The well-designed Integrated Junction Box ensures efficient and simple installation. It enlarges the space to make cable connection neat and as easy as a piece of cake. With the help of the rubber plugs and rubber ring which guarantee IP67-rated weather-proof capability, the Integrated Junction Box is able to offer stable operation in any tough conditions.

Vandal-proof Mini Bullet Camrea Junction box

SIP/VoIP Support

Milesight H.265+ Vandal-proof Mini Bullet Network Camera features industry leading SIP/VoIP function and video streaming for mobile phones and video phones.

Vandal-proof Mini Bullet Camera, SIP, VoIP
  • MS-C2964-PB
  • MS-C5364-PB
Camera Name 2MP H.265 Vandal-proof Mini Bullet Network Camera
Image Sensor 1/2.8" Progressive Scan CMOS
Min. Illumination Color: 0.002Lux @F1.2, Color: 0.005Lux @F1.6/F2.0, B/W: 0Lux with IR on
WDR 140dB Super WDR
Lens 2.8mm/4mm/6mm@F1.6; 2.8mm@F2.0
Field of View H111°/D128°/V61°(2.8mm@F1.6), H123°/D142°/V68°(2.8mm@F2.0), H91°/D106°/V50°(4mm), H55°/D63°/V32°(6mm)
Shutter Time 1/100000s∼1s
Day/Night Mode Day/Night/Auto/Customize/Schedule
IR Distance Up to 30m
S/N >55dB
Video Max. Image Resolution 1920x1080
Frame Rate 30fps@(1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream 30fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180)
Tertiary Stream 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180)
Video Compression H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate 16Kbps∼16Mbps (CBR/VBR adjustable)
Privacy Masking Up to 8 areas
ROI Up to 8 areas
Image Settings Saturation/Brightness/Contrast/Sharpness
Web Access Support IE/Firefox/Chrome/Safari Browser
Interface Ethernet 1*RJ45 10M/100M Ethernet Port
Network Network Storage NAS(Support NFS, SMB/CIFS), ANR
Network Protocols IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
System Storage Support microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced Function BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP Support Yes, Voice&Video-over-IP
Event Trigger Motion Detection, Network Disconnection, etc.
Event Action FTP Upload, SMTP Upload, SD Card Record, SIP Phone, HTTP Notification, etc.
Video Analysis Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Human Detection, People Counting, Object Left, Object Removed
System Compatibility ONVIF Profile G & Q & S & T, API
General Working Temperature -40℃∼60℃
Working Humidity 0∼90%(Non-condensing)
Power Supply PoE(802.3af)
Power Consumption 3W MAX, 5W MAX (With IR on)
Weather Proof Up to IP67-rated for weather-resistant performance
Housing Vandal-proof IK10-rated metal housing
Dimensions 97mmX74mmX180mm(Junction Box Version) / Φ64mmX160mm(Cable Out Version)
Weight 610g(Junction Box Version) / 450g(Cable Out Version)
Warranty 3/5 Years
Camera Name 5MP H.265 Vandal-proof Mini Bullet Network Camera
Image Sensor 1/2.8" Progressive Scan CMOS
Min. Illumination Color: 0.005Lux @F1.2, Color: 0.008Lux @F1.6/F2.0, B/W: 0Lux with IR on
WDR 120dB Super WDR
Lens 2.8mm/4mm/6mm@F1.6; 2.8mm@F2.0
Field of View H105°/D131°/V78°(2.8mm@F1.6), H113°/D144°/V84°(2.8mm@F2.0), H86°/D108°/V63°(4mm), H52°/D63°/V40°(6mm)
Shutter Time 1/100000s∼1s
Day/Night Mode Day/Night/Auto/Customize/Schedule
IR Distance Up to 30m
S/N >55dB
Video Max. Image Resolution 2592x1944
Frame Rate 20fps@(2592x1944), 30fps@(2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream 30fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180)
Tertiary Stream 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180)
Video Compression H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate 16Kbps∼16Mbps (CBR/VBR adjustable)
Privacy Masking Up to 8 areas
ROI Up to 8 areas
Image Settings Saturation/Brightness/Contrast/Sharpness
Web Access Support IE/Firefox/Chrome/Safari Browser
Interface Ethernet 1*RJ45 10M/100M Ethernet Port
Network Network Storage NAS(Support NFS, SMB/CIFS), ANR
Network Protocols IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
System Storage Support microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced Function BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP Support Yes, Voice&Video-over-IP
Event Trigger Motion Detection, Network Disconnection, etc.
Event Action FTP Upload, SMTP Upload, SD Card Record, SIP Phone, HTTP Notification, etc.
Video Analysis Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Human Detection, People Counting, Object Left, Object Removed
System Compatibility ONVIF Profile G & Q & S & T, API
General Working Temperature -40℃∼60℃
Working Humidity 0∼90%(Non-condensing)
Power Supply PoE(802.3af)
Power Consumption 3.5W MAX, 5.5W MAX (With IR on)
Weather Proof Up to IP67-rated for weather-resistant performance
Housing Vandal-proof IK10-rated metal housing
Dimensions 97mmX74mmX180mm(Junction Box Version) / Φ64mmX160mm(Cable Out Version)
Weight 610g(Junction Box Version) / 450g(Cable Out Version)
Warranty 3/5 Years
  • * Naming Convention
  • P - PoE Supported
  • B - H.265 Compression
