NDAA AI Vandal-proof Mini Bullet Network Camera

Smart &Robust Camera

2/5/8MP · AI · 120dB Super WDR · 0.002Lux Ultra Low-light · IP67 · IK10 · 30m IR Distance · 60fps · PoE

NDAA AI 4K PoE H265+ ONVIF G&Q&S&T SD Card Weather-
Proof
Vandal-
Proof
Starlight Super WDR Privacy Mask 3-Axis
  • slide1
  • slide2
  • slide3

NDAA Compliant

This model is compliant with the NDAA (National Defense Authorization Act). It does not use or deploy critical components including SoCs produced by NDAA banned component vendors, which is recommended for enterprises and critical applications where compliance is essential.

NDAA

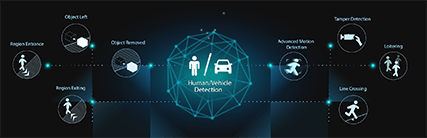

AI Video Analytics

Milesight AI Camera Series can intelligently filter objects to focus on human and vehicle detection in multiple events such as Region Entrance, Region Exiting, Loitering, Advanced Motion Detection, etc.

AI VCA

Leading-edge H.265+ Compression

H.265+

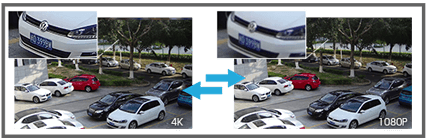

4K Video Viewing Experience

Milesight NDAA AI Vandal-proof Mini Bullet Network Camera delivers up to 4K resolution (3840*2160, effectively four times that of Full HD), providing users with ultra-high-definition video viewing experience.

4K security camera, 4K NDAA ip camera, 4K NDAA cctv camera

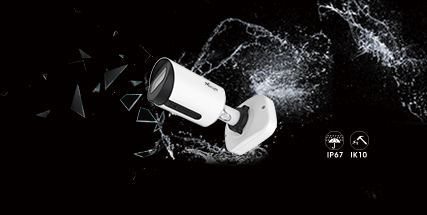

IP67 & IK10

Supporting IP67-rated weather proofing and IK10-rated vandal proof which are the leading level of the industry, the NDAA AI Vandal-proof Mini Bullet Network Camera is well protected against adverse impacts to ensure the performance.

IP67, IK10, NDAA AI Vandal-proof Mini Bullet Camera

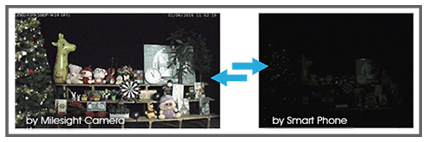

0.002Lux Ultra Low-light

The starlight camera is able to deliver high detailed color images even in the low light environments reaching 0.002Lux (Color) or 0Lux (B/W), and near infrared light environments without any supplementary lighting.

Ultra Low-light

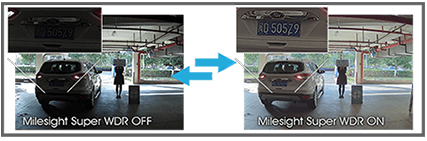

120dB Super WDR

Milesight's sensor-based WDR technology allows the camera to record greater scene details with true color reproduction even under the extreme back light and high contrast conditions. The ratio that the brightest light signal values divided by the darkest light signal values is up to 120dB.

Super WDR

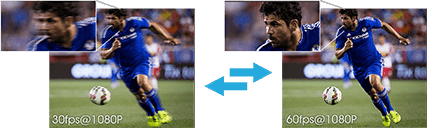

60fps High Frame Rate

Milesight NDAA AI Network Camera offers high frame rate including 2MP@60fps, 5MP@30fps and 4K@30fps, which enables the camera to easily catch images with no latency despite the high-speed movement.

High Frame Rate

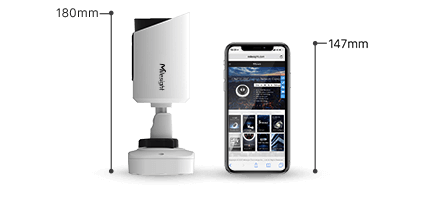

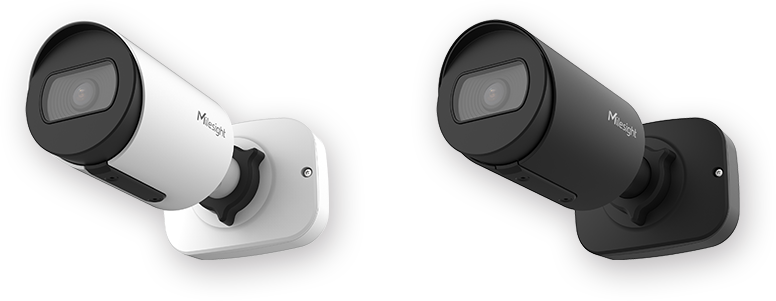

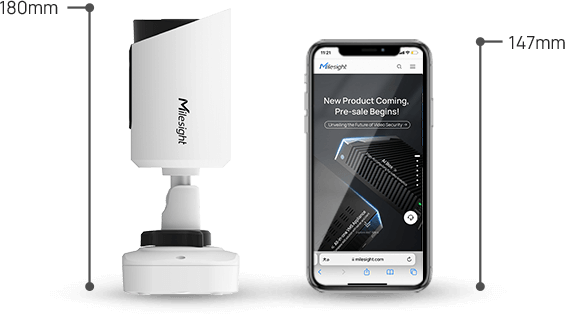

Inimitable Mini Bullet

Sticking to the original design language, the NDAA AI Vandal-proof Mini Bullet Network Camera is redesigned while maintain Milesight style. The weight and size are greatly reduced from 765g to 450g and from 76mm x 208mm to 64mm x 160mm respectively, which makes the camera a truly MINI bullet with no compromise on the functionality.

NDAA AI Vandal-proof Mini Bullet Camera

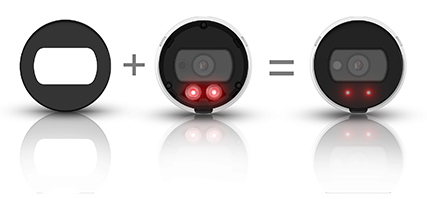

Revolutionary IR Performance

To maximize the IR performance, the NDAA AI Vandal-proof Mini Bullet Network Camera innovated both in the structure and technology. The advanced Smart IR II technology guarantees IR performance with adjustable illumination intensity. The infrared light transmittance is greatly increased with IR anti reflection panel which is well designed for better IR effect.

IR of NDAA AI Vandal-proof Mini Bullet Camera

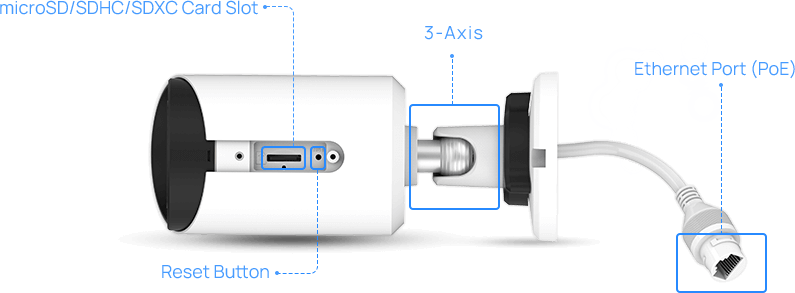

Unique Structure Design

User friendly design of SD card slot and reset button offers maximum enjoyment of usability and extensibility. At the rear, it is a 3-axis adjustable bracket, which perfectly meets tidy and flexible installation needs.

Unique Structure Design

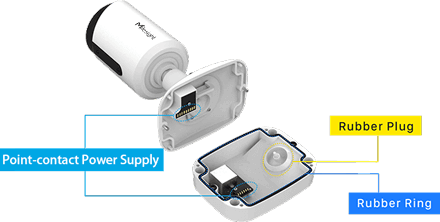

Integrated Junction Box (Optional)

The well-designed Integrated Junction Box ensures efficient and simple installation. It enlarges the space to make cable connection neat and as easy as a piece of cake. With the help of the rubber plugs and rubber ring which guarantee IP67-rated weather-proof capability, the Integrated Junction Box is able to offer stable operation in any tough conditions.

NDAA AI Vandal-proof Mini Bullet Camrea Junction box

SIP/VoIP Support

Milesight NDAA AI Vandal-proof Mini Dome Network Camera features industry leading SIP/VoIP function and video streaming for mobile phones and video phones.

NDAA AI Vandal-proof Mini Bullet Camera, SIP, VoIP
  • MS-C2964-(R)PD
  • MS-C5364-PD
  • MS-C8164-(S)PD
CameraName2MP NDAA AI Vandal-proof Mini Bullet Network Camera
Image Sensor1/2.8" Progressive Scan CMOS
Min. IlluminationColor: 0.002Lux @F1.2, Color: 0.005Lux @F1.6, B/W: 0Lux with IR on
WDR120dB Super WDR
Lens2.8mm/ 4mm/ 6mm @F1.6
Field of ViewH111°/D128°/V61°(2.8mm), H91°/D106°/V50°(4mm), H55°/D63°/V32°(6mm)
Shutter Time1/100000s∼1s
Day/Night ModeDay/Night/Auto/Customize/Schedule
IR DistanceUp to 30m
S/N>55dB
VideoMax. Image Resolution1920x1080
Frame Rate60Hz: 60fps@(1920x1080)(Optional for R Series), 30fps@(1920x1080, 1280x960, 1280x720, 704x576)
50Hz: 50fps@(1920x1080)(Optional for R Series), 25fps@(1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream60Hz: 30fps@(704x576, 640x480, 640x360, 352x288)
50Hz: 25fps@(704x576, 640x480, 640x360, 352x288)
Tertiary Stream60Hz: 30fps@(1280x720, 704x576, 640x480, 640x360, 352x288)
50Hz: 25fps@(1280x720, 704x576, 640x480, 640x360, 352x288)
Video CompressionH.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate16Kbps∼16Mbps (CBR/VBR adjustable)
Privacy MaskingUp to 4 areas
ROIUp to 8 areas
Image SettingsSaturation/Brightness/Contrast/Sharpness
InterfaceEthernet1*RJ45 10M/100M Ethernet Port
NetworkNetwork StorageNAS(Support NFS, SMB/CIFS), ANR
Network ProtocolsIPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
Intelligent AnalyticsVideo AnalysisRegion Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
SystemStorageSupport microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced FunctionBLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur
SIP/VoIP SupportYes, Voice&Video-over-IP
Event TriggerMotion Detection, Network Disconnection, etc.
Event ActionFTP Upload, SMTP Upload, SD Card Record, SIP Phone, HTTP Notification, etc.
System CompatibilityONVIF Profile G & Q & S & T, API
GeneralWorking Temperature-40℃∼60℃
Working Humidity0∼90%(Non-condensing)
Power SupplyPoE(802.3af)
Power Consumption3.1W MAX, 5.1W MAX (With IR on)
Weather ProofUp to IP67-rated for weather-resistant performance
HousingVandal-proof IK10-rated metal housing
Weight610g(Junction Box Version) / 450g(Cable Out Version)
Dimensions97mmX74mmX180mm(Junction Box Version) / 64mmX64mmX160mm(Cable Out Version)
Warranty3/5 Years
CameraName5MP NDAA AI Vandal-proof Mini Bullet Network Camera
Image Sensor1/2.8" Progressive Scan CMOS
Min. IlluminationColor: 0.005Lux @F1.2, Color: 0.008Lux @F1.6, B/W: 0Lux with IR on
WDR120dB Super WDR
Lens2.8mm/ 4mm/ 6mm @F1.6
Field of ViewH105°/D131°/V78°(2.8mm), H86°/D108°/V63°(4mm), H52°/D63°/V40°(6mm)
Shutter Time1/100000s∼1s
Day/Night ModeDay/Night/Auto/Customize/Schedule
IR DistanceUp to 30m
S/N>55dB
VideoMax. Image Resolution2592x1944
Frame Rate60Hz: 30fps@(2592x1944, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)
50Hz: 25fps@(2592x1944, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream60Hz: 30fps@(704x576, 640x480, 640x360, 352x288)
50Hz: 25fps@(704x576, 640x480, 640x360, 352x288)
Tertiary Stream60Hz: 30fps@(1280x720, 704x576, 640x480, 640x360, 352x288)
50Hz: 25fps@(1280x720, 704x576, 640x480, 640x360, 352x288)
Video CompressionH.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate16Kbps∼16Mbps (CBR/VBR adjustable)
Privacy MaskingUp to 24 areas
ROIUp to 8 areas
Image SettingsSaturation/Brightness/Contrast/Sharpness
InterfaceEthernet1*RJ45 10M/100M Ethernet Port
NetworkNetwork StorageNAS(Support NFS, SMB/CIFS), ANR
Network ProtocolsIPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
Intelligent AnalyticsVideo AnalysisRegion Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
SystemStorageSupport microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced FunctionBLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur
SIP/VoIP SupportYes, Voice&Video-over-IP
Event TriggerMotion Detection, Network Disconnection, etc.
Event ActionFTP Upload, SMTP Upload, SD Card Record, SIP Phone, HTTP Notification, etc.
System CompatibilityONVIF Profile G & Q & S & T, API
GeneralWorking Temperature-40℃∼60℃
Working Humidity0∼90%(Non-condensing)
Power SupplyPoE(802.3af)
Power Consumption3.5W MAX, 5.4W MAX (With IR on)
Weather ProofUp to IP67-rated for weather-resistant performance
HousingVandal-proof IK10-rated metal housing
Weight610g(Junction Box Version) / 450g(Cable Out Version)
Dimensions97mmX74mmX180mm(Junction Box Version) / 64mmX64mmX160mm(Cable Out Version)
Warranty3/5 Years
CameraName4K NDAA AI Vandal-proof Mini Bullet Network Camera
Image Sensor1/2.8" Progressive Scan CMOS
Min. IlluminationColor: 0.01Lux @F1.2, Color: 0.012Lux @F1.6, B/W: 0Lux with IR on
WDR120dB Super WDR
Lens2.8mm/ 4mm/ 6mm @F1.6
Field of ViewH110°/D126°/V60°(2.8mm), H91°/D106°/V50°(4mm), H55°/D63°/V32°(6mm)
Shutter Time1/100000s∼1s
Day/Night ModeDay/Night/Auto/Customize/Schedule
IR DistanceUp to 30m
S/N>55dB
VideoMax. Image Resolution3840x2160
Frame Rate60Hz/50Hz: 30fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576), 20fps@(3840x2160)(Optional for S Series)
Secondary Stream60Hz: 30fps@(704x576, 640x480, 640x360, 352x288)
50Hz: 25fps@(704x576, 640x480, 640x360, 352x288)
Tertiary Stream60Hz: 30fps@(1280x720, 704x576, 640x480, 640x360, 352x288)
50Hz: 25fps@(1280x720, 704x576, 640x480, 640x360, 352x288)
Video CompressionH.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate16Kbps∼16Mbps (CBR/VBR adjustable)
Privacy MaskingUp to 4 areas
ROIUp to 8 areas
Image SettingsSaturation/Brightness/Contrast/Sharpness
InterfaceEthernet1*RJ45 10M/100M Ethernet Port
NetworkNetwork StorageNAS(Support NFS, SMB/CIFS), ANR
Network ProtocolsIPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
Intelligent AnalyticsVideo AnalysisRegion Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
SystemStorageSupport microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced FunctionBLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur
SIP/VoIP SupportYes, Voice&Video-over-IP
Event TriggerMotion Detection, Network Disconnection, etc.
Event ActionFTP Upload, SMTP Upload, SD Card Record, SIP Phone, HTTP Notification, etc.
Video AnalysisRegion Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Human Detection, People Counting, Object Left, Object Removed
System CompatibilityONVIF Profile G & Q & S & T, API
GeneralWorking Temperature-40℃∼60℃
Working Humidity0∼90%(Non-condensing)
Power SupplyPoE(802.3af)
Power Consumption4.2W MAX, 5.8W MAX (With IR on)
Weather ProofUp to IP67-rated for weather-resistant performance
HousingVandal-proof IK10-rated metal housing
Weight610g(Junction Box Version) / 450g(Cable Out Version)
Dimensions97mmX74mmX180mm(Junction Box Version) / 64mmX64mmX160mm(Cable Out Version)
Warranty3/5 Years
  • * Naming Convention
  • R - High Frame Rate (60fps)
  • S - 20fps@4K Series
  • P - PoE Supported
  • D - AI Series
