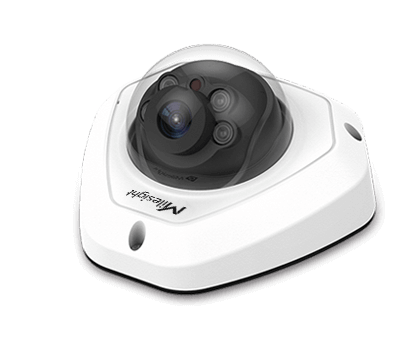

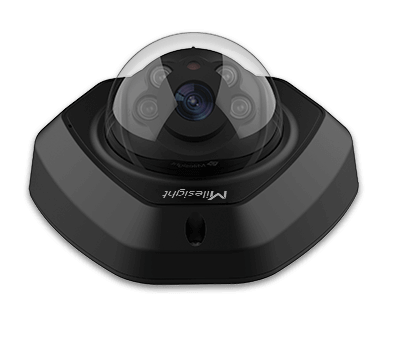

NDAA AI Vandal-proof Mini Dome Network Camera

Smart & Robust Camera for Severe Conditions

2/5/8MP · AI · 120dB Super WDR · 0.002Lux Ultra Low-light · IP67 · IK10 · 30m IR Distance · 60fps · Versatile Interfaces

NDAA AI 4K PoE H265+ ONVIF G&Q&S&T SD Card Weather-
Proof
Vandal-
Proof
Built-in Microphone Starlight Super WDR Privacy Mask 3-Axis

NDAA Compliant

This model is compliant with the NDAA (National Defense Authorization Act). It does not use or deploy critical components including SoCs produced by NDAA banned component vendors, which is recommended for enterprises and critical applications where compliance is essential.

NDAA

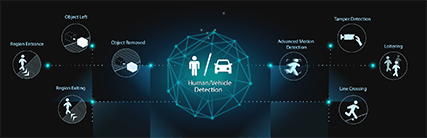

AI Video Analytics

Milesight AI Camera Series can intelligently filter objects to focus on human and vehicle detection in multiple events such as Region Entrance, Region Exiting, Loitering, Advanced Motion Detection, etc.

AI VCA

Leading-edge H.265+ Compression

H.265+

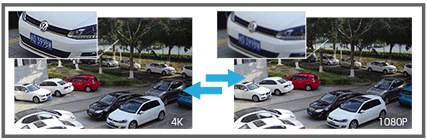

4K Video Viewing Experience

Milesight NDAA AI Vandal-proof Mini Dome Network Camera delivers up to 4K resolution (3840*2160, effectively four times that of Full HD), providing users with ultra-high-definition video viewing experience.

4K security camera, 4K ndaa ip camera, 4K ndaa cctv camera

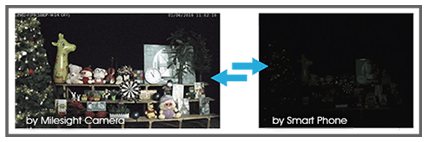

0.002Lux Ultra Low-light

The starlight camera is able to deliver high detailed color images even in the low light environments reaching 0.002Lux (Color) or 0Lux (B/W), and near infrared light environments without any supplementary lighting.

Ultra Low-light

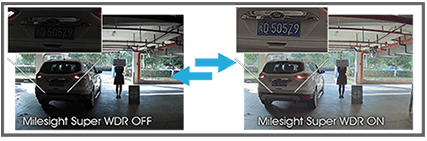

120dB Super WDR

Milesight's sensor-based WDR technology allows the camera to record greater scene details with true color reproduction even under the extreme back light and high contrast conditions. The ratio that the brightest light signal values divided by the darkest light signal values is up to 120dB.

Super WDR

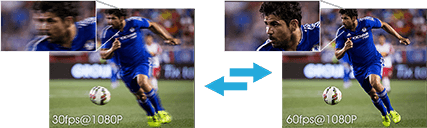

60fps

Milesight NDAA AI Network Camera offers high frame rate including 2MP@60fps, 5MP@30fps and 4K@30fps, which enables the camera to easily catch images with no latency despite the high-speed movement.

High Frame Rate

Reliable Anti-vibration Performance

Complying with the transportation-industry regulations of EN50155 standard, NDAA AI Vandal-proof Mini Dome Network Camera is able to offer train specific rugged features to protect the system against environmental factors such as high/low temperature, shock, vibration and power surge.

ndaa ai Vandal-proof Mini Dome Camera

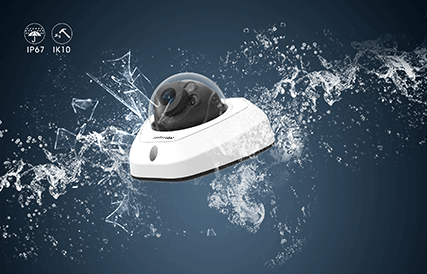

IP67 & IK10

Sharply contrasting to the mini size, the NDAA AI Vandal-proof Mini Dome Network Camera features the industry leading IP67-rated weather proofing and IK10-rated vandal proofing, which allow to protect the camera against adverse impacts to ensure the robust performance.

ndaa ai Vandal-proof Mini Dome Camera

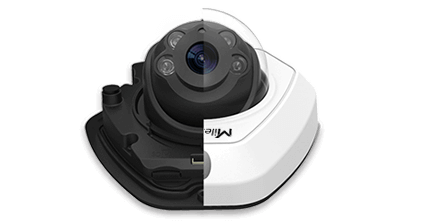

Latest IR LED Technology

Equipped with LEDs of the latest generation, the NDAA AI Vandal-proof Mini Dome Network Camera provides superior night-time images and delivers absolute performance in night vision surveillance.

ndaa ai Vandal-proof Mini Dome Camera

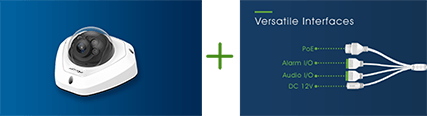

Versatile Interfaces

Several interfaces such as PoE, DC, Audio I/O and Alarm I/O are available in the Multi-interface Version, offering more choices for easy management and various needs.

interfaces of ndaa ai Vandal-proof Mini Dome Camera

Unique Design for Easy Installation

The new model is designed for easy and quick installation. The 3-axis mechanical design, built-in microSD/SDHC/SDXC card slot and PoE module make it truly installer-friendly.

installation of ndaa ai Vandal-proof Mini Dome Camera

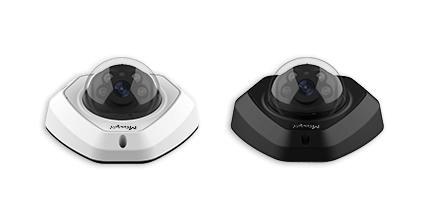

Two Colors Available

Available in White and Black, the NDAA AI Vandal-proof Mini Dome Network Camera provides more choices for your preference.

ndaa ai Vandal-proof Mini Dome Camera

SIP/VoIP Support

Milesight NDAA AI Vandal-proof Mini Dome Network Camera features industry leading SIP/VoIP function and video streaming for mobile phones and video phones.

ndaa Vandal-proof Mini Dome Camera, SIP, VoIP
  • MS-C2973-(R)PD
  • MS-C5373-PD
  • MS-C8173-(S)PD
Camera Name 2MP NDAA AI Vandal-proof Mini Dome Network Camera
Image Sensor 1/2.8" Progressive Scan CMOS
Min. Illumination Color: 0.002Lux @F1.2, Color: 0.005Lux @F1.6, B/W: 0Lux with IR on
WDR 120dB Super WDR
Lens 2.8mm/ 4mm/ 6mm @F1.6
Mount M12
Field of View H111°/D128°/V61°(2.8mm), H91°/D106°/V50°(4mm), H55°/D63°/32°(6mm)
Shutter Time 1/100000s∼1s
Day/Night Mode Day/Night/Auto/Customize/Schedule
IR Distance Up to 30m
S/N >55dB
Video Max. Image Resolution 1920x1080
Frame Rate 60Hz: 60fps@(1920x1080)(Optional for R Series), 30fps@(1920x1080, 1280x960, 1280x720, 704x576)
50Hz: 50fps@(1920x1080)(Optional for R Series), 25fps@(1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream 60Hz: 30fps@(704x576, 640x480, 640x360, 352x288)
50Hz: 25fps@(704x576, 640x480, 640x360, 352x288)
Tertiary Stream 60Hz: 30fps@(1280x720, 704x576, 640x480, 640x360, 352x288)
50Hz: 25fps@(1280x720, 704x576, 640x480, 640x360, 352x288)
Video Compression H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate 16Kbps∼16Mbps (CBR/VBR adjustable)
Privacy Masking Up to 4 areas
ROI Up to 8 areas
Image Settings Saturation/Brightness/Contrast/Sharpness
Interface Ethernet 1*RJ45 10M/100M Ethernet Port
Audio I/O Built-in Microphone; 1/1(Multi-interface Version)
Alarm I/O 1/1(Multi-interface Version)
Network Network Storage NAS(Support NFS, SMB/CIFS), ANR
Network Protocols IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
Audio Audio Compression G.711/AAC/G.722/G.726
Audio Sampling Rate 8/16/32/48KHz
Audio Bit Rate 16~256kbps
Two-way Audio Support
Intelligent Analytics Video Analysis Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
System Storage Support microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced Function BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur
SIP/VoIP Support Yes, Voice&Video-over-IP
Event Trigger Motion Detection, Network Disconnection, Audio Alarm, etc.; Motion Detection, Network Disconnection, External Input, Audio Alarm, etc.(Multi-interface Version)
Event Action FTP Upload, SMTP Upload, SD Card Record, SIP Phone, HTTP Notification, etc.; FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc.(Multi-interface Version)
System Compatibility ONVIF Profile G & Q & S & T, API
General Working Temperature -40℃∼60℃
Working Humidity 0∼90%(Non-condensing)
Power Supply PoE(802.3af); PoE(802.3af)/DC 12V±10%(Multi-interface Version)
Power Consumption 3W MAX, 4.7W MAX(With IR on)
Housing Up to IP67-rated for weather-resistant performance/ Vandal-proof IK10-rated metal housing
EN50155 Support
Weight 500g
Dimensions 118.5mmX110.8mmX65mm
Warranty 3/5 Years
Camera Name 5MP NDAA AI Vandal-proof Mini Dome Network Camera
Image Sensor 1/2.8" Progressive Scan CMOS
Min. Illumination Color: 0.005Lux @F1.2, Color: 0.008Lux @F1.6, B/W: 0Lux with IR on
WDR 120dB Super WDR
Lens 2.8mm/ 4mm/ 6mm @F1.6
Mount M12
Field of View H105°/D131°/V78°(2.8mm), H86°/D108°/V63°(4mm), H52°/D63°/V40°(6mm)
Shutter Time 1/100000s∼1s
Day/Night Mode Day/Night/Auto/Customize/Schedule
IR Distance Up to 30m
S/N >55dB
Video Max. Image Resolution 2592x1944
Frame Rate 60Hz: 30fps@(2592x1944, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)
50Hz: 25fps@(2592x1944, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream 60Hz: 30fps@(704x576, 640x480, 640x360, 352x288)
50Hz: 25fps@(704x576, 640x480, 640x360, 352x288)
Tertiary Stream 60Hz: 30fps@(1280x720, 704x576, 640x480, 640x360, 352x288)
50Hz: 25fps@(1280x720, 704x576, 640x480, 640x360, 352x288)
Video Compression H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate 16Kbps∼16Mbps (CBR/VBR adjustable)
Privacy Masking Up to 4 areas
ROI Up to 8 areas
Image Settings Saturation/Brightness/Contrast/Sharpness
Interface Ethernet 1*RJ45 10M/100M Ethernet Port
Audio I/O Built-in Microphone; 1/1(Multi-interface Version)
Alarm I/O 1/1(Multi-interface Version)
Network Network Storage NAS(Support NFS, SMB/CIFS), ANR
Network Protocols IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
Audio Audio Compression G.711/AAC/G.722/G.726
Audio Sampling Rate 8/16/32/48KHz
Audio Bit Rate 16~256kbps
Two-way Audio Support
Intelligent Analytics Video Analysis Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
System Storage Support microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced Function BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur
SIP/VoIP Support Yes, Voice&Video-over-IP
Event Trigger Motion Detection, Network Disconnection, Audio Alarm, etc.; Motion Detection, Network Disconnection, External Input, Audio Alarm, etc.(Multi-interface Version)
Event Action FTP Upload, SMTP Upload, SD Card Record, SIP Phone, HTTP Notification, etc.; FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc.(Multi-interface Version)
System Compatibility ONVIF Profile G & Q & S & T, API
General Working Temperature -40℃∼60℃
Working Humidity 0∼90%(Non-condensing)
Power Supply PoE(802.3af); PoE(802.3af)/DC 12V±10%(Multi-interface Version)
Power Consumption 4W MAX, 6W MAX(With IR on)
Housing Up to IP67-rated for weather-resistant performance/ Vandal-proof IK10-rated metal housing
EN50155 Support
Weight 500g
Dimensions 118.5mmX110.8mmX65mm
Warranty 3/5 Years
Camera Name 4K NDAA AI Vandal-proof Mini Dome Network Camera
Image Sensor 1/2.8" Progressive Scan CMOS
Min. Illumination Color: 0.01Lux @F1.2, Color: 0.012Lux @F1.6, B/W: 0Lux with IR on
WDR 120dB Super WDR
Lens 2.8mm/ 4mm/ 6mm @F1.6
Mount M12
Field of View H110°/D126°/V60°(2.8mm), H91°/D106°/V50°(4mm), H55°/D63°/V32°(6mm)
Shutter Time 1/100000s∼1s
Day/Night Mode Day/Night/Auto/Customize/Schedule
IR Distance Up to 30m
S/N >55dB
Video Max. Image Resolution 3840x2160
Frame Rate 60Hz/50Hz: 30fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576), 20fps@(3840x2160)(Optional for S Series)
Secondary Stream 60Hz: 30fps@(704x576, 640x480, 640x360, 352x288)
50Hz: 25fps@(704x576, 640x480, 640x360, 352x288)
Tertiary Stream 60Hz: 30fps@(1280x720, 704x576, 640x480, 640x360, 352x288)
50Hz: 25fps@(1280x720, 704x576, 640x480, 640x360, 352x288)
Video Compression H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate 16Kbps∼16Mbps (CBR/VBR adjustable)
Privacy Masking Up to 4 areas
ROI Up to 8 areas
Image Settings Saturation/Brightness/Contrast/Sharpness
Interface Ethernet 1*RJ45 10M/100M Ethernet Port
Audio I/O Built-in Microphone; 1/1(Multi-interface Version)
Alarm I/O 1/1(Multi-interface Version)
Network Network Storage NAS(Support NFS, SMB/CIFS), ANR
Network Protocols IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
Audio Audio Compression G.711/AAC/G.722/G.726
Audio Sampling Rate 8/16/32/48KHz
Audio Bit Rate 16~256kbps
Two-way Audio Support
Intelligent Analytics Video Analysis Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
System Storage Support microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced Function BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur
SIP/VoIP Support Yes, Voice&Video-over-IP
Event Trigger Motion Detection, Network Disconnection, Audio Alarm, etc.; Motion Detection, Network Disconnection, External Input, Audio Alarm, etc.(Multi-interface Version)
Event Action FTP Upload, SMTP Upload, SD Card Record, SIP Phone, HTTP Notification, etc.; FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc.(Multi-interface Version)
System Compatibility ONVIF Profile G & Q & S & T, API
General Working Temperature -40℃∼60℃
Working Humidity 0∼90%(Non-condensing)
Power Supply PoE(802.3af); PoE(802.3af)/DC 12V±10%(Multi-interface Version)
Power Consumption 4.4W MAX, 6.1W MAX(With IR on)
Housing Up to IP67-rated for weather-resistant performance/ Vandal-proof IK10-rated metal housing
EN50155 Support
Weight 500g
Dimensions 118.5mmX110.8mmX65mm
Warranty 3/5 Years
  • * Naming Convention
  • R - High Frame Rate (60fps)
  • S - 20fps@4K Series
  • P - PoE Supported
  • D - AI Series
