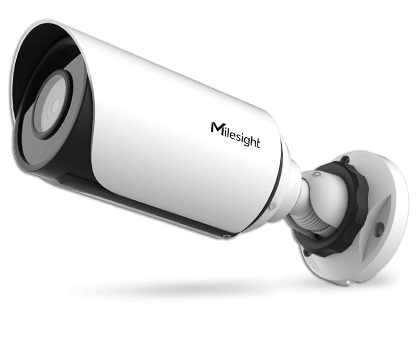

NDAA AI Weather-proof Mini Bullet Network Camera

Tiny yet Powerful & Smart

2/5/8MP · AI · 120dB Super WDR · 0.002Lux Ultra Low-light · IP67 · IK10 · 50m IR Distance · 60fps · PoE · Versatile Interfaces

NDAA AI Heat Map 4K PoE H265+ ONVIF G&Q&S&T SD Card Smart IR II Weather-
Proof
Vandal-
Proof
Starlight Super WDR Privacy Mask 3-Axis

NDAA Compliant

This model is compliant with the NDAA (National Defense Authorization Act). It does not use or deploy critical components including SoCs produced by NDAA banned component vendors, which is recommended for enterprises and critical applications where compliance is essential.

NDAA

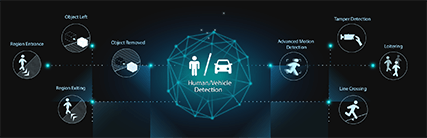

AI Video Analytics

Milesight AI Camera Series can intelligently filter objects to focus on human and vehicle detection in multiple events such as Region Entrance, Region Exiting, Loitering, Advanced Motion Detection, etc.

AI VCA

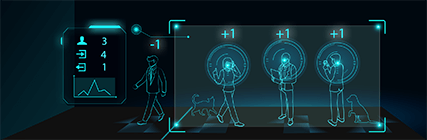

People Counting

High accuracy and real-time people counting based on AI algorithm, with statistic reports for further analysis, helps to make fast decisions on security management and increase the operational efficiency of the business.

AI people counting

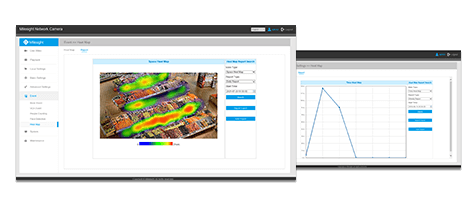

Advanced Heat Map

With scenario-adaptable and flexible configurations, Milesight Advanced Heat Map is embedded into the AI series which can analyze customers' movement to reveal insights for better business management with the intuitive and accurate statistical analysis results in time or space pattern as needed.

Advanced Heat Map

Leading-edge H.265+ Compression

H.265+

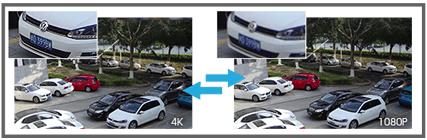

4K Video Viewing Experience

Milesight 4K NDAA AI Weather-proof Mini Bullet Network Camera delivers up to 4K resolution (3840*2160, effectively four times that of Full HD) at 30 frames per second (fps), providing users with ultra-high-definition video viewing experience.

4K security camera, 4K ndaa ai ip camera, 4K ndaa ai cctv camera

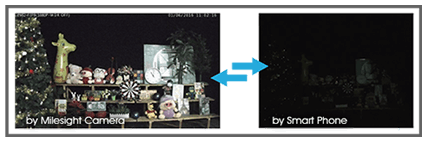

0.002Lux Ultra Low Light

The starlight camera is able to deliver high detailed color images even in the low light environments reaching 0.002Lux (Color) or 0Lux (B/W), and near infrared light environments without any supplementary lighting.

low-light

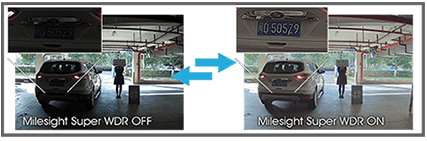

120dB Super WDR

Milesight's sensor-based WDR technology allows the camera to record greater scene details with true color reproduction even under the extreme back light and high contrast conditions. The ratio that the brightest light signal values divided by the darkest light signal values is up to 120dB.

Super WDR

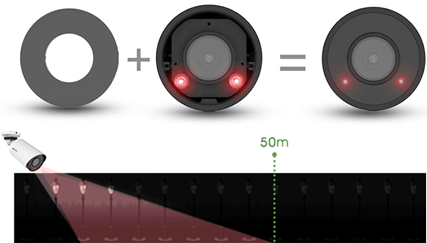

Revolutionary IR Performance

To maximize the IR performance, the NDAA AI Weather-proof Mini Bullet Camera innovated both in the structure and technology. The advanced Smart IR II technology with 50m IR distance, guarantees IR performance with adjustable illumination intensity. The infrared light transmittance is greatly increased with IR anti-reflection panel which is well designed for better IR effect.

Revolutionary IR Performance

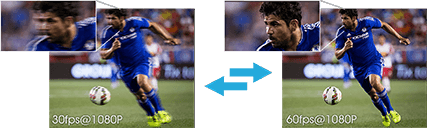

60fps High Frame Rate

Milesight NDAA AI Network Camera offers high frame rate including 2MP@60fps, 5MP@30fps and 4K@30fps, which enables the camera to easily catch images with no latency despite the high-speed movement.

High Frame Rate

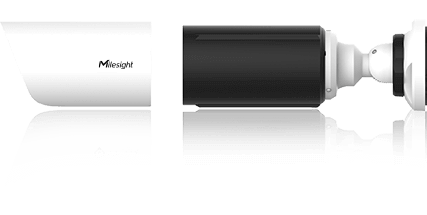

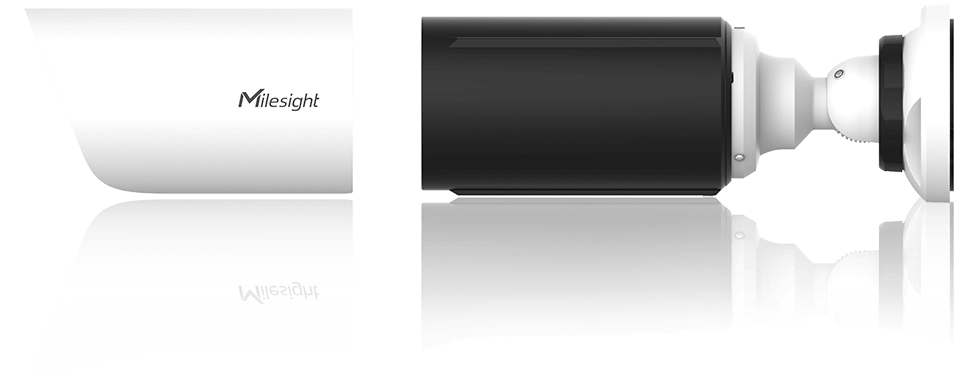

Unique Sunshield Design

This stylishly designed NDAA AI Weather-proof Mini Bullet Network Camera has a unique outdoor housing sunshield that almost encircles the camera body, which effectively blocks the sun from entering the lens path and offers great thermal insulation.

Sunshield Design

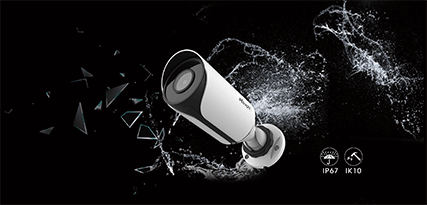

IP67 & IK10

Supporting industry-leading IP67-rated weather proofing and IK10-rated vandal proofing, the NDAA AI Weather-proof Mini Bullet Network Camera is well protected against adverse impacts to ensure the performance.

IP67&IK10

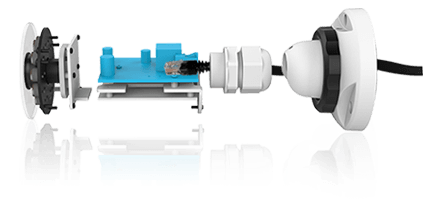

Built-in PoE Module

Milesight NDAA AI Weather-proof Mini Bullet Network Camera incorporates IEEE 802.3af Power over Ethernet module inside the body which offers easy installation for Standard Version by providing power and networking connectivity with a single cable.

Built-in PoE Module

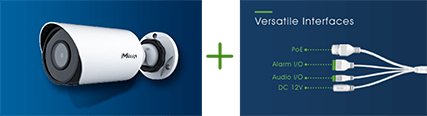

Versatile Interfaces

Several interfaces such as PoE, DC, Audio I/O and Alarm I/O are available in the Multi-interface Version, offering more choices for easy management and various needs.

Versatile Interfaces

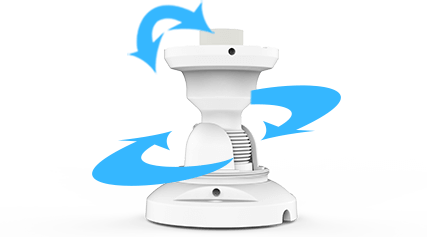

Easily Adjustable 3-Axis Bracket

The NDAA AI Weather-proof Mini Bullet Network Camera is easy to install on a wall or ceiling. It features 3-axis bracket which provides a robust mounting platform for tidy installation and camera angle adjustments on a 3-axis plane.

3-Axis Bracket

SIP/VoIP Support

Milesight NDAA AI Weather-proof Mini Bullet Network Camera features industry leading SIP/VoIP function and video streaming for mobile phones and video phones.

ndaa ai Mini Bullet Camera, SIP, VoIP
  • MS-C2963-R(T)PE
  • MS-C5363-PE
  • MS-C8163-PE
  • MS-C2963-PD
  • MS-C2963-RPA
  • MS-C5363-PA
  • MS-C8163-PA
Camera Name AI Weather-proof Mini Bullet Network Camera
Image Sensor 1/2.8″ Progressive Scan CMOS
Min. Illumination Color: 0.005Lux@F1.6
B/W: 0Lux with IR on
WDR 140dB Super WDR
Lens 4mm/2.8mm/6mm@F1.6
Mount M12
Field of View H91°/D106°/V50°(4mm)
H111°/D128°/V61°(2.8mm)
H55°/D63°/V32°(6mm)
Shutter Time 1/100000s~1s
IR Distance Up to 50m
Day/Night Mode Day/Night/Auto/Customize/Schedule
S/N >55dB
Video Max. Image Resolution 1920x1080
Primary Stream 60Hz: 90fps@(1920x1080)(Optional for T Series), 60fps@(1920x1080, 1280x960, 1280x720, 704x576)
50Hz: 90fps@(1920x1080)(Optional for T Series), 50fps@(1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream 60Hz: 60fps@(704x576, 640x480, 640x360, 352x288, 320x240)
50Hz: 50fps@(704x576, 640x480, 640x360, 352x288, 320x240)
Tertiary Stream 60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 352x288, 320x240)
50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 352x288, 320x240)
Video Compression H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate 16Kbps~16Mbps(CBR/VBR Adjustable)
Privacy Masking Up to 8 Areas (Mask Area and Mosaic Area are optional)
ROI Up to 8 areas
Image Setting Brightness/Contrast/Saturation/Sharpness
Interface Ethernet 1*RJ45 10M/100M Ethernet Port
Audio I/O 1/1 (Multi-interface Version)
Alarm I/O 1/1 (Multi-interface Version)
Network Network Storage NAS(Support NFS, SMB/CIFS), ANR
Protocol IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
Audio Audio Compression G.711/AAC/G.722/G.726
Audio Sampling Rate 8/16/32/44.1/48KHz
Audio Bit Rate 16~256kbps
Two-way Audio Support
Intelligent Analytics Video Analysis Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
Face Detection&Face Attribute Recognition Detect and capture faces, get real-time snapshots; The attributes include Age, Gender, Glasses, Mask and Cap.
People Counting&Report Count the number of people entering or exiting, up to 4 detection areas for regional people counting
System Storage Support microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced Function Heat Map, BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP Support Yes, Voice & Video-over-IP
Event Trigger Motion Detection, Network Disconnection, etc.;
Motion Detection, Network Disconnection, External Input, Audio Alarm, etc. (Multi-interface Version)
Event Action FTP Upload, SMTP Upload, SD Card Record, SIP Phone, HTTP Notification, etc.;
FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc. (Multi-interface Version)
System Compatibility ONVIF Profile G & Q & S & T, API
General Working Temperature -40℃~60℃
Working Humidity 0~95%(Non-condensing)
Power Supply PoE (802.3af); PoE (802.3af) / DC 12V±10% (Multi-interface Version)
Power Consumption 7W MAX; 10W MAX (With IR on)
Weather Proof Up to IP67-rated for Weather-resistant Performance
Housing Vandal-proof IK10-rated Metal Housing
Weight 750g
Dimensions Φ76mmX214.5mm
Warranty 3/5 Years
Camera Name AI Weather-proof Mini Bullet Network Camera
Image Sensor 1/2.8″ Progressive Scan CMOS
Min. Illumination Color: 0.008Lux@F1.6
B/W: 0Lux with IR on
WDR 120dB Super WDR
Lens 4mm/2.8mm/6mm@F1.6
Mount M12
Field of View H86°/D108°/V63°(4mm)
H105°/D131°/V78°(2.8mm)
H52°/D63°/V40°(6mm)
Shutter Time 1/100000s~1s
IR Distance Up to 50m
Day/Night Mode Day/Night/Auto/Customize/Schedule
S/N >55dB
Video Max. Image Resolution 2592x1944
Primary Stream 60Hz: 30fps@(2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)
50Hz: 25fps@(2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream 60Hz: 30fps@(704x576, 640x480, 640x360, 352x288, 320x240)
50Hz: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240)
Tertiary Stream 60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 352x288, 320x240)
50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 352x288, 320x240)
Video Compression H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate 16Kbps~16Mbps(CBR/VBR Adjustable)
Privacy Masking Up to 8 Areas (Mask Area and Mosaic Area are optional)
ROI Up to 8 areas
Image Setting Brightness/Contrast/Saturation/Sharpness
Interface Ethernet 1*RJ45 10M/100M Ethernet Port
Audio I/O 1/1 (Multi-interface Version)
Alarm I/O 1/1 (Multi-interface Version)
Network Network Storage NAS(Support NFS, SMB/CIFS), ANR
Protocol IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
Audio Audio Compression G.711/AAC/G.722/G.726
Audio Sampling Rate 8/16/32/44.1/48KHz
Audio Bit Rate 16~256kbps
Two-way Audio Support
Intelligent Analytics Video Analysis Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
Face Detection&Face Attribute Recognition Detect and capture faces, get real-time snapshots; The attributes include Age, Gender, Glasses, Mask and Cap.
People Counting&Report Count the number of people entering or exiting, up to 4 detection areas for regional people counting
System Storage Support microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced Function Heat Map, BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP Support Yes, Voice & Video-over-IP
Event Trigger Motion Detection, Network Disconnection, etc.;
Motion Detection, Network Disconnection, External Input, Audio Alarm, etc. (Multi-interface Version)
Event Action FTP Upload, SMTP Upload, SD Card Record, SIP Phone, HTTP Notification, etc.;
FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc. (Multi-interface Version)
System Compatibility ONVIF Profile G & Q & S & T, API
General Working Temperature -40℃~60℃
Working Humidity 0~95%(Non-condensing)
Power Supply PoE (802.3af); PoE (802.3af) / DC 12V±10% (Multi-interface Version)
Power Consumption 6W MAX
10W MAX (With IR on)
Weather Proof Up to IP67-rated for Weather-resistant Performance
Housing Vandal-proof IK10-rated Metal Housing
Weight 750g
Dimensions Φ76mmX214.5mm
Warranty 3/5 Years
Camera Name AI Weather-proof Mini Bullet Network Camera
Image Sensor 1/2.8″ Progressive Scan CMOS
Min. Illumination Color: 0.012Lux@F1.6
B/W: 0Lux with IR on
WDR 120dB Super WDR
Lens 4mm/2.8mm/6mm@F1.6
Mount M12
Field of View H91°/D106°/V50°(4mm)
H110°/D126°/V60°(2.8mm)
H55°/D63°/V32°(6mm)
Shutter Time 1/100000s~1s
IR Distance Up to 50m
Day/Night Mode Day/Night/Auto/Customize/Schedule
S/N >55dB
Video Max. Image Resolution 3840x2160
Primary Stream 60Hz: 30fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)
50Hz: 25fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream 60Hz: 30fps@(704x576, 640x480, 640x360, 352x288, 320x240)
50Hz: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240)
Tertiary Stream 60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 352x288, 320x240)
50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 352x288, 320x240)
Video Compression H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate 16Kbps~16Mbps(CBR/VBR Adjustable)
Privacy Masking Up to 8 Areas (Mask Area and Mosaic Area are optional)
ROI Up to 8 areas
Image Setting Brightness/Contrast/Saturation/Sharpness
Interface Ethernet 1*RJ45 10M/100M Ethernet Port
Audio I/O 1/1 (Multi-interface Version)
Alarm I/O 1/1 (Multi-interface Version)
Network Network Storage NAS(Support NFS, SMB/CIFS), ANR
Protocol IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
Audio Audio Compression G.711/AAC/G.722/G.726
Audio Sampling Rate 8/16/32/44.1/48KHz
Audio Bit Rate 16~256kbps
Two-way Audio Support
Intelligent Analytics Video Analysis Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
Face Detection&Face Attribute Recognition Detect and capture faces, get real-time snapshots; The attributes include Age, Gender, Glasses, Mask and Cap.
People Counting&Report Count the number of people entering or exiting, up to 4 detection areas for regional people counting
System Storage Support microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced Function Heat Map, BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP Support Yes, Voice & Video-over-IP
Event Trigger Motion Detection, Network Disconnection, etc.;
Motion Detection, Network Disconnection, External Input, Audio Alarm, etc. (Multi-interface Version)
Event Action FTP Upload, SMTP Upload, SD Card Record, SIP Phone, HTTP Notification, etc.;
FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc. (Multi-interface Version)
System Compatibility ONVIF Profile G & Q & S & T, API
General Working Temperature -40℃~60℃
Working Humidity 0~95%(Non-condensing)
Power Supply PoE (802.3af); PoE (802.3af) / DC 12V±10% (Multi-interface Version)
Power Consumption 7W MAX 10W MAX (With IR on)
Weather Proof Up to IP67-rated for Weather-resistant Performance
Housing Vandal-proof IK10-rated Metal Housing
Weight 750g
Dimensions Φ76mmX214.5mm
Warranty 3/5 Years
Camera Name 2MP NDAA AI Weather-proof Mini Bullet Network Camera
Image Sensor 1/2.8" Progressive Scan CMOS
Min. Illumination Color: 0.002Lux @F1.2, Color: 0.005Lux @F1.6, B/W: 0Lux with IR on
WDR 120dB Super WDR
Lens 4mm/ 2.8mm/ 6mm @F1.6
Field of View H91°/D106°/V50°(4mm), H111°/D128°/V61°(2.8mm), H55°/D63°/V32°(6mm)
Shutter Time 1/100000s∼1s
Day/Night Mode Day/Night/Auto/Customize/Schedule
IR Distance Up to 50m
S/N >55dB
Video Max. Image Resolution 1920x1080
Frame Rate 60Hz: 30fps@(1920x1080, 1280x960, 1280x720, 704x576)
50Hz: 25fps@(1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream 60Hz: 30fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192)
50Hz: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192)
Tertiary Stream 60Hz: 30fps@(1280x720, 704x576, 640x480, 640x360, 352x288)
50Hz: 25fps@(1280x720, 704x576, 640x480, 640x360, 352x288)
Video Compression H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate 16Kbps∼16Mbps (CBR/VBR adjustable)
Privacy Masking Up to 4 areas
ROI Up to 8 areas
Image Settings Saturation/Brightness/Contrast/Sharpness
Interface Ethernet 1*RJ45 10M/100M Ethernet Port
Network Network Storage NAS(Support NFS, SMB/CIFS), ANR
Network Protocols IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
Intelligent Analytics Video Analysis Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
System Storage Support microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced Function BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur
SIP/VoIP Support Yes, Voice&Video-over-IP
Event Trigger Motion Detection, Network Disconnection, etc.
Event Action FTP Upload, SMTP Upload, SD Card Record, SIP Phone, HTTP Notification, etc.
System Compatibility ONVIF Profile G & Q & S & T, API
General Working Temperature -40℃∼60℃
Working Humidity 0∼90%(Non-condensing)
Power Supply PoE(802.3af)
Power Consumption 3W MAX, 9W MAX (With IR on)
Weather Proof Up to IP67-rated for weather-resistant performance
Housing Vandal-proof IK10-rated metal housing
Weight 750g
Dimensions Φ76mmX214.5mm
Warranty 3/5 Years

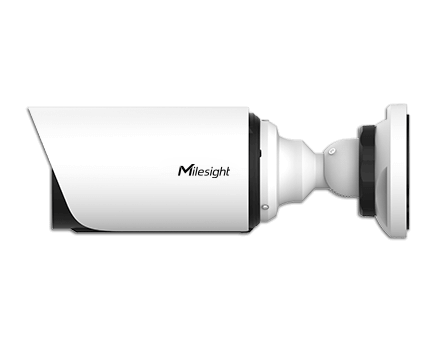

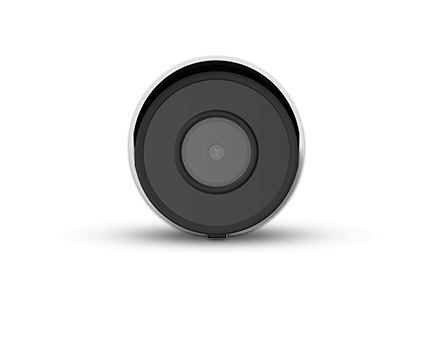

Camera Name 2MP NDAA AI Weather-proof Mini Bullet Network Camera
Image Sensor 1/2.8" Progressive Scan CMOS
Min. Illumination Color: 0.002Lux @F1.2, Color: 0.005Lux @F1.6, B/W: 0Lux with IR on
WDR 140dB Super WDR
Lens 4mm/ 2.8mm/ 6mm @F1.6
Field of View H91°/D106°/V50°(4mm), H111°/D128°/V61°(2.8mm), H55°/D63°/V32°(6mm)
Shutter Time 1/100000s∼1s
Day/Night Mode Day/Night/Auto/Customize/Schedule
IR Distance Up to 50m
S/N >55dB
Video Max. Image Resolution 1920x1080
Frame Rate 60Hz: 60fps@(1920x1080, 1280x960, 1280x720, 704x576)
50Hz: 50fps@(1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream 60Hz: 60fps@(704x576, 640x480, 640x360, 352x288, 320x240)
50Hz: 50fps@(704x576, 640x480, 640x360, 352x288, 320x240)
Tertiary Stream 60Hz: 30fps@(1280x720, 704x576, 640x480, 640x360, 352x288, 320x240)
50Hz: 25fps@(1280x720, 704x576, 640x480, 640x360, 352x288, 320x240)
Video Compression H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate 16Kbps∼16Mbps (CBR/VBR adjustable)
Privacy Masking Up to 24 areas
ROI Up to 8 areas
Image Settings Saturation/Brightness/Contrast/Sharpness
Interface Ethernet 1*RJ45 10M/100M Ethernet Port
Audio I/O 1/1(Multi-interface Version)
Alarm I/O 1/1(Multi-interface Version)
Network Network Storage NAS(Support NFS, SMB/CIFS), ANR
Network Protocols IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
Audio Audio Compression G.711/AAC/G.722/G.726
Audio Sampling Rate 8/16/32/44.1/48KHz
Audio Bit Rate 16~256kbps
Two-way Audio Support
Intelligent Analytics Video Analysis Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
People Counting& Report Count the number of people entering or exiting, up to 4 detection areas for regional people counting
System Storage Support microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced Function BLC, HLC, 2D DNR, 3D DNR, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP Support Yes, Voice&Video-over-IP
Event Trigger Motion Detection, Network Disconnection, etc.;Motion Detection, Network Disconnection, External Input, Audio Alarm, etc. (Multi-interface Version)
Event Action FTP Upload, SMTP Upload, SD Card Record, SIP Phone, HTTP Notification, etc.;FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc. (Multi-interface Version)
System Compatibility ONVIF Profile G & Q & S & T, API
General Working Temperature -40℃∼60℃
Working Humidity 0∼90%(Non-condensing)
Power Supply PoE(802.3af);PoE (802.3af) / DC 12V±10% (Multi-interface Version)
Power Consumption 4W MAX, 9W MAX (With IR on)
Weather Proof Up to IP67-rated for weather-resistant performance
Housing Vandal-proof IK10-rated metal housing
Weight 750g
Dimensions Φ76mmX214.5mm
Warranty 3/5 Years
Camera Name 5MP NDAA AI Weather-proof Mini Bullet Network Camera
Image Sensor 1/2.8" Progressive Scan CMOS
Min. Illumination Color: 0.005Lux @F1.2, Color: 0.008Lux @F1.6, B/W: 0Lux with IR on
WDR 120dB Super WDR
Lens 4mm/2.8mm/6mm @F1.6
Field of View H86°/D108°/V63°(4mm), H105°/D131°/V78°(2.8mm), H52°/D63°/V40°(6mm)
Shutter Time 1/100000s∼1s
Day/Night Mode Day/Night/Auto/Customize/Schedule
IR Distance Up to 50m
S/N >55dB
Video Max. Image Resolution 2592x1944
Frame Rate 60Hz: 30fps@(2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)
50Hz: 25fps@(2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream 60Hz: 30fps@(704x576, 640x480, 640x360, 352x288, 320x240)
50Hz: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240)
Tertiary Stream 60Hz: 30fps@(1280x720, 704x576, 640x480, 640x360, 352x288, 320x240)
50Hz: 25fps@(1280x720, 704x576, 640x480, 640x360, 352x288, 320x240)
Video Compression H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate 16Kbps∼16Mbps (CBR/VBR adjustable)
Privacy Masking Up to 24 areas
ROI Up to 8 areas
Image Settings Saturation/Brightness/Contrast/Sharpness
Interface Ethernet 1*RJ45 10M/100M Ethernet Port
Audio I/O 1/1(Multi-interface Version)
Alarm I/O 1/1(Multi-interface Version)
Network Network Storage NAS(Support NFS, SMB/CIFS), ANR
Network Protocols IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
Audio Audio Compression G.711/AAC/G.722/G.726
Audio Sampling Rate 8/16/32/44.1/48KHz
Audio Bit Rate 16~256kbps
Two-way Audio Support
Intelligent Analytics Video Analysis Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
People Counting& Report Count the number of people entering or exiting, up to 4 detection areas for regional people counting
System Storage Support microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced Function BLC, HLC, 2D DNR, 3D DNR, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP Support Yes, Voice&Video-over-IP
Event Trigger Motion Detection, Network Disconnection, etc.;Motion Detection, Network Disconnection, External Input, Audio Alarm, etc. (Multi-interface Version)
Event Action FTP Upload, SMTP Upload, SD Card Record, SIP Phone, HTTP Notification, etc.;FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc. (Multi-interface Version)
System Compatibility ONVIF Profile G & Q & S & T, API
General Working Temperature -40℃∼60℃
Working Humidity 0∼90%(Non-condensing)
Power Supply PoE(802.3af);PoE (802.3af) / DC 12V±10% (Multi-interface Version)
Power Consumption 5W MAX, 9W MAX (With IR on)
Weather Proof Up to IP67-rated for weather-resistant performance
Housing Vandal-proof IK10-rated metal housing
Weight 750g
Dimensions Φ76mmX214.5mm
Warranty 3/5 Years
Camera Name 4K NDAA AI Weather-proof Mini Bullet Network Camera
Image Sensor 1/2.8" Progressive Scan CMOS
Min. Illumination Color: 0.01Lux @F1.2, Color: 0.012Lux @F1.6, B/W: 0Lux with IR on
WDR 120dB Super WDR
Lens 4mm/2.8mm/6mm @F1.6
Field of View H91°/D106°/V50°(4mm), H110°/D126°/V60°(2.8mm), H55°/D63°/V32°(6mm)
Shutter Time 1/100000s∼1s
Day/Night Mode Day/Night/Auto/Customize/Schedule
IR Distance Up to 50m
S/N >55dB
Video Max. Image Resolution 3840x2160
Frame Rate 60Hz: 30fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)
50Hz: 25fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream 60Hz: 30fps@(704x576, 640x480, 640x360, 352x288, 320x240)
50Hz: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240)
Tertiary Stream 60Hz: 30fps@(1280x720, 704x576, 640x480, 640x360, 352x288, 320x240)
50Hz: 25fps@(1280x720, 704x576, 640x480, 640x360, 352x288, 320x240)
Video Compression H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate 16Kbps∼16Mbps (CBR/VBR adjustable)
Privacy Masking Up to 24 areas
ROI Up to 8 areas
Image Settings Saturation/Brightness/Contrast/Sharpness
Interface Ethernet 1*RJ45 10M/100M Ethernet Port
Audio I/O 1/1(Multi-interface Version)
Alarm I/O 1/1(Multi-interface Version)
Network Network Storage NAS(Support NFS, SMB/CIFS), ANR
Network Protocols IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
Audio Audio Compression G.711/AAC/G.722/G.726
Audio Sampling Rate 8/16/32/44.1/48KHz
Audio Bit Rate 16~256kbps
Two-way Audio Support
Intelligent Analytics Video Analysis Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
People Counting& Report Count the number of people entering or exiting, up to 4 detection areas for regional people counting
System Storage Support microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced Function BLC, HLC, 2D DNR, 3D DNR, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP Support Yes, Voice&Video-over-IP
Event Trigger Motion Detection, Network Disconnection, etc.;Motion Detection, Network Disconnection, External Input, Audio Alarm, etc. (Multi-interface Version)
Event Action FTP Upload, SMTP Upload, SD Card Record, SIP Phone, HTTP Notification, etc.;FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc. (Multi-interface Version)
System Compatibility ONVIF Profile G & Q & S & T, API
General Working Temperature -40℃∼60℃
Working Humidity 0∼90%(Non-condensing)
Power Supply PoE(802.3af);PoE (802.3af) / DC 12V±10% (Multi-interface Version)
Power Consumption 5W MAX, 9W MAX (With IR on)
Weather Proof Up to IP67-rated for weather-resistant performance
Housing Vandal-proof IK10-rated metal housing
Weight 750g
Dimensions Φ76mmX214.5mm
Warranty 3/5 Years
  • * Naming Convention
  • R - High Frame Rate (60fps)
  • P - PoE Supported
  • A/D/E - AI Series
MIGHT BE INTERESTED IN

Contact Us

Contact Us

Verify Code

Contact Us to Get More Information

If you are interested in Milesight, please leave us a message.

Verify Code

Stay up to date with our latest products, solutions and news

Verify Code
