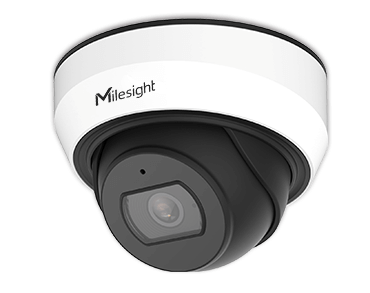

NDAA AI Weather-proof Mini Dome Network Camera

Smart Weather-proof Camera

2/5/8MP · AI · 120dB Super WDR · 0.002Lux Ultra Low-light · IP67 · IK10 · 25m IR Distance · PoE

NDAA AI 4K PoE H265+ ONVIF G&Q&S&T SD Card Weather-
Proof
Vandal-
Proof
Built-in Microphone Starlight Super WDR Privacy Mask 3-Axis Motion Detection

NDAA Compliant

This model is compliant with the NDAA (National Defense Authorization Act). It does not use or deploy critical components including SoCs produced by NDAA banned component vendors, which is recommended for enterprises and critical applications where compliance is essential.

NDAA

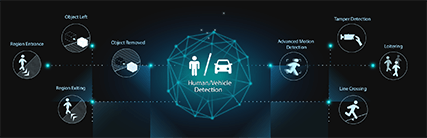

AI Video Analytics

Milesight AI Camera Series can intelligently filter objects to focus on human and vehicle detection in multiple events such as Region Entrance, Region Exiting, Loitering, Advanced Motion Detection, etc.

AI VCA

Leading-edge H.265+ Compression

H.265+

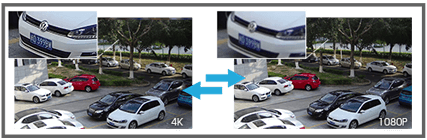

4K Video Viewing Experience

Milesight NDAA AI Weather-proof Mini Dome Network Camera delivers up to 4K resolution (3840*2160, effectively four times that of Full HD), providing users with ultra-high-definition video viewing experience.

4K security camera, 4K NDAA AI ip camera, 4K NDAA AI cctv camera

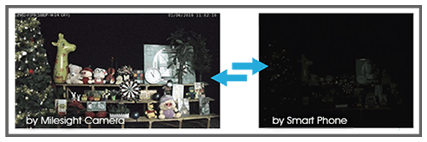

0.002Lux Ultra Low-light

The NDAA AI Weather-proof Mini Dome Network Camera is able to deliver high detailed color images even in the low light environments reaching 0.002Lux (Color) or 0Lux (B/W), and near infrared light environments without any supplementary lighting.

Ultra Low-light

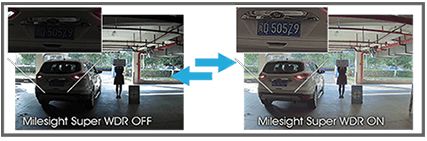

120dB Super WDR

Milesight's sensor-based WDR technology allows the camera to record greater scene details with true color reproduction even under the extreme back light and high contrast conditions. The ratio that the brightest light signal values divided by the darkest light signal values is up to 120dB.

Super WDR

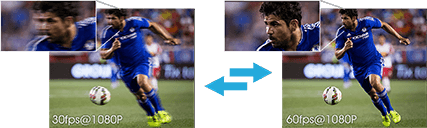

60fps High Frame Rate

Milesight NDAA AI Network Camera offers high frame rate including 2MP@60fps, 5MP@30fps and 4K@30fps, which enables the camera to easily catch images with no latency despite the high-speed movement.

high frame rate

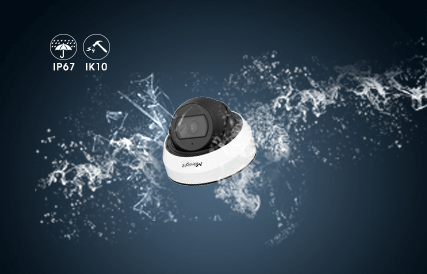

IP67 & IK10

Sharply contrasting to the mini size, the NDAA AI Weather-proof Mini Dome Network Camera features the industry leading IP67-rated weather proofing and IK10-rated vandal proofing, which allow to protect the camera against adverse impacts to ensure the robust performance.

IP67 & IK10

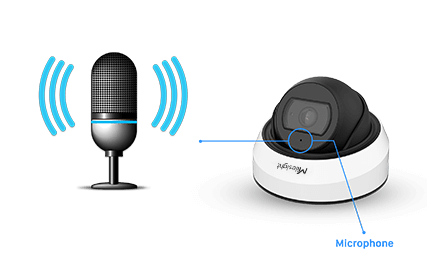

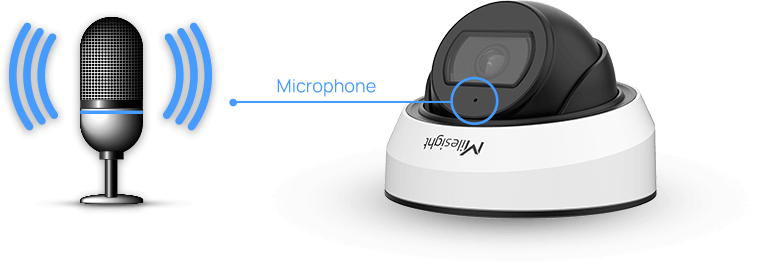

Advanced Built-in Microphone

With the built-in microphone which adopts the advanced codec, the NDAA AI Weather-proof Mini Dome Network Camera is able to provide clearer voice. It is worth mentioning that Milesight uses PTFE Membrane to safeguard the built-in microphone, ensuring IP67-rated weather proof capability for reliable performance.

Advanced Built-in Microphone

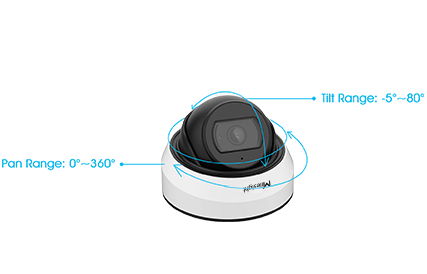

Innovative Structure Design

Adopting the brand new dome structure design of appearance, the NDAA AI Weather-proof Mini Dome Network Camera makes itself another Milesight style product. Also, the camera features 3-axis mechanical design for fast and easy adjustment of the camera’s viewing angle, allowing you to position the camera precisely.

3-Axis Design, ndaa ai Weather-proof Mini Dome Camera

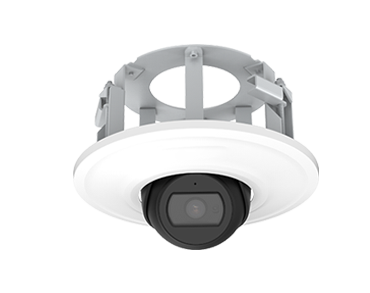

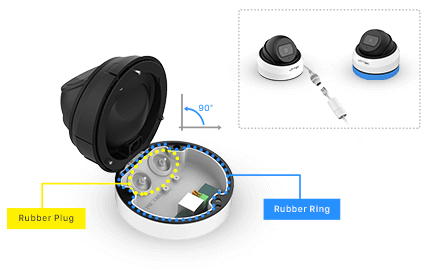

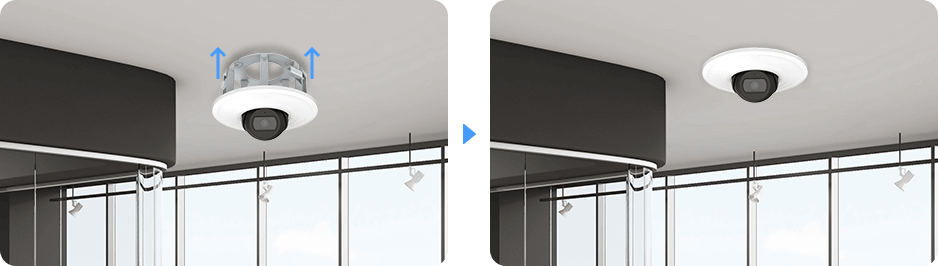

Flexible Installation Modes

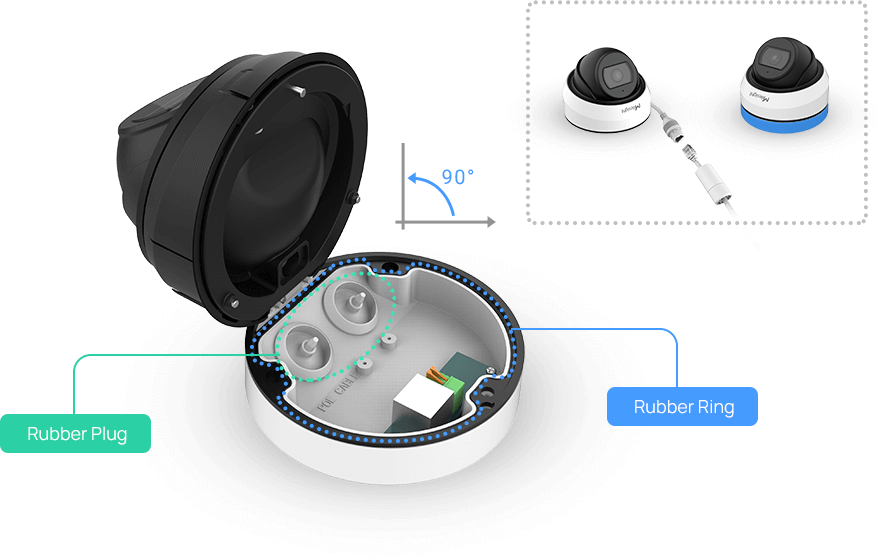

The well-designed Integrated Junction Box especially with the Clamshell structure, ensures efficient and simple installations. It enlarges the space to make cable connection neat and as easy as a piece of cake. With the help of the rubber plugs and rubber ring which guarantee IP67-rated weather-proof capability, the Integrated Junction Box is able to offer stable operation in any tough conditions.

Integrated Junction Box, ndaa ai Weather-proof Mini Dome Camera

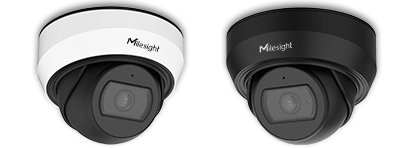

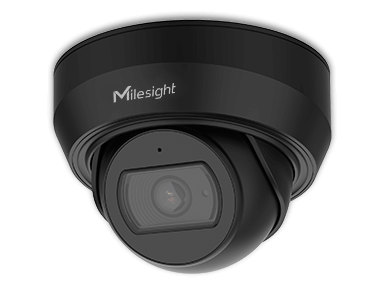

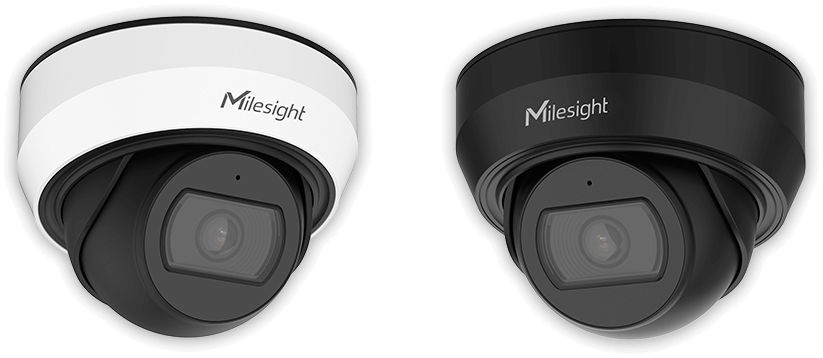

Two Colors Available

Available in White and Black, the NDAA AI Weather-proof Mini Dome Network Camera provides more choices for your preference.

ndaa ai Vandal-proof Mini Dome Camera

SIP/VoIP Support

Milesight NDAA AI Vandal-proof Mini Dome Network Camera features industry leading SIP/VoIP function and video streaming for mobile phones and video phones.

ndaa ai Weather-proof Mini Dome Camera, SIP, VoIP
  • MS-C2975-(R)PD
  • MS-C5375-PD
  • MS-C8175-(S)PD
Camera Name 2MP NDAA AI Weather-proof Mini Dome Network Camera
Image Sensor 1/2.8" Progressive Scan CMOS
Min. Illumination Color: 0.002Lux @F1.2, Color: 0.005Lux @F1.6, B/W: 0Lux with IR on
WDR 120dB Super WDR
Lens 2.8mm/ 4mm/ 6mm @F1.6
Mount M12
Field of View H111°/D128°/V61°(2.8mm), H91°/D106°/V50°(4mm), H55°/D63°/V32°(6mm)
Shutter Time 1/100000s∼1s
Day/Night Mode Day/Night/Auto/Customize/Schedule
IR Distance Up to 25m
S/N >55dB
Video Max. Image Resolution 1920x1080
Frame Rate 60Hz: 60fps@(1920x1080)(Optional for R Series), 30fps@(1920x1080, 1280x960, 1280x720, 704x576)
50Hz: 50fps@(1920x1080)(Optional for R Series), 25fps@(1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream 60Hz: 30fps@(704x576, 640x480, 640x360, 352x288)
50Hz: 25fps@(704x576, 640x480, 640x360, 352x288)
Tertiary Stream 60Hz: 30fps@(1280x720, 704x576, 640x480, 640x360, 352x288)
50Hz: 25fps@(1280x720, 704x576, 640x480, 640x360, 352x288)
Video Compression H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate 16Kbps∼16Mbps (CBR/VBR adjustable)
Privacy Masking Up to 4 areas
ROI Up to 8 areas
Image Settings Saturation/Brightness/Contrast/Sharpness
Interface Ethernet 1*RJ45 10M/100M Ethernet Port
Audio Interface Built-in Microphone
Network Network Storage NAS(Support NFS, SMB/CIFS), ANR
Network Protocols IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
Audio Audio Compression G.711/AAC/G.722/G.726
Audio Sampling Rate 8/16/32/48KHz
Audio Bit Rate 16~256kbps
Two-way Audio N/A
Intelligent Analytics Video Analysis Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
System Storage Support microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced Function BLC, HLC, 2D DNR, 3D DNR,Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur
SIP/VoIP Support Yes, Voice&Video-over-IP
Event Trigger Motion Detection, Network Disconnection, Audio Alarm, etc.
Event Action FTP Upload, SMTP Upload, SD Card Record, SIP Phone, HTTP Notification, etc.
System Compatibility ONVIF Profile G & Q & S & T, API
General Working Temperature -40℃∼60℃
Working Humidity 0∼90%(Non-condensing)
Power Supply PoE(802.3af)
Power Consumption 3W MAX, 5.1W MAX (With IR on)
Housing Vandal-proof IK10-rated metal housing /Up to IP67-rated for weather-resistant performance
Weight 600g(Junction Box Version) / 410g(Cable Out Version)
Dimensions Φ108mmX96.5mm(Junction Box Version) / Φ106mmX76.5mm(Cable Out Version)
Warranty 3/5 Years
Camera Name 5MP NDAA AI Weather-proof Mini Dome Network Camera
Image Sensor 1/2.8" Progressive Scan CMOS
Min. Illumination Color: 0.005Lux @F1.2, Color: 0.008Lux @F1.6, B/W: 0Lux with IR on
WDR 120dB Super WDR
Lens 2.8mm/ 4mm/ 6mm @F1.6
Mount M12
Field of View H105°/D131°/V78°(2.8mm), H86°/D108°/V63°(4mm), H52°/D63°/V40°(6mm)
Shutter Time 1/100000s∼1s
Day/Night Mode Day/Night/Auto/Customize/Schedule
IR Distance Up to 25m
S/N >55dB
Video Max. Image Resolution 2592x1944
Frame Rate 60Hz: 30fps@(2592x1944, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)
50Hz: 25fps@(2592x1944, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream 60Hz: 30fps@(704x576, 640x480, 640x360, 352x288)
50Hz: 25fps@(704x576, 640x480, 640x360, 352x288)
Tertiary Stream 60Hz: 30fps@(1280x720, 704x576, 640x480, 640x360, 352x288)
50Hz: 25fps@(1280x720, 704x576, 640x480, 640x360, 352x288)
Video Compression H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate 16Kbps∼16Mbps (CBR/VBR adjustable)
Privacy Masking Up to 4 areas
ROI Up to 8 areas
Image Settings Saturation/Brightness/Contrast/Sharpness
Interface Ethernet 1*RJ45 10M/100M Ethernet Port
Audio Interface Built-in Microphone
Network Network Storage NAS(Support NFS, SMB/CIFS), ANR
Network Protocols IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
Audio Audio Compression G.711/AAC/G.722/G.726
Audio Sampling Rate 8/16/32/48KHz
Audio Bit Rate 16~256kbps
Two-way Audio N/A
Intelligent Analytics Video Analysis Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
System Storage Support microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced Function BLC, HLC, 2D DNR, 3D DNR,Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur
SIP/VoIP Support Yes, Voice&Video-over-IP
Event Trigger Motion Detection, Network Disconnection, Audio Alarm, etc.
Event Action FTP Upload, SMTP Upload, SD Card Record, SIP Phone, HTTP Notification, etc.
System Compatibility ONVIF Profile G & Q & S & T, API
General Working Temperature -40℃∼60℃
Working Humidity 0∼90%(Non-condensing)
Power Supply PoE(802.3af)
Power Consumption 3.8W MAX, 5.8W MAX (With IR on)
Housing Vandal-proof IK10-rated metal housing /Up to IP67-rated for weather-resistant performance
Weight 600g(Junction Box Version) / 410g(Cable Out Version)
Dimensions Φ108mmX96.5mm(Junction Box Version) / Φ106mmX76.5mm(Cable Out Version)
Warranty 3/5 Years
Camera Name 4K NDAA AI Weather-proof Mini Dome Network Camera
Image Sensor 1/2.8" Progressive Scan CMOS
Min. Illumination Color: 0.01Lux @F1.2, Color: 0.012Lux @F1.6, B/W: 0Lux with IR on
WDR 120dB Super WDR
Lens 2.8mm/ 4mm/ 6mm @F1.6
Mount M12
Field of View H110°/D126°/V60°(2.8mm), H91°/D106°/V50°(4mm), H55°/D63°/V32°(6mm)
Shutter Time 1/100000s∼1s
Day/Night Mode Day/Night/Auto/Customize/Schedule
IR Distance Up to 25m
S/N >55dB
Video Max. Image Resolution 3840x2160
Frame Rate 60Hz/50Hz: 30fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576), 20fps@(3840x2160)(Optional for S Series)
Secondary Stream 60Hz: 30fps@(704x576, 640x480, 640x360, 352x288)
50Hz: 25fps@(704x576, 640x480, 640x360, 352x288)
Tertiary Stream 60Hz: 30fps@(1280x720, 704x576, 640x480, 640x360, 352x288)
50Hz: 25fps@(1280x720, 704x576, 640x480, 640x360, 352x288)
Video Compression H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate 16Kbps∼16Mbps (CBR/VBR adjustable)
Privacy Masking Up to 4 areas
ROI Up to 8 areas
Image Settings Saturation/Brightness/Contrast/Sharpness
Interface Ethernet 1*RJ45 10M/100M Ethernet Port
Audio Interface Built-in Microphone
Network Network Storage NAS(Support NFS, SMB/CIFS), ANR
Network Protocols IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
Audio Audio Compression G.711/AAC/G.722/G.726
Audio Sampling Rate 8/16/32/48KHz
Audio Bit Rate 16~256kbps
Two-way Audio N/A
Intelligent Analytics Video Analysis Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
System Storage Support microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced Function BLC, HLC, 2D DNR, 3D DNR,Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur
SIP/VoIP Support Yes, Voice&Video-over-IP
Event Trigger Motion Detection, Network Disconnection, Audio Alarm, etc.
Event Action FTP Upload, SMTP Upload, SD Card Record, SIP Phone, HTTP Notification, etc.
System Compatibility ONVIF Profile G & Q & S & T, API
General Working Temperature -40℃∼60℃
Working Humidity 0∼90%(Non-condensing)
Power Supply PoE(802.3af)
Power Consumption 4.6W MAX, 6.6W MAX (With IR on)
Housing Vandal-proof IK10-rated metal housing /Up to IP67-rated for weather-resistant performance
Weight 600g(Junction Box Version) / 410g(Cable Out Version)
Dimensions Φ108mmX96.5mm(Junction Box Version) / Φ106mmX76.5mm(Cable Out Version)
Warranty 3/5 Years
  • * Naming Convention
  • R - High Frame Rate (60fps)
  • S - 20fps@4K Series
  • P - PoE Supported
  • D - AI Series
