NDAA Compliant
This model is compliant with the NDAA (National Defense Authorization Act). It does not use or deploy critical components including SoCs produced by NDAA banned component vendors, which is recommended for enterprises and critical applications where compliance is essential.

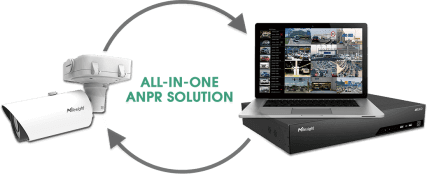

Enterprise ANPR Management
Defined as the Enterprise ANPR management system, Milesight NDAA 4K H.265 PoE NVR 5000 Series becomes the central management site to easily monitor the traffic, including the real-time preview of the car plates, smart analysis and other more detailed settings.
AI VCA Management
Defined as the central management site to manage intelligent VCA，it supports alarm configurations and event search of Milesight AI VCA. Once suspicious events detected, the device can trigger alarms and recordings, helping improve video surveillance efficiency.
Smart People Counting Analytics
High-accuracy and real-time data and statistic reports are provided for further analysis, helping to make fast decisions on security management and increase the operational efficiency of the business.

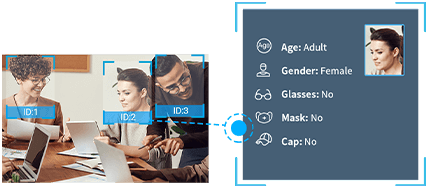

Intelligent Face Detection Management
The intelligent face detection management supports the search of face detection results and the advanced functions such as face attribute recognition and face privacy, which greatly enhances the monitoring efficiency.

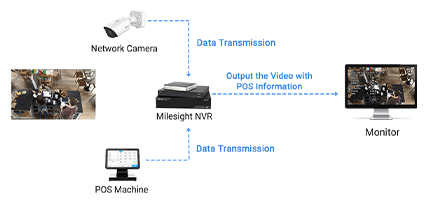

POS Integration
The combination of retail transaction data with surveillance videos makes it easy to check goods settlement, miscalculation and missing calculation in the stores, supermarkets and other places, which is helpful to boost customer service and in-store competitive advantage.

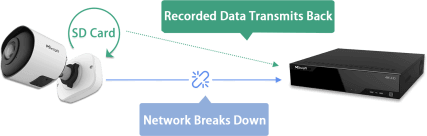

ANR
ANR can store video data on the camera storage card when network between IPC and NVR is disconnected and retransfer the recorded video to NVR after network recovers.

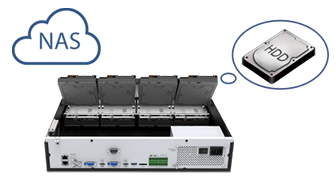

Flexible Storage Options
Flexible storage options including HDD and NAS in Milesight NDAA 4K H.265 PoE NVR 5000 Series offer you greater flexibility to address the needs for versatile storage.

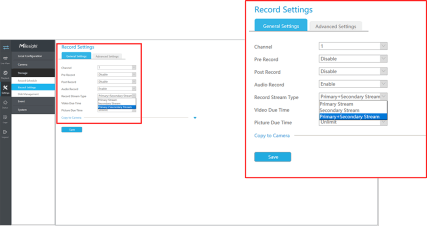

Dual Stream Recording
Supporting Primary Stream and Secondary Stream recording simultaneously, Dual Stream Recording makes it possible for you to freely choose the desired streaming based on the bandwidth available.

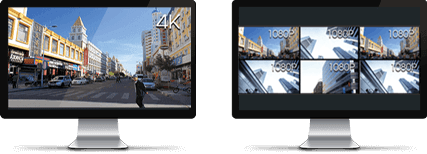

UHD Video Display
Equipped with solid 4K decoding and display capabilities, Milesight NDAA 4K H.265 PoE NVR 5000 Series can synchronously decode up to 1-CH 4K UHD and 6-CH 1080P with the finest details to guarantee real-time video monitoring.
HTML5 H.265 Streaming
The preview of the multi-channel videos via all major browsers without downloading extra plug-in is realized when Video Codec is set to H.265, making it easy for users to access the NVRs.

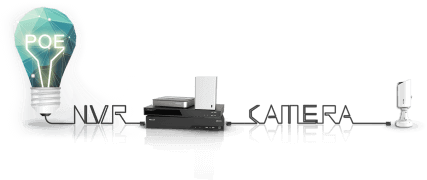

Plug and Play
Milesight NDAA 4K H.265 PoE NVR 5000 Series offers a true plug-and-play with the built-in independent PoE switches, where cameras can be easily connected without a lot of network infrastructure work, ensuring you to begin the efficient monitoring in no time.

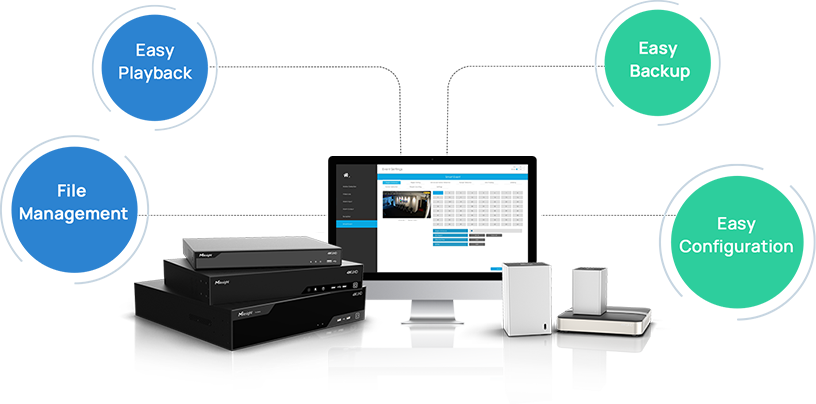

Usability
Milesight NDAA 4K H.265 PoE NVR 5000 Series features a range of functions to ensure the easy-to-use system, including Easy Playback, Easy Backup, File Management and Easy Configuration.

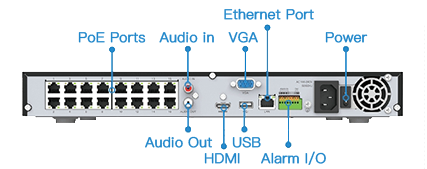

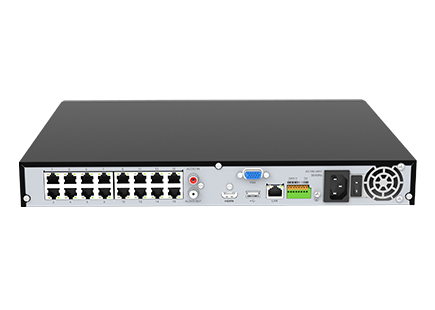

Versatile Interfaces
Milesight NDAA 4K H.265 PoE NVR 5000 Series comes with a whole array of ports such as an HDMI port, a VGA port, 2 USB ports, 16 PoE ports, Alarm I/O, Audio I/O and a LAN port. The full set of interfaces provides all necessary features for effective surveillance.
- MS-N5008-PE
- MS-N5016-PE
- MS-N5016-NPE
| Input | Network Video Input | 8-CH |
| Bandwidth Requirement | 80Mbps (Incoming)50Mbps (Outgoing) | |
| Output | HDMI Output | 1-CH, Resolution: 3840x2160/30Hz, 1920x1080/60Hz, 1920x1080/50Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz HDMI Supports Audio Output |
| VGA Output | 1-CH, Resolution: 1920x1080/60Hz, 1920x1080/50Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz | |
| Dual Stream | Support | |
| Recording Resolution | 8MP/6MP/5MP/4MP/3MP/1080P/UXGA/720P/D1/VGA/CIF/QCIF | |
| Synchronous Playback | 1*(30fps @8MP), 2*(30fps @6MP), 2*(30fps @5MP), 3*(30fps @4MP),4*(30fps @3MP),6*(30fps @1080P), 8*(30fps @720P) | |
| Format | Video Compression | H.265+/H.265(HEVC)/H.264+/H.264 |
| Audio Format | G.711/AAC/G.722/G.726 | |
| Storage | SATA | 2*SATA HDD (3.5”) |
| Capacity | Up to 10TB capacity for each HDD | |
| Record | Recording Type | Continuous, Event (Motion Detection, Alarm, VCA, Smart Analysis) |
| Snapshot Type | N/A | |
| Playback Type | General Playback, Event Playback, Tag Playback, Split Playback, Picture Playback | |
| Backup | Video backup, Image Backup | |
| Network | Network Protocols | IPv4/IPv6, TCP, UDP, RTP, RTSP, RTCP, HTTP, HTTPS, DNS, DDNS, DHCP, NTP, SNTP, SMTP, SNMP, UPnP, NFS |
| Interface | Network Interface | 1*RJ45 10/100/1000Mbps |
| USB Interface | 2*USB 2.0 | |
| Audio Input/Output | 1*RCA/1*RCA | |
| Alarm Input/Output | 4-CH/1-CH | |
| PoE Interface | Interface | 8*RJ45 10/100Mbps |
| Power Output | ≤200W | |
| Supported Standard | IEEE 802.3af/at | |
| General | Compatibility | ONVIF, API |
| Advanced Function | ANR | |
| ANPR | Support | |
| Video Analysis | Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Human Detection, People Counting | |
| Keyboard Control | Milesight Keyboard(MS-K01) | |
| Power Supply | AC 100V∼240V 50Hz∼60Hz | |
| Consumption | ≤9W(Without HDD, without enabling PoE) | |
| Working Conditions | Temperature: -10℃∼+55℃ / Humidity: 10%∼90% | |
| Dimensions | 380mm(W)X317.6mm(D)X51.8mm(H), Rack Mountable Chassis(1.0U Standard) | |
| Weight | 2.6Kg | |
| Warranty | 3/5 Years |
| Input | Network Video Input | 16-CH |
| Bandwidth Requirement | 80Mbps (Incoming)50Mbps (Outgoing) | |
| Output | HDMI Output | 1-CH, Resolution: 3840x2160/30Hz, 1920x1080/60Hz, 1920x1080/50Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz. (HDMI supports Audio Output) |
| VGA Output | 1-CH, Resolution: 1920x1080/60Hz, 1920x1080/50Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz. | |
| Dual Stream | Support | |
| Recording Resolution | 8MP/6MP/5MP/4MP/3MP/1080P/ UXGA/720P/D1/VGA/CIF/QCIF | |
| Synchronous Playback | 1*(30fps @8MP), 2*(30fps @6MP), 2*(30fps @5MP), 3*(30fps @4MP), 4*(30fps @3MP), 6*(30fps @1080P), 12*(30fps @720P) | |
| Format | Video Compression | H.265+/H.265(HEVC)/H.264+/H.264 |
| Audio Format | G.711/AAC/G.722/G.726 | |
| Storage | SATA | 2*SATA HDD (3.5”) |
| Capacity | Up to 10TB capacity for each HDD | |
| Record | Recording Type | Continuous, Event (Motion Detection, Alarm, VCA, Smart Analysis) |
| Snapshot Type | Continuous, Event (Motion Detection, Alarm, VCA, Smart Analysis) | |
| Playback Type | General Playback, Event Playback, Tag Playback, Split Playback, Picture Playback | |
| Backup | Video backup, Image Backup | |
| Network | Network Protocols | IPv4/IPv6, TCP, UDP, RTP, RTSP, RTCP, HTTP, HTTPS, DNS, DDNS, DHCP, NTP, SNTP, SMTP, SNMP, UPnP, NFS |
| Interface | Network Interface | 1*RJ45 10/100/1000Mbps |
| USB Interface | 2*USB 2.0 | |
| Audio Input/Output | 1*RCA/1*RCA | |
| Alarm Input/Output | 4-CH/1-CH | |
| PoE Interface | Interface | 16*RJ45 10/100Mbps |
| Power Output | ≤200W | |
| Supported Standard | IEEE 802.3af/at | |
| General | Compatibility | ONVIF, API |
| Advanced Function | ANR | |
| ANPR | Support | |
| Video Analysis | Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Human Detection, People Counting | |
| Keyboard Control | Milesight Keyboard(MS-K01) | |
| Power Supply | AC 100V∼240V 50Hz∼60Hz | |
| Consumption | ≤8.5W(Without HDD, without enabling PoE) | |
| Working Conditions | Temperature: -10℃∼+55℃ / Humidity: 10%∼90% | |
| Dimensions | 380mm(W)X317.6mm(D)X51.8mm(H), Rack Mountable Chassis(1.0U Standard) | |
| Weight | 2.7Kg | |
| Warranty | 3/5 Years |
| Input | Network Video Input | 16-CH |
| Bandwidth Requirement | 160Mbps (Incoming), 160Mbps (Outgoing) | |
| Output | HDMI Output | 1-CH, Resolution: 3840x2160/30 Hz, 1920x1080/60Hz, 1920x1080/50Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz HDMI Supports Audio Output |
| VGA Output | 1-CH, Resolution: 1920x1080/60Hz, 1920x1080/50Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz | |
| Dual Stream | Support | |
| Recording Resolution | 8MP/6MP/5MP/4MP/3MP/1080P/ UXGA/720P/D1/VGA/CIF/QCIF | |
| Synchronous Playback | 3*(30fps @8MP), 4*(30fps @6MP),4*(30fps @5MP), 5*(30fps @4MP),8*(30fps @3MP), 12*(30fps @1080P),16*(30fps @720P),16*(30fps @D1) | |
| Format | Video Compression | H.265+/H.265(HEVC)/H.264+/H.264 |
| Audio Format | G.711/AAC/G.722/G.726 | |
| Sample Rate | 8KHz/16KHz | |
| Storage | SATA | 2*SATA HDD (3.5”) |
| Capacity | Up to 10TB capacity for each HDD | |
| Record | Recording Type | Continuous, Event (Motion Detection, Alarm, VCA, Smart Analysis) |
| Snapshot Type | Continuous, Event (Motion Detection, Alarm, VCA, Smart Analysis) | |
| Playback Type | General Playback, Event Playback, Tag Playback, Split Playback, Picture Playback | |
| Backup | Video backup, Image Backup | |
| Network | Network Protocols | IPv4/IPv6, TCP, UDP, RTP, RTSP, RTCP, HTTP, HTTPS, DNS, DDNS, DHCP, NTP, SNTP, SMTP, SNMP, UPnP, NFS |
| Interface | Network Interface | 1*RJ45 10/100/1000Mbps |
| USB Interface | 2*USB 2.0 | |
| Audio Input/Output | 1*RCA/1*RCA | |
| Alarm Input/Output | 4-CH/1-CH | |
| PoE Interface | Interface | 16*RJ45 10/100Mbps |
| Power Output | ≤200W | |
| Supported Standard | IEEE 802.3af/at | |
| General | Compatibility | ONVIF, API |
| Advanced Function | ANR | |
| ANPR | Support | |
| Video Analysis | Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Human Detection, People Counting | |
| Keyboard Control | Milesight Keyboard(MS-K01) | |
| Power Supply | AC 100V∼240V 50Hz∼60Hz | |
| Consumption | ≤8.5W(Without HDD, without enabling PoE) | |
| Working Conditions | Temperature: -10℃∼+55℃ / Humidity: 10%∼90% | |
| Dimensions | 380mm(W)X317.6mm(D)X51.8mm(H), Rack Mountable Chassis(1.0U Standard) | |
| Weight | 2.7Kg | |
| Warranty | 3/5 Years |
- * Naming Convention
- P - PoE Supported
- E - H.265 Compression
