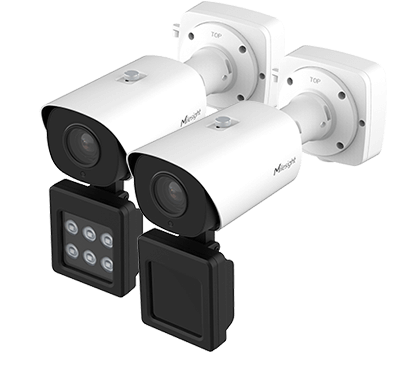

NDAA Supplement Light AI LPR 4X Pro Bullet Plus Camera

Light up the Road to Intelligence

2MP · AI · LPR · Supplement Light · Up to 40m Illumination Distance · Wiegand Interface · 120dB Super WDR · 0.002Lux Ultra Low-light · 90fps · IP67 · Smart IR II· PoE

NDAA AI LPR Supplement Light H265+ ONVIF G&Q&S&T SD Card Smart IR II Weather-
Proof
Starlight Super WDR Privacy Mask 3-Axis

NDAA Compliant

This model is compliant with the NDAA (National Defense Authorization Act). It does not use or deploy critical components including SoCs produced by NDAA banned component vendors, which is recommended for enterprises and critical applications where compliance is essential.

NDAA

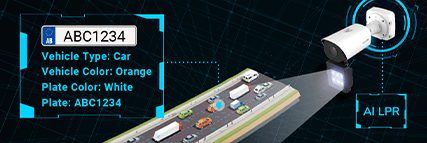

AI-powered LPR Algorithm

Based on AI algorithm, the LPR function provides value-added data via a pre-trained deep learning model and continuously training to algorithms automatically, which can not only recognize vehicle plates in real time with high accuracy, but also identify more vehicle features, like vehicle type, color, etc., generating powerful security and traffic insights.

smart License Plate Recognition, LPR, ANPR, LPR IP Camera,LPR Camera

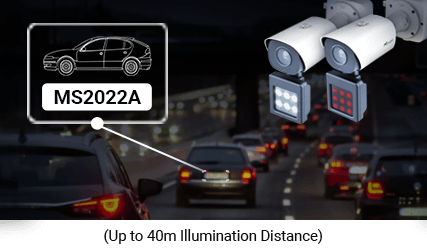

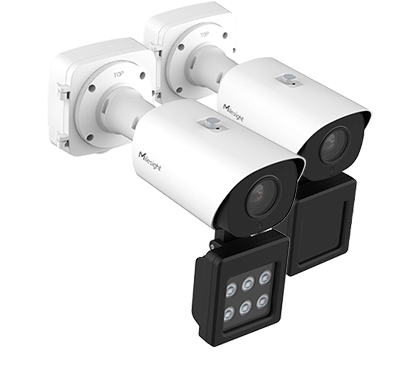

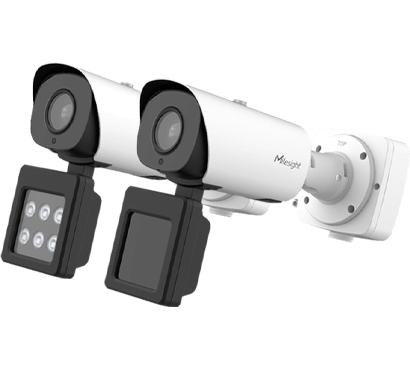

Integrated Supplement Light

Integrated with supplement light of IR LED Light or White LED Light with Max. 40m illumination distance, Milesight NDAA Supplement Light AI LPR 4X Pro Bullet Plus Camera could not only turn on and off the supplement light, but also change the luminance of the supplement lighting automatically, achieving a flexible way for the monitoring control.

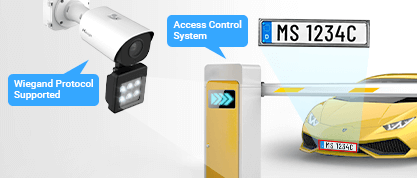

Flexible Compatibility

To maximize the usability and compatibility, Milesight NDAA Supplement Light AI LPR 4X Pro Bullet Plus Camera also supports Wiegand Protocol and RS485 interface, which allows the easy open integration with third-party VMS or platforms, realizing solutions such as traffic management, toll collection, and access control.

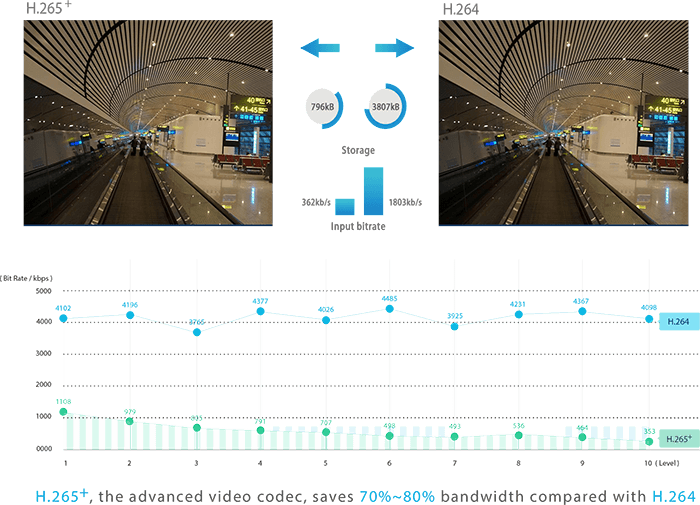

Leading-edge H.265+ Compression

H.265+

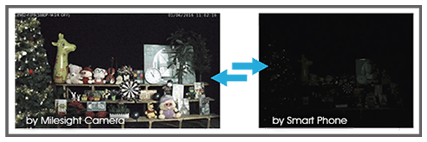

0.002Lux Ultra Low-light

The starlight camera is able to deliver high detailed color images even in the low light environments reaching 0.002Lux (Color) or 0Lux (B/W), and near infrared light environments without any supplementary lighting.

Ultra Low-light

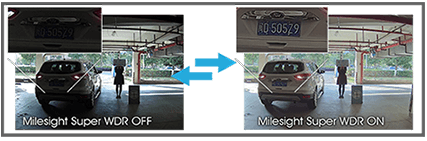

120dB Super WDR

Milesight's sensor-based WDR technology allows the camera to record greater scene details with true color reproduction even under the extreme back light and high contrast conditions. The ratio that the brightest light signal values divided by the darkest light signal values is up to 120dB.

Super WDR

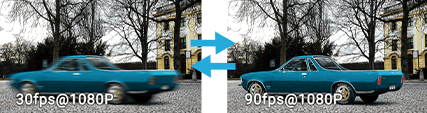

90fps High Frame Rate

With the industry leading frame rate reaching 90fps, Milesight Network Camera can easily catch images with no latency despite of the high-speed movement.

AI high frame rate

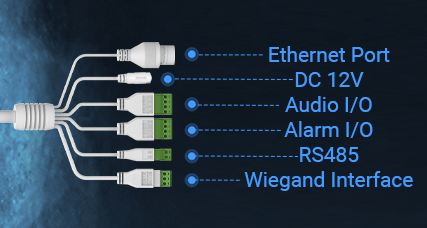

Versatile Interfaces

Several interfaces such as Wiegand, RS485, DC, Audio I/O and Alarm I/O are available in the Multi-interface Version, offering more choices for easy management and various needs.

bracket

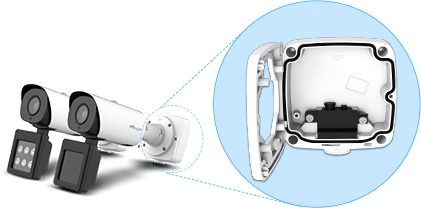

Integrated Junction Box(Optional)

The creative clamshell design minimizes the installation troubles and enlarges the space to make cable connection a piece of cake.

bullet camera junction box

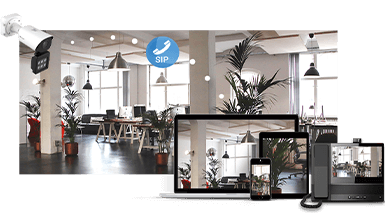

SIP/VoIP Support

Milesight NDAA Supplement Light AI LPR 4X Pro Bullet Plus Camera features industry leading SIP/VoIP function and video streaming for mobile phones and video phones.

SIP camrea
  • MS-C2866-X4TLWA
Camera Name 2MP Supplement Light AI LPR 4X Pro Bullet Plus Network Camera
Image Sensor 1/2" Progressive Scan CMOS
Min. Illumination Color: 0.001Lux @F1.2, Color: 0.002Lux @F1.6, B/W: 0Lux with IR on
WDR 120dB Super WDR
Shutter Time 1/100000s∼1s
Day/Night Mode Day/Night/Auto/Customize/Schedule
S/N >55dB
Lens Lens 8~32mm, 4X Optical Zoom
Field of View H44°~H13°/D51°~D15°/V25°~V7°
Mount Φ14
Focus Control Auto/Manual
Aperture F1.6~F1.7
Iris Control Auto
LPR Max. Vehicle Speed 200km/h
Recognition Accuracy >95%
Coverage Support simultaneous detection of 4 regions
Smart Traffic Detection License Plate Recognition, Plate Type Classification, Plate Color Recognition, Vehicle Type Classification, Vehicle Color Recognition
Illuminator Supplement Light IR LED Light or White LED Light
Light Bead 9 (For IR LED Light)/6 (For White LED Light)
Illumination Distance Up to 40m
Light Control Auto/Always On/Off/Customize
Video Max. Image Resolution 1920x1080
Primary Stream 60Hz/50Hz: 90fps@(1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream 60Hz/50Hz: 90fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x180)
Tertiary Stream 60Hz: 30fps@(1280x720, 704x576, 640x480, 640x360, 320x240, 320x180)
50Hz: 25fps@(1280x720, 704x576, 640x480, 640x360, 320x240, 320x180)
Video Compression H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate 16Kbps∼16Mbps (CBR/VBR Adjustable)
Privacy Masking Up to 24 areas
ROI Up to 8 areas
Image Settings Saturation/Brightness/Contrast/Sharpness
Audio Audio Compression G.711/AAC/G.722/G.726
Audio Sampling Rate 8/16/32/44.1/48KHz
Audio Bit Rate 16~256kbps
Two-way Audio Support
Interface Ethernet 1*RJ45 10M/100M Ethernet Port
Audio I/O 1/1
Alarm I/O 1/1
Wiegand Support
Network Network Storage NAS(Support NFS, SMB/CIFS), ANR
Network Protocols IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
System Storage Support microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced Function BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP Support Yes, Voice&Video-over-IP
Event Trigger Black/White List, Motion Detection, Network Disconnection, External Input, Audio Alarm, etc.
Event Action FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc.
System Compatibility ONVIF Profile G & Q & S & T, API
General Working Temperature -40℃∼60℃
Working Humidity 5~90%(Non-condensing)
Power Supply DC 12V/3A±10%
Power Consumption 4W MAX, 33W MAX (For IR LED Light), 31W MAX (For White LED Light)
Weather Proof Up to IP67-rated for Weather-resistant Performance
Housing Vandal-proof IK10-rated Metal Housing (Without Supplement Light)
Surge Protection 4KV
Dimensions 320mmX134mmX126mm, 320mmX134mmX231mm (With Supplement Light)
Weight 1445.8g, 2100g (With Supplement Light)
Warranty 3/5 Years
  • * Naming Convention
  • T - High Frame Rate (90fps)
  • F - Motorized Vari-focal Lens
  • I - P-Iris Supported
  • P - PoE Supported
  • L - LPR Supported
  • W - Supplement Light Supported
  • A - AI Series
