Leading-edge H.265 Compression
Plug and Play
Milesight 32-CH H.265 PoE NVR 7000 features 16 independent PoE ports for easy connection and configuration of network cameras, which will provide power to the camera while streaming video/audio/data over one single cable. The NVR will automatically detect, configure and play the live view of the network cameras once the cable is plugged, greatly eliminating the need for much time and expertise and achieving a virtually hassle-free installation process.
4K Video Viewing Experience
Milesight 4K H.265 PoE NVR 7000 Series introduces a whole new more smooth operation interface. When direct access to 4K network cameras, it can decode 4K real-time video and recording to provide users with ultra-high-definition video viewing experience.
Powerful Decoding and Recording Performance
Milesight 4K H.265 PoE NVR 7000 Series is an ideal for those applications requiring robust decoding and recording performance, for this series can support synchronously decoding 4-CH 4K UHD, 8-CH 4MP, 16-CH 1080P and 32-CH 720P network cameras, and synchronously recording up to 32-CH 5MP high resolution cameras.

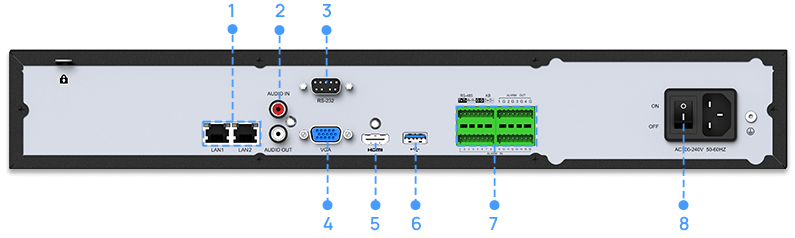

Milesight 4K H.265 PoE NVR 7000 Series comes with a whole array of ports such as an HDMI port, a VGA port, 3 USB ports, 16 PoE ports, Alarm I/O, Audio I/O and a LAN port, etc. The full set of interfaces provide all necessary features for effective surveillance.
Optimized Hard Disk Installation
Hardware components are optimized to meet the demands for convenient and stable hard disk installation. With the 4 HDDs tightly screwed in a bracket and the bracket locked in the slots design, the hard disks are surprisingly simpler to mount and the installation time is greatly minimized.
RAID 0/1/5/6/10 Supported
RAID (Redundant Array of Independent Disks) is a method of combining hard disks as a logical unit to achieve redundancy and greater speed of writing and reading data. There are 5 different RAID levels (0,1,5,6,10) supported by Milesight 4K H.265 PoE NVR 7000 series, which can be configured according to user’s exact project requirements for data protection and storage space, providing reliability, high availability storage.
Network Video Input
256Mbps or 200Mbps(When RAID is enabled) (Incoming)
256Mbps or 200Mbps(When RAID is enabled) (Outgoing)

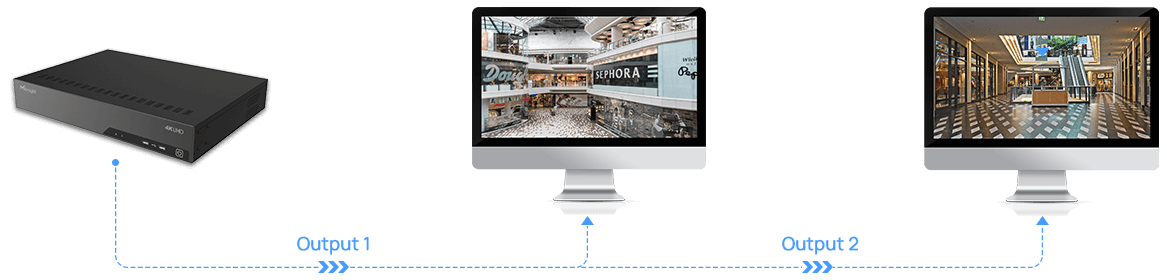

1-CH, Resolution: 3840x2160/60Hz, 3840x2160/30Hz, 1920x1080/60Hz, 1920x1080/50Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz. (HDMI supports Audio Output)
1-CH, Resolution: 1920x1080/60Hz, 1920x1080/50Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz.
4*(30fps @8MP), 5*(30fps@6MP), 6*(20fps@5MP), 8*(20fps @4MP), 10*(30fps @3MP), 16*(30fps @1080P), 32*(30fps @720P)
4*SATA HDD (3.5”)
Up to 10TB capacity for each HDD
RAID0, RAID1, RAID5, RAID6, RAID10
Manual Recording, Timing Recording, Motion Detection Recording, Alarm Recording, Motion Detection or Alarm Recording, Motion Detection and Alarm Recording
Video Playback, Image Playback
Video Backup, Image Backup
IPv4/IPv6, TCP, UDP, RTP, RTSP, RTCP, HTTP, HTTPS, DNS, DDNS, DHCP, NTP, SNTP, SMTP, SNMP, UPnP, NFS
1*USB 3.0; 2*USB 2.0
1*RS-485 Series Port for PTZ, 1*RS-232 Series Port for Console, 1*RS-485 Series Port for Keyboard
AC 100V~240V 50Hz~60Hz
≤15W(Without HDD, without enabling PoE)
Temperature: -10℃~+55℃ Humidity: 10%~90%
440mm(W)X320mm(D)X66.8mm(H), Rack Mountable Chassis(1.5U Standard)
* Naming Convention
U - 4K
P - PoE
T/H - H.265 Compression
