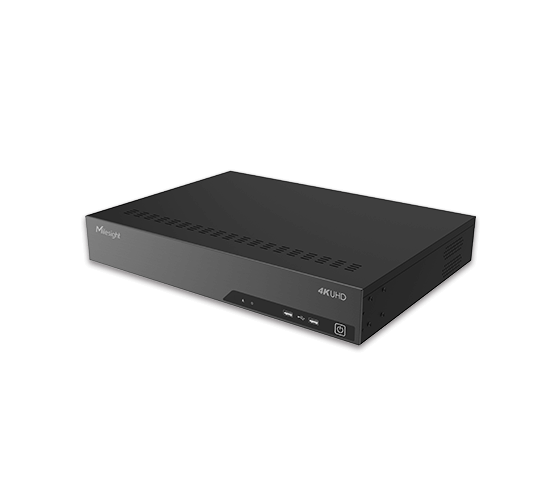

4K H.265 Pro NVR 7000 Series

16/32-CH NVR with 4K UHD Performance

front small
side small
back small
  • 16/32-CH Network Video lnput
  • 4*10TB Storage & NAS
  • 4K Decoding Capabilities
  • Enterprise ANPR Management
  • Al VCA & POS Integration
  • Multi-video Output
  • N+1 Hot Spare
  • RAID 0/1/5/6/10
  • FEATURES
  • MODELS
  • DOWNLOAD

Seamless Surveillance , Unbeatable Reliability

maxresdefault

AI VCA Management

Defined as the central management site to manage intelligent VCA, People Counting and Face Detection, it supports alarm and statistic to deliver prompt insight, helping improve video surveillance efficiency.

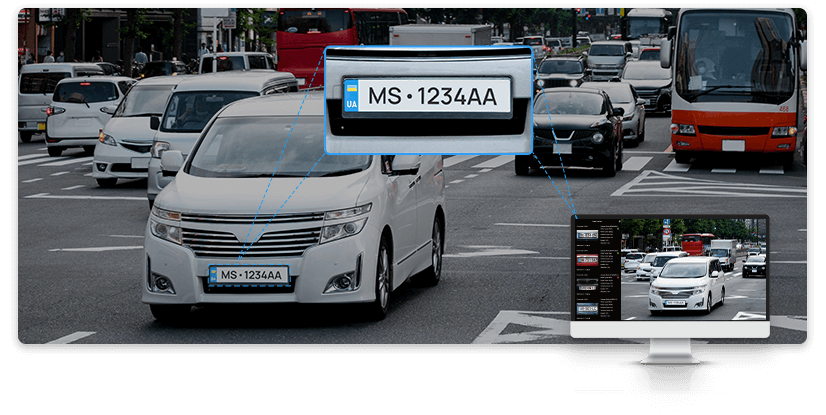

Enterprise ANPR Management

Seamlessly integrated with ANPR camera, the NVR manages massive traffic data and excels in diverse traffic management scenarios. It serves as a centralized site, providing real-time license plate previews, intelligent analysis, and comprehensive settings for enhanced functionality and control.

anpr

POS Integration

The combination of retail transaction data with surveillance videos makes it easy to check goods settlement, miscalculation and missing calculation, which is helpful to boost customer service and in-store competitive advantage.

UHD Video Display

Equipped with solid 4K decoding and display capabilities, Milesight 4K H.265 Pro NVR 7000 Series can synchronously decode up to 6-CH 4K UHD and 24-CH 1080P with the finest details to guarantee real-time video monitoring.

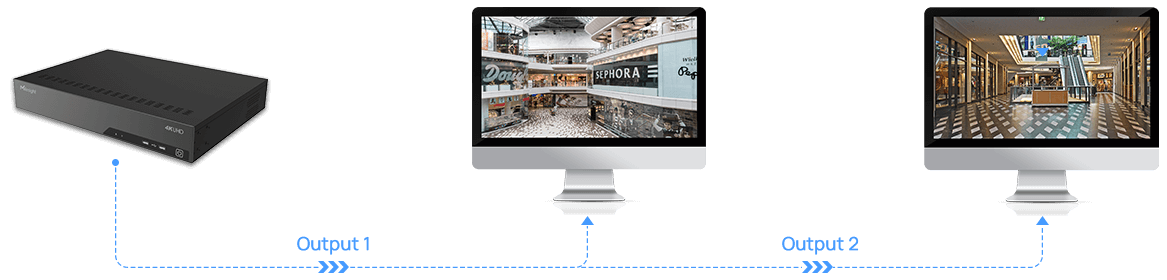

Multi-video Output

Multi-video output can be achieved in two ways: Independent Outputs allow multiple displays to show different channels independently, while Synchronous Outputs synchronize the display of the same channel across different locations.

output

Flexible Storage Options

Flexible storage options including HDD and NAS offer you unparalleled versatility to address the needs for versatile storage and meet the diverse storage needs of projects of any scale.

ANR

ANR can store video data on the camera storage card when network between IPC and NVR is disconnected and retransfer the recorded video to NVR after network recovers.

RAID 0/1/5/6/10

RAID, or Redundant Array of Independent Disks, ensures that your data remains intact. When hardware malfunctions, the NVR automatically switches to a redundant drive, eliminating downtime and ensuring continuous recording without disruption.

hot spare

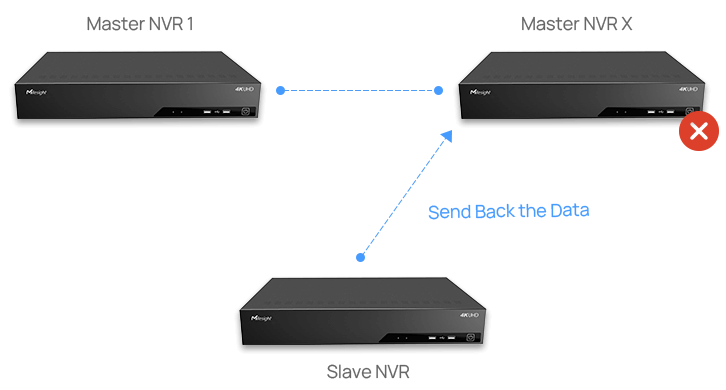

N+1 Hot Spare

N+1 Hot Spare offers a proactive approach to data security by providing an extra layer of redundancy, ensuring uninterrupted recording and eliminating any downtime.

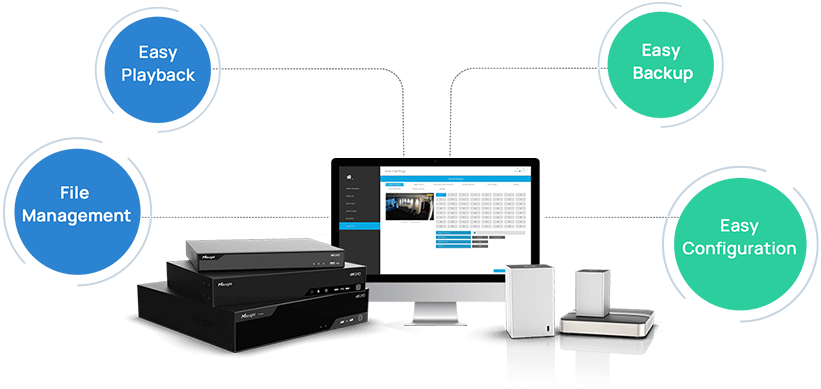

Easy-to-use Design

Featuring a range of functions including Easy Playback, Easy Backup, File Management and Easy Configuration, Milesight's NVR is made to lower the learning costs no matter for a newcomer or trained expert.

easy to use
lan

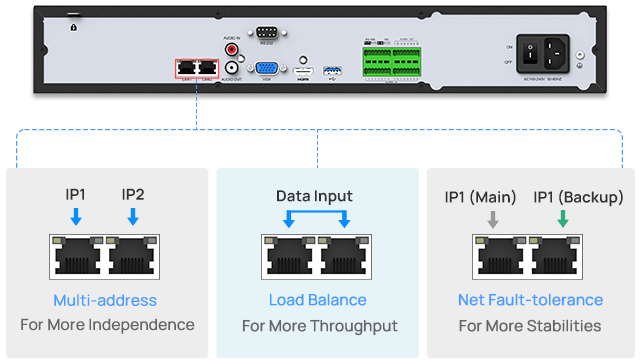

Dual Lan Giga
Network Ports

Dual network ports provide three network working modes for more independence, more throughput or more stabilities according to the particular application and needs.

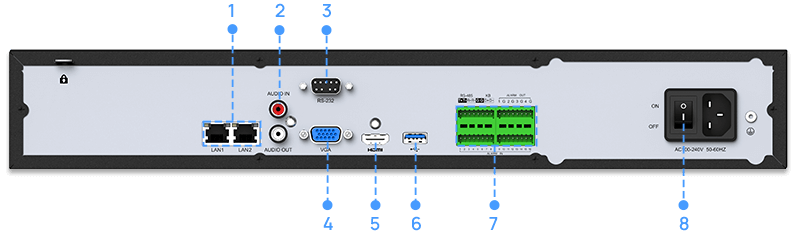

Versatile Interfaces

Milesight 4K H.265 Pro NVR 7000 Series comes with a whole array of ports such as an HDMI port, a VGA port, 3 USB ports, Alarm I/O, Audio I/O and 2 LAN ports. The full set of interfaces provides all necessary features for effective surveillance.

interface
  • 1. Ethernet Port
  • 2. Audio I/O
  • 3. Console
  • 4. VGA
  • 5. HDMI
  • 6. USB
  • 7. Alarm I/O
  • 8. Power

Specifications

Input
Network Video Input16-CH
Bandwidth Requirement160Mbps (Incoming)160Mbps (Outgoing)
Output
HDMI Output1-CH,Resolution: 3840x2160/60Hz, 3840x2160/30Hz, 1920x1080/60Hz, 1920x1080/50Hz, 1280x1024/60Hz,1280x720/60Hz, 1024x768/60Hz HDMI Supports Audio Output
VGA Output1-CH,Resolution: 1920x1080/60Hz, 1920x1080/50Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
Dual StreamSupport
Recording Resolution12MP/8MP/6MP/5MP/4MP/3MP/1080P/ UXGA/720P/D1/VGA/CIF/QCIF
Synchronous Playback6*(30fps @8MP), 8*(30fps @6MP), 9*(30fps @5MP),12*(30fps @4MP), 16*(30fps @3MP), 16*(30fps @1080P), 16*(30fps @720P),16*(30fps @D1)
Format
Video CompressionH.265+/H.265(HEVC)/H.264+/H.264
Audio CompressionG.711/AAC/G.722/G.726
Storage
SATA4*SATA HDD (3.5”)
CapacityUp to 20TB capacity for each HDD
Disk Array
Array TypeRAID0, RAID1, RAID5, RAID6, RAID10
Record
Recording TypeContinuous, Event (Motion Detection, Alarm, VCA, Smart Analysis)
Snapshot TypeContinuous, Event (Motion Detection, Alarm, VCA, Smart Analysis)
Playback TypeGeneral Playback, Event Playback, Tag Playback, Split Playback, Picture Playback
BackupVideo backup, Image Backup
Network
Network ProtocolsIPv4/IPv6, TCP, UDP, RTP, RTSP, RTCP, HTTP, HTTPS, DNS, DDNS, DHCP, NTP, SNTP, SMTP, SNMP, UPnP, NFS
Interface
Network Interface2*RJ45 10/100/1000Mbps
USB Interface1*USB 3.0; 2*USB 2.0
Serial Interface1*RS-485 Series Port for PTZ, 1*RS-232 Series Port for Console, 1*RS-485 Series Port for Keyboard
Audio Input/Output1*RCA/1*RCA
Alarm Input16-CH
Alarm Output4-CH
General
CompatibilityONVIF, API
Advanced FunctionANR, N+1 Hot Spare
ANPRSupport
Video AnalysisRegion Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, People Counting,Object Left, Object Removed
Keyboard ControlMilesight Keyboard(MS-K01)
Power SupplyAC 100V∼240V 50Hz∼60Hz
Consumption≤15W(Without HDD)
Working ConditionsTemperature: -10℃∼+55℃ / Humidity: 10%∼90%
Dimensions440mm(W)X320mm(D)X66.8mm(H), Rack Mountable Chassis (1.5U Standard)
Weight4.1Kg
Warranty3/5 Years

* Naming Convention
U - 4K
H/G - H.265 Compression

Input
Network Video Input32-CH
Bandwidth Requirement256Mbps or 200Mbps(When RAID is enabled) (Incoming)256Mbps or 200Mbps(When RAID is enabled) (Outgoing)
Output
HDMI Output1-CH,Resolution: 3840x2160/60Hz, 3840x2160/30Hz, 1920x1080/60Hz, 1920x1080/50Hz, 1280x1024/60Hz,1280x720/60Hz, 1024x768/60Hz HDMI Supports Audio Output
VGA Output1-CH,Resolution: 1920x1080/60Hz, 1920x1080/50Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
Dual StreamSupport
Recording Resolution12MP/8MP/6MP/5MP/4MP/3MP/1080P/ UXGA/720P/D1/VGA/CIF/QCIF
Synchronous Playback6*(30fps @8MP),8*(30fps @6MP), 9*(30fps @5MP), 12*(30fps @4MP), 16*(30fps@3MP), 24*(30fps@1080P), 32*(30fps@720P),32*(30fps@D1)
Format
Video CompressionH.265+/H.265(HEVC)/H.264+/H.264
Audio CompressionG.711/AAC/G.722/G.726
Storage
SATA4*SATA HDD (3.5”)
CapacityUp to 20TB capacity for each HDD
Disk Array
Array TypeRAID0, RAID1, RAID5, RAID6, RAID10
Record
Recording TypeContinuous, Event (Motion Detection, Alarm, VCA, Smart Analysis)
Snapshot TypeContinuous, Event (Motion Detection, Alarm, VCA, Smart Analysis)
Playback TypeGeneral Playback, Event Playback, Tag Playback, Split Playback, Picture Playback
BackupVideo backup, Image Backup
Network
Network ProtocolsIPv4/IPv6, TCP, UDP, RTP, RTSP, RTCP, HTTP, HTTPS, DNS, DDNS, DHCP, NTP, SNTP, SMTP, SNMP, UPnP, NFS
Interface
Network Interface2*RJ45 10/100/1000Mbps
USB Interface1*USB 3.0; 2*USB 2.0
Serial Interface1*RS-485 Series Port for PTZ, 1*RS-232 Series Port for Console, 1*RS-485 Series Port for Keyboard
Audio Input/Output1*RCA/1*RCA
Alarm Input16-CH
Alarm Output4-CH
General
CompatibilityONVIF, API
Advanced FunctionANR, N+1 Hot Spare
ANPRSupport
Video AnalysisRegion Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, People Counting, Object Left, Object Removed
Keyboard ControlMilesight Keyboard(MS-K01)
Power SupplyAC 100V∼240V 50Hz∼60Hz
Consumption≤15W(Without HDD)
Working ConditionsTemperature: -10℃∼+55℃ / Humidity: 10%∼90%
Dimensions440mm(W)X320mm(D)X66.8mm(H), Rack Mountable Chassis (1.5U Standard)
Weight4.1Kg
Warranty3/5 Years

* Naming Convention
U - 4K
H/G - H.265 Compression

Input
Network Video Input16-CH
Bandwidth Requirement160Mbps (Incoming)160Mbps (Outgoing)
Output
HDMI Output1-CH, Resolution: 3840x2160/60Hz, 3840x2160/30Hz, 1920x1080/60Hz, 1920x1080/50Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz. (HDMI supports Audio Output)
VGA Output1-CH, Resolution: 1920x1080/60Hz, 1920x1080/50Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz.
Dual StreamSupport
Recording Resolution12MP/8MP/6MP/5MP/4MP/3MP/1080P/ UXGA/720P/D1/VGA/CIF/QCIF
Synchronous Playback4*(30fps @8MP), 5*(30fps@6MP), 6*(30fps@5MP), 8*(30fps @4MP), 10*(30fps @3MP), 16*(30fps @1080P), 16*(30fps @720P)
Format
Video CompressionH.265+/H.265(HEVC)/H.264+/H.264
Audio CompressionG.711/AAC/G.722/G.726
Storage
SATA4*SATA HDD (3.5”)
CapacityUp to 20TB capacity for each HDD
Disk Array
Array TypeRAID0, RAID1, RAID5, RAID6, RAID10
Record
Recording TypeContinuous, Event (Motion Detection, Alarm, VCA, Smart Analysis)
Snapshot TypeContinuous, Event (Motion Detection, Alarm, VCA, Smart Analysis)
Playback TypeGeneral Playback, Event Playback, Tag Playback, Split Playback, Picture Playback
BackupVideo backup, Image Backup
Network
Network ProtocolsIPv4/IPv6, TCP, UDP, RTP, RTSP, RTCP, HTTP, HTTPS, DNS, DDNS, DHCP, NTP, SNTP, SMTP, SNMP, UPnP, NFS
Interface
Network Interface2*RJ45 10/100/1000Mbps
USB Interface1*USB 3.0; 2*USB 2.0
Serial Interface1*RS-485 Series Port for PTZ, 1*RS-232 Series Port for Console, 1*RS-485 Series Port for Keyboard
Audio Input/Output1*RCA/1*RCA
Alarm Input16-CH
Alarm Output4-CH
General
CompatibilityONVIF, API
Advanced FunctionANR, N+1 Hot Spare
ANPRSupport
Video AnalysisRegion Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, People Counting, Object Left, Object Removed
Keyboard ControlMilesight Keyboard(MS-K01)
Power SupplyAC 100V∼240V 50Hz∼60Hz
Consumption≤15W(Without HDD)
Working ConditionsTemperature: -10℃∼+55℃ / Humidity: 10%∼90%
Dimensions440mm(W)X320mm(D)X66.8mm(H), Rack Mountable Chassis (1.5U Standard)
Weight4.1Kg
Warranty3/5 Years

* Naming Convention
U - 4K
H/G - H.265 Compression

Input
Network Video Input32-CH
Bandwidth Requirement256Mbps or 200Mbps(When RAID is enabled) (Incoming)256Mbps or 200Mbps(When RAID is enabled) (Outgoing)
Output
HDMI Output1-CH, Resolution: 3840x2160/60Hz, 3840x2160/30Hz, 1920x1080/60Hz, 1920x1080/50Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz. (HDMI supports Audio Output)
VGA Output1-CH, Resolution: 1920x1080/60Hz, 1920x1080/50Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz.
Dual StreamSupport
Recording Resolution12MP/8MP/6MP/5MP/4MP/3MP/1080P/ UXGA/720P/D1/VGA/CIF/QCIF
Synchronous Playback4*(30fps @8MP), 5*(30fps@6MP), 6*(30fps@5MP), 8*(30fps @4MP), 10*(30fps @3MP), 16*(30fps @1080P), 32*(30fps @720P)
Format
Video CompressionH.265+/H.265(HEVC)/H.264+/H.264
Audio CompressionG.711/AAC/G.722/G.726
Storage
SATA4*SATA HDD (3.5”)
CapacityUp to 20TB capacity for each HDD
Disk Array
Array TypeRAID0, RAID1, RAID5, RAID6, RAID10
Record
Recording TypeContinuous, Event (Motion Detection, Alarm, VCA, Smart Analysis)
Snapshot TypeContinuous, Event (Motion Detection, Alarm, VCA, Smart Analysis)
Playback TypeGeneral Playback, Event Playback, Tag Playback, Split Playback, Picture Playback
BackupVideo backup, Image Backup
Network
Network ProtocolsIPv4/IPv6, TCP, UDP, RTP, RTSP, RTCP, HTTP, HTTPS, DNS, DDNS, DHCP, NTP, SNTP, SMTP, SNMP, UPnP, NFS
Interface
Network Interface2*RJ45 10/100/1000Mbps
USB Interface1*USB 3.0; 2*USB 2.0
Serial Interface1*RS-485 Series Port for PTZ, 1*RS-232 Series Port for Console, 1*RS-485 Series Port for Keyboard
Audio Input/Output1*RCA/1*RCA
Alarm Input16-CH
Alarm Output4-CH
General
CompatibilityONVIF, API
Advanced FunctionANR, N+1 Hot Spare
ANPRSupport
Video AnalysisRegion Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, People Counting, Object Left, Object Removed
Keyboard ControlMilesight Keyboard(MS-K01)
Power SupplyAC 100V∼240V 50Hz∼60Hz
Consumption≤15W(Without HDD)
Working ConditionsTemperature: -10℃∼+55℃ / Humidity: 10%∼90%
Dimensions440mm(W)X320mm(D)X66.8mm(H), Rack Mountable Chassis (1.5U Standard)
Weight4.1Kg
Warranty3/5 Years

* Naming Convention
U - 4K
H/G - H.265 Compression
