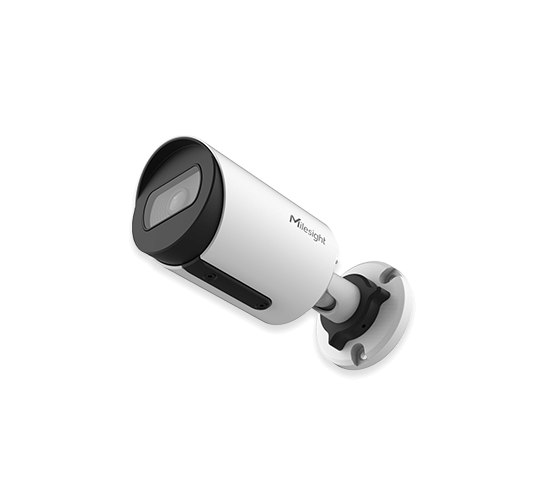

AI Weather-proof Mini Bullet
Network Camera

Tiny yet Powerful & Smart

product 1 small
product 2 small
product 3 small
  • 2/5/8MP
  • AI Deep Learning
  • 0.005Lux Ultra Low-light
  • Smart IR II with 50m IR Distance
  • 60fps High Frame Rate
  • IP67 & IK10
  • Versatile Interfaces (Optional)
  • FEATURES
  • MODELS
  • ACCESSORIES
  • DOWNLOAD

Compact but Powerful, Rain or Shine

maxresdefault

AI Empowers Security

Milesight AI Camera with deep learning AI algorithms can intelligently filter objects to focus on human and vehicle detection, fitting into various situations to help level up the monitoring efficiency and security.

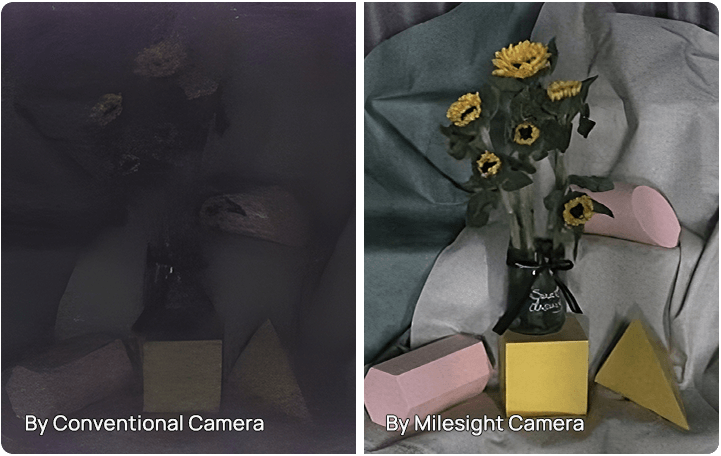

0.005lux ultra low light
4k

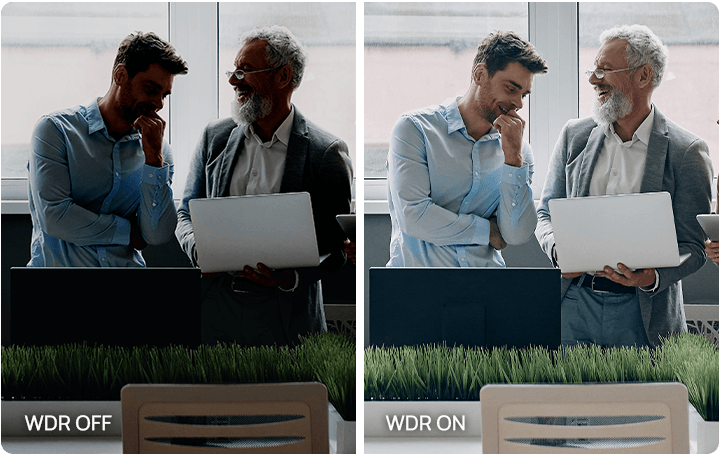

wdr

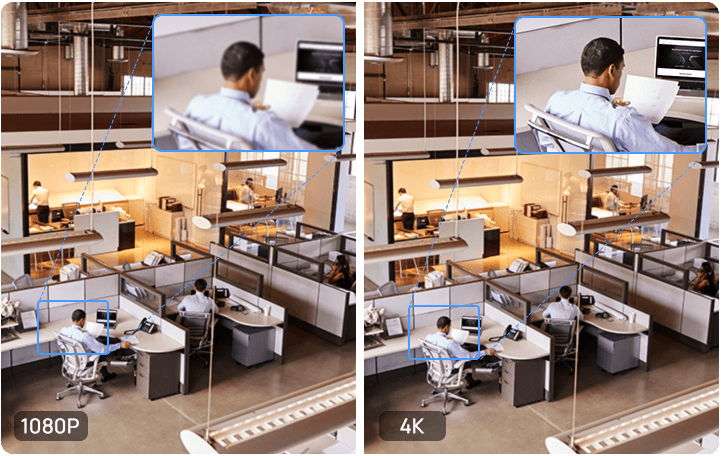

Superior Image Quality

With advanced image processing algorithms and SONY STARVIS sensor, it achieves excellent image performance, even in challenging lighting conditions. Its 0.005Lux Ultra Low-light, 140dB Super WDR and up to 4K Video Viewing Experience make it well-suited for various special circumstances.

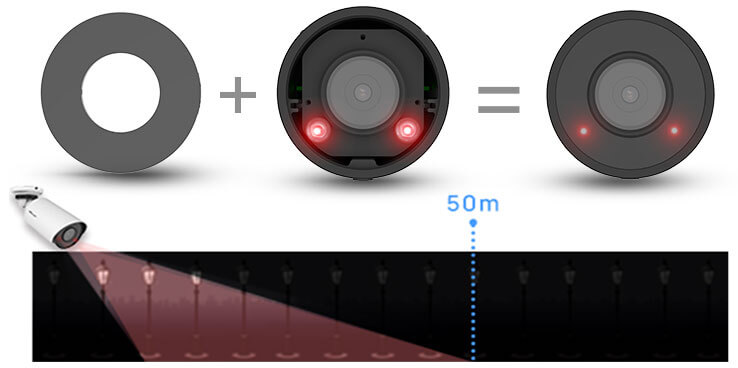

Revolutionary IR
Performance

To maximize the IR performance, the camera innovated both in the structure and technology. The advanced Smart IR II technology with 50m IR distance guarantees IR performance with adjustable illumination intensity, while the IR anti-reflection panel greatly increases the infrared light transmittance.

revolutionary ir performance

IP67 & IK10

Equipped with industry-leading IP67-rated weather-proofing and IK10-rated vandal-proofing, the camera is well protected against adverse impacts to ensure the robust performance.

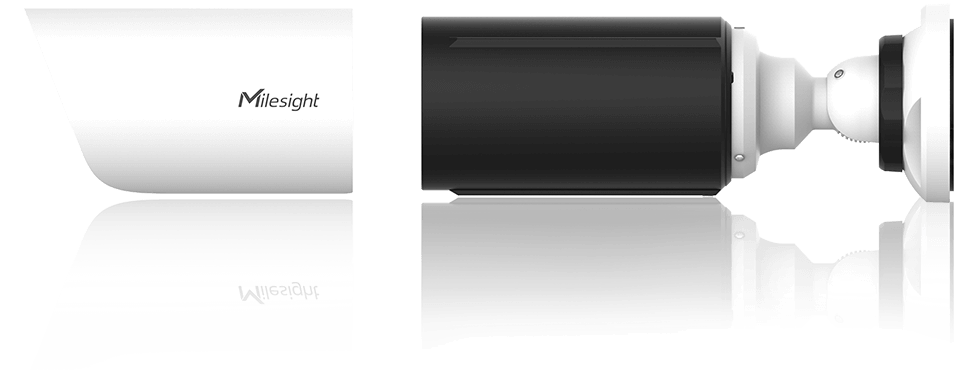

Unique Sunshield Design

This stylishly designed camera has a unique outdoor housing sunshield that almost encircles the camera body, which effectively blocks the sun from entering the lens path and offers great thermal insulation.

unique sunshield design
built in poe module

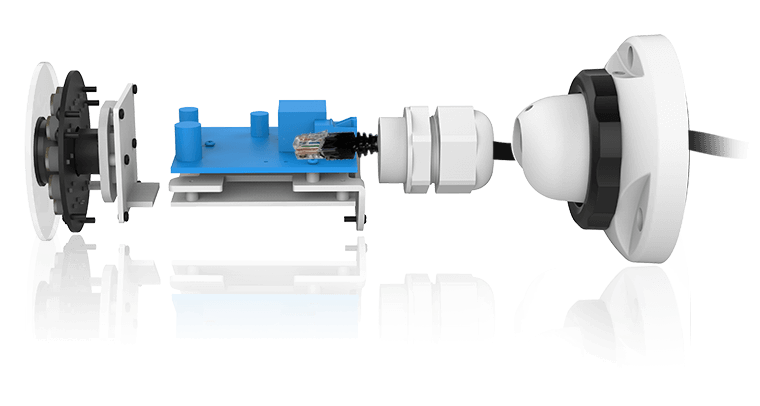

Built-in PoE Module

The camera incorporates IEEE 802.3af Power over Ethernet module inside the body which offers easy installation for Standard Version by providing power and networking connectivity with a single cable.

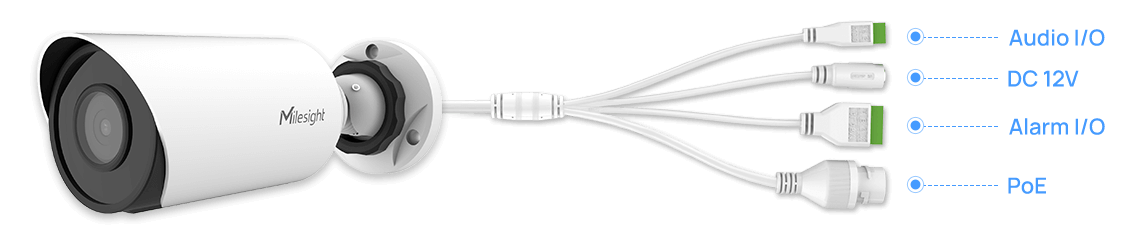

Versatile Interfaces (Optional)

Several interfaces such as PoE, DC, Audio I/O and Alarm I/O are available in the Multi-interface Version, offering more choices for easy management and various needs.

versatile interfaces
sip voip

Easily Adjustable
3-Axis Bracket

The camera is easy to install on a wall or ceiling. It features 3-axis bracket which provides a robust mounting platform for tidy installation and camera angle adjustments on a 3-axis plane.

SIP/VoIP Support

Milesight AI Camera features industry leading SIP/VoIP function and video
streaming for mobile phones and video phones.

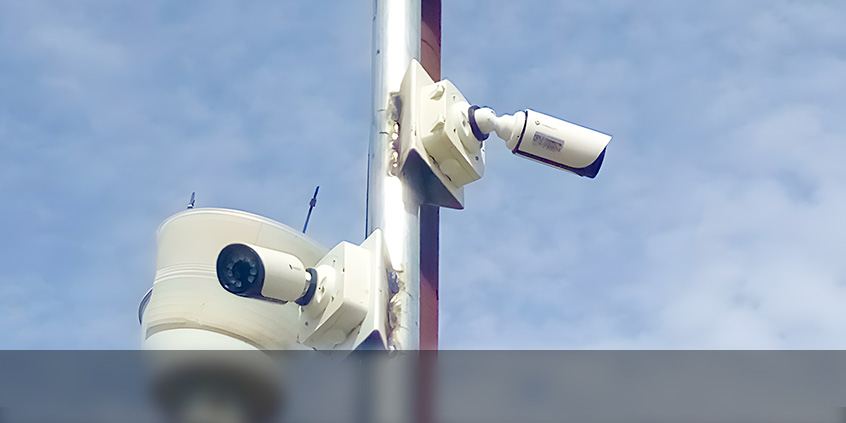

Success Story

Specifications

NDAA

Non-NDAA

Camera
NameAI Weather-proof Mini Bullet Network Camera
Image Sensor1/2.8″ Progressive Scan CMOS
Min. IlluminationColor: 0.005Lux@F1.6
B/W: 0Lux with IR on
WDR140dB Super WDR
Lens4mm/2.8mm/6mm@F1.6
MountM12
Field of ViewH91°/D106°/V50°(4mm)
H111°/D128°/V61°(2.8mm)
H55°/D63°/V32°(6mm)
Shutter Time1/100000s~1s
IR DistanceUp to 50m
Day/Night ModeDay/Night/Auto/Customize/Schedule
S/N>55dB
Video
Max. Image Resolution1920x1080
Primary Stream60Hz: 90fps@(1920x1080)(Optional for T Series), 60fps@(1920x1080, 1280x960, 1280x720, 704x576)
50Hz: 90fps@(1920x1080)(Optional for T Series), 50fps@(1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream60Hz: 60fps@(704x576, 640x480, 640x360, 352x288, 320x240)
50Hz: 50fps@(704x576, 640x480, 640x360, 352x288, 320x240)
Tertiary Stream60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 352x288, 320x240)
50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 352x288, 320x240)
Video CompressionH.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate16Kbps~16Mbps(CBR/VBR Adjustable)
Privacy MaskingUp to 8 Areas (Mask Area and Mosaic Area are optional)
ROIUp to 8 areas
Image SettingBrightness/Contrast/Saturation/Sharpness
Interface
Ethernet1*RJ45 10M/100M Ethernet Port
Audio I/O1/1 (Multi-interface Version)
Alarm I/O1/1 (Multi-interface Version)
Network
Network StorageNAS(Support NFS, SMB/CIFS), ANR
ProtocolIPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL, TLS 1.2
Audio
Audio CompressionG.711/AAC/G.722/G.726
Audio Sampling Rate8/16/32/44.1/48KHz
Audio Bit Rate16~256kbps
Two-way AudioSupport
Intelligent Analytics
Video AnalysisIntrusion Detection, Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
Face Detection&Face Attribute RecognitionDetect and capture faces, get real-time snapshots; The attributes include Age, Gender, Glasses, Mask and Cap; Support Faces Privacy Mode, the detected faces in the face detection area will be mosaic automatically.
Object Counting & ReportCount the number of objects crossing the line, optionally human and vehicle,
Support regional people counting for up to 4 detection areas
System
StorageSupport microSD/SDHC/SDXC Card Local Storage, up to 1TB
Advanced FunctionHeat Map, BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP SupportYes, Voice & Video-over-IP
Event TriggerMotion Detection, Network Disconnection, etc.;
Motion Detection, Network Disconnection, External Input, Audio Alarm, etc. (Multi-interface Version)
Event ActionFTP Upload, SMTP Upload, SD Card Record, SIP Phone, HTTP Notification, etc.;
FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc. (Multi-interface Version)
System CompatibilityONVIF Profile G & M & S & T, API
General
Working Temperature-40℃~60℃
Working Humidity0~95%(Non-condensing)
Power SupplyPoE (802.3af); PoE (802.3af) / DC 12V±10% (Multi-interface Version)
Power Consumption7W MAX; 10W MAX (With IR on)
Weather ProofUp to IP67-rated for Weather-resistant Performance
HousingVandal-proof IK10-rated Metal Housing
Weight750g
DimensionsΦ76mmX214.5mm
Warranty3/5 Years

Naming Convention
R - High Frame Rate (60fps)
P - PoE Supported
A/C/D/E - AI Series

Camera
NameAI Weather-proof Mini Bullet Network Camera
Image Sensor1/2.8″ Progressive Scan CMOS
Min. IlluminationColor: 0.008Lux@F1.6
B/W: 0Lux with IR on
WDR120dB Super WDR
Lens4mm/2.8mm/6mm@F1.6
MountM12
Field of ViewH86°/D108°/V63°(4mm)
H105°/D131°/V78°(2.8mm)
H52°/D63°/V40°(6mm)
Shutter Time1/100000s~1s
IR DistanceUp to 50m
Day/Night ModeDay/Night/Auto/Customize/Schedule
S/N>55dB
Video
Max. Image Resolution2592x1944
Primary Stream60Hz: 30fps@(2592x1944, 2592x1520), 45fps@(2048x1536), 60fps@(1920x1080, 1280x960, 1280x720)
50Hz: 25fps@(2592x1944, 2592x1520), 45fps@(2048x1536), 50fps@(1920x1080, 1280x960, 1280x720)
Secondary Stream60Hz: 30fps@(704x576, 640x480, 640x360, 352x288, 320x240)
50Hz: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240)
Tertiary Stream60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 352x288, 320x240)
50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 352x288, 320x240)
Video CompressionH.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate16Kbps~16Mbps(CBR/VBR Adjustable)
Privacy MaskingUp to 8 Areas (Mask Area and Mosaic Area are optional)
ROIUp to 8 areas
Image SettingBrightness/Contrast/Saturation/Sharpness
Interface
Ethernet1*RJ45 10M/100M Ethernet Port
Audio I/O1/1 (Multi-interface Version)
Alarm I/O1/1 (Multi-interface Version)
Network
Network StorageNAS(Support NFS, SMB/CIFS), ANR
ProtocolIPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL, TLS 1.2
Audio
Audio CompressionG.711/AAC/G.722/G.726
Audio Sampling Rate8/16/32/44.1/48KHz
Audio Bit Rate16~256kbps
Two-way AudioSupport
Intelligent Analytics
Video AnalysisIntrusion Detection, Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
Face Detection&Face Attribute RecognitionDetect and capture faces, get real-time snapshots; The attributes include Age, Gender, Glasses, Mask and Cap; Support Faces Privacy Mode, the detected faces in the face detection area will be mosaic automatically.
Object Counting & ReportCount the number of objects crossing the line, optionally human and vehicle,
Support regional people counting for up to 4 detection areas
System
StorageSupport microSD/SDHC/SDXC Card Local Storage, up to 1TB
Advanced FunctionHeat Map, BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP SupportYes, Voice & Video-over-IP
Event TriggerMotion Detection, Network Disconnection, etc.;
Motion Detection, Network Disconnection, External Input, Audio Alarm, etc. (Multi-interface Version)
Event ActionFTP Upload, SMTP Upload, SD Card Record, SIP Phone, HTTP Notification, etc.;
FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc. (Multi-interface Version)
System CompatibilityONVIF Profile G & M & S & T, API
General
Working Temperature-40℃~60℃
Working Humidity0~95%(Non-condensing)
Power SupplyPoE (802.3af); PoE (802.3af) / DC 12V±10% (Multi-interface Version)
Power Consumption6W MAX
10W MAX (With IR on)
Weather ProofUp to IP67-rated for Weather-resistant Performance
HousingVandal-proof IK10-rated Metal Housing
Weight750g
DimensionsΦ76mmX214.5mm
Warranty3/5 Years

Naming Convention
R - High Frame Rate (60fps)
P - PoE Supported
A/C/D/E - AI Series

Camera
NameAI Weather-proof Mini Bullet Network Camera
Image Sensor1/2.8″ Progressive Scan CMOS
Min. IlluminationColor: 0.012Lux@F1.6
B/W: 0Lux with IR on
WDR120dB Super WDR
Lens4mm/2.8mm/6mm@F1.6
MountM12
Field of ViewH91°/D106°/V50°(4mm)
H110°/D126°/V60°(2.8mm)
H55°/D63°/V32°(6mm)
Shutter Time1/100000s~1s
IR DistanceUp to 50m
Day/Night ModeDay/Night/Auto/Customize/Schedule
S/N>55dB
Video
Max. Image Resolution3840x2160
Primary Stream60Hz: 30fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)
50Hz: 25fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream60Hz: 30fps@(704x576, 640x480, 640x360, 352x288, 320x240)
50Hz: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240)
Tertiary Stream60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 352x288, 320x240)
50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 352x288, 320x240)
Video CompressionH.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate16Kbps~16Mbps(CBR/VBR Adjustable)
Privacy MaskingUp to 8 Areas (Mask Area and Mosaic Area are optional)
ROIUp to 8 areas
Image SettingBrightness/Contrast/Saturation/Sharpness
Interface
Ethernet1*RJ45 10M/100M Ethernet Port
Audio I/O1/1 (Multi-interface Version)
Alarm I/O1/1 (Multi-interface Version)
Network
Network StorageNAS(Support NFS, SMB/CIFS), ANR
ProtocolIPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL, TLS 1.2
Audio
Audio CompressionG.711/AAC/G.722/G.726
Audio Sampling Rate8/16/32/44.1/48KHz
Audio Bit Rate16~256kbps
Two-way AudioSupport
Intelligent Analytics
Video AnalysisIntrusion Detection, Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
Face Detection&Face Attribute RecognitionDetect and capture faces, get real-time snapshots; The attributes include Age, Gender, Glasses, Mask and Cap; Support Faces Privacy Mode, the detected faces in the face detection area will be mosaic automatically.
Object Counting & ReportCount the number of objects crossing the line, optionally human and vehicle,
Support regional people counting for up to 4 detection areas
System
StorageSupport microSD/SDHC/SDXC Card Local Storage, up to 1TB
Advanced FunctionHeat Map, BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP SupportYes, Voice & Video-over-IP
Event TriggerMotion Detection, Network Disconnection, etc.;
Motion Detection, Network Disconnection, External Input, Audio Alarm, etc. (Multi-interface Version)
Event ActionFTP Upload, SMTP Upload, SD Card Record, SIP Phone, HTTP Notification, etc.;
FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc. (Multi-interface Version)
System CompatibilityONVIF Profile G & M & S & T, API
General
Working Temperature-40℃~60℃
Working Humidity0~95%(Non-condensing)
Power SupplyPoE (802.3af); PoE (802.3af) / DC 12V±10% (Multi-interface Version)
Power Consumption7W MAX 10W MAX (With IR on)
Weather ProofUp to IP67-rated for Weather-resistant Performance
HousingVandal-proof IK10-rated Metal Housing
Weight750g
DimensionsΦ76mmX214.5mm
Warranty3/5 Years

Naming Convention
R - High Frame Rate (60fps)
P - PoE Supported
A/C/D/E - AI Series

Camera
Name2MP NDAA AI Weather-proof Mini Bullet Network Camera
Image Sensor1/2.8" Progressive Scan CMOS
Min. IlluminationColor: 0.005Lux @F1.6, B/W: 0Lux with IR on
WDR120dB Super WDR
Lens4mm/ 2.8mm/ 6mm @F1.6
MountM12
Field of ViewH91°/D106°/V50°(4mm), H111°/D128°/V61°(2.8mm), H55°/D63°/V32°(6mm)
Shutter Time1/100000s∼1s
Day/Night ModeDay/Night/Auto/Customize/Schedule
IR DistanceUp to 50m
S/N>55dB
Video
Max. Image Resolution1920x1080
Primary Stream60Hz: 30fps@(1920x1080, 1280x960, 1280x720, 704x576)
50Hz: 25fps@(1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream60Hz: 30fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192)
50Hz: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192)
Tertiary Stream60Hz: 30fps@(1280x720, 704x576, 640x480, 640x360, 352x288)
50Hz: 25fps@(1280x720, 704x576, 640x480, 640x360, 352x288)
Video CompressionH.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate16Kbps∼16Mbps (CBR/VBR adjustable)
Privacy MaskingUp to 4 areas
ROIUp to 8 areas
Image SettingsSaturation/Brightness/Contrast/Sharpness
Interface
Ethernet1*RJ45 10M/100M Ethernet Port
Network
Network StorageNAS(Support NFS, SMB/CIFS), ANR
Network ProtocolsIPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL, TLS 1.2
Intelligent Analytics
Video AnalysisRegion Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
People Counting &ReportCount the number of people entering or exiting
System
StorageSupport microSD/SDHC/SDXC Card Local Storage, up to 1TB
Advanced FunctionBLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur
SIP/VoIP SupportYes, Voice&Video-over-IP
Event TriggerMotion Detection, Network Disconnection, etc.
Event ActionFTP Upload, SMTP Upload, SD Card Record, SIP Phone, HTTP Notification, etc.
System CompatibilityONVIF Profile G & Q & S & T, API
General
Working Temperature-40℃∼60℃
Working Humidity0∼90%(Non-condensing)
Power SupplyPoE(802.3af)
Power Consumption3W MAX, 9W MAX (With IR on)
Weather ProofUp to IP67-rated for weather-resistant performance
HousingVandal-proof IK10-rated metal housing
Weight750g
DimensionsΦ76mmX214.5mm
Warranty3/5 Years

Naming Convention
R - High Frame Rate (60fps)
P - PoE Supported
A/C/D/E - AI Series

Camera
Name2MP AI Weather-proof Mini Bullet Network Camera
Image Sensor1/2.8" Progressive Scan CMOS
Min. IlluminationColor: 0.005Lux @F1.6, B/W: 0Lux with IR on
WDR120dB Super WDR
Lens4mm/ 2.8mm/ 6mm @F1.6
MountM12
Field of ViewH91°/D106°/V50°(4mm), H111°/D128°/V61°(2.8mm), H55°/D63°/V32°(6mm)
Shutter Time1/100000s∼1s
Day/Night ModeDay/Night/Auto/Customize/Schedule
IR DistanceUp to 50m
S/N>55dB
Video
Max. Image Resolution1920x1080
Primary Stream60Hz: 60fps@(1920x1080, 1280x960, 1280x720, 704x576)
50Hz: 50fps@(1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream60Hz: 60fps@(704x576, 640x480, 640x360, 352x288, 320x240)
50Hz: 50fps@(704x576, 640x480, 640x360, 352x288, 320x240)
Tertiary Stream60Hz: 30fps@(1280x720, 704x576, 640x480, 640x360, 352x288, 320x240)
50Hz: 25fps@(1280x720, 704x576, 640x480, 640x360, 352x288, 320x240)
Video CompressionH.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate16Kbps∼16Mbps (CBR/VBR adjustable)
Privacy MaskingUp to 24 areas
ROIUp to 8 areas
Image SettingsSaturation/Brightness/Contrast/Sharpness
Interface
Ethernet1*RJ45 10M/100M Ethernet Port
Audio I/O1/1(Multi-interface Version)
Alarm I/O1/1(Multi-interface Version)
Network
Network StorageNAS(Support NFS, SMB/CIFS), ANR
Network ProtocolsIPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
Audio
Audio CompressionG.711/AAC/G.722/G.726
Audio Sampling Rate8/16/32/44.1/48KHz
Audio Bit Rate16~256kbps
Two-way AudioSupport
Intelligent Analytics
Video AnalysisRegion Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
People Counting& ReportCount the number of people entering or exiting, up to 4 detection areas for regional people counting
System
StorageSupport microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced FunctionHeat Map, BLC, HLC, 2D DNR, 3D DNR, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP SupportYes, Voice&Video-over-IP
Event TriggerMotion Detection, Network Disconnection, etc.;Motion Detection, Network Disconnection, External Input, Audio Alarm, etc. (Multi-interface Version)
Event ActionFTP Upload, SMTP Upload, SD Card Record, SIP Phone, HTTP Notification, etc.;FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc. (Multi-interface Version)
System CompatibilityONVIF Profile G & Q & S & T, API
General
Working Temperature-40℃∼60℃
Working Humidity0∼90%(Non-condensing)
Power SupplyPoE(802.3af);PoE (802.3af) / DC 12V±10% (Multi-interface Version)
Power Consumption4W MAX, 9W MAX (With IR on)
Weather ProofUp to IP67-rated for weather-resistant performance
HousingVandal-proof IK10-rated metal housing
Weight750g
DimensionsΦ76mmX214.5mm
Warranty3/5 Years

Naming Convention
R - High Frame Rate (60fps)
P - PoE Supported
A/C/D/E - AI Series

Camera
Name5MP AI Weather-proof Mini Bullet Network Camera
Image Sensor1/2.8" Progressive Scan CMOS
Min. IlluminationColor: 0.008Lux @F1.6, B/W: 0Lux with IR on
WDR120dB Super WDR
Lens4mm/2.8mm/6mm @F1.6
MountM12
Field of ViewH86°/D108°/V63°(4mm), H105°/D131°/V78°(2.8mm), H52°/D63°/V40°(6mm)
Shutter Time1/100000s∼1s
Day/Night ModeDay/Night/Auto/Customize/Schedule
IR DistanceUp to 50m
S/N>55dB
Video
Max. Image Resolution2592x1944
Primary Stream60Hz: 30fps@(2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)
50Hz: 25fps@(2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream60Hz: 30fps@(704x576, 640x480, 640x360, 352x288, 320x240)
50Hz: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240)
Tertiary Stream60Hz: 30fps@(1280x720, 704x576, 640x480, 640x360, 352x288, 320x240)
50Hz: 25fps@(1280x720, 704x576, 640x480, 640x360, 352x288, 320x240)
Video CompressionH.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate16Kbps∼16Mbps (CBR/VBR adjustable)
Privacy MaskingUp to 24 areas
ROIUp to 8 areas
Image SettingsSaturation/Brightness/Contrast/Sharpness
Interface
Ethernet1*RJ45 10M/100M Ethernet Port
Audio I/O1/1(Multi-interface Version)
Alarm I/O1/1(Multi-interface Version)
Network
Network StorageNAS(Support NFS, SMB/CIFS), ANR
Network ProtocolsIPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
Audio
Audio CompressionG.711/AAC/G.722/G.726
Audio Sampling Rate8/16/32/44.1/48KHz
Audio Bit Rate16~256kbps
Two-way AudioSupport
Intelligent Analytics
Video AnalysisRegion Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
People Counting& ReportCount the number of people entering or exiting, up to 4 detection areas for regional people counting
System
StorageSupport microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced FunctionHeat Map, BLC, HLC, 2D DNR, 3D DNR, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP SupportYes, Voice&Video-over-IP
Event TriggerMotion Detection, Network Disconnection, etc.;Motion Detection, Network Disconnection, External Input, Audio Alarm, etc. (Multi-interface Version)
Event ActionFTP Upload, SMTP Upload, SD Card Record, SIP Phone, HTTP Notification, etc.;FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc. (Multi-interface Version)
System CompatibilityONVIF Profile G & Q & S & T, API
General
Working Temperature-40℃∼60℃
Working Humidity0∼90%(Non-condensing)
Power SupplyPoE(802.3af);PoE (802.3af) / DC 12V±10% (Multi-interface Version)
Power Consumption5W MAX, 9W MAX (With IR on)
Weather ProofUp to IP67-rated for weather-resistant performance
HousingVandal-proof IK10-rated metal housing
Weight750g
DimensionsΦ76mmX214.5mm
Warranty3/5 Years

Naming Convention
R - High Frame Rate (60fps)
P - PoE Supported
A/C/D/E - AI Series

Camera
Name4K AI Weather-proof Mini Bullet Network Camera
Image Sensor1/2.8" Progressive Scan CMOS
Min. IlluminationColor: 0.012Lux @F1.6, B/W: 0Lux with IR on
WDR120dB Super WDR
Lens4mm/2.8mm/6mm @F1.6
MountM12
Field of ViewH91°/D106°/V50°(4mm), H110°/D126°/V60°(2.8mm), H55°/D63°/V32°(6mm)
Shutter Time1/100000s∼1s
Day/Night ModeDay/Night/Auto/Customize/Schedule
IR DistanceUp to 50m
S/N>55dB
Video
Max. Image Resolution3840x2160
Primary Stream60Hz: 30fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)
50Hz: 25fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream60Hz: 30fps@(704x576, 640x480, 640x360, 352x288, 320x240)
50Hz: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240)
Tertiary Stream60Hz: 30fps@(1280x720, 704x576, 640x480, 640x360, 352x288, 320x240)
50Hz: 25fps@(1280x720, 704x576, 640x480, 640x360, 352x288, 320x240)
Video CompressionH.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate16Kbps∼16Mbps (CBR/VBR adjustable)
Privacy MaskingUp to 24 areas
ROIUp to 8 areas
Image SettingsSaturation/Brightness/Contrast/Sharpness
Interface
Ethernet1*RJ45 10M/100M Ethernet Port
Audio I/O1/1(Multi-interface Version)
Alarm I/O1/1(Multi-interface Version)
Network
Network StorageNAS(Support NFS, SMB/CIFS), ANR
Network ProtocolsIPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
Audio
Audio CompressionG.711/AAC/G.722/G.726
Audio Sampling Rate8/16/32/44.1/48KHz
Audio Bit Rate16~256kbps
Two-way AudioSupport
Intelligent Analytics
Video AnalysisRegion Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
People Counting& ReportCount the number of people entering or exiting, up to 4 detection areas for regional people counting
System
StorageSupport microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced FunctionHeat Map, BLC, HLC, 2D DNR, 3D DNR, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP SupportYes, Voice&Video-over-IP
Event TriggerMotion Detection, Network Disconnection, etc.;Motion Detection, Network Disconnection, External Input, Audio Alarm, etc. (Multi-interface Version)
Event ActionFTP Upload, SMTP Upload, SD Card Record, SIP Phone, HTTP Notification, etc.;FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc. (Multi-interface Version)
System CompatibilityONVIF Profile G & Q & S & T, API
General
Working Temperature-40℃∼60℃
Working Humidity0∼90%(Non-condensing)
Power SupplyPoE(802.3af);PoE (802.3af) / DC 12V±10% (Multi-interface Version)
Power Consumption5W MAX, 9W MAX (With IR on)
Weather ProofUp to IP67-rated for weather-resistant performance
HousingVandal-proof IK10-rated metal housing
Weight750g
DimensionsΦ76mmX214.5mm
Warranty3/5 Years

Naming Convention
R - High Frame Rate (60fps)
P - PoE Supported
A/C/D/E - AI Series

Camera
Name2MP AI Weather-proof Mini Bullet Network Camera
Image Sensor1/2.8" Progressive Scan CMOS
Min. IlluminationColor: 0.005Lux @F1.6, B/W: 0Lux with IR on
WDR140dB Super WDR
Lens4mm/ 2.8mm/ 6mm @F1.6
MountM12
Field of ViewH91°/D106°/V50°(4mm), H111°/D128°/V61°(2.8mm), H55°/D63°/V32°(6mm)
Shutter Time1/100000s∼1s
Day/Night ModeDay/Night/Auto/Customize/Schedule
IR DistanceUp to 50m
S/N>55dB
Video
Max. Image Resolution1920x1080
Primary Stream60Hz: 60fps@(1920x1080, 1280x960, 1280x720, 704x576)
50Hz: 50fps@(1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream60Hz: 60fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180)
50Hz: 50fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180)
Tertiary Stream60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180)
50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180)
Video CompressionH.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate16Kbps∼16Mbps (CBR/VBR adjustable)
Privacy MaskingUp to 28 areas(24 mask areas and 4 mosaic areas)
ROIUp to 8 areas
Image SettingsSaturation/Brightness/Contrast/Sharpness
Interface
Ethernet1*RJ45 10M/100M Ethernet Port
Audio I/O1/1(Multi-interface Version)
Alarm I/O1/1(Multi-interface Version)
Network
Network StorageNAS(Support NFS, SMB/CIFS), ANR
Network ProtocolsIPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
Audio
Audio CompressionG.711/AAC/G.722/G.726
Audio Sampling Rate8/16/32/44.1/48KHz
Audio Bit Rate16~256kbps
Two-way AudioSupport
Intelligent Analytics
Video AnalysisRegion Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
Face DetectionDetect and capture faces, get real-time snapshots
People Counting& ReportCount the number of people entering or exiting, up to 4 detection areas for regional people counting
System
StorageSupport microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced FunctionHeat Map, BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP SupportYes, Voice&Video-over-IP
Event TriggerMotion Detection, Network Disconnection, etc.;Motion Detection, Network Disconnection, External Input, Audio Alarm, etc. (Multi-interface Version)
Event ActionFTP Upload, SMTP Upload, SD Card Record, SIP Phone, HTTP Notification, etc.;FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc. (Multi-interface Version)
System CompatibilityONVIF Profile G & Q & S & T, API
General
Working Temperature-40℃∼60℃
Working Humidity0∼90%(Non-condensing)
Power SupplyPoE(802.3af);PoE (802.3af) / DC 12V±10% (Multi-interface Version)
Power Consumption4W MAX, 6W MAX (With IR on)
Weather ProofUp to IP67-rated for weather-resistant performance
HousingVandal-proof IK10-rated metal housing
Weight750g
DimensionsΦ76mmX214.5mm
Warranty3/5 Years

Naming Convention
R - High Frame Rate (60fps)
P - PoE Supported
A/C/D/E - AI Series

Camera
Name5MP AI Weather-proof Mini Bullet Network Camera
Image Sensor1/2.8" Progressive Scan CMOS
Min. IlluminationColor: 0.008Lux @F1.6, B/W: 0Lux with IR on
WDR120dB Super WDR
Lens4mm/2.8mm/6mm @F1.6
MountM12
Field of ViewH86°/D108°/V63°(4mm), H105°/D131°/V78°(2.8mm), H52°/D63°/V40°(6mm)
Shutter Time1/100000s∼1s
Day/Night ModeDay/Night/Auto/Customize/Schedule
IR DistanceUp to 50m
S/N>55dB
Video
Max. Image Resolution2592x1944
Primary Stream60Hz: 30fps@(2592x1944), 45fps@(2048x1536),60fps@(1920x1080, 1280x960, 1280x720, 704x576)
50Hz: 25fps@(2592x1944), 45fps@(2048x1536),50fps@(1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream60Hz: 30fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180)
50Hz: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180)
Tertiary Stream60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180)
50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180)
Video CompressionH.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate16Kbps∼16Mbps (CBR/VBR adjustable)
Privacy MaskingUp to 28 areas(24 mask areas and 4 mosaic areas)
ROIUp to 8 areas
Image SettingsSaturation/Brightness/Contrast/Sharpness
Interface
Ethernet1*RJ45 10M/100M Ethernet Port
Audio I/O1/1(Multi-interface Version)
Alarm I/O1/1(Multi-interface Version)
Network
Network StorageNAS(Support NFS, SMB/CIFS), ANR
Network ProtocolsIPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
Audio
Audio CompressionG.711/AAC/G.722/G.726
Audio Sampling Rate8/16/32/44.1/48KHz
Audio Bit Rate16~256kbps
Two-way AudioSupport
Intelligent Analytics
Video AnalysisRegion Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
Face DetectionDetect and capture faces, get real-time snapshots
People Counting& ReportCount the number of people entering or exiting, up to 4 detection areas for regional people counting
System
StorageSupport microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced FunctionHeat Map, BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP SupportYes, Voice&Video-over-IP
Event TriggerMotion Detection, Network Disconnection, etc.;Motion Detection, Network Disconnection, External Input, Audio Alarm, etc. (Multi-interface Version)
Event ActionFTP Upload, SMTP Upload, SD Card Record, SIP Phone, HTTP Notification, etc.;FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc. (Multi-interface Version)
System CompatibilityONVIF Profile G & Q & S & T, API
General
Working Temperature-40℃∼60℃
Working Humidity0∼90%(Non-condensing)
Power SupplyPoE(802.3af);PoE (802.3af) / DC 12V±10% (Multi-interface Version)
Power Consumption4W MAX, 6W MAX (With IR on)
Weather ProofUp to IP67-rated for weather-resistant performance
HousingVandal-proof IK10-rated metal housing
Weight750g
DimensionsΦ76mmX214.5mm
Warranty3/5 Years

Naming Convention
R - High Frame Rate (60fps)
P - PoE Supported
A/C/D/E - AI Series

Camera
Name4K AI Weather-proof Mini Bullet Network Camera
Image Sensor1/2.8" Progressive Scan CMOS
Min. IlluminationColor: 0.012Lux @F1.6, B/W: 0Lux with IR on
WDR120dB Super WDR
Lens4mm/2.8mm/6mm @F1.6
MountM12
Field of ViewH91°/D106°/V50°(4mm), H110°/D126°/V60°(2.8mm), H55°/D63°/V32°(6mm)
Shutter Time1/100000s∼1s
Day/Night ModeDay/Night/Auto/Customize/Schedule
IR DistanceUp to 50m
S/N>55dB
Video
Max. Image Resolution3840x2160
Primary Stream60Hz: 30fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)
50Hz: 25fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream60Hz: 30fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180)
50Hz: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180)
Tertiary Stream60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180)
50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180)
Video CompressionH.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate16Kbps∼16Mbps (CBR/VBR adjustable)
Privacy MaskingUp to 28 areas(24 mask areas and 4 mosaic areas)
ROIUp to 8 areas
Image SettingsSaturation/Brightness/Contrast/Sharpness
Interface
Ethernet1*RJ45 10M/100M Ethernet Port
Audio I/O1/1(Multi-interface Version)
Alarm I/O1/1(Multi-interface Version)
Network
Network StorageNAS(Support NFS, SMB/CIFS), ANR
Network ProtocolsIPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
Audio
Audio CompressionG.711/AAC/G.722/G.726
Audio Sampling Rate8/16/32/44.1/48KHz
Audio Bit Rate16~256kbps
Two-way AudioSupport
Intelligent Analytics
Video AnalysisRegion Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
Face DetectionDetect and capture faces, get real-time snapshots
People Counting& ReportCount the number of people entering or exiting, up to 4 detection areas for regional people counting
System
StorageSupport microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced FunctionHeat Map, BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP SupportYes, Voice&Video-over-IP
Event TriggerMotion Detection, Network Disconnection, etc.;Motion Detection, Network Disconnection, External Input, Audio Alarm, etc. (Multi-interface Version)
Event ActionFTP Upload, SMTP Upload, SD Card Record, SIP Phone, HTTP Notification, etc.;FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc. (Multi-interface Version)
System CompatibilityONVIF Profile G & Q & S & T, API
General
Working Temperature-40℃∼60℃
Working Humidity0∼90%(Non-condensing)
Power SupplyPoE(802.3af);PoE (802.3af) / DC 12V±10% (Multi-interface Version)
Power Consumption5W MAX, 7W MAX (With IR on)
Weather ProofUp to IP67-rated for weather-resistant performance
HousingVandal-proof IK10-rated metal housing
Weight750g
DimensionsΦ76mmX214.5mm
Warranty3/5 Years

Naming Convention
R - High Frame Rate (60fps)
P - PoE Supported
A/C/D/E - AI Series

A01 Pole Mount

  • Weight: 720g
  • Dimension: 170*51.5*152.6mm
  • Installation Environment: For strapping cameras on poles between 102-127mm(4.1-5 inches) in diameter

A03 External Corner Bracket

  • Weight: 900g
  • Dimension: 170*152.5*76mm
  • Installation Environment: For mounting cameras on an external corner

A63 Junction Box

  • Weight: 620g
  • Dimension: 134*126*40mm
  • Installation Environment: For the containing of electrical connections which need to be concealed from sight and deter tampering

Documents

*Your Email

*Country

*Your Phone

*Company

*Your Website

*Business Type

*What Product are You Interested in?

*Message

*Verification Code

Verify Code

If you are interested in Milesight, please leave us a message.

Verify Code

Contact Us

Contact Us

Verify Code

Contact Us to Get More Information
