AI Motorized Pro Dome
Network Camera
Intelligent and Robust for Mission-critical Applications
Powerful Functions with Unique Design for Pro Cameras
AI Motorized Pro Dome
- AI Deep Learning
- 1/1.8" STARVIS Starlight Sensor
- 140dB Super WDR & 0.002Lux Ultra Low-light
- 90m IR Distance
- 90fps High Frame Rate
- Robust Performance with IP67 & IK10
- Audio Out, Alarm I/O, PoE & DC 12V
- Recessed Installation
- FEATURES
- MODELS
- ACCESSORIES
- DOWNLOAD
- Home
- Pro Series
- Motorized Pro Dome Camera

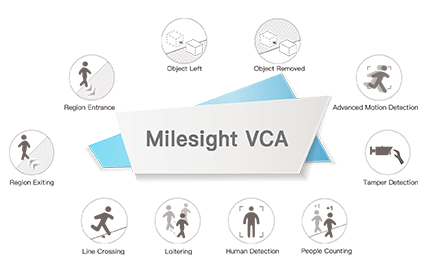

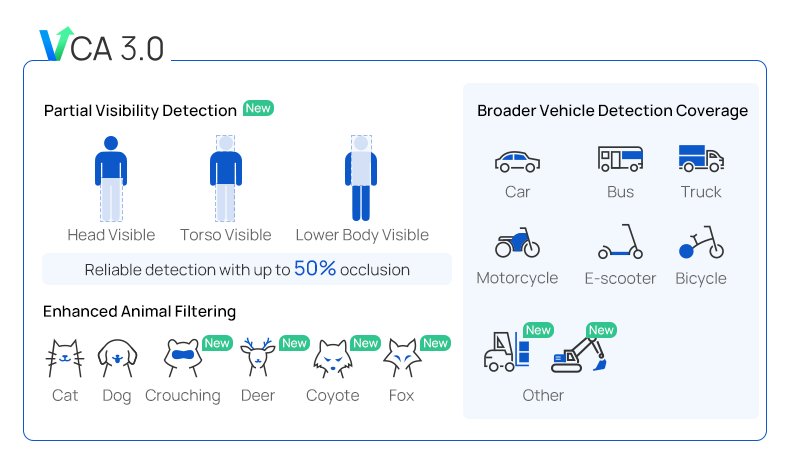

AI Empowers Security
Milesight AI Camera with deep learning AI algorithms can intelligently filter objects to focus on human and vehicle detection, fitting into various situations to help level up the monitoring efficiency and security.

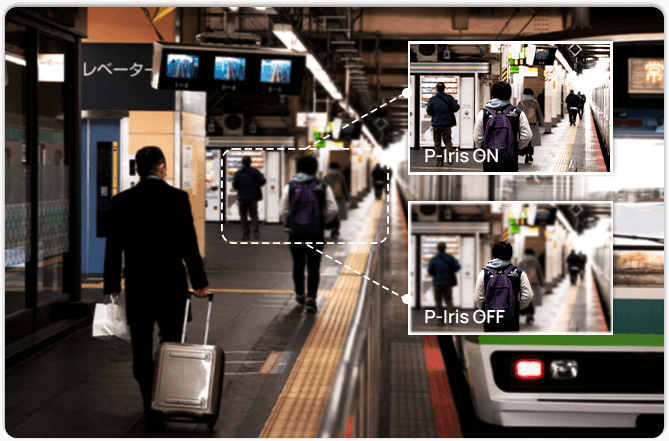

P-Iris Control
Advanced P-Iris control technology with Milesight AI Motorized Pro Bullet Network Camera is able to automatically and precisely response to all lighting conditions, offering optimal image quality with good depth of filed.

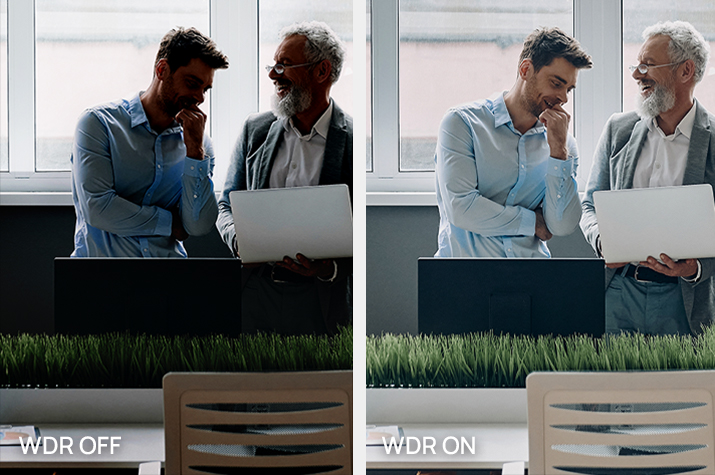

140dB Super WDR
Record greater scene details with true color reproduction even under the extreme back light and high contrast conditions.
90fps High Frame Rate
With the industry leading frame rate reaching 90fps, Milesight Network Camera can easily catch images with no latency despite of the high-speed movement.

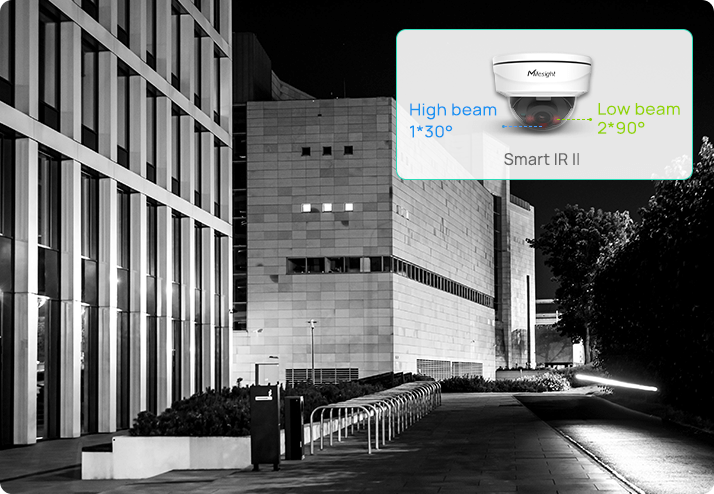

Smart IR II Technology
The upgraded IR LEDs technology offers videos with a viewing range of up to 60m (100m), ensuring quality image clarity regardless of object distance. The brightness of both beams can be adjusted manually or automatically based on the zoom ratio.
1/1.8" Starlight Sensor & 0.002Lux Ultra Low Light
Milesight AI Camera Series, with top-notch Sony STARVIS Starlight Sensor, can provide detailed color images in low and near-infrared light conditions down to 0.002Lux (Color) and 0Lux (B/W), without additional lighting.

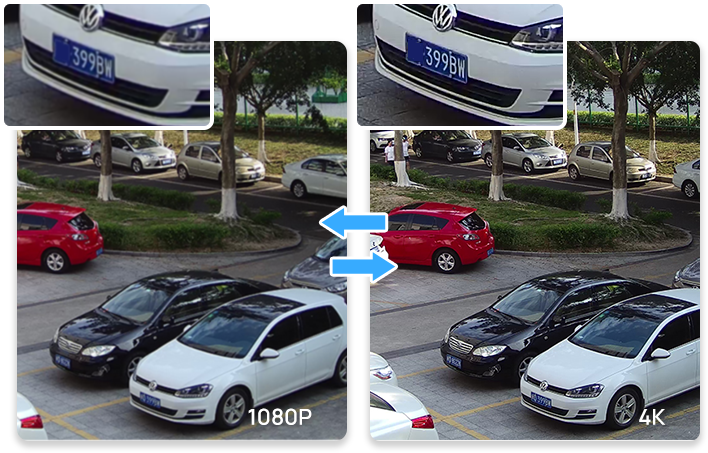

4K Video Viewing
Experience
Delivering 4K resolution (3840*2160, effectively four times that of Full HD) is able to provide users with ultra-high-definition video viewing experience.
IP67 & IK10
Equipped with industry-leading IP67-rated weather-proofing and IK10-rated vandal-proofing, the camera is well protected against adverse impacts to ensure the robust performance.

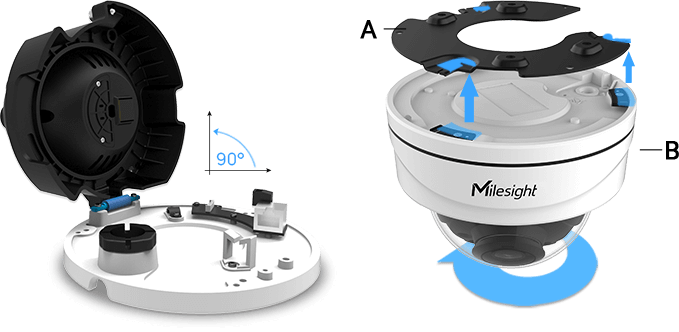

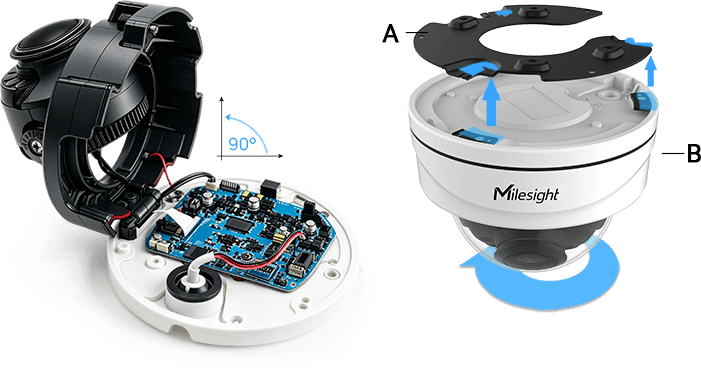

Efficient & Simple
Installation
Milesight's innovative clamshell design for the dome base simplifies installation by enlarging the space for easy cable connection, significantly reducing effort for installers.

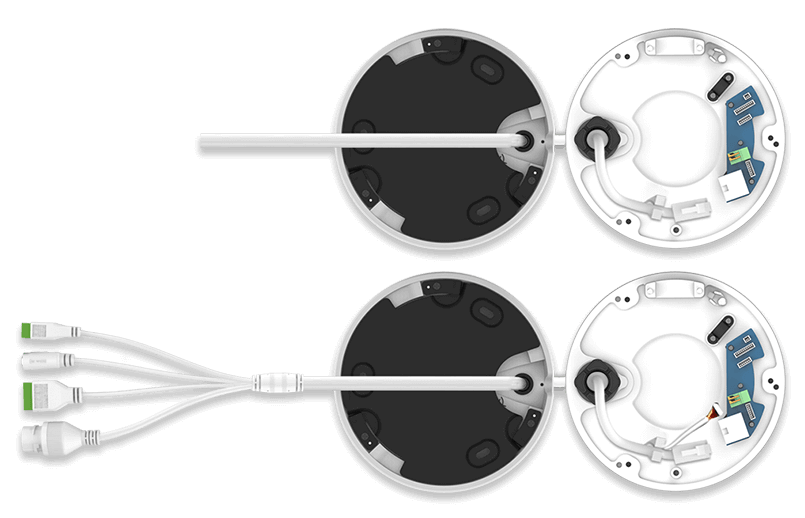

Versatile Interfaces
The multi-interface cable is available with rich interfaces including PoE port, DC, Alarm I/O and Audio Output to offer more choices for easy cable management and various needs.

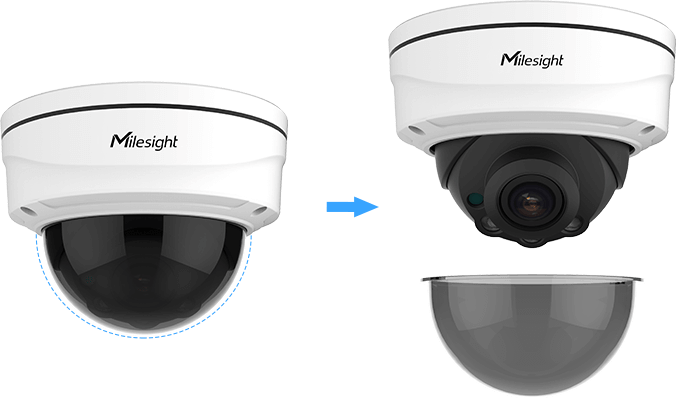

Smoked Dome Cover
Hide the direction of the camera for not letting people see where the camera is pointed.

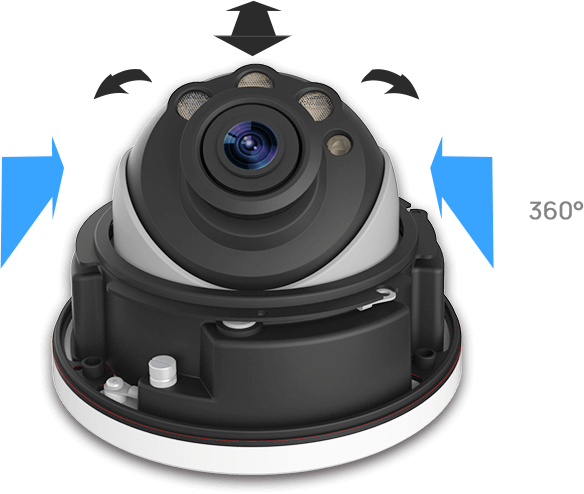

3-Axis Mechanical Design
Fast and easy adjustment of the camera's viewing angel allows you to position the camera precisely.
SIP/VoIP Support
Milesight Network Camera features industry leading SIP/VoIP function and video streaming for mobile phones and video phones.
Specifications
NDAA
- MS-C2872-R(T)F(I)PE
- MS-C2972-R(T)F(I)PE
- MS-C4472-RF(I)PE
- MS-C5372-F(I)PE
- MS-C6772-F(I)PE
- MS-C8172-F(I)PE
- MS-C8272-F(I)PE
- MS-C2872-R(T)F(I)PA
- MS-C2972-R(T)F(I)PA
- MS-C5372-F(I)PA
- MS-C8172-F(I)PA
- MS-C8272-F(I)PA
- MS-C2972-FPD
Non-NDAA
- MS-C2872-TF(I)PC
- MS-C2972-R(T)F(I)PC
- MS-C5372-F(I)PC
- MS-C8172-F(I)PC
- MS-C8272-F(I)PC
| Camera | |
|---|---|
| Name | AI Motorized Pro Dome Network Camera |
| Image Sensor | 1/2″ Progressive Scan CMOS |
| Min. Illumination | Color: 0.002Lux@F1.4 B/W: 0Lux with IR on |
| WDR | 140dB Super WDR |
| Lens | Motorized 3.6~10mm@F1.4 P-Iris(Optional) |
| Mount | Φ14 |
| Field of View | H96°~H42°/D111°~D48°/V55°~V23° |
| Shutter Time | 1/100000s~1s |
| IR Distance | Up to 50m |
| Day/Night Mode | Day/Night/Auto/Customize/Schedule |
| S/N | >55dB |
| Video | |
| Max. Image Resolution | 1920x1080 |
| Primary Stream | 60Hz: 90fps@(1920x1080)(Optional for T Series), 60fps@(1920x1080, 1280x960, 1280x720, 704x576) 50Hz: 90fps@(1920x1080)(Optional for T Series), 50fps@(1920x1080, 1280x960, 1280x720, 704x576) |
| Secondary Stream | 60Hz: 60fps@(704x576, 640x480, 640x360, 352x288, 320x240) 50Hz: 50fps@(704x576, 640x480, 640x360, 352x288, 320x240) |
| Tertiary Stream | 60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240) 50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240) |
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG |
| Video Bit Rate | 16Kbps~16Mbps(CBR/VBR Adjustable) |
| Privacy Masking | Up to 8 Areas (Mask Area and Mosaic Area are optional) |
| ROI | Up to 8 areas |
| Image Setting | Brightness/Contrast/Saturation/Sharpness |
| Interface | |
| Ethernet | 1*RJ45 10M/100M Ethernet Port |
| Audio I/O | Built-in Microphone and 1 Audio Output interface |
| Alarm I/O | 1/1 |
| Network | |
| Network Storage | NAS(Support NFS, SMB/CIFS), ANR |
| Protocol | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL, TLS 1.2 |
| Audio | |
| Audio Compression | G.711/AAC/G.722/G.726 |
| Audio Sampling Rate | 8/16/32/44.1/48KHz |
| Audio Bit Rate | 16~256kbps |
| Two-way Audio | Support |
| Intelligent Analytics | |
| Video Analysis | Intrusion Detection, Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed |
| Face Detection&Face Attribute Recognition | Detect and capture faces, get real-time snapshots; The attributes include Age, Gender, Glasses, Mask and Cap, Support Faces Privacy Mode, the detected faces in the face detection area will be mosaic automatically. |
| Object Counting & Report | Count the number of objects crossing the line, optionally human and vehicle, Support regional people counting for up to 4 detection areas |
| System | |
| Storage | Support microSD/SDHC/SDXC Card Local Storage, up to 1TB |
| Advanced Function | Heat Map, BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark |
| SIP/VoIP Support | Yes, Voice & Video-over-IP |
| Event Trigger | Motion Detection, Network Disconnection, Audio Alarm, External Input, etc. |
| Event Action | FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc. |
| System Compatibility | ONVIF Profile G & M & S & T, API |
| General | |
| Working Temperature | -40℃~60℃ |
| Working Humidity | 0~95%(Non-condensing) |
| Power Supply | PoE (802.3af) / DC 12V±10% |
| Power Consumption | 6W MAX 8W MAX (With IR on) |
| Weather Proof | Up to IP67-rated for Weather-resistant Performance |
| Housing | Vandal-proof IK10-rated Metal Housing |
| Weight | 1100g |
| Dimensions | Φ143mmX108.4mm |
| Warranty | 3/5 Years |
* Naming Convention
R - High Frame Rate (60fps)
T - High Frame Rate (90/100fps)
F - Motorized Vari-focal Lens
I - P-Iris Supported
P - PoE Supported
A/C/D/E - AI Series
| Camera | |
|---|---|
| Name | AI Motorized Pro Dome Network Camera |
| Image Sensor | 1/2.8″ Progressive Scan CMOS |
| Min. Illumination | Color: 0.005Lux@F1.4 B/W: 0Lux with IR on |
| WDR | 140dB Super WDR |
| Lens | Motorized 2.7~13.5mm/3.0~10.5mm/7~22mm@F1.4 P-Iris(Optional) |
| Mount | Φ14 |
| Field of View | H115°~H34°/D135°~D39° /V62°~V19° (2.7~13.5mm) H93°~H33°/D107°~D38° /V52°~V18° (3.0~10.5m) H40°~H16°/D46°~D19° /V23°~V9° (7~22mm) |
| Shutter Time | 1/100000s~1s |
| IR Distance | Up to 50m(3.0~10.5mm/2.7~13.5mm) Up to 90m(7~22mm) |
| Day/Night Mode | Day/Night/Auto/Customize/Schedule |
| S/N | >55dB |
| Video | |
| Max. Image Resolution | 1920x1080 |
| Primary Stream | 60Hz: 90fps@(1920x1080)(Optional for T Series), 60fps@(1920x1080, 1280x960, 1280x720, 704x576) 50Hz: 90fps@(1920x1080)(Optional for T Series), 50fps@(1920x1080, 1280x960, 1280x720, 704x576) |
| Secondary Stream | 60Hz: 60fps@(704x576, 640x480, 640x360, 352x288, 320x240) 50Hz: 50fps@(704x576, 640x480, 640x360, 352x288, 320x240) |
| Tertiary Stream | 60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240) 50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240) |
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG |
| Video Bit Rate | 16Kbps~16Mbps(CBR/VBR Adjustable) |
| Privacy Masking | Up to 8 Areas (Mask Area and Mosaic Area are optional) |
| ROI | Up to 8 areas |
| Image Setting | Brightness/Contrast/Saturation/Sharpness |
| Interface | |
| Ethernet | 1*RJ45 10M/100M Ethernet Port |
| Audio I/O | Built-in Microphone and 1 Audio Output interface |
| Alarm I/O | 1/1 |
| Network | |
| Network Storage | NAS(Support NFS, SMB/CIFS), ANR |
| Protocol | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL, TLS 1.2 |
| Audio | |
| Audio Compression | G.711/AAC/G.722/G.726 |
| Audio Sampling Rate | 8/16/32/44.1/48KHz |
| Audio Bit Rate | 16~256kbps |
| Two-way Audio | Support |
| Intelligent Analytics | |
| Video Analysis | Intrusion Detection, Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed |
| Face Detection&Face Attribute Recognition | Detect and capture faces, get real-time snapshots; The attributes include Age, Gender, Glasses, Mask and Cap, Support Faces Privacy Mode, the detected faces in the face detection area will be mosaic automatically. |
| Object Counting & Report | Count the number of objects crossing the line, optionally human and vehicle, Support regional people counting for up to 4 detection areas |
| System | |
| Storage | Support microSD/SDHC/SDXC Card Local Storage, up to 1TB |
| Advanced Function | Heat Map, BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark |
| SIP/VoIP Support | Yes, Voice & Video-over-IP |
| Event Trigger | Motion Detection, Network Disconnection, Audio Alarm, External Input, etc. |
| Event Action | FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc. |
| System Compatibility | ONVIF Profile G & M & S & T, API |
| General | |
| Working Temperature | -40℃~60℃ |
| Working Humidity | 0~95%(Non-condensing) |
| Power Supply | PoE (802.3af) / DC 12V±10% |
| Power Consumption | 6W MAX 8W MAX (With IR on) |
| Weather Proof | Up to IP67-rated for Weather-resistant Performance |
| Housing | Vandal-proof IK10-rated Metal Housing |
| Weight | 1100g |
| Dimensions | Φ143mmX108.4mm |
| Warranty | 3/5 Years |
* Naming Convention
R - High Frame Rate (60fps)
T - High Frame Rate (90/100fps)
F - Motorized Vari-focal Lens
I - P-Iris Supported
P - PoE Supported
A/C/D/E - AI Series
| Camera | |
|---|---|
| Name | AI Motorized Pro Dome Network Camera |
| Image Sensor | 1/1.8″ Progressive Scan CMOS |
| Min. Illumination | Color: 0.002Lux@F1.4 B/W: 0Lux with IR on |
| WDR | 140dB Super WDR |
| Lens | Motorized 2.7mm~12.0mm@F1.4 P-Iris(Optional) |
| Mount | Φ14 |
| Field of View | H114°~H42°/D111°~D48°/V55°~V23° |
| Shutter Time | 1/100000s~1s |
| IR Distance | Up to 50m |
| Day/Night Mode | Day/Night/Auto/Customize/Schedule |
| S/N | >55dB |
| Video | |
| Max. Image Resolution | 2688x1520 |
| Primary Stream | 60Hz: 60fps@(2688x1520, 2304x1296, 1920x1080, 1280x720) 50Hz: 50fps@(2688x1520, 2304x1296, 1920x1080, 1280x720) |
| Secondary Stream | 60Hz: 60fps@(704x576, 640x480, 640x360, 352x288, 320x240) 50Hz: 50fps@(704x576, 640x480, 640x360, 352x288, 320x240) |
| Tertiary Stream | 60Hz: 30fps@(1280x720, 704x576, 640x480, 640x360, 320x240) 50Hz: 25fps@(1280x720, 704x576, 640x480, 640x360, 320x240) |
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG |
| Video Bit Rate | 16Kbps~16Mbps(CBR/VBR Adjustable) |
| Privacy Masking | Up to 8 Areas (Mask Area and Mosaic Area are optional) |
| ROI | Up to 8 areas |
| Image Setting | Brightness/Contrast/Saturation/Sharpness |
| Interface | |
| Ethernet | 1*RJ45 10M/100M Ethernet Port |
| Audio I/O | Built-in Microphone and 1 Audio Output interface |
| Alarm I/O | 1/1 |
| Network | |
| Network Storage | NAS(Support NFS, SMB/CIFS), ANR |
| Protocol | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL, TLS 1.2 |
| Audio | |
| Audio Compression | G.711/AAC/G.722/G.726 |
| Audio Sampling Rate | 8/16/32/44.1/48KHz |
| Audio Bit Rate | 16~256kbps |
| Two-way Audio | Support |
| Intelligent Analytics | |
| Video Analysis | Intrusion Detection, Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed |
| Face Detection&Face Attribute Recognition | Detect and capture faces, get real-time snapshots; The attributes include Age, Gender, Glasses, Mask and Cap, Support Faces Privacy Mode, the detected faces in the face detection area will be mosaic automatically. |
| Object Counting & Report | Count the number of objects crossing the line, optionally human and vehicle, Support regional people counting for up to 4 detection areas |
| System | |
| Storage | Support microSD/SDHC/SDXC Card Local Storage, up to 1TB |
| Advanced Function | Heat Map, BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark |
| SIP/VoIP Support | Yes, Voice & Video-over-IP |
| Event Trigger | Motion Detection, Network Disconnection, Audio Alarm, External Input, etc. |
| Event Action | FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc. |
| System Compatibility | ONVIF Profile G & M & S & T, API |
| General | |
| Working Temperature | -40℃~60℃ |
| Working Humidity | 0~95%(Non-condensing) |
| Power Supply | PoE (802.3af) / DC 12V±10% |
| Power Consumption | 6W MAX 8W MAX (With IR on) |
| Weather Proof | Up to IP67-rated for Weather-resistant Performance |
| Housing | Vandal-proof IK10-rated Metal Housing |
| Weight | 1100g |
| Dimensions | Φ143mmX108.4mm |
| Warranty | 3/5 Years |
* Naming Convention
R - High Frame Rate (60fps)
T - High Frame Rate (90/100fps)
F - Motorized Vari-focal Lens
I - P-Iris Supported
P - PoE Supported
A/C/D/E - AI Series
| Camera | |
|---|---|
| Name | AI Motorized Pro Dome Network Camera |
| Image Sensor | 1/2.8″ Progressive Scan CMOS |
| Min. Illumination | Color: 0.008Lux@F1.4 B/W: 0Lux with IR on |
| WDR | 120dB Super WDR |
| Lens | Motorized 2.7~13.5mm/3.0~10.5mm/7~22mm@F1.4 P-Iris(Optional) |
| Mount | Φ14 |
| Field of View | H89°~H30°/D111°~D37° /V66°~V22° (2.7~13.5mm) H90°~H31°/ D114°~D38° / V67°~V23°(3.0~10.5mm) H37°~H15°/D47°~D19° /V28°~V11° (7~22mm) |
| Shutter Time | 1/100000s~1s |
| IR Distance | Up to 50m(3.0~10.5mm/2.7~13.5mm) Up to 90m(7~22mm) |
| Day/Night Mode | Day/Night/Auto/Customize/Schedule |
| S/N | >55dB |
| Video | |
| Max. Image Resolution | 2592x1944 |
| Primary Stream | 60Hz: 30fps@(2592x1944, 2592x1520), 45fps@(2048x1536), 60fps@(1920x1080, 1280x960, 1280x720) 50Hz: 25fps@(2592x1944, 2592x1520), 45fps@(2048x1536), 50fps@(1920x1080, 1280x960, 1280x720) |
| Secondary Stream | 60Hz: 30fps@(704x576, 640x480, 640x360, 352x288, 320x240) 50Hz: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240) |
| Tertiary Stream | 60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240) 50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240) |
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG |
| Video Bit Rate | 16Kbps~16Mbps(CBR/VBR Adjustable) |
| Privacy Masking | Up to 8 Areas (Mask Area and Mosaic Area are optional) |
| ROI | Up to 8 areas |
| Image Setting | Brightness/Contrast/Saturation/Sharpness |
| Interface | |
| Ethernet | 1*RJ45 10M/100M Ethernet Port |
| Audio I/O | Built-in Microphone and 1 Audio Output interface |
| Alarm I/O | 1/1 |
| Network | |
| Network Storage | NAS(Support NFS, SMB/CIFS), ANR |
| Protocol | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL, TLS 1.2 |
| Audio | |
| Audio Compression | G.711/AAC/G.722/G.726 |
| Audio Sampling Rate | 8/16/32/44.1/48KHz |
| Audio Bit Rate | 16~256kbps |
| Two-way Audio | Support |
| Intelligent Analytics | |
| Video Analysis | Intrusion Detection, Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed |
| Face Detection&Face Attribute Recognition | Detect and capture faces, get real-time snapshots; The attributes include Age, Gender, Glasses, Mask and Cap, Support Faces Privacy Mode, the detected faces in the face detection area will be mosaic automatically. |
| Object Counting & Report | Count the number of objects crossing the line, optionally human and vehicle, Support regional people counting for up to 4 detection areas |
| System | |
| Storage | Support microSD/SDHC/SDXC Card Local Storage, up to 1TB |
| Advanced Function | Heat Map, BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark |
| SIP/VoIP Support | Yes, Voice & Video-over-IP |
| Event Trigger | Motion Detection, Network Disconnection, Audio Alarm, External Input, etc. |
| Event Action | FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc. |
| System Compatibility | ONVIF Profile G & M & S & T, API |
| General | |
| Working Temperature | -40℃~60℃ |
| Working Humidity | 0~95%(Non-condensing) |
| Power Supply | PoE (802.3af) / DC 12V±10% |
| Power Consumption | 5W MAX 7W MAX (With IR on) |
| Weather Proof | Up to IP67-rated for Weather-resistant Performance |
| Housing | Vandal-proof IK10-rated Metal Housing |
| Weight | 1100g |
| Dimensions | Φ143mmX108.4mm |
| Warranty | 3/5 Years |
* Naming Convention
R - High Frame Rate (60fps)
T - High Frame Rate (90/100fps)
F - Motorized Vari-focal Lens
I - P-Iris Supported
P - PoE Supported
A/C/D/E - AI Series
| Camera | |
|---|---|
| Name | 6MP AI Motorized Pro Dome Network Camera |
| Image Sensor | 1/2.4″ Progressive Scan CMOS |
| Min. Illumination | Color: 0.005Lux@F1.6 B/W: 0Lux with IR on |
| WDR | 120dB Super WDR |
| Shutter Time | 1/100000s~1s |
| Day/Night Mode | Day/Night/Auto/Customize/Schedule |
| DORI Distance | D: 78.5~219m O: 31~86m R: 15.5~43m l: 8~21.5m |
| IR Distance | Up to 50m |
| S/N | >55dB |
| Lens | |
| Lens | Motorized 2.7-13.5mm@F1.6 P-Iris(Optional) |
| Field of View | H112°~H38°/D129°~D44° /V61°~V22° |
| Mount | Φ14 |
| Focus Control | Auto/Manual |
| Iris Control(Optional for I Series) | Auto/Manual |
| Video | |
| Max. Image Resolution | 3200x1800 |
| Primary Stream | 60Hz: 30fps@(3200x1800, 2560x1440, 1920x1080, 1280x720) 50Hz: 25fps@(3200x1800, 2560x1440, 1920x1080, 1280x720) |
| Secondary Stream | 60Hz: 30fps@(1280x720, 640x480, 640x360) 50Hz:25fps@(1280x720, 640x480, 640x360) |
| Tertiary Stream | 60Hz: 30fps(1280x720, 640x480, 640x360) 50Hz: 25fps(1280x720, 640x480, 640x360) |
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG |
| Video Bit Rate | 16Kbps~16Mbps(CBR/VBR Adjustable) |
| Image | |
| Privacy Masking | Up to 8 Areas (Mask Area and Mosaic Area are optional) |
| ROI | Up to 8 areas |
| Image Settings | Brightness/Contrast/Saturation/Sharpness |
| Image Enhancement | BLC, HLC, 2D DNR, 3D DNR, AGC, Defog, AWB, Deblur, Anti-flicker, Corridor Mode, LDC |
| Interface | |
| Ethernet | 1*RJ45 10M/100M Ethernet Port |
| Audio I/O | Built-in Microphone and 1 Audio Output interface |
| Alarm I/O | 1/1 |
| Network | |
| Network Storage | NAS(Support NFS, SMB/CIFS), ANR |
| Network Protocols | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL,TLS 1.2 |
| Audio | |
| Audio Compression | G.711/AAC/G.722/G.726 |
| Audio Sampling Rate | 8/16/32/44.1/48KHz |
| Audio Bit Rate | 16~256kbps |
| Intelligent Analytics | |
| Video Analysis | VCA 2.0: Intrusion Detection, Region Entrance, Region Exiting, Advanced Motion Detection, Line Crossing, Loitering, Object Left, Object Removed |
| Attribute Extraction | Simultaneously detect up to 50 targets and capture humans and vehicles in real time. Recognize attributes including Upper and Lower Clothing Color, Hat, and Vehicle Types (Bicycle, Car, Motorcycle, Bus, Truck, E-scooter). |
| Face Detection&Face Attribute Recognition | Detect and capture faces, get real-time snapshots; The attributes include Age, Gender, Glasses, Mask and Cap; Support Faces Privacy Mode, the detected faces in the face detection area will be mosaic automatically. |
| Object Counting & Report | Count the number of objects crossing the line, optionally human and vehicle, Support regional people counting for up to 4 detection areas |
| Heat Map | The built-in statistical behavior analysis enables you to identify the busiest areas within the environment |
| Event | |
| Basic Event | Motion Detection, Tamper Detection, Network Disconnection, External Input, Audio Alarm, etc. |
| Exception | Network Disconnection, IP Address Filtering, Record Failed, SD Card Full, SD Card Uninitialized, SD Card Error, No SD Card, Watermark |
| Event Action | FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc. |
| System | |
| Storage | Support microSD/SDHC/SDXC Card Local Storage, up to 1TB |
| SIP/VoIP Support | Yes, Voice & Video-over-IP |
| System Compatibility | ONVIF Profile G & M & S & T, API |
| General | |
| Working Temperature | -40℃~60℃ |
| Working Humidity | 0~95%(Non-condensing) |
| Power Supply | PoE (802.3af) / DC 12V±10% |
| Power Consumption | Min.: 3.2W (DC 12V), 4W(PoE) Max.: 5.6W (DC 12V), 7W(PoE) |
| Weight | 1100g |
| Dimensions | Φ143mmX108.4mm |
| Warranty | 3/5 Years |
| Certifications | |
| EMC | CE-EMC (EN 55032, EN 55035), FCC (PART 15B) |
| Safety | CE-LVD (EN IEC 62368-1) |
| Environment | CE-ROHS (Directive (EU) 2015/863 amending 2011/65/EU) |
| Protection | IP67, IK10 |
* Naming Convention
R - High Frame Rate (60fps)
T - High Frame Rate (90/100fps)
F - Motorized Vari-focal Lens
I - P-Iris Supported
P - PoE Supported
A/C/D/E - AI Series
| Camera | |
|---|---|
| Name | AI Motorized Pro Dome Network Camera |
| Image Sensor | 1/2.8″ Progressive Scan CMOS |
| Min. Illumination | Color: 0.012Lux@F1.4 B/W: 0Lux with IR on |
| WDR | 120dB Super WDR |
| Lens | Motorized 2.7~13.5mm@F1.4 P-Iris(Optional) |
| Mount | Φ14 |
| Field of View | H96°~H33°/D112°~D37°/V53°~V18° |
| Shutter Time | 1/100000s~1s |
| IR Distance | Up to 50m |
| Day/Night Mode | Day/Night/Auto/Customize/Schedule |
| S/N | >55dB |
| Video | |
| Max. Image Resolution | 3840x2160 |
| Primary Stream | 60Hz: 30fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576) 50Hz: 25fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576) |
| Secondary Stream | 60Hz: 30fps@(704x576, 640x480, 640x360, 352x288, 320x240) 50Hz: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240) |
| Tertiary Stream | 60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 352x288, 320x240) 50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 352x288, 320x240) |
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG |
| Video Bit Rate | 16Kbps~16Mbps(CBR/VBR Adjustable) |
| Privacy Masking | Up to 8 Areas (Mask Area and Mosaic Area are optional) |
| ROI | Up to 8 areas |
| Image Setting | Brightness/Contrast/Saturation/Sharpness |
| Interface | |
| Ethernet | 1*RJ45 10M/100M Ethernet Port |
| Audio I/O | Built-in Microphone and 1 Audio Output interface |
| Alarm I/O | 1/1 |
| Network | |
| Network Storage | NAS(Support NFS, SMB/CIFS), ANR |
| Protocol | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL, TLS 1.2 |
| Audio | |
| Audio Compression | G.711/AAC/G.722/G.726 |
| Audio Sampling Rate | 8/16/32/44.1/48KHz |
| Audio Bit Rate | 16~256kbps |
| Two-way Audio | Support |
| Intelligent Analytics | |
| Video Analysis | Intrusion Detection, Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed |
| Face Detection&Face Attribute Recognition | Detect and capture faces, get real-time snapshots; The attributes include Age, Gender, Glasses, Mask and Cap; Support Faces Privacy Mode, the detected faces in the face detection area will be mosaic automatically. |
| Object Counting & Report | Count the number of objects crossing the line, optionally human and vehicle, Support regional people counting for up to 4 detection areas |
| System | |
| Storage | Support microSD/SDHC/SDXC Card Local Storage, up to 1TB |
| Advanced Function | Heat Map, BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark |
| SIP/VoIP Support | Yes, Voice & Video-over-IP |
| Event Trigger | Motion Detection, Network Disconnection, Audio Alarm, External Input, etc. |
| Event Action | FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc. |
| System Compatibility | ONVIF Profile G & M & S & T, API |
| General | |
| Working Temperature | -40℃~60℃ |
| Working Humidity | 0~95%(Non-condensing) |
| Power Supply | PoE (802.3af) / DC 12V±10% |
| Power Consumption | 7W MAX 9W MAX (With IR on) |
| Weather Proof | Up to IP67-rated for Weather-resistant Performance |
| Housing | Vandal-proof IK10-rated Metal Housing |
| Weight | 1100g |
| Dimensions | Φ143mmX108.4mm |
| Warranty | 3/5 Years |
* Naming Convention
R - High Frame Rate (60fps)
T - High Frame Rate (90/100fps)
F - Motorized Vari-focal Lens
I - P-Iris Supported
P - PoE Supported
A/C/D/E - AI Series
| Camera | |
|---|---|
| Name | AI Motorized Pro Dome Network Camera |
| Image Sensor | 1/1.8″ Progressive Scan CMOS |
| Min. Illumination | Color: 0.009Lux@F1.4 B/W: 0Lux with IR on |
| WDR | 120dB Super WDR |
| Lens | Motorized 3.6~10mm@F1.4 P-Iris(Optional) |
| Mount | Φ14 |
| Field of View | H110°~H46°/D126°~D54°/V61°~V23° |
| Shutter Time | 1/100000s~1s |
| IR Distance | Up to 50m |
| Day/Night Mode | Day/Night/Auto/Customize/Schedule |
| S/N | >55dB |
| Video | |
| Max. Image Resolution | 3840x2160 |
| Primary Stream | 60Hz: 30fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576) 50Hz: 25fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576) |
| Secondary Stream | 60Hz: 30fps@(704x576, 640x480, 640x360, 352x288, 320x240) 50Hz: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240) |
| Tertiary Stream | 60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 352x288, 320x240) 50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 352x288, 320x240) |
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG |
| Video Bit Rate | 16Kbps~16Mbps(CBR/VBR Adjustable) |
| Privacy Masking | Up to 8 Areas (Mask Area and Mosaic Area are optional) |
| ROI | Up to 8 areas |
| Image Setting | Brightness/Contrast/Saturation/Sharpness |
| Interface | |
| Ethernet | 1*RJ45 10M/100M Ethernet Port |
| Audio I/O | Built-in Microphone and 1 Audio Output interface |
| Alarm I/O | 1/1 |
| Network | |
| Network Storage | NAS(Support NFS, SMB/CIFS), ANR |
| Protocol | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL, TLS 1.2 |
| Audio | |
| Audio Compression | G.711/AAC/G.722/G.726 |
| Audio Sampling Rate | 8/16/32/44.1/48KHz |
| Audio Bit Rate | 16~256kbps |
| Two-way Audio | Support |
| Intelligent Analytics | |
| Video Analysis | Intrusion Detection, Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed |
| Face Detection&Face Attribute Recognition | Detect and capture faces, get real-time snapshots; The attributes include Age, Gender, Glasses, Mask and Cap; Support Faces Privacy Mode, the detected faces in the face detection area will be mosaic automatically. |
| Object Counting & Report | Count the number of objects crossing the line, optionally human and vehicle, Support regional people counting for up to 4 detection areas |
| System | |
| Storage | Support microSD/SDHC/SDXC Card Local Storage, up to 1TB |
| Advanced Function | Heat Map, BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark |
| SIP/VoIP Support | Yes, Voice & Video-over-IP |
| Event Trigger | Motion Detection, Network Disconnection, Audio Alarm, External Input, etc. |
| Event Action | FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc. |
| System Compatibility | ONVIF Profile G & M & S & T, API |
| General | |
| Working Temperature | -40℃~60℃ |
| Working Humidity | 0~95%(Non-condensing) |
| Power Supply | PoE (802.3af) / DC 12V±10% |
| Power Consumption | 7W MAX 9W MAX (With IR on) |
| Weather Proof | Up to IP67-rated for Weather-resistant Performance |
| Housing | Vandal-proof IK10-rated Metal Housing |
| Weight | 1100g |
| Dimensions | Φ143mmX108.4mm |
| Warranty | 3/5 Years |
* Naming Convention
R - High Frame Rate (60fps)
T - High Frame Rate (90/100fps)
F - Motorized Vari-focal Lens
I - P-Iris Supported
P - PoE Supported
A/C/D/E - AI Series
| Camera | |
|---|---|
| Name | 2MP AI Motorized Pro Dome Network Camera |
| Image Sensor | 1/2" Progressive Scan CMOS |
| Min. Illumination | Color: 0.002Lux @F1.4, B/W: 0Lux with IR on |
| WDR | 120dB Super WDR |
| Shutter Time | 1/100000s∼1s |
| Day/Night Mode | Day/Night/Auto/Customize/Schedule |
| IR Distance | Up to 50m |
| S/N | >55dB |
| Lens | |
| Lens | Motorized 3.6~10mm@F1.4, P-Iris(Optional) |
| Field of View | H96°~H42°/D111°~D48°/V55°~V23° |
| Mount | Φ14 |
| Focus Control | Auto/Manual |
| Iris Control(Optional for I Series) | Auto/Manual |
| Video | |
| Max. Image Resolution | 1920x1080 |
| Primary Stream | 60Hz: 90fps@(1920x1080)(Optional for T Series), 60fps@(1920x1080, 1280x960, 1280x720, 704x576) 50Hz: 90fps@(1920x1080)(Optional for T Series), 50fps@(1920x1080, 1280x960, 1280x720, 704x576) |
| Secondary Stream | 60Hz: 90fps@(704x576)(Optional for T Series), 60fps@(704x576, 640x480, 640x360, 352x288, 320x240) 50Hz: 90fps@(704x576)(Optional for T Series), 50fps@(704x576, 640x480, 640x360, 352x288, 320x240) |
| Tertiary Stream | 60Hz: 30fps@( 1280x720, 704x576, 640x480, 640x360, 352x288, 320x240) 50Hz: 25fps@( 1280x720, 704x576, 640x480, 640x360, 352x288, 320x240) |
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG |
| Video Bit Rate | 16Kbps∼16Mbps (CBR/VBR Adjustable) |
| Privacy Masking | Up to 24 areas |
| ROI | Up to 8 areas |
| Image Settings | Saturation/Brightness/Contrast/Sharpness |
| Interface | |
| Ethernet | 1*RJ45 10M/100M Ethernet Port |
| Audio I/O | Built-in Microphone and 1 Audio Output interface |
| Alarm I/O | 1/1 |
| Network | |
| Network Storage | NAS(Support NFS, SMB/CIFS), ANR |
| Network Protocols | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL |
| Audio | |
| Audio Compression | G.711/AAC/G.722/G.726 |
| Audio Sampling Rate | 8/16/32/44.1/48KHz |
| Audio Bit Rate | 16~256kbps |
| Two-way Audio | Support |
| Intelligent Analytics | |
| Video Analysis | Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed |
| People Counting& Report | Count the number of people entering or exiting, up to 4 detection areas for regional people counting |
| System | |
| Storage | Support microSD/SDHC/SDXC Card Local Storage, up to 256G |
| Advanced Function | Heat Map, BLC, HLC, 2D DNR, 3D DNR, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark |
| SIP/VoIP Support | Yes, Voice&Video-over-IP |
| Event Trigger | Motion Detection, Network Disconnection, External Input, Audio Alarm, etc. |
| Event Action | FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc. |
| System Compatibility | ONVIF Profile G & Q & S & T, API |
| General | |
| Working Temperature | -40℃∼60℃ |
| Working Humidity | 0∼90%(Non-condensing) |
| Power Supply | PoE(802.3af)/DC 12V±10% |
| Power Consumption | 9W MAX, 11W MAX (With IR on) |
| Weather Proof | Up to IP67-rated for Weather-resistant Performance |
| Housing | Vandal-proof IK10-rated Metal Housing |
| Weight | 1100g |
| Dimensions | Φ143mmX108.4mm |
| Warranty | 3/5 Years |
* Naming Convention
R - High Frame Rate (60fps)
T - High Frame Rate (90/100fps)
F - Motorized Vari-focal Lens
I - P-Iris Supported
P - PoE Supported
A/C/D/E - AI Series
| Camera | |
|---|---|
| Name | 2MP AI Motorized Pro Dome Network Camera |
| Image Sensor | 1/2.8" Progressive Scan CMOS |
| Min. Illumination | Color: 0.005Lux @F1.4, B/W: 0Lux with IR on |
| WDR | 120dB Super WDR |
| Shutter Time | 1/100000s∼1s |
| Day/Night Mode | Day/Night/Auto/Customize/Schedule |
| IR Distance | Up to 50m(3.0~10.5mm/2.7~13.5mm), Up to 90m(7~22mm) |
| S/N | >55dB |
| Lens | |
| Lens | Motorized 2.7~13.5mm/3.0~10.5mm/7~22mm@F1.4, P-Iris(Optional) |
| Field of View | H115°~H34°/D135°~D39° /V62°~V19° (2.7~13.5mm), H93°~H33°/D107°~D38° /V52°~V18° (3.0~10.5m), H40°~H16°/D46°~D19° /V23°~V9° (7~22mm) |
| Mount | Φ14 |
| Focus Control | Auto/Manual |
| Iris Control(Optional for I Series) | Auto/Manual |
| Video | |
| Max. Image Resolution | 1920x1080 |
| Primary Stream | 60Hz: 90fps@(1920x1080)(Optional for T Series), 60fps@(1920x1080, 1280x960, 1280x720, 704x576) 50Hz: 90fps@(1920x1080)(Optional for T Series), 50fps@(1920x1080, 1280x960, 1280x720, 704x576) |
| Secondary Stream | 60Hz: 90fps@(704x576)(Optional for T Series), 60fps@(704x576, 640x480, 640x360, 352x288, 320x240) 50Hz: 90fps@(704x576)(Optional for T Series), 50fps@(704x576, 640x480, 640x360, 352x288, 320x240) |
| Tertiary Stream | 60Hz: 30fps@( 1280x720, 704x576, 640x480, 640x360, 352x288, 320x240) 50Hz: 25fps@( 1280x720, 704x576, 640x480, 640x360, 352x288, 320x240) |
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG |
| Video Bit Rate | 16Kbps∼16Mbps (CBR/VBR Adjustable) |
| Privacy Masking | Up to 24 areas |
| ROI | Up to 8 areas |
| Image Settings | Saturation/Brightness/Contrast/Sharpness |
| Interface | |
| Ethernet | 1*RJ45 10M/100M Ethernet Port |
| Audio I/O | Built-in Microphone and 1 Audio Output interface |
| Alarm I/O | 1/1 |
| Network | |
| Network Storage | NAS(Support NFS, SMB/CIFS), ANR |
| Network Protocols | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL |
| Audio | |
| Audio Compression | G.711/AAC/G.722/G.726 |
| Audio Sampling Rate | 8/16/32/44.1/48KHz |
| Audio Bit Rate | 16~256kbps |
| Two-way Audio | Support |
| Intelligent Analytics | |
| Video Analysis | Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed |
| People Counting& Report | Count the number of people entering or exiting, up to 4 detection areas for regional people counting |
| System | |
| Storage | Support microSD/SDHC/SDXC Card Local Storage, up to 256G |
| Advanced Function | Heat Map, BLC, HLC, 2D DNR, 3D DNR, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark |
| SIP/VoIP Support | Yes, Voice&Video-over-IP |
| Event Trigger | Motion Detection, Network Disconnection, External Input, Audio Alarm, etc. |
| Event Action | FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc. |
| System Compatibility | ONVIF Profile G & Q & S & T, API |
| General | |
| Working Temperature | -40℃∼60℃ |
| Working Humidity | 0∼90%(Non-condensing) |
| Power Supply | PoE(802.3af)/DC 12V±10% |
| Power Consumption | 8W MAX, 11W MAX (With IR on) |
| Weather Proof | Up to IP67-rated for Weather-resistant Performance |
| Housing | Vandal-proof IK10-rated Metal Housing |
| Weight | 1100g |
| Dimensions | Φ143mmX108.4mm |
| Warranty | 3/5 Years |
* Naming Convention
R - High Frame Rate (60fps)
T - High Frame Rate (90/100fps)
F - Motorized Vari-focal Lens
I - P-Iris Supported
P - PoE Supported
A/C/D/E - AI Series
| Camera | |
|---|---|
| Name | 5MP AI Motorized Pro Dome Network Camera |
| Image Sensor | 1/2.8" Progressive Scan CMOS |
| Min. Illumination | Color: 0.008Lux @F1.4, B/W: 0Lux with IR on |
| WDR | 120dB Super WDR |
| Shutter Time | 1/100000s∼1s |
| Day/Night Mode | Day/Night/Auto/Customize/Schedule |
| IR Distance | Up to 50m(3.0~10.5mm/2.7~13.5mm), Up to 90m(7~22mm) |
| S/N | >55dB |
| Lens | |
| Lens | Motorized 2.7~13.5mm/3.0~10.5mm/7~22mm@F1.4, P-Iris(Optional) |
| Field of View | H89°~H30°/D111°~D37° /V66°~V22° (2.7~13.5mm), H90°~H31°/ D114°~D38° / V67°~V23°(3.0~10.5mm), H37°~H15°/D47°~D19° /V28°~V11° (7~22mm) |
| Mount | Φ14 |
| Focus Control | Auto/Manual |
| Iris Control(Optional for I Series) | Auto/Manual |
| Video | |
| Max. Image Resolution | 2592x1944 |
| Primary Stream | 60Hz: 30fps@(2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576) 50Hz: 25fps@(2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576) |
| Secondary Stream | 60Hz: 30fps@(704x576, 640x480, 640x360, 352x288, 320x240) 50Hz: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240) |
| Tertiary Stream | 60Hz: 30fps@( 1280x720, 704x576, 640x480, 640x360, 352x288, 320x240) 50Hz: 25fps@( 1280x720, 704x576, 640x480, 640x360, 352x288, 320x240) |
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG |
| Video Bit Rate | 16Kbps∼16Mbps (CBR/VBR Adjustable) |
| Privacy Masking | Up to 24 areas |
| ROI | Up to 8 areas |
| Image Settings | Saturation/Brightness/Contrast/Sharpness |
| Interface | |
| Ethernet | 1*RJ45 10M/100M Ethernet Port |
| Audio I/O | Built-in Microphone and 1 Audio Output interface |
| Alarm I/O | 1/1 |
| Network | |
| Network Storage | NAS(Support NFS, SMB/CIFS), ANR |
| Network Protocols | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL |
| Audio | |
| Audio Compression | G.711/AAC/G.722/G.726 |
| Audio Sampling Rate | 8/16/32/44.1/48KHz |
| Audio Bit Rate | 16~256kbps |
| Two-way Audio | Support |
| Intelligent Analytics | |
| Video Analysis | Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed |
| People Counting& Report | Count the number of people entering or exiting, up to 4 detection areas for regional people counting |
| System | |
| Storage | Support microSD/SDHC/SDXC Card Local Storage, up to 256G |
| Advanced Function | Heat Map, BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark |
| SIP/VoIP Support | Yes, Voice&Video-over-IP |
| Event Trigger | Motion Detection, Network Disconnection, External Input, Audio Alarm, etc. |
| Event Action | FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc. |
| System Compatibility | ONVIF Profile G & Q & S & T, API |
| General | |
| Working Temperature | -40℃∼60℃ |
| Working Humidity | 0∼90%(Non-condensing) |
| Power Supply | PoE(802.3af)/DC 12V±10% |
| Power Consumption | 9W MAX 11W MAX (With IR on) |
| Weather Proof | Up to IP67-rated for Weather-resistant Performance |
| Housing | Vandal-proof IK10-rated Metal Housing |
| Weight | 1100g |
| Dimensions | Φ143mmX108.4mm |
| Warranty | 3/5 Years |
* Naming Convention
R - High Frame Rate (60fps)
T - High Frame Rate (90/100fps)
F - Motorized Vari-focal Lens
I - P-Iris Supported
P - PoE Supported
A/C/D/E - AI Series
| Camera | |
|---|---|
| Name | 4K AI Motorized Pro Dome Network Camera |
| Image Sensor | 1/2.8" Progressive Scan CMOS |
| Min. Illumination | Color: 0.012Lux @F1.4, B/W: 0Lux with IR on |
| WDR | 120dB Super WDR |
| Shutter Time | 1/100000s∼1s |
| Day/Night Mode | Day/Night/Auto/Customize/Schedule |
| IR Distance | Up to 50m |
| S/N | >55dB |
| Lens | |
| Lens | Motorized 2.7~13.5mm@F1.4, P-Iris(Optional) |
| Field of View | H96°~H33°/D112°~D37°/V53°~V18° |
| Mount | Φ14 |
| Focus Control | Auto/Manual |
| Iris Control(Optional for I Series) | Auto/Manual |
| Video | |
| Max. Image Resolution | 3840x2160 |
| Primary Stream | 60Hz: 30fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576) 50Hz: 25fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576) |
| Secondary Stream | 60Hz: 30fps@(704x576, 640x480, 640x360, 352x288, 320x240) 50Hz: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240) |
| Tertiary Stream | 60Hz: 30fps@(1280x720, 704x576, 640x480, 640x360, 352x288, 320x240) 50Hz: 25fps@(1280x720, 704x576, 640x480, 640x360, 352x288, 320x240) |
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG |
| Video Bit Rate | 16Kbps∼16Mbps (CBR/VBR Adjustable) |
| Privacy Masking | Up to 24 areas |
| ROI | Up to 8 areas |
| Image Settings | Saturation/Brightness/Contrast/Sharpness |
| Interface | |
| Ethernet | 1*RJ45 10M/100M Ethernet Port |
| Audio I/O | Built-in Microphone and 1 Audio Output interface |
| Alarm I/O | 1/1 |
| Network | |
| Network Storage | NAS(Support NFS, SMB/CIFS), ANR |
| Network Protocols | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL |
| Audio | |
| Audio Compression | G.711/AAC/G.722/G.726 |
| Audio Sampling Rate | 8/16/32/44.1/48KHz |
| Audio Bit Rate | 16~256kbps |
| Two-way Audio | Support |
| Intelligent Analytics | |
| Video Analysis | Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed |
| People Counting& Report | Count the number of people entering or exiting, up to 4 detection areas for regional people counting |
| System | |
| Storage | Support microSD/SDHC/SDXC Card Local Storage, up to 256G |
| Advanced Function | Heat Map, BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark |
| SIP/VoIP Support | Yes, Voice&Video-over-IP |
| Event Trigger | Motion Detection, Network Disconnection, External Input, Audio Alarm, etc. |
| Event Action | FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc. |
| System Compatibility | ONVIF Profile G & Q & S & T, API |
| General | |
| Working Temperature | -40℃∼60℃ |
| Working Humidity | 0∼90%(Non-condensing) |
| Power Supply | PoE(802.3af)/DC 12V±10% |
| Power Consumption | 9W MAX, 12W MAX (With IR on) |
| Weather Proof | Up to IP67-rated for Weather-resistant Performance |
| Housing | Vandal-proof IK10-rated Metal Housing |
| Weight | 1100g |
| Dimensions | Φ143mmX108.4mm |
| Warranty | 3/5 Years |
* Naming Convention
R - High Frame Rate (60fps)
T - High Frame Rate (90/100fps)
F - Motorized Vari-focal Lens
I - P-Iris Supported
P - PoE Supported
A/C/D/E - AI Series
| Camera | |
|---|---|
| Name | 4K AI Motorized Pro Dome Network Camera |
| Image Sensor | 1/1.8" Progressive Scan CMOS |
| Min. Illumination | Color: 0.009Lux @F1.4, B/W: 0Lux with IR on |
| WDR | 120dB Super WDR |
| Shutter Time | 1/100000s∼1s |
| Day/Night Mode | Day/Night/Auto/Customize/Schedule |
| IR Distance | Up to 50m |
| S/N | >55dB |
| Lens | |
| Lens | Motorized 3.6~10mm@F1.4, P-Iris(Optional) |
| Field of View | H110°~H46°/D126°~D54°/V61°~V25° |
| Mount | Φ14 |
| Focus Control | Auto/Manual |
| Iris Control(Optional for I Series) | Auto/Manual |
| Video | |
| Max. Image Resolution | 3840x2160 |
| Primary Stream | 60Hz: 30fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576) 50Hz: 25fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576) |
| Secondary Stream | 60Hz: 30fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x180) 50Hz: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x180) |
| Tertiary Stream | 60Hz: 30fps@( 1280x720, 704x576, 640x480, 640x360, 320x240, 320x180) 50Hz: 25fps@( 1280x720, 704x576, 640x480, 640x360, 320x240, 320x180) |
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG |
| Video Bit Rate | 16Kbps∼16Mbps (CBR/VBR Adjustable) |
| Privacy Masking | Up to 24 areas |
| ROI | Up to 8 areas |
| Image Settings | Saturation/Brightness/Contrast/Sharpness |
| Interface | |
| Ethernet | 1*RJ45 10M/100M Ethernet Port |
| Audio I/O | Built-in Microphone and 1 Audio Output interface |
| Alarm I/O | 1/1 |
| Network | |
| Network Storage | NAS(Support NFS, SMB/CIFS), ANR |
| Network Protocols | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL |
| Audio | |
| Audio Compression | G.711/AAC/G.722/G.726 |
| Audio Sampling Rate | 8/16/32/44.1/48KHz |
| Audio Bit Rate | 16~256kbps |
| Two-way Audio | Support |
| Intelligent Analytics | |
| Video Analysis | Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed |
| People Counting& Report | Count the number of people entering or exiting, up to 4 detection areas for regional people counting |
| System | |
| Storage | Support microSD/SDHC/SDXC Card Local Storage, up to 256G |
| Advanced Function | Heat Map,BLC, HLC, 2D DNR, 3D DNR, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark |
| SIP/VoIP Support | Yes, Voice&Video-over-IP |
| Event Trigger | Motion Detection, Network Disconnection, External Input, Audio Alarm, etc. |
| Event Action | FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc. |
| System Compatibility | ONVIF Profile G & Q & S & T, API |
| General | |
| Working Temperature | -40℃∼60℃ |
| Working Humidity | 0∼90%(Non-condensing) |
| Power Supply | PoE(802.3af)/DC 12V±10% |
| Power Consumption | 9W MAX, 12W MAX (With IR on) |
| Weather Proof | Up to IP67-rated for Weather-resistant Performance |
| Housing | Vandal-proof IK10-rated Metal Housing |
| Weight | 1100g |
| Dimensions | Φ143mmX108.4mm |
| Warranty | 3/5 Years |
* Naming Convention
R - High Frame Rate (60fps)
T - High Frame Rate (90/100fps)
F - Motorized Vari-focal Lens
I - P-Iris Supported
P - PoE Supported
A/C/D/E - AI Series
| Camera | |
|---|---|
| Name | 2MP NDAA AI Motorized Pro Dome Network Camera |
| Image Sensor | 1/2.8" Progressive Scan CMOS |
| Min. Illumination | Color: 0.005Lux @F1.4, B/W: 0Lux with IR on |
| WDR | 120dB Super WDR |
| Shutter Time | 1/100000s∼1s |
| Day/Night Mode | Day/Night/Auto/Customize/Schedule |
| IR Distance | Up to 50m(3.0~10.5mm/2.7~13.5mm), Up to 90m(7~22mm) |
| S/N | >55dB |
| Lens | |
| Lens | Motorized 2.7~13.5mm/7~22mm@F1.4 |
| Field of View | H115°~H34°/D135°~D39° /V62°~V19° (2.7~13.5mm), H40°~H16°/D46°~D19° /V23°~V9° (7~22mm) |
| Mount | Φ14 |
| Focus Control | Auto/Manual |
| Iris Control(Optional for I Series) | Auto/Manual |
| Video | |
| Max. Image Resolution | 1920x1080 |
| Primary Stream | 60Hz: 30fps@(1920x1080, 1280x960, 1280x720, 704x576) 50Hz: 25fps@(1920x1080, 1280x960, 1280x720, 704x576) |
| Secondary Stream | 60Hz: 30fps@(704x576, 640x480, 640x360, 352x288) 50Hz: 25fps@(704x576, 640x480, 640x360, 352x288) |
| Tertiary Stream | 60Hz: 30fps@(1280x720, 704x576, 640x480, 640x360, 352x288) 50Hz: 25fps@(1280x720, 704x576, 640x480, 640x360, 352x288) |
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG |
| Video Bit Rate | 16Kbps∼16Mbps (CBR/VBR Adjustable) |
| Privacy Masking | Up to 4 areas |
| ROI | Up to 8 areas |
| Image Settings | Saturation/Brightness/Contrast/Sharpness |
| Interface | |
| Ethernet | 1*RJ45 10M/100M Ethernet Port |
| Audio I/O | 1/1 |
| Alarm I/O | 1/1 |
| Network | |
| Network Storage | NAS(Support NFS, SMB/CIFS), ANR |
| Network Protocols | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP,HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL, TLS 1.2 |
| Audio | |
| Audio Compression | G.711/AAC/G.722/G.726 |
| Audio Sampling Rate | 8/16/32/48KHz |
| Audio Bit Rate | 16~256kbps |
| Two-way Audio | Support |
| Intelligent Analytics | |
| Video Analysis | Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed |
| People Counting &Report | Count the number of people entering or exiting |
| System | |
| Storage | Support microSD/SDHC/SDXC Card Local Storage, up to 1TB |
| Advanced Function | BLC, HLC, 2D DNR, 3D DNR, AWB, Defog, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur |
| SIP/VoIP Support | Yes, Voice&Video-over-IP |
| Event Trigger | Motion Detection, Network Disconnection, External Input, Audio Alarm, etc. |
| Event Action | FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc. |
| System Compatibility | ONVIF Profile G & Q & S & T, API |
| General | |
| Working Temperature | -40℃∼60℃ |
| Working Humidity | 0∼90%(Non-condensing) |
| Power Supply | PoE(802.3af)/DC 12V±10% |
| Power Consumption | 4W MAX, 8W MAX (With IR on) |
| Weather Proof | Up to IP67-rated for Weather-resistant Performance |
| Housing | Vandal-proof IK10-rated Metal Housing |
| Weight | 1100g |
| Dimensions | Φ143mmX108.4mm |
| Warranty | 3/5 Years |
* Naming Convention
R - High Frame Rate (60fps)
T - High Frame Rate (90/100fps)
F - Motorized Vari-focal Lens
I - P-Iris Supported
P - PoE Supported
A/C/D/E - AI Series
| Camera | |
|---|---|
| Name | 2MP AI Motorized Pro Dome Network Camera |
| Image Sensor | 1/2" Progressive Scan CMOS |
| Min. Illumination | Color: 0.002Lux @F1.4, B/W: 0Lux with IR on |
| WDR | 140dB Super WDR Pro |
| Shutter Time | 1/100000s∼1s |
| Day/Night Mode | Day/Night/Auto/Customize/Schedule |
| IR Distance | Up to 50m |
| S/N | >55dB |
| Lens | |
| Lens | Motorized 3.6~10mm@F1.4, P-Iris(Optional) |
| Field of View | H96°~H42°/D111°~D48°/V55°~V23° |
| Mount | Φ14 |
| Focus Control | Auto/Manual |
| Iris Control(Optional for I Series) | Auto/Manual |
| Video | |
| Max. Image Resolution | 1920x1080 |
| Primary Stream | 60Hz: 100fps@(1920x1080)(Optional for T Series), 60fps@(1920x1080, 1280x960, 1280x720, 704x576) 50Hz: 100fps@(1920x1080)(Optional for T Series), 50fps@(1920x1080, 1280x960, 1280x720, 704x576) |
| Secondary Stream | 60Hz: 30fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180) 50Hz: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180) |
| Tertiary Stream | 60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180) 50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180) |
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG |
| Video Bit Rate | 16Kbps∼16Mbps (CBR/VBR Adjustable) |
| Privacy Masking | Up to 28 areas(24 mask areas and 4 mosaic areas) |
| ROI | Up to 8 areas |
| Image Settings | Saturation/Brightness/Contrast/Sharpness |
| Interface | |
| Ethernet | 1*RJ45 10M/100M Ethernet Port |
| Audio I/O | Built-in Microphone and 1 Audio Output interface |
| Alarm I/O | 1/1 |
| Network | |
| Network Storage | NAS(Support NFS, SMB/CIFS), ANR |
| Network Protocols | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL |
| Audio | |
| Audio Compression | G.711/AAC/G.722/G.726 |
| Audio Sampling Rate | 8/16/32/44.1/48KHz |
| Audio Bit Rate | 16~256kbps |
| Two-way Audio | Support |
| Intelligent Analytics | |
| Video Analysis | Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed |
| Face detection | Detect and capture faces, get real-time snapshots |
| People Counting& Report | Count the number of people entering or exiting, up to 4 detection areas for regional people counting |
| System | |
| Storage | Support microSD/SDHC/SDXC Card Local Storage, up to 256G |
| Advanced Function | Heat Map,BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark |
| SIP/VoIP Support | Yes, Voice&Video-over-IP |
| Event Trigger | Motion Detection, Network Disconnection, External Input, Audio Alarm, etc. |
| Event Action | FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc. |
| System Compatibility | ONVIF Profile G & Q & S & T, API |
| General | |
| Working Temperature | -40℃∼60℃ |
| Working Humidity | 0∼90%(Non-condensing) |
| Power Supply | PoE(802.3af)/DC 12V±10% |
| Power Consumption | 8W MAX, 10W MAX (With IR on) |
| Weather Proof | Up to IP67-rated for Weather-resistant Performance |
| Housing | Vandal-proof IK10-rated Metal Housing |
| Weight | 1100g |
| Dimensions | Φ143mmX108.4mm |
| Warranty | 3/5 Years |
* Naming Convention
R - High Frame Rate (60fps)
T - High Frame Rate (90/100fps)
F - Motorized Vari-focal Lens
I - P-Iris Supported
P - PoE Supported
A/C/D/E - AI Series
| Camera | |
|---|---|
| Name | 2MP AI Motorized Pro Dome Network Camera |
| Image Sensor | 1/2.8" Progressive Scan CMOS |
| Min. Illumination | Color: 0.005Lux @F1.4, B/W: 0Lux with IR on |
| WDR | 140dB Super WDR (Super WDR Pro is optional for T Series) |
| Shutter Time | 1/100000s∼1s |
| Day/Night Mode | Day/Night/Auto/Customize/Schedule |
| IR Distance | Up to 50m(3.0~10.5mm/2.7~13.5mm), Up to 90m(7~22mm) |
| S/N | >55dB |
| Lens | |
| Lens | Motorized 2.7~13.5mm/3.0~10.5mm/7~22mm@F1.4, P-Iris(Optional) |
| Field of View | H115°~H34°/D135°~D39° /V62°~V19° (2.7~13.5mm), H93°~H33°/D107°~D38° /V52°~V18° (3.0~10.5m), H40°~H16°/D46°~D19° /V23°~V9° (7~22mm) |
| Mount | Φ14 |
| Focus Control | Auto/Manual |
| Iris Control(Optional for I Series) | Auto/Manual |
| Video | |
| Max. Image Resolution | 1920x1080 |
| Primary Stream | 60Hz: 100fps@(1920x1080)(Optional for T Series), 60fps@(1920x1080, 1280x960, 1280x720, 704x576) 50Hz: 100fps@(1920x1080)(Optional for T Series), 50fps@(1920x1080, 1280x960, 1280x720, 704x576) |
| Secondary Stream | 60Hz: 30fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180) 50Hz: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180) |
| Tertiary Stream | 60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180) 50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180) |
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG |
| Video Bit Rate | 16Kbps∼16Mbps (CBR/VBR Adjustable) |
| Privacy Masking | Up to 28 areas(24 mask areas and 4 mosaic areas) |
| ROI | Up to 8 areas |
| Image Settings | Saturation/Brightness/Contrast/Sharpness |
| Interface | |
| Ethernet | 1*RJ45 10M/100M Ethernet Port |
| Audio I/O | Built-in Microphone and 1 Audio Output interface |
| Alarm I/O | 1/1 |
| Network | |
| Network Storage | NAS(Support NFS, SMB/CIFS), ANR |
| Network Protocols | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL |
| Audio | |
| Audio Compression | G.711/AAC/G.722/G.726 |
| Audio Sampling Rate | 8/16/32/44.1/48KHz |
| Audio Bit Rate | 16~256kbps |
| Two-way Audio | Support |
| Intelligent Analytics | |
| Video Analysis | Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed |
| Face detection | Detect and capture faces, get real-time snapshots |
| People Counting& Report | Count the number of people entering or exiting, up to 4 detection areas for regional people counting |
| System | |
| Storage | Support microSD/SDHC/SDXC Card Local Storage, up to 256G |
| Advanced Function | Heat Map,BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark |
| SIP/VoIP Support | Yes, Voice&Video-over-IP |
| Event Trigger | Motion Detection, Network Disconnection, External Input, Audio Alarm, etc. |
| Event Action | FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc. |
| System Compatibility | ONVIF Profile G & Q & S & T, API |
| General | |
| Working Temperature | -40℃∼60℃ |
| Working Humidity | 0∼90%(Non-condensing) |
| Power Supply | PoE(802.3af)/DC 12V±10% |
| Power Consumption | 8W MAX, 10W MAX (With IR on) |
| Weather Proof | Up to IP67-rated for Weather-resistant Performance |
| Housing | Vandal-proof IK10-rated Metal Housing |
| Surge Protection | 2KV |
| Weight | 1100g |
| MTBF | 6.25 Years |
| Dimensions | Φ143mmX108.4mm |
| Warranty | 3/5 Years |
* Naming Convention
R - High Frame Rate (60fps)
T - High Frame Rate (90/100fps)
F - Motorized Vari-focal Lens
I - P-Iris Supported
P - PoE Supported
A/C/D/E - AI Series
| Camera | |
|---|---|
| Name | 5MP AI Motorized Pro Dome Network Camera |
| Image Sensor | 1/2.8" Progressive Scan CMOS |
| Min. Illumination | Color: 0.008Lux @F1.4, B/W: 0Lux with IR on |
| WDR | 120dB Super WDR |
| Shutter Time | 1/100000s∼1s |
| Day/Night Mode | Day/Night/Auto/Customize/Schedule |
| IR Distance | Up to 50m(3.0~10.5mm/2.7~13.5mm), Up to 90m(7~22mm) |
| S/N | >55dB |
| Lens | |
| Lens | Motorized 2.7~13.5mm/3.0~10.5mm/7~22mm@F1.4, P-Iris(Optional) |
| Field of View | H89°~H30°/D111°~D37° /V66°~V22° (2.7~13.5mm), H90°~H31°/ D114°~D38° / V67°~V23°(3.0~10.5mm), H37°~H15°/D47°~D19° /V28°~V11° (7~22mm) |
| Mount | Φ14 |
| Focus Control | Auto/Manual |
| Iris Control(Optional for I Series) | Auto/Manual |
| Video | |
| Max. Image Resolution | 2592x1944 |
| Primary Stream | 60Hz: 30fps@(2592x1944), 45fps@(2048x1536), 60fps@(1920x1080, 1280x960, 1280x720, 704x576) 50Hz: 25fps@(2592x1944), 45fps@(2048x1536), 50fps@(1920x1080, 1280x960, 1280x720, 704x576) |
| Secondary Stream | 60Hz: 30fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180) 50Hz: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180) |
| Tertiary Stream | 60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180) 50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180) |
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG |
| Video Bit Rate | 16Kbps∼16Mbps (CBR/VBR Adjustable) |
| Privacy Masking | Up to 28 areas(24 mask areas and 4 mosaic areas) |
| ROI | Up to 8 areas |
| Image Settings | Saturation/Brightness/Contrast/Sharpness |
| Interface | |
| Ethernet | 1*RJ45 10M/100M Ethernet Port |
| Audio I/O | Built-in Microphone and 1 Audio Output interface |
| Alarm I/O | 1/1 |
| Network | |
| Network Storage | NAS(Support NFS, SMB/CIFS), ANR |
| Network Protocols | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL |
| Audio | |
| Audio Compression | G.711/AAC/G.722/G.726 |
| Audio Sampling Rate | 8/16/32/44.1/48KHz |
| Audio Bit Rate | 16~256kbps |
| Two-way Audio | Support |
| Intelligent Analytics | |
| Video Analysis | Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed |
| Face detection | Detect and capture faces, get real-time snapshots |
| People Counting& Report | Count the number of people entering or exiting, up to 4 detection areas for regional people counting |
| System | |
| Storage | Support microSD/SDHC/SDXC Card Local Storage, up to 256G |
| Advanced Function | Heat Map, BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark |
| SIP/VoIP Support | Yes, Voice&Video-over-IP |
| Event Trigger | Motion Detection, Network Disconnection, External Input, Audio Alarm, etc. |
| Event Action | FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc. |
| System Compatibility | ONVIF Profile G & Q & S & T, API |
| General | |
| Working Temperature | -40℃∼60℃ |
| Working Humidity | 0∼90%(Non-condensing) |
| Power Supply | PoE(802.3af)/DC 12V±10% |
| Power Consumption | 8W MAX, 10W MAX (With IR on) |
| Weather Proof | Up to IP67-rated for Weather-resistant Performance |
| Housing | Vandal-proof IK10-rated Metal Housing |
| Weight | 1100g |
| Dimensions | Φ143mmX108.4mm |
| Warranty | 3/5 Years |
* Naming Convention
R - High Frame Rate (60fps)
T - High Frame Rate (90/100fps)
F - Motorized Vari-focal Lens
I - P-Iris Supported
P - PoE Supported
A/C/D/E - AI Series
| Camera | |
|---|---|
| Name | 4K AI Motorized Pro Dome Network Camera |
| Image Sensor | 1/2.8" Progressive Scan CMOS |
| Min. Illumination | Color: 0.012Lux @F1.4, B/W: 0Lux with IR on |
| WDR | 120dB Super WDR |
| Shutter Time | 1/100000s∼1s |
| Day/Night Mode | Day/Night/Auto/Customize/Schedule |
| IR Distance | Up to 50m |
| S/N | >55dB |
| Lens | |
| Lens | Motorized 2.7~13.5mm@F1.4, P-Iris(Optional) |
| Field of View | H96°~H33°/D112°~D37°/V53°~V18° |
| Mount | Φ14 |
| Focus Control | Auto/Manual |
| Iris Control(Optional for I Series) | Auto/Manual |
| Video | |
| Max. Image Resolution | 3840x2160 |
| Primary Stream | 60Hz: 30fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576) 50Hz: 25fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576) |
| Secondary Stream | 60Hz: 30fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180) 50Hz: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180) |
| Tertiary Stream | 60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180) 50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180) |
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG |
| Video Bit Rate | 16Kbps∼16Mbps (CBR/VBR Adjustable) |
| Privacy Masking | Up to 28 areas(24 mask areas and 4 mosaic areas) |
| ROI | Up to 8 areas |
| Image Settings | Saturation/Brightness/Contrast/Sharpness |
| Interface | |
| Ethernet | 1*RJ45 10M/100M Ethernet Port |
| Audio I/O | Built-in Microphone and 1 Audio Output interface |
| Alarm I/O | 1/1 |
| Network | |
| Network Storage | NAS(Support NFS, SMB/CIFS), ANR |
| Network Protocols | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL |
| Audio | |
| Audio Compression | G.711/AAC/G.722/G.726 |
| Audio Sampling Rate | 8/16/32/44.1/48KHz |
| Audio Bit Rate | 16~256kbps |
| Two-way Audio | Support |
| Intelligent Analytics | |
| Video Analysis | Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed |
| Face detection | Detect and capture faces, get real-time snapshots |
| People Counting& Report | Count the number of people entering or exiting, up to 4 detection areas for regional people counting |
| System | |
| Storage | Support microSD/SDHC/SDXC Card Local Storage, up to 256G |
| Advanced Function | Heat Map, BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark |
| SIP/VoIP Support | Yes, Voice&Video-over-IP |
| Event Trigger | Motion Detection, Network Disconnection, External Input, Audio Alarm, etc. |
| Event Action | FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc. |
| System Compatibility | ONVIF Profile G & Q & S & T, API |
| General | |
| Working Temperature | -40℃∼60℃ |
| Working Humidity | 0∼90%(Non-condensing) |
| Power Supply | PoE(802.3af)/DC 12V±10% |
| Power Consumption | 10W MAX, 12W MAX (With IR on) |
| Weather Proof | Up to IP67-rated for Weather-resistant Performance |
| Housing | Vandal-proof IK10-rated Metal Housing |
| Weight | 1100g |
| Dimensions | Φ143mmX108.4mm |
| Warranty | 3/5 Years |
* Naming Convention
R - High Frame Rate (60fps)
T - High Frame Rate (90/100fps)
F - Motorized Vari-focal Lens
I - P-Iris Supported
P - PoE Supported
A/C/D/E - AI Series
| Camera | |
|---|---|
| Name | 4K AI Motorized Pro Dome Network Camera |
| Image Sensor | 1/1.8" Progressive Scan CMOS |
| Min. Illumination | Color: 0.009Lux @F1.4, B/W: 0Lux with IR on |
| WDR | 120dB Super WDR |
| Shutter Time | 1/100000s∼1s |
| Day/Night Mode | Day/Night/Auto/Customize/Schedule |
| IR Distance | Up to 50m |
| S/N | >55dB |
| Lens | |
| Lens | Motorized 3.6~10mm@F1.4, P-Iris(Optional) |
| Field of View | H110°~H46°/D126°~D54°/V61°~V25° |
| Mount | Φ14 |
| Focus Control | Auto/Manual |
| Iris Control(Optional for I Series) | Auto/Manual |
| Video | |
| Max. Image Resolution | 3840x2160 |
| Primary Stream | 60Hz: 30fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576) 50Hz: 25fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576) |
| Secondary Stream | 60Hz: 30fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180) 50Hz: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180) |
| Tertiary Stream | 60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180) 50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180) |
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG |
| Video Bit Rate | 16Kbps∼16Mbps (CBR/VBR Adjustable) |
| Privacy Masking | Up to 28 areas(24 mask areas and 4 mosaic areas) |
| ROI | Up to 8 areas |
| Image Settings | Saturation/Brightness/Contrast/Sharpness |
| Interface | |
| Ethernet | 1*RJ45 10M/100M Ethernet Port |
| Audio I/O | Built-in Microphone and 1 Audio Output interface |
| Alarm I/O | 1/1 |
| Network | |
| Network Storage | NAS(Support NFS, SMB/CIFS), ANR |
| Network Protocols | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL |
| Audio | |
| Audio Compression | G.711/AAC/G.722/G.726 |
| Audio Sampling Rate | 8/16/32/44.1/48KHz |
| Audio Bit Rate | 16~256kbps |
| Two-way Audio | Support |
| Intelligent Analytics | |
| Video Analysis | Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed |
| Face detection | Detect and capture faces, get real-time snapshots |
| People Counting& Report | Count the number of people entering or exiting, up to 4 detection areas for regional people counting |
| System | |
| Storage | Support microSD/SDHC/SDXC Card Local Storage, up to 256G |
| Advanced Function | Heat Map,BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark |
| SIP/VoIP Support | Yes, Voice&Video-over-IP |
| Event Trigger | Motion Detection, Network Disconnection, External Input, Audio Alarm, etc. |
| Event Action | FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc. |
| System Compatibility | ONVIF Profile G & Q & S & T, API |
| General | |
| Working Temperature | -40℃∼60℃ |
| Working Humidity | 0∼90%(Non-condensing) |
| Power Supply | PoE(802.3af)/DC 12V±10% |
| Power Consumption | 10W MAX, 13W MAX (With IR on) |
| Weather Proof | Up to IP67-rated for Weather-resistant Performance |
| Housing | Vandal-proof IK10-rated Metal Housing |
| Weight | 1100g |
| Dimensions | Φ143mmX108.4mm |
| Warranty | 3/5 Years |
* Naming Convention
R - High Frame Rate (60fps)
T - High Frame Rate (90/100fps)
F - Motorized Vari-focal Lens
I - P-Iris Supported
P - PoE Supported
A/C/D/E - AI Series
A02 V2 Pole Mount
- Weight: 1kg
- Dimension: 180*136*46mm
- Installation Environment: For strapping cameras on poles between 102-127mm(4.1-5 inches) in diameter
A03 External Corner Bracket
- Weight: 900g
- Dimension: 170*152.5*76mm
- Installation Environment: For mounting cameras on an external corner
A42-L Extension Lever
- Weight: 330g
- Dimension: Φ 55*255mm
- Installation Environment: Used as extensions for pendant mount
A72 V2 Wall Mount
- Weight: 575g
- Dimension: 145*133*242mm
- Installation Environment: For wall or parapet installations
AC-72 Smoked Dome Cover
- Weight: 39g
- Dimension: Φ100*56mm
- Installation Environment: For concealing where a camera is pointed
A75 Junction Box
- Weight: 200g
- Dimension: 145*167*33.5mm
- Installation Environment: For the containing of electrical connections which need to be concealed from sight and deter tampering
A76 V2 Pendant Mount
- Weight: 620g
- Dimension: Φ 145*L (L is default as 290mm, also can be extended with A42-L)
- Installation Environment: Used to install cameras on a ceiling or horizontal structure
A78 Recessed Mount
- Weight: 715g
- Dimension: Φ256*94mm
- Installation Environment: For in-ceiling installations
Documents
Milesight AI Motorized Pro Dome Network Camera Datasheet Project Based-en Milesight AI Motorized Pro Dome Network Camera Datasheet-en Milesight AI Motorized Pro Dome Network Camera Datasheet-en-NDAA-E Milesight AI Motorized Pro Dome Network Camera Datasheet-en-NDAA-A Milesight AI Motorized Pro Dome Network Camera Datasheet-NDAA-D-en Milesight Network Camera User Manual Milesight Network Camera Quick Start Guide
