TS601
TS602

TS60x
Temperature and Humidity Sensor

TS60x is a 4G sensor designed for reliable cold chain temperature monitoring during the storage and transportation of food and pharmaceuticals, helping reduce losses, meet regulatory requirements, and maintain product quality.

Get Expert Advice Now Watch the Video
  • FEATURES
  • MODELS
  • ACCESSORIES
  • DOWNLOAD

Two Expressions of the Same Cold Chain Mission

TS601

Built-In Sensing
with Indicator

TS602

External Probe
with Display

Reliable Battery Life of up to 4.8 Years

Safe, easy-to-replace internal battery bay design with
4.8 years of battery life*.

*6 Times Report per Day, per Report includes 8 Packages
with 30-min Collection Interval, Positioning Disabled,
-20°C, MQTT

Positioning Reporting

Reports location data via
cellular networks

IP67 Waterproofing

Multi-layer sealing design prevents condensation and
moisture intrusion for reliable cold-chain performance.

Four Mounting Options

Wall-mounting, 3M tape, Cable ties,
and magnetic mounting (optional).

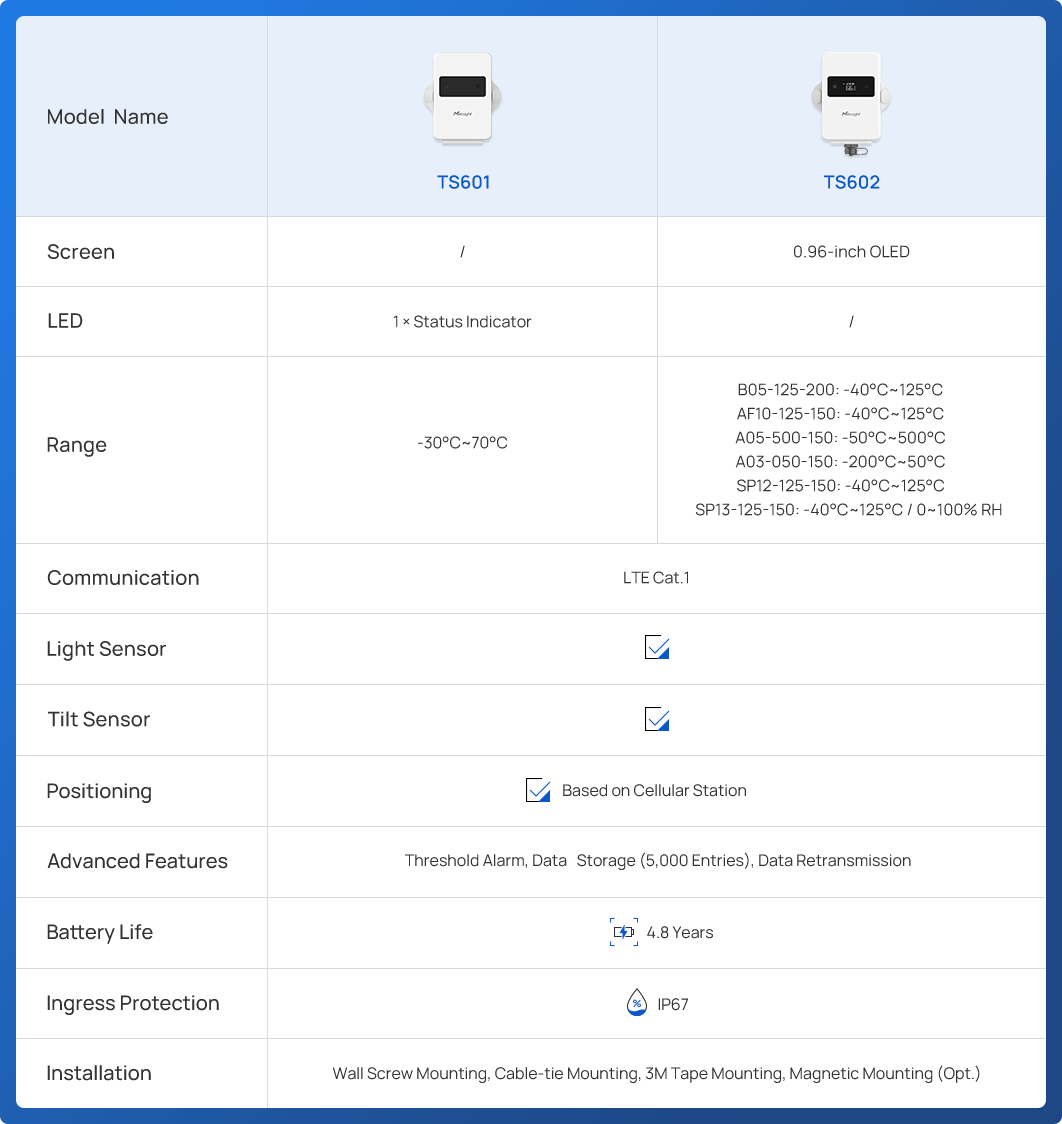

ts601 602

Intelligent Cold Chain Control:
Automated, Accurate, Always On

As a cold chain temperature monitoring device, the Milesight TS60x is engineered specifically for cold chain solutions. Whether mounted in truck trailers, attached to cargo crates, or paired with medical coolers, TS60x provides a fully traceable data stream, covering temperature, humidity, light, tilt, and location, ensuring effective monitoring throughout the cold storage and transport process.

Cold Chain Confidence, Engineered Into Every Detail

Intelligence That Works the Way Cold Chain Works

Awareness That Goes Far Beyond Temperature

Purpose-Built for Cold Chain

High humidity, frost, condensation, sub-zero blasts — TS60x doesn't fight the environment; it is designed for it. Still running. Still sensing. Still reporting.

Multiple Probe Options (TS602)

From PT100 to DS18B20 to TH probes — choose the probe that fits your cargo, your industry, and your temperature range. One device adapts to various cold chain realities. Learn more >>>

4G Connectivity (Cat-1) for Remote Monitoring

Every change, every degree, every incident — delivered over wide-area cellular networks, ensuring you stay informed even when assets are on the road.

Food-Contact-Safe Housing

Safe to attach directly onto insulated boxes or containers near food or pharmaceuticals.

Flexible Installation, No Vehicle Modification

TS60x installs anywhere your cold chain needs it — with magnets, 3M tape, wall screws, or cable ties. No drilling, no wiring changes, no vehicle retrofit. Just place it, secure it, and start monitoring.

cold chain car

Smart Reporting Strategy

There is one rule TS60x lives by: Routine data can wait. Risk can't. Normal readings are aggregated and reported at regular intervals for endurance, while temperature excursions, door openings, and tilt events trigger instant alerts. Always quiet when all is well, always urgent when action is needed.

One-Tap Data Assurance

A single press retrieves all stored logs at once — giving you the complete historical record instantly.

Flight Mode for Aviation Compliance

Schedule flight mode based on flight information so cellular communication stops automatically during air transport, helping you comply with aviation safety requirements.

NFC Setup in Minutes

Bring a phone close — configuration, thresholds, intervals. Done. No enclosure opened. No cable connected. No time wasted.

pharmaceutical cold chain

Light-Sensor for Door Open Detection

A flicker of light becomes instant awareness — the moment a trailer,
crate, or medical cooler is opened, you will know.

Tilt Sensor for Abnormal Motion Detection

A tilt, a drop, or an unexpected impact — TS60x immediately flags potential damage, helping prevent financial loss and avoid responsibility disputes.

Track Where Your Cargo Moves

Cell-based positioning keeps you aware of each shipment's journey — to safeguard cargo during transport and enable teams to prepare receiving and handover ahead of arrival.

food cold chain
Explore Cold Chain Solution

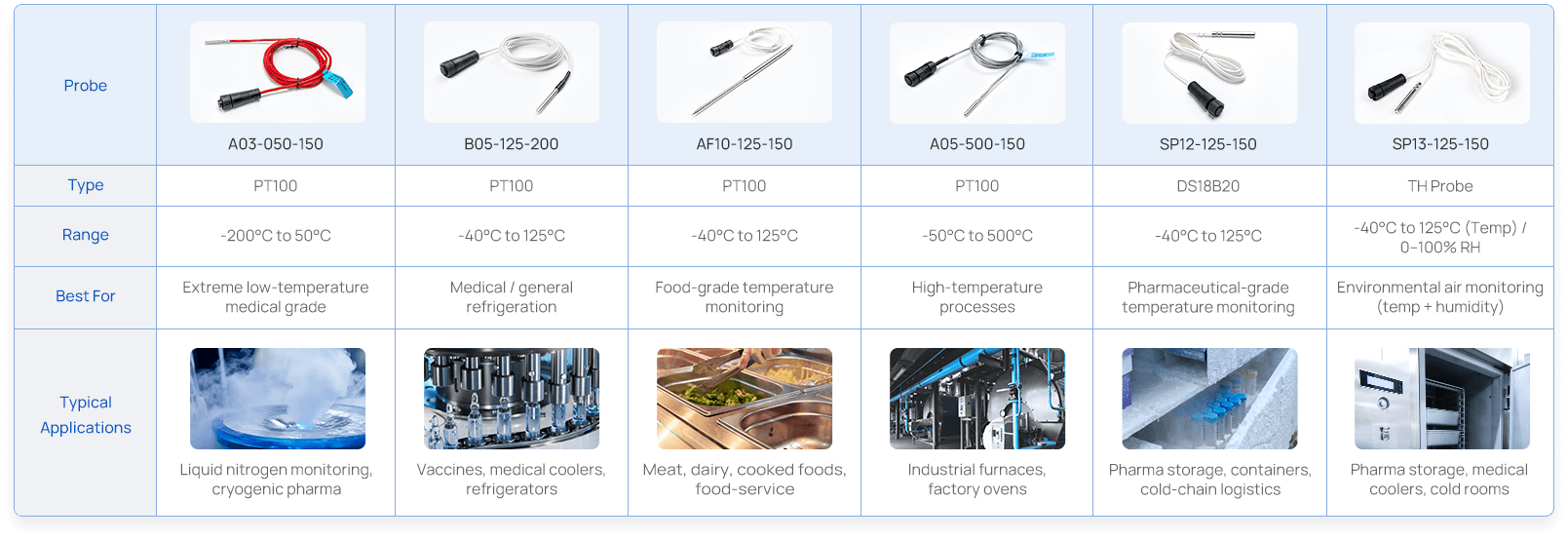

Engineered Flexibility: Dedicated Probes for Diverse Scenarios

TS602 works with multiple probe types from air sensing to deep product-core measurement, giving you full flexibility across food, pharma, and cold-chain transportation and storage.

probe options

Temperature Series for Varied Monitoring Needs

Milesight offers a complete portfolio of wireless temperature and humidity sensing devices to cover
every part of your operation — from cellular cold chain transport to LoRaWAN®-based facility monitoring.

ts101 ts101

TS101

Insertion Temperature Sensor

TS101

Insertion Temperature Sensor

  • The TS101 is a LoRaWAN®-enabled insertion sensor for precise core temperature monitoring. Ideal for monitoring temperatures in tobacco stacks, hay, and compost to ensure quality and safety.

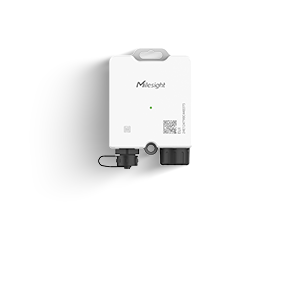

ts201 ts201

TS201

Cost-Effective Temperature Sensor

TS201

Cost-Effective Temperature Sensor

  • The TS201 is a cost-effective LoRaWAN® temperature sensor with IP67 protection and detachable probes for reliable temperature monitoring.

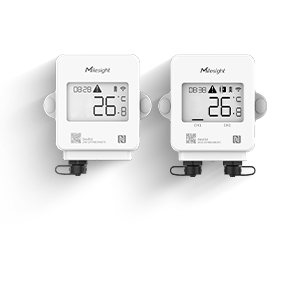

ts30x ts30x

TS30x

LoRaWAN® Temperature Sensor

TS30x

LoRaWAN® Temperature Sensor

  • The TS30x is a LoRaWAN® temperature sensor with an LCD display, designed to connect seamlessly with high-accuracy PT100 probes and door magnetic sensors.

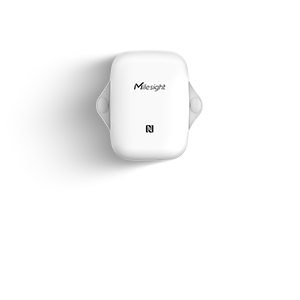

em300 th em300 th

EM300-TH

Temperature & Humidity Sensor

EM300-TH

Temperature & Humidity Sensor

  • The EM300-TH is an IP67-rated LoRaWAN® temperature & humidity sensor with up to 10-year battery life designed for reliable real-time environmental monitoring.

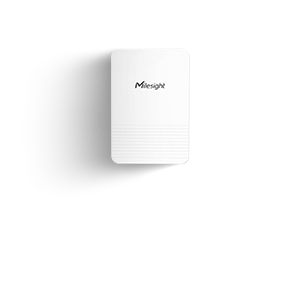

em320 th em320 th

EM320-TH

Temperature and Humidity Sensor

EM320-TH

Temperature and Humidity Sensor

  • The Milesight EM320-TH is a LoRaWAN® temperature & humidity sensor designed with a food-safe, IP67-rated enclosure and built-in data storage and retransmission capabilities.

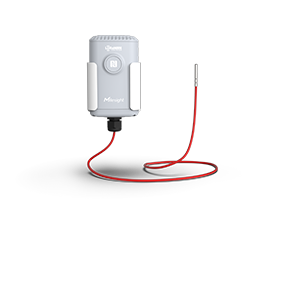

em500 pt100 em500 pt100

EM500-PT100

Industrial Temperature Sensor

EM500-PT100

Industrial Temperature Sensor

  • The Milesight EM500-PT100 is an industrial-grade LoRaWAN® temperature sensor built with platinum PT100 probes, cover −200 °C to +800 °C, and delivers up to 10-year battery life in harsh environments.
See Full Comparison

Specifications

Temperature Version
Connector Type-
Connector Number-
Wireless Transmission
TechnologyLTE Cat.1
FrequencyL0DEU (EMEA+Australia/New Zealand):
LTE - FDD: B1/B3/B5/B7/B8/B20/B28
L0DLA (Latin America):
LTE - FDD: B2/B3/B4/B5/B7/B8/B28/B66
SIM Slot1 x Nano SIM(4FF) Slot, 1.8V/3V
Application ModeTCP/UDP/MQTT/AWS/Milesight Development Platform
Sensor
Temperature
Operating PrincipleDigital CMOSens® technology (MEMS)
Range-35°C to +70°C
AccuracyTyp. [1]:
+/- 0.3°C (-35°C to 0°C)
+/- 0.2°C (0°C to 65°C)
+/- 0.5°C (65°C to 70°C)
Resolution+/- 0.1°C
Humidity
Operating PrincipleDigital CMOSens® technology (MEMS)
Range0% to 100% RH
AccuracyTyp.[2][3]:
+/- 2% RH
Resolution+/- 0.1% RH
Light
Range0 to 600 Lux
StatusLight/Dark
Device Position
StatusNormal/Tilt
Threshold Range-90° to +90° (on all X, Y, Z axes)
Base Station Positioning
ParametersLongitude/Latitude
Accuracy
(On Urban Main Roads)		Typ. Deviation: 1 km
Max Deviation: 5 km
Others
Screen-
LED1 × Status Indicator
Button1 × Reset/Power Button
USB1 × Type-C Port for Power Supply (Internal)
Software
Power On/OffNFC, USB, Power Button
ConfigurationMobile App via NFC
Min. Packet
Transmission Interval [6]
Advanced Features		30min@Operating Temperature≤ 0°C

15min@Operating Temperature>0°C
Advanced FeaturesThreshold Alarm, Data Storage (5,000 entries), Data Retransmission
Physical Characteristics
Power Supply2 × 2500 mAh CR18505 Li-MnO2 Batteries
Battery Life[7]
(6 Times Report per
Day, per Report includes
8 Packages with 30-min
Collection Interval, Positioning Disabled, -20°C)		MQTT/TCP - Around 4.8 Years
AWS - Around 3.9 Years
UDP - Around 5.1 Years
Operating Temperature-35°C to 70°C
Relative Humidity0% - 95% (non-condensing)
Ingress ProtectionIP67
Housing&ColorABS+PC (Food-grade), White
Weight
(Batteries included)		192g
Dimension112 × 72 × 29mm
InstallationCable-tie Mounting, 3M Tape Mounting, Wall Screw Mounting, Magnetic Mounting (Opt.)

Temperature Version
Connector Type5-pin M12 A-Coded Male Connector
Connector Number1 × Connector for
TH/DS18B20/PT100 Sensor
Wireless Transmission
TechnologyLTE Cat.1
FrequencyL0DEU (EMEA+Australia/New Zealand):
LTE - FDD: B1/B3/B5/B7/B8/B20/B28
L0DLA (Latin America):
LTE - FDD: B2/B3/B4/B5/B7/B8/B28/B66
SIM Slot1x Nano SIM(4FF) Slot, 1.8V/3V
Application ModeTCP/UDP/MQTT/AWS/Milesight Development Platform
Sensors
Temperature
Operating PrincipleRefer to Optional Sensors
RangeRefer to Optional Sensors
AccuracyRefer to Optional Sensors
ResolutionRefer to Optional Sensors
Humidity
Operating PrincipleRefer to Optional Sensors
RangeRefer to Optional Sensors
AccuracyRefer to Optional Sensors
ResolutionRefer to Optional Sensors
Light
Range0 to 600 Lux
StatusLight/Dark
Device Position
StatusNormal/Tilt
Threshold Range-90° to +90° (on all X, Y, Z axes)
Base Station Positioning
ParametersLongitude/Latitude
Accuracy
(On Urban Main Roads)		Typ. Deviation: 1 km
Max Deviation: 5 km
Others
Screen0.96-inch OLED
LED-
Button1 × Reset/Power Button
USB1 × Type-C Port for Power Supply (Internal)
Software
Power On/OffNFC, USB, Power Button
ConfigurationMobile App via NFC
Min. Packet
Transmission Interval [6]
Advanced Features		30min@Operating Temperature≤ 0°C

15min@Operating Temperature>0°C
Advanced FeaturesThreshold Alarm, Data Storage (5,000 entries), Data Retransmission
Physical Characteristics
Power Supply2 × 2500 mAh CR18505 Li-MnO2 Batteries
Battery Life[7]
(6 Times Report per
Day, per Report includes
8 Packages with 30-min
Collection Interval, Positioning Disabled, -20°C)		MQTT/TCP - Around 4.2 Years
AWS - Around 3.5 Years
UDP - Around 4.6 Years
Operating Temperature-35°C to 70°C
Relative Humidity0% - 95% (non-condensing)
Ingress ProtectionIP67
Housing&ColorABS+PC (Food-grade), White
Weight
(Batteries included)		200g
Dimension112 × 72 × 29mm
InstallationCable-tie Mounting, 3M Tape Mounting, Wall Screw Mounting, Magnetic Mounting (Opt.)

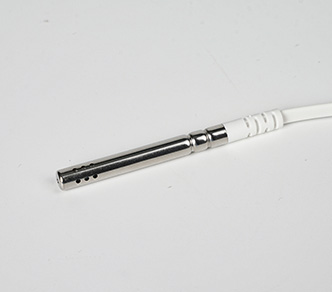

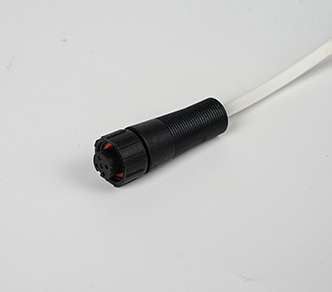

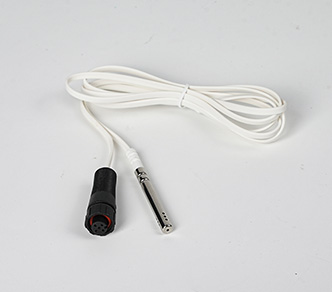

SP13-125-150 TH Sensor

Optional

  • Maximum Temperature Range:125℃
  • Accuracy:Temp: ± 0.3°C (-40°C~0°C), ± 0.2°C (0°C~65°C) ± 0.5°C (65°C~125°C); Humidity: ± 2% RH
  • Cable Length:1.5m
  • Applicable Products:TS602/TS301 V2/TS302 V2
  • *This accessory is not compatible with TS30X V1 devices. If you are unsure of the specific version of your device, please contact our pre-sales or sales team for verification.

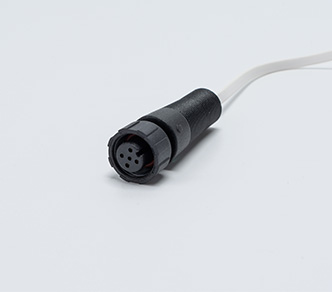

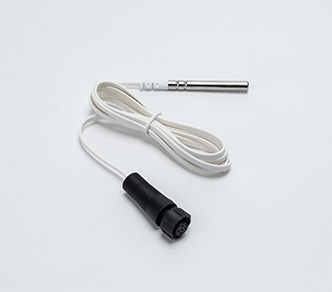

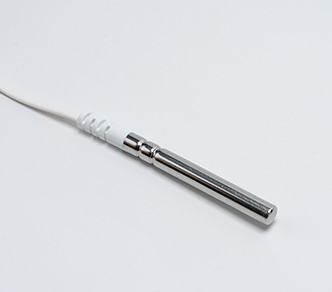

SP12-125-150 Independent Calibration DS18B20 Probe

Optional

  • Measuring Range:-40℃~125℃
  • Accuracy:± 0.5°C(10°C ~ 85°C), ± 2°C(-40°C ~ -10°C, 85°C ~ 125°C)
  • Cable Length:1.5m
  • Applicable Products:TS201/TS602/TS301 V2/TS302 V2
  • *This accessory is not compatible with TS30X V1 devices. If you are unsure of the specific version of your device, please contact our pre-sales or sales team for verification.

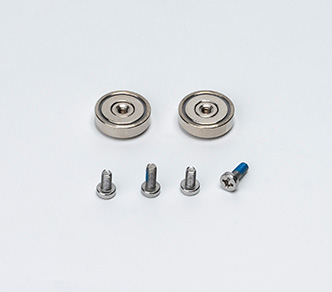

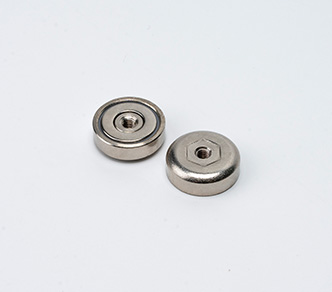

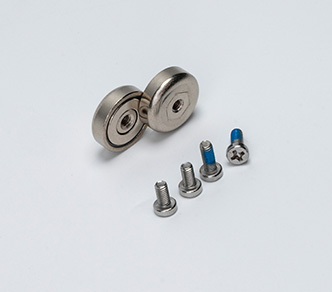

MN1605 Magnetic Nut

Customizable

  • Size:16(D) * 15(H)mm
  • Applicable Products:TS301/TS302/TS201/TS201-TH/TS602

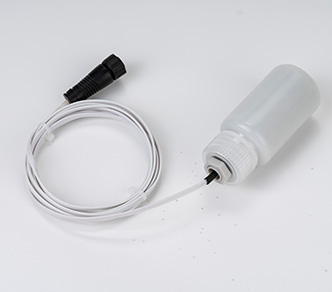

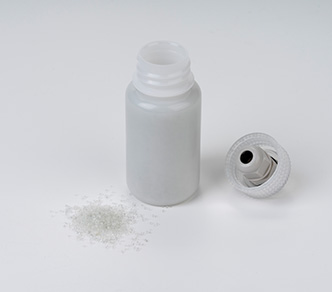

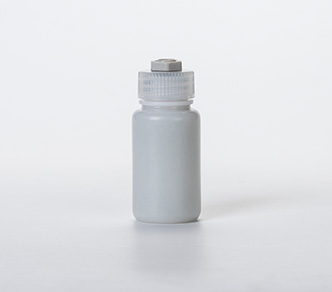

    TB3984 Glass Bead Thermal Buffer Bottle

    Optional

    • Size:Φ39 * 84mm
    • Applicable Products:TS301/TS302/TS201/TS602
    • *Only the thermal buffer bottle is included. The probe is sold separately.

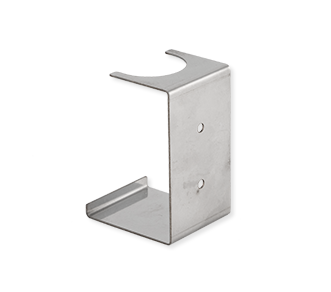

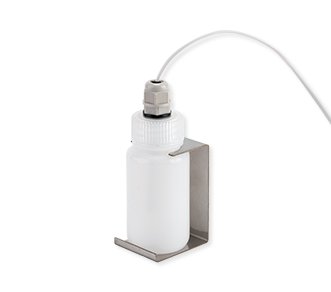

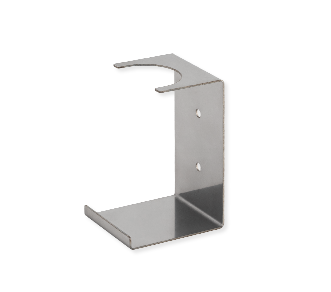

    Thermal Buffer Mounting Bracket

    Customizable

    • Applicable Products:TS301/TS302/TS602

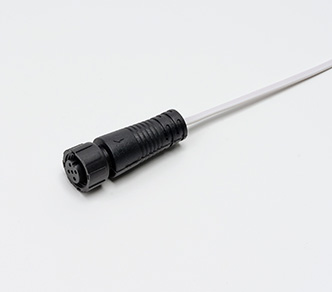

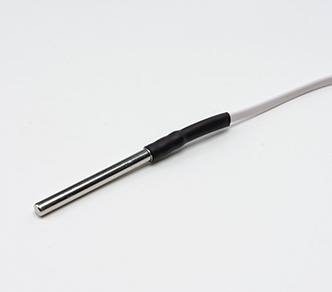

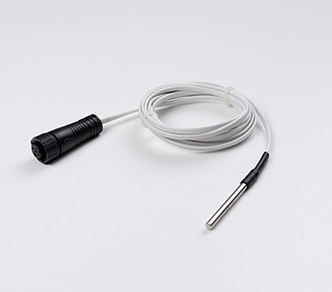

      SP11 Regular Version PT100 Probe

      Optional

      • P/N:B05-125-200
      • Probe Grade:B
      • Measuring Range:-40 °C ~ 125 °C
      • Accuracy:± 0.5°C (-40°C~40°C), ± 1°C (40°C~125°C)
      • Length:5cm
      • Cable Length:200cm
      • Applicable Products:TS301/TS302/TS602

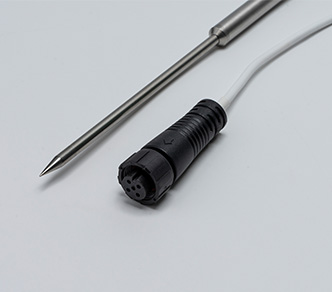

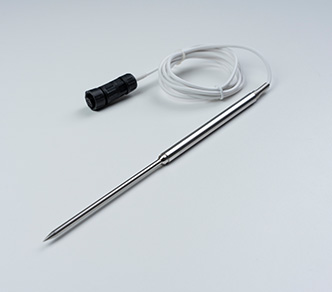

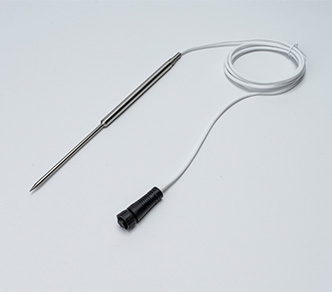

        SP11 Food Applications PT100 Probe

        Optional

        • P/N:AF10-125-150
        • Probe Grade:A
        • Measuring Range:-40 °C ~ 125 °C
        • Accuracy:± 0.4°C
        • Length:10cm
        • Cable Length:150cm
        • Remarks:Food grade probe
        • Applicable Products:TS301/TS302/TS602

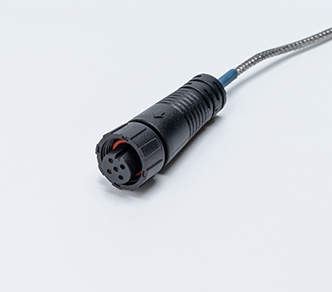

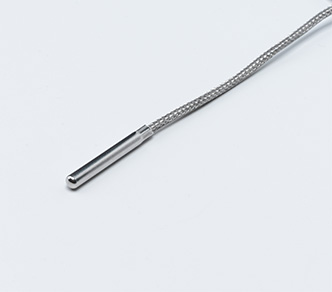

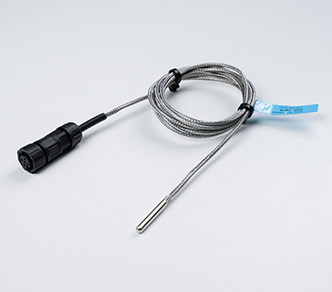

          SP11 Industrial Applications PT100 Probe

          Optional

          • P/N:A05-500-150
          • Probe Grade:A
          • Measuring Range:-50°C ~ 500°C
          • Accuracy:± 0.4°C (-50°C~125°C), ± 1.15°C (125°C~500°C)
          • Length:5cm
          • Cable Length:150cm
          • Applicable Products:TS301/TS302/TS602

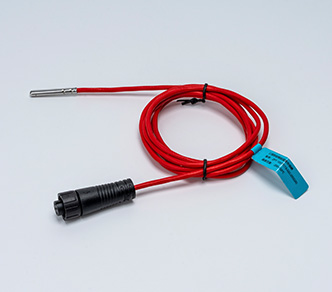

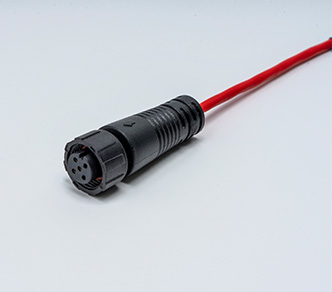

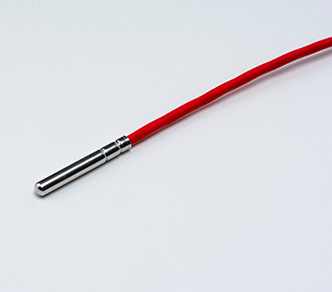

            SP11 Low Temperature Application PT100 Probe

            Optional

            • P/N:A03-050-150
            • Probe Grade:A
            • Measuring Range:-200 °C ~ 50 °C
            • Accuracy:± 0.5°C (-175°C~50°C), ± 0.55°C (-200°C~-175°C)
            • Length:3cm
            • Cable Length:150cm
            • Applicable Products:TS301/TS302/TS602

              Documents

              TS60x Datasheet TS60x User GuidePayload Decoder Firmware & SDK Download
