TS201
Temperature Sensor

TS201 is a cost-effective sensor designed for pharmaceutical and food cold chain storage, enabling temperature and humidity monitoring from -40 °C to 125 °C, while ensuring compliance with EN12830 and supporting HACCP requirements for reliable, auditable data.

TS201/TS201-TH
  • FEATURES
  • MODELS
  • ACCESSORIES
  • DOWNLOAD

Reliable Performance for Temperature Monitoring

Wide Temperature Range & Durable Design

With a temperature monitoring range from -40 °C to 125 °C, TS201 is well-suited for refrigerated storage and controlled environments. Its IP67-rated waterproof design ensures reliable performance across diverse deployment environments.

Compliance for Pharma & Food Monitoring

TS201 is certified to EN12830, ensuring it meets regulatory requirements for temperature monitoring devices used in food and pharmaceutical storage and transport. It also supports HACCP requirements by enabling continuous monitoring and reliable data logging, helping maintain product quality and simplify compliance processes.

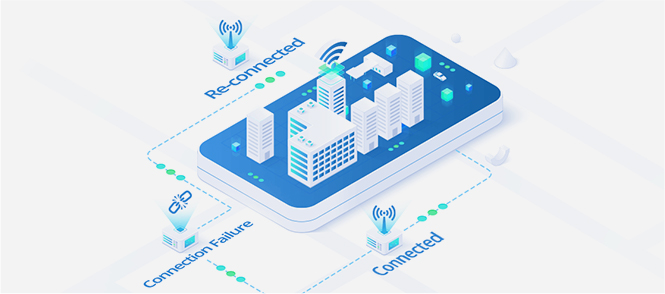

Local Storage & Data Retransmission

TS201 stores up to 4000 records locally, preventing data loss during network interruptions. Once connectivity is restored, all buffered data is automatically retransmitted to maintain complete monitoring records.

LoRaWAN®-Based Low Power & Long Range

Leveraging LoRaWAN® technology, TS201 enables long-range wireless communication with low power consumption. It is ideal for scalable deployments with minimal maintenance requirements.

Why TS201 Fits Pharmaceutical Temperature Monitoring?

Pharmaceutical Storage

Cold Chain

In pharmaceutical environments such as vaccine refrigerators, medical freezers, and drug storage cabinets, maintaining stable temperatures is essential for product safety. Frequent door openings or restocking can cause short-term air temperature fluctuations, leading to inaccurate readings and compliance risks.

TS201 is designed to ensure reliable storage monitoring with:

  • EN12830 compliance to support regulated pharmaceutical storage requirements

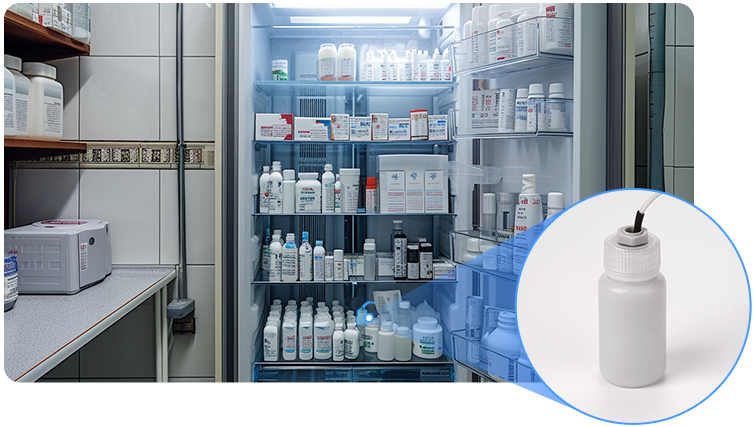

  • Optional glass bead thermal buffer bottle to simulate actual product temperature and reduce false readings
  • Local data storage & retransmission to ensure complete records for audits and traceability

This ensures accurate, stable monitoring and trustworthy data, helping maintain drug efficacy and simplify compliance management.

Discover Hospital Temperature Monitoring Solution >
ts201 temperature sensor pharmacy refrigerator

Transporting temperature-sensitive pharmaceuticals such as vaccines, biologics, and reagents requires strict, continuous temperature control throughout the entire journey. Any temperature excursion during transit may compromise product efficacy and compliance.

TS201 is designed to support reliable cold chain monitoring with:

  • Wide temperature range (-40 °C to 125 °C) to cover refrigerated and frozen transport conditions
  • LoRaWAN®-based connectivity for stable data transmission within facilities.

This enables end-to-end visibility and trusted data records, ensuring product integrity and compliance across the pharmaceutical cold chain

Explore the Full Cold Chain Solution >
ts201 temperature sensor cold chain

Advanced Features for Accurate Temperature Monitoring

Detachable Probe for Independent Calibration

TS201 features detachable sensing probes that can be calibrated independently. This ensures accurate temperature monitoring for sensitive applications. Calibration can be performed directly on the probe without removing the device, enabling faster recovery and minimizing downtime.

Learn More About Calibration Service >

Pin-point Temperature Anomalies

Accurately spot temperature anomalies through receiving alerts sent from the sensing probe with its own identification number.

*The identification number helps to identify if the probe has been calibrated.

Real-time Alerts

Users are able to receive immediate alerts for any potential threats, such as temperature spikes or opened doors. Data is swiftly transmitted to the cloud for easy access and retrieval, reducing inventory loss.

*It is advisable to place the device outside of the refrigerator.

FUOTA Remote Upgrade Supported

TS201 supports Firmware Update Over-The-Air (FUOTA), enabling remote updates without physical access. This simplifies device management, reduces maintenance costs, and keeps systems up to date with the latest features and security enhancements.

Temperature Monitoring Practice in New Zealand

Smart Milk Vat Monitoring Enhances Quality and Compliance in New Zealand

This project automated dairy farm monitoring to ensure milk safety, reduce waste, and meet strict government regulatory standards.

  • Precision Temperature Monitoring: Guaranteed 24/7 tracking to maintain freshness and ensure strict MPI (Ministry for Primary Industries) compliance.
  • Real-Time Operational Insights: Monitored agitator performance and vat levels to ensure consistent mixing and prevent overflows.
  • Proactive Risk Mitigation: Enabled instant alerts for temperature shifts or equipment faults to prevent costly milk spoilage.

Location: New Zealand
Devices Deployed: TS201 * 285 pcs, CT101 * 165 pcs, EM410-RDL * 165 pcs, UG65 * 120 pcs

Explore the Case Detail

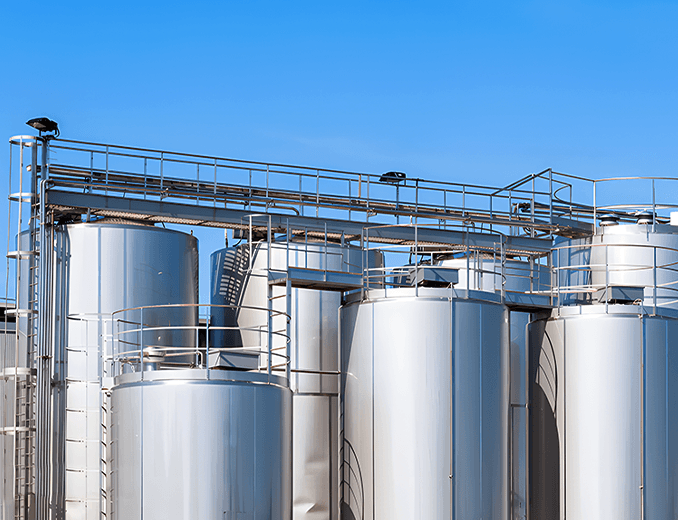

ts201 temperature sensor case

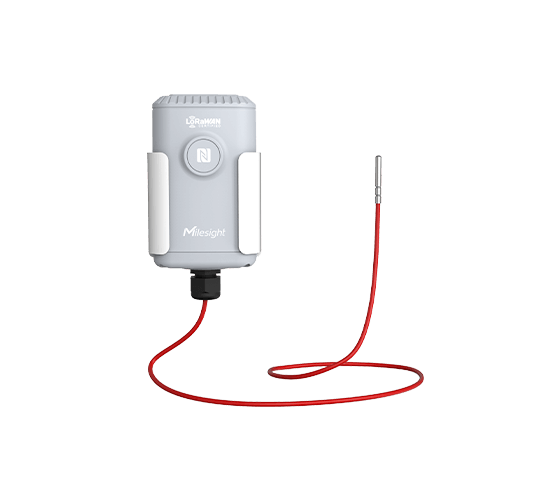

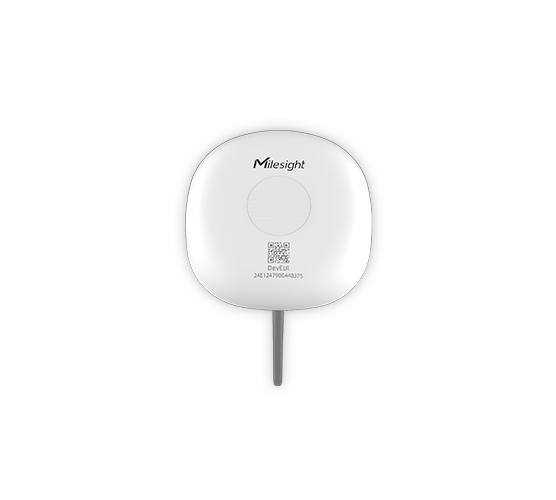

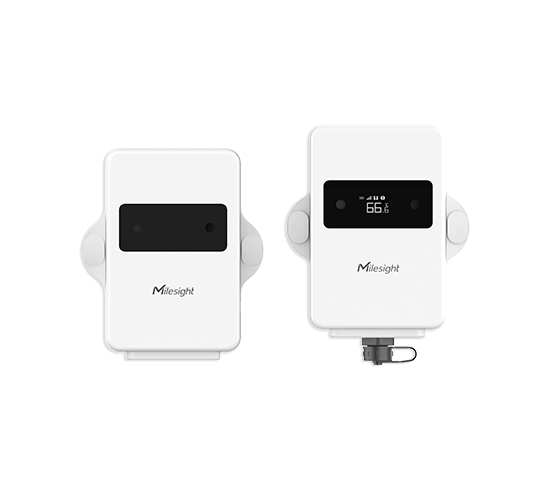

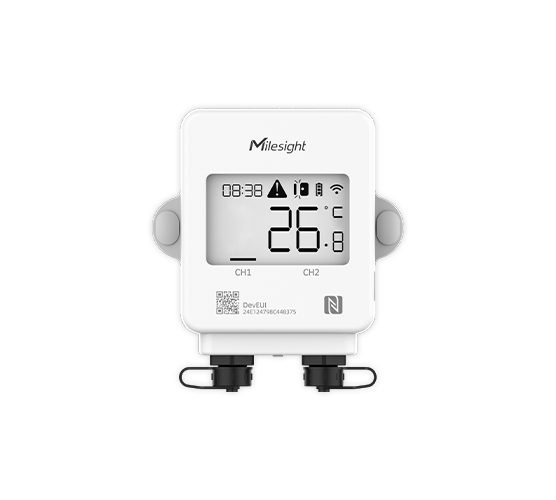

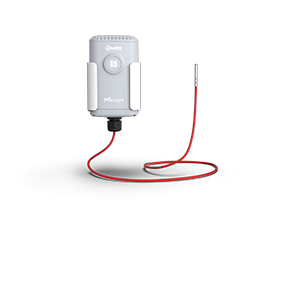

Temperature Series for Varied Monitoring Needs

See Full Comparison

You May Want to Know

What is the difference between a TH probe and a DS18B20 probe?

The primary difference lies in their measurement capability and physical environment:

  • Measurement Scope: A TH probe measures both ambient Temperature and Relative Humidity, whereas a DS18B20 probe is a dedicated sensor for Temperature only.
  • Design & Waterproofing: TH probes require a vented or mesh cap to allow airflow for humidity sensing, making them unsuitable for submersion. In contrast, DS18B20 probes are typically encased in fully sealed, waterproof stainless steel, making them ideal for liquids and high-moisture environments.
  • Best Use Cases:

    TH Probes are best for monitoring air quality and climate conditions in places like greenhouses, grain silos, and warehouses. DS18B20 Probes are preferred for "contact" or immersion monitoring, such as tracking the temperature of milk in vats, water in pipes, or soil.

How does TS201 Temperature Monitoring Sensor help meet HACCP (Hazard Analysis and Critical Control Points) requirements?

TS201 supports HACCP compliance by enabling continuous and reliable temperature monitoring at critical control points such as storage units, refrigerators, and handling areas. It records accurate temperature data with local storage and retransmission to prevent data loss, ensuring a complete audit trail. Real-time alerts notify users of temperature deviations, allowing immediate corrective actions to protect product safety and quality.

Let's Build Your LoRaWAN® Network Together

  • End User
  • Installer
  • Reseller
  • System Integrator
  • Distributor
  • Consultant
  • Managed Service Provider
  • Video Surveillance
  • Road Traffic
  • Parking
  • Smart Buildings
  • Smart Retail
  • Industrial Routers
  • Other IoT Solutions
Verify Code

Specifications

Temperature Version
Connector Type5-Pin M12 A-Coded Male Connector
Connector Number1 × Connector for DS18B20 Sensor
Sensor
Sensor TypeDS18B20
Temperature
Measuring Range-40°C ~ 125°C
AccuracyTyp.:
± 0.5°C(-10°C ~ 85°C),
± 2°C(-40°C ~ -10°C, 85°C ~ 125°C)
Resolution0.1°C
Long-term DriftTyp.< 0.2°C
(125°C, VDD=5.5V, 1000h)
Wireless Transmission
TechnologyLoRaWAN®, Milesight D2D
FrequencyCN470/IN865/RU864/EU868/US915/AU915/KR920/AS923-1&2&3&4
Tx Power16dBm (868MHz)/22dBm (915MHz)/19dBm (470MHz)
Sensitivity-137dBm @300bps
ModeOTAA/ABP Class A
Others
LED Indicator1 × Status Indicator
Button1 × External Power Button
ConfigurationMobile App (via NFC) or Downlink
Advanced FeatureData Retransmission, Data Retrievability,
Data Storage (4000 entries), Abrupt Change Alarm,
Milesight D2D Controller, Milesight D2D Data Transmission
Physical Characteristics
Power Supply1 × 2700 mAh ER14505 Li-SOCl2 Battery
Battery Life1Around 8.2 Years (SF7, EU868&US915)
(10 min Interval, 25°C)Around 2.7 Years (SF10, EU868&US915)
Operating TemperatureTS201 Device: -30°C ~ 55°C (-22°F ~ 131°F)
Relative Humidity0% ~ 95% (Non-condensing)
Ingress ProtectionIP67
Housing&ColorTS201 Device: ABS+PC & White
Sensor Cable: TPE & White
Sensor Probe: Stainless Steel 316, FDA Compliant
WeightTS201 Device: 70g
Sensor Cable+Probe: 25g
LengthSensor Cable: 1.5m
Sensor Probe: 50mm
Dimension58 × 65 × 25 mm (2.28 × 2.56 × 0.98 in)

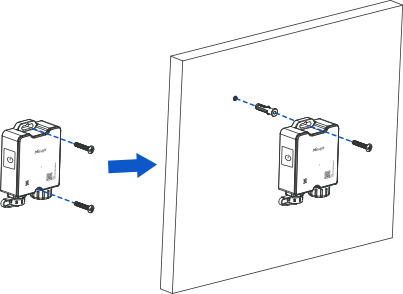

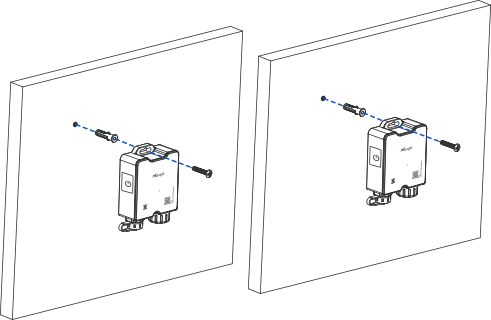

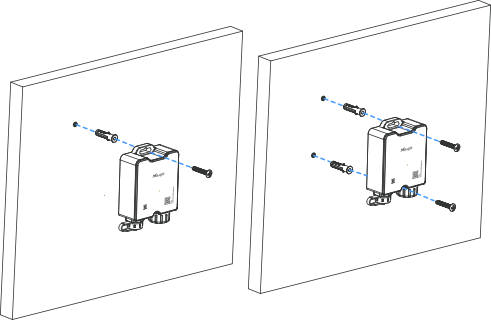

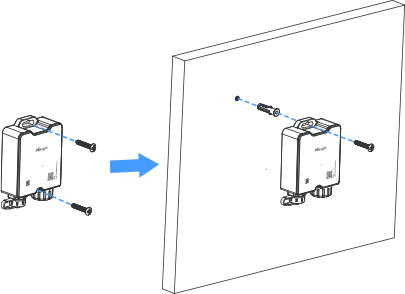

InstallationWall Screw Mounting, Cable-tie Mounting, Magnetic Mounting (Opt.)
Approvals
RegulatoryCE, FCC, EN12830
EnvironmentalRoHS

1 Tested under laboratory conditions and for guideline purposes only.

TH Version
Connector Type5-Pin M12 A-Coded Male Connector
Connector Number1 × Connector for TH Sensor
Sensor
Sensor TypeDigital CMOSens® technology (MEMS)
Temperature
Measuring Range-40°C ~ 125°C
AccuracyTyp.:
± 0.3°C(-40°C~ 0°C)
± 0.2°C(0°C~ 60°C)
± 0.5°C(60°C~ 125°C)
Resolution0.1°C
Long-term DriftTyp. < 0.03°C/year
Humidity
Measuring Range0% ~ 100% RH
AccuracyTyp.: ±2% (25°C)
Resolution0.5% RH
Long-term DriftTyp.: < 0.2% RH/year
Wireless Transmission
TechnologyLoRaWAN®, Milesight D2D
FrequencyCN470/IN865/RU864/EU868/US915/AU915/KR920/AS923-1&2&3&4
Tx Power16dBm (868MHz)/22dBm (915MHz)/19dBm (470MHz)
Sensitivity-137dBm @300bps
ModeOTAA/ABP Class A
Others
LED Indicator1 × Status Indicator
Button1 × External Power Button
ConfigurationMobile App (via NFC) or Downlink
Advanced FeatureData Retransmission, Data Retrievability, Abrupt Change Alarm
Data Storage (4000 entries), Milesight D2D Controller, Milesight D2D Data Transmission
Physical Characteristics
Power Supply1 × 2700 mAh ER14505 Li-SOCl2 Battery
Battery Life1(10 min Interval, 25°C)Around 9 Years (SF7, EU868)
Around 2.8 Years (SF10, EU868)
Around 10 Years (SF7, US915)
Around 3 Years (SF10, US915)
Operating TemperatureTS201 Device: -30°C ~ 55°C (-22°F ~ 131°F)
Relative Humidity0% ~ 95% (Non-condensing)
Ingress ProtectionIP67
Housing&ColorTS201 Device: ABS+PC & White
Sensor Cable: TPE & White
Sensor Probe: Stainless Steel 304, FDA Compliant
WeightTS201 Device: 70g
Sensor Cable+Probe: 26.5g
LengthSensor Cable: 1.5m
Sensor Probe: 50mm
Dimension58 × 65 × 25 mm (2.28 × 2.56 × 0.98 in)
InstallationWall Screw Mounting, Cable-tie Mounting, Magnetic Mounting (Opt.)
Approvals
RegulatoryCE, FCC, EN12830
EnvironmentalRoHS

1 Tested under laboratory conditions and for guideline purposes only.

SP12-125-150 Independent Calibration DS18B20 Probe

Optional

  • Measuring Range:-40℃~125℃
  • Accuracy:± 0.5°C(10°C ~ 85°C), ± 2°C(-40°C ~ -10°C, 85°C ~ 125°C)
  • Cable Length:1.5m
  • Applicable Products:TS201/TS602/TS301/TS302

    MN1605 Magnetic Nut

    Customizable

    • Size:16(D) * 15(H)mm
    • Applicable Products:TS301/TS302/TS201/TS201-TH/TS602/CTH01

      TB3984 Glass Bead Thermal Buffer Bottle

      Optional

      • Size:Φ39 * 84mm
      • Applicable Products:TS301/TS302/TS201/TS602
      • *Only the thermal buffer bottle is included. The probe is sold separately.
