Entrance & Exit AI LPR
Pro Dome Camera

Dome-shaped Model for LPR Solution

entrance exit ai lpr pro dome camera black small

entrance exit ai lpr pro dome camera black recessed mount small

Intelligent AI-powered LPR Algorithm
Black & White List and No-plate Vehicle Detection
Evidence Camera Linkage
LPR Smart Search

140dB Super WDR
IP67 & IK10 Full Protection
Clamshell Design for Easy Installation
Versatile Interfaces

FEATURES
MODELS
ACCESSORIES
DOWNLOAD

Home
Entrance & Exit Management
AI LPR Pro Dome Camera

Introducing Milesight Intelligent Traffic

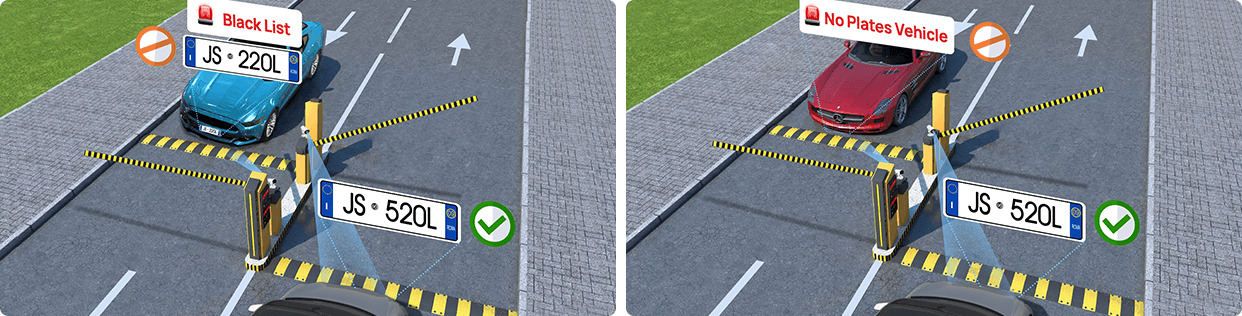

Black/White List and No-plate Vehicle Detection

With the built-in AI LPR algorithm and embedded black and white lists, Milesight Entrance & Exit AI LPR Cameras enable to achieve standalone solutions for license plate recognition as well as no-plate vehicle detection. Alarm is triggered as soon as the corresponding rule-compliant license plate is detected, enabling efficient and accurate access control at any gate, such as a campus or an apartment.

Intelligent AI-powered
LPR Algorithm

Based on built-in AI algorithm, Milesight Entrance & Exit AI LPR Camera can not only recognize vehicle plates in real time, but also identify various vehicle features, like vehicle type, brand, color, etc., generating reliable traffic insights to improve safety and efficiency for access control at both entrances and exits.

Efficient & Simple
Installation

Milesight creatively introduces the clamshell design to the dome camera, which enlarges the space to make cable connection a piece of cake. Meanwhile, Milesight provides a light thin mounting bracket to further reduce the installation troubles to the least.

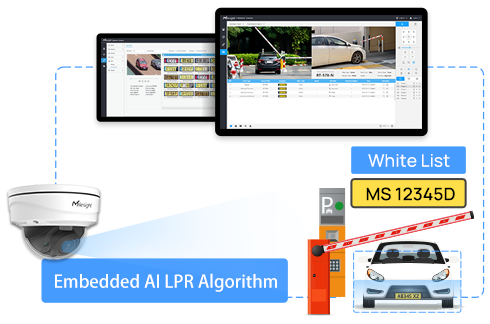

Easy and Flexible Deployment

Standalone Barrier Control

With built-in AI LPR algorithms and embedded black/white list, the camera enables a standalone and easy-to-deploy solution for gate or barrier control.

Milesight Back-ends Integration

Work well with Milesight own back-ends including Milesight NVR, CMS and Milesight VMS Enterprise to form fully closed-loop traffic solutions.

Third-party VMS Integration

Various CGI/APIs, interfaces and protocols like TCP, HTTP make it easy to integrate with third-party VMS or platforms.

Evidence Camera Linkage

Milesight Entrance & Exit AI LPR Camera can link with any regular cameras to capture the evidence. With the seamless trigger between the LPR camera and the regular camera, users can easily provide solid and convincible evidence with LPR results together with overview snapshots and critical details, such as driver's face and loaded materials in trucks.

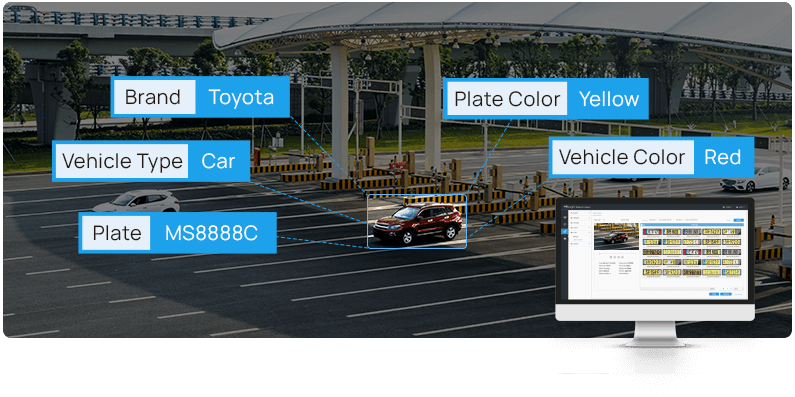

LPR Smart Search

Relevant videos can be found quickly by searching for only a portion of the target suspect vehicle's features, such as vehicle brand, type & color, plate color, plate number, direction and etc., ensuring efficient event investigations and intelligent road traffic monitoring. It also supports manual export and auto export for easy management.

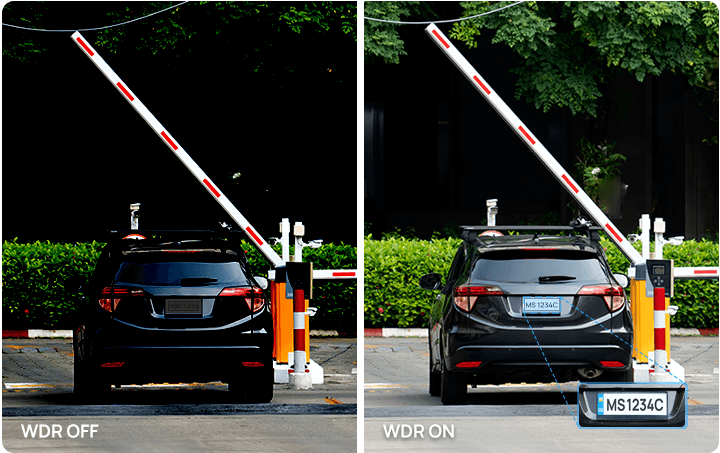

140dB Super WDR

Milesight's sensor-based WDR technology allows the camera to record greater scene details with true color reproduction even under extreme back light and high contrast conditions, ensuring better capture of road traffic details.

Smart IR II Technology

The IR LEDs technology upgraded to provide better image clarity and quality in the dark night. Also, the Low Beam and High Beam's brightness can be adjusted manually or automatically on the basis of the zoom ratio.

0.005Lux Ultra Low-light

Milesight Entrance & Exit AI LPR Pro Dome Camera is able to deliver detailed clear images in low and near-infrared light conditions down to 0.005Lux (Color) and 0Lux (B/W), ensuring superior performance for 24/7 traffic monitoring.

60fps High Frame Rate

With the industry leading frame rate reaching 60fps, Milesight Entrance & Exit AI LPR Camera can easily catch vehicle and plate images with no latency despite of the high-speed movement.

Versatile Interfaces

The multi-interface cable is available with rich interfaces including PoE port, DC, Alarm I/O and Audio Output to offer more choices for easy cable management and various needs.

IP67 & IK10

Equipped with industry-leading IP67-rated weather-proofing and lK10-rated vandal-proofing, the camera is well protected against adverse impacts to ensure the robust performance.

SIP/VoIP Support

Milesight AI Camera features industry leading SIP/VoIP function and video
streaming for mobile phones and video phones.

Specifications

NDAA

MS-C2972-RFLPE

Non-NDAA

MS-C2972-RFLPC

Camera
Name	Entrance & Exit AI LPR Pro Dome Camera
Image Sensor	1/2.8" Progressive Scan CMOS
Min. Illumination	Color: 0.005Lux@F1.4 B/W: 0Lux with IR on
WDR	140dB Super WDR
Shutter Time	1/100000s∼1s
Day/Night Mode	Day/Night/Auto/Customize/Schedule
Illumination Distance	Up to 50m
S/N	>55dB
Lens
Lens	Motorized 2.7~13.5mm@F1.4
Field of View	H115°~H34°/D135°~D39°/V62°~V19°
Mount	Φ14
Focus Control	Auto/Manual
Entrance & Exit Management
Max. Vehicle Speed	120km/h
Recognition Accuracy	>98%
Coverage	2 lanes
Country/Region Supported	More than 80 countries and regions
ANPR Distance	Up to 25m during the day; Up to 20m during the night with illumination
Attributes Identification	Plate Color, Vehicle Type, Vehicle Color, Vehicle Brand, No-plate Vehicle Capture, Vehicle Direction Detection
Smart Traffic Function	Evidence Camera Linkage
White/Black List	Up to 20,000 records inside the camera
LPR Smart Search	Support
Interface
Ethernet	1*RJ45 10M/100M Ethernet Port
Audio I/O	Built-in Microphone and 1 Audio Output interface
Alarm I/O	1/1
Video
Max. Image Resolution	1920x1080
Primary Stream	60Hz: 60fps@(1920x1080, 1280x960, 1280x720, 704x576) 50Hz: 50fps@(1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream	60Hz: 60fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180) 50Hz: 50fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180)
Tertiary Stream	60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240) 50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240)
Video Compression	H.265⁺/H.265(HEVC)/H.264⁺/H.264/MJPEG
Video Bit Rate	16Kbps∼16Mbps (CBR/VBR adjustable)
Privacy Masking	Up to 8 Areas (Mask Area and Mosaic Area are optional)
ROI	Up to 8 areas
Image Settings	Saturation/Brightness/Contrast/Sharpness
Network
Network Storage	NAS(Support NFS, SMB/CIFS), ANR
Network Protocols	IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL, TLS 1.2
Audio
Audio Compression	G.711/AAC/G.722/G.726
Audio Sampling Rate	8/16/32/44.1/48KHz
Audio Bit Rate	16~256kbps
Two-way Audio	Support
System
System Compatibility	API, HTTP, TCP, ONVIF Profile G & M & S & T
Storage	Support microSD/SDHC/SDXC Card Local Storage, up to 1TB
Advanced Function	BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP Support	Yes, Voice&Video-over-IP
Event Trigger	Black/White List, Motion Detection, Network Disconnection, External Input, Audio Alarm, etc.
Event Action	FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc.
General
Working Temperature	-40℃∼60℃
Working Humidity	0∼95%(Non-condensing)
Power Supply	PoE(802.3af)/DC 12V±10%
Power Consumption	6W MAX, 8W MAX(With IR on)
Weather Proof	Up to IP67-rated for Weather-resistant Performance
Housing	Vandal-proof IK10-rated Metal Housing
Weight	1100g
Dimensions	Φ143mmX108.4mm
Warranty	3/5 Years
Certifications
EMC	CE-EMC (EN 55032, EN 55035), FCC (PART 15B)
Safety	CE-LVD (EN IEC 62368-1)
Environment	CE-ROHS (Directive (EU) 2015/863 amending 2011/65/EU)

*Naming Convention
R - High Frame Rate (60fps)
F - Motorized Vari-focal Lens
L - LPR Supported
P - PoE Supported
C/E - AI Series

Camera
Name	Entrance & Exit AI LPR Pro Dome Camera
Image Sensor	1/2.8" Progressive Scan CMOS
Min. Illumination	Color: 0.005Lux @F1.4, B/W: 0Lux with IR on
WDR	140dB Super WDR
Shutter Time	1/100000s∼1s
Day/Night Mode	Day/Night/Auto/Customize/Schedule
Illumination Distance	Up to 50m
S/N	>55dB
Lens
Lens	Motorized 2.7~13.5mm@F1.4
Field of View	H115°~H34°/D135°~D39°/V62°~V19°
Mount	Φ14
Focus Control	Auto/Manual
Entrance & Exit Management
Max. Vehicle Speed	120km/h
Recognition Accuracy	>98%
Coverage	2 lanes
Country Region Supported	More than 80 countries and regions
ANPR Distance	Up to 25m during the day; Up to 20m during the night with illumination
Attributes Identification	Plate Color, Vehicle Type, Vehicle Color, Vehicle Brand, No-plate Vehicle Capture
Smart Traffic Function	Evidence Camera Linkage
White/Black List	Up to 1,000 records inside the camera
LPR Smart Search	Support
Interface
Ethernet	1*RJ45 10M/100M Ethernet Port
Audio I/O	Built-in Microphone and 1 Audio Output interface
Alarm I/O	1/1
Video
Max. Image Resolution	1920x1080
Primary Stream	60Hz: 60fps@(1920x1080, 1280x960, 1280x720, 704x576) 50Hz: 50fps@(1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream	60Hz: 60fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180) 50Hz: 50fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180)
Tertiary Stream	60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180) 50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180)
Video Compression	H.265⁺/H.265(HEVC)/H.264⁺/H.264/MJPEG
Video Bit Rate	16Kbps∼16Mbps (CBR/VBR Adjustable)
Privacy Masking	Up to 28 areas(24 mask areas and 4 mosaic areas)
ROI	Up to 8 areas
Image Settings	Saturation/Brightness/Contrast/Sharpness
Network
Network Storage	NAS(Support NFS, SMB/CIFS), ANR
Network Protocols	IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
Audio
Audio Compression	G.711/AAC/G.722/G.726
Audio Sampling Rate	8/16/32/44.1/48KHz
Audio Bit Rate	16~256kbps
Two-way Audio	Support
System
System Compatibility	API, HTTP, TCP, ONVIF Profile G & S & T
Storage	Support microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced Function	BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP Support	Yes, Voice&Video-over-IP
Event Trigger	Black/White List, Motion Detection, Network Disconnection, External Input, Audio Alarm, etc.
Event Action	FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc.
General
Working Temperature	-40℃∼60℃
Working Humidity	0∼95%(Non-condensing)
Power Supply	PoE(802.3af)/DC 12V±10%
Power Consumption	8W MAX, 10W MAX (With IR on)
Weather Proof	Up to IP67-rated for Weather-resistant Performance
Housing	Vandal-proof IK10-rated Metal Housing
Weight	1100g
Dimensions	Φ143mmX108.4mm
Warranty	3/5 Years

*Naming Convention
R - High Frame Rate (60fps)
F - Motorized Vari-focal Lens
L - LPR Supported
P - PoE Supported
C/E - AI Series

A02 V2 Pole Mount

Weight: 1kg
Dimension: 180*136*46mm
Installation Environment: For strapping cameras on poles between 102-127mm(4.1-5 inches) in diameter

A03 External Corner Bracket

Weight: 900g
Dimension: 170*152.5*76mm
Installation Environment: For mounting cameras on an external corner

A42-L Extension Lever

Weight: 330g
Dimension: Φ 55*255mm
Installation Environment: Used as extensions for pendant mount

A72 V2 Wall Mount

Weight: 575g
Dimension: 145*133*242mm
Installation Environment: For wall or parapet installations

AC-72 Smoked Dome Cover

Weight: 39g
Dimension: Φ100*56mm
Installation Environment: For concealing where a camera is pointed

A75 Junction Box

Weight: 200g
Dimension: 145*167*33.5mm
Installation Environment: For the containing of electrical connections which need to be concealed from sight and deter tampering

A76 V2 Pendant Mount

Weight: 620g
Dimension: Φ 145*L (L is default as 290mm, also can be extended with A42-L)
Installation Environment: Used to install cameras on a ceiling or horizontal structure

A78 Recessed Mount

Weight: 715g
Dimension: Φ256*94mm
Installation Environment: For in-ceiling installations

Entrance & Exit AI LPRPro Dome Camera
