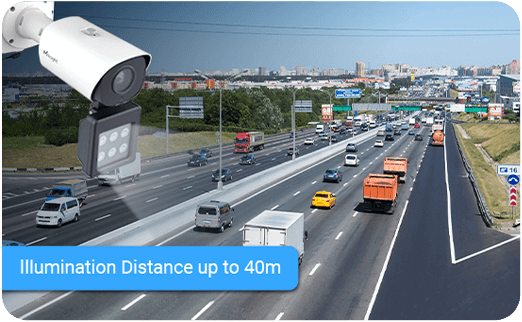

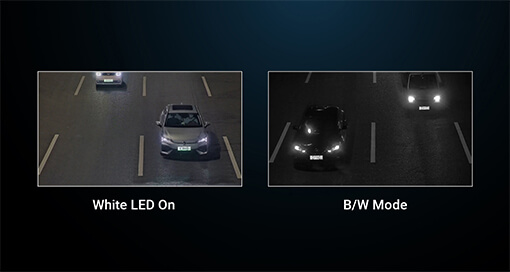

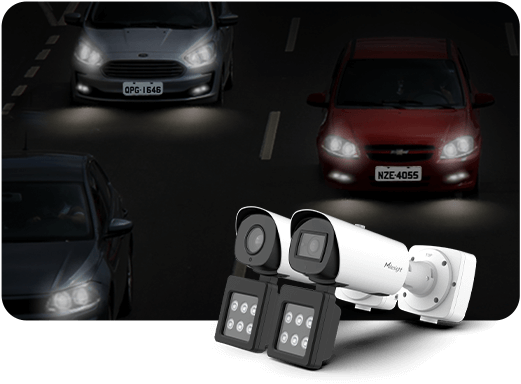

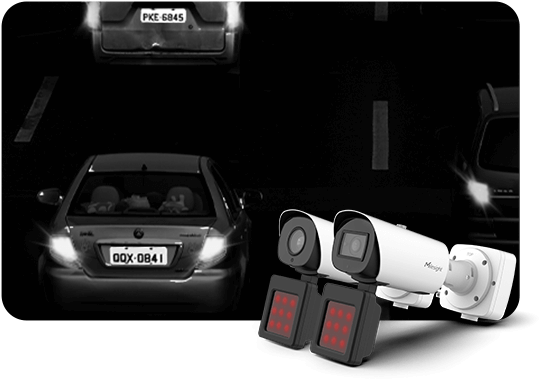

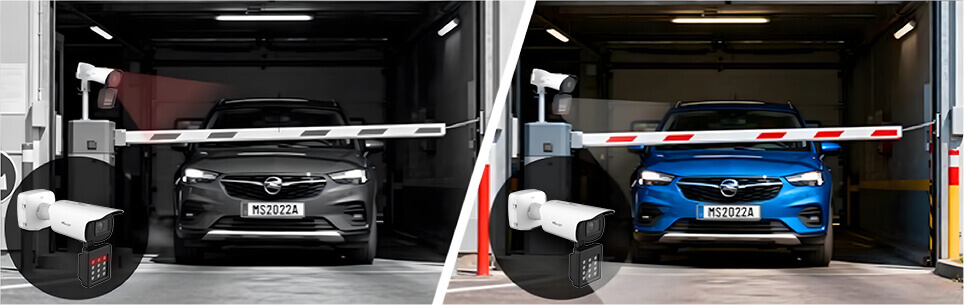

Integrated with supplement light of IR LED Light and White LED Light, Entrance & Exit Supplement Light AI LPR Camera could turn on and off the supplement light, and change the luminance of the supplement lighting automatically, achieving a flexible way for the monitoring control.

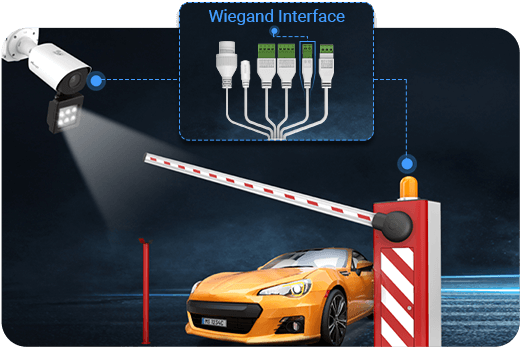

To maximize the usability and compatibility, Milesight Entrance & Exit Supplement Light AI LPR Camera also supports Wiegand Protocol, which allows the easy open integration with third-party VMS or platforms to realize access control solutions effortlessly.
Accurately count vehicles crossing designated lines for a wide range of applications. By combining counts from entrance and exit cameras, you can calculate available parking spaces in real time on a third-party backend platform. The camera also monitors traffic flow by vehicle type, analyzes visitor traffic trends to support business decisions, and provides categorized entry and exit statistics for efficient emergency management.

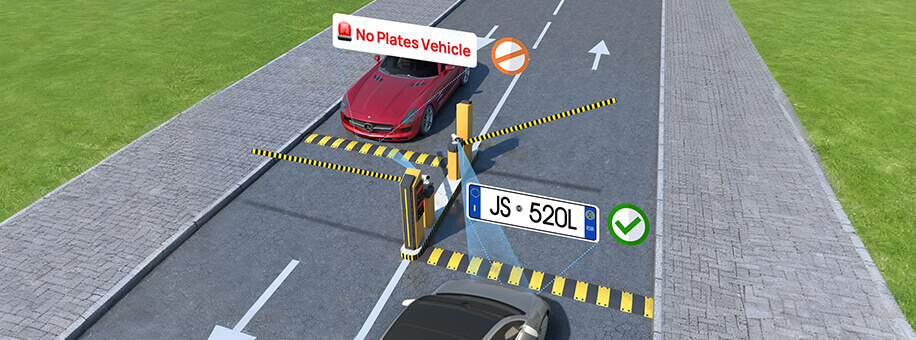

Store and manage up to 100,000 allowlist and blocklist records directly on the camera, with support for detecting vehicles without license plates, enabling automated access control, faster vehicle verification, and more secure entrance and exit management.

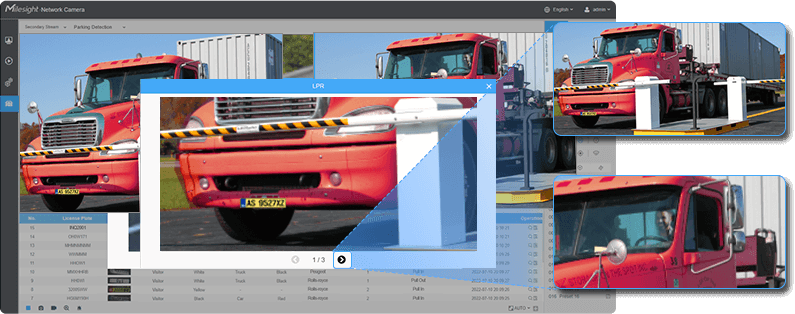

Milesight Entrance & Exit Series can be linked with standard security cameras for enhanced evidence capture. Seamless triggering between the LPR camera and standard cameras combines LPR results with overview snapshots and critical details, such as the driver's face and cargo carried by trucks, providing users with solid and compelling evidence.

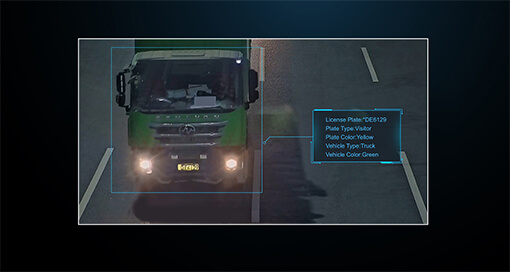

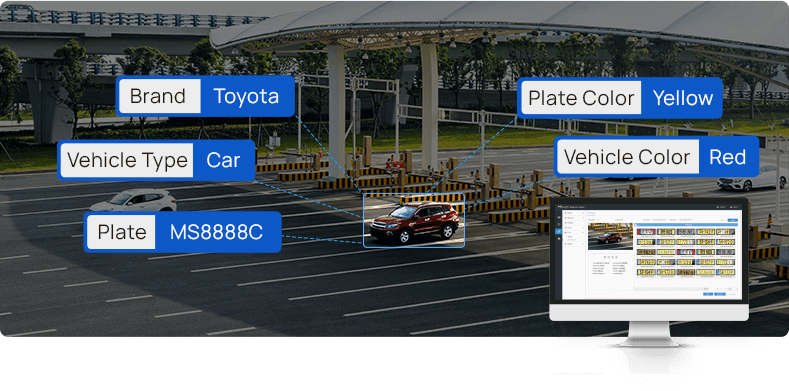

Quickly find relevant video footage by searching with partial details of a target vehicle, such as its brand, type, color, license plate color, plate number, or direction of travel. This enables efficient event investigation and intelligent entrance and exit management. Both manual and automatic export are supported for easier data management.

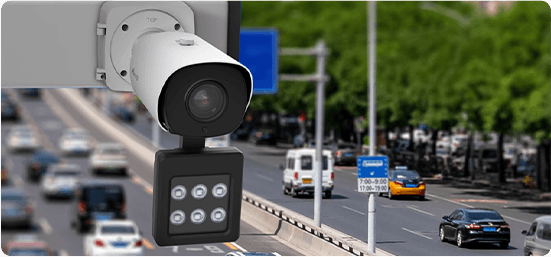

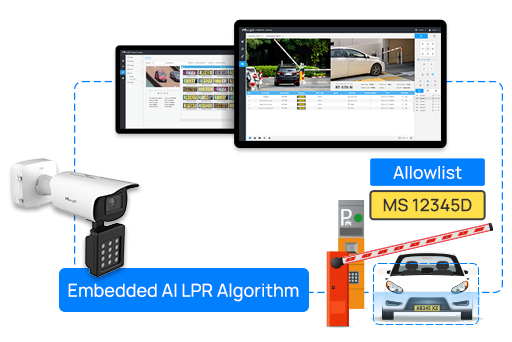

With built-in AI LPR algorithms and embedded Allowlist/ Blocklist, the camera enables a standalone and easy-to-deploy solution for gate or barrier control.
Work well with Milesight own back-ends including Milesight NVR, CMS and Milesight VMS Enterprise to form fully closed-loop traffic solutions.
Various CGI/APIs, interfaces and protocols like Wiegand, TCP, HTTP make it easy to integrate with third-party VMS or platforms.
PG1
4MP
| Camera | |
|---|---|

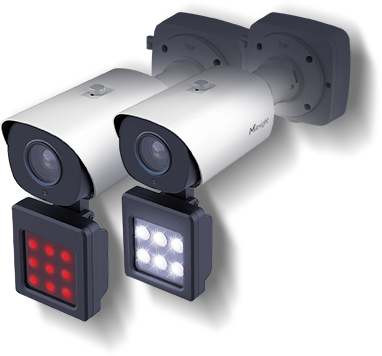

| Name | Entrance & Exit Supplement Light AI LPR Pro Bullet Plus Camera |
| Image Sensor | 1/1.8″ Progressive Scan CMOS |
| Min. Illumination | Color: 0.001Lux@F1.2 B/W: 0Lux with IR on |
| WDR | Support |
| Shutter Time | 1/100000s~1s |
| Day/Night Mode | Day/Night/Auto/Schedule |
| S/N | >55dB |
| Lens | |
| Lens | Motorized 2.8~12mm@F1.2 |
| Field of View | H114°~H45°/ D116°~D51°/ V57°~V25° |
| Mount | Φ14 |
| P-Iris | Support |
| Focus Control | Auto/Manual |
| Entrance & Exit Management | |
| Max. Vehicle Speed | 60km/h |
| Capture Rate | 99% |
| Recognition Accuracy | 98% |
| Coverage | 2 lanes |
| Country/Region Supported | More than 80 countries and regions |
| ANPR Distance | Up to 20m |

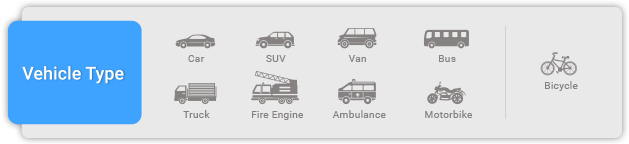

| Attributes Identification | Plate Color, Vehicle Type, Vehicle Color, Vehicle Brand, No-plate Vehicle Capture, Vehicle Direction Detection * Vehicle Color and Plate Color identification are not supported under IR conditions. |
| Smart Traffic Function | Evidence Camera Linkage, Line-crossing Vehicle Counting |
| White/Black List | Up to 100,000 records inside the camera |
| LPR Smart Search | Support |
| Illuminator | |
| Supplement Light | Warm White LED & IR LED |
| IR Wave Length(For IR LED Light) | 850nm |
| Light Bead | 9×Warm White LED; 3×IR LED |
| Illumination Distance | Up to 25 m |
| Light Control | Auto/ IR Mode/ Color Mode |
| Interface | |
| Ethernet | 1*RJ45 10M/100M Ethernet Port |
| Audio I/O | 1/1 |
| Alarm Input | 2 |
| Alarm Output | 2 (1 relay output; 1 open collector output, max. 12V DC/10mA) |
| Wiegand | 1 |

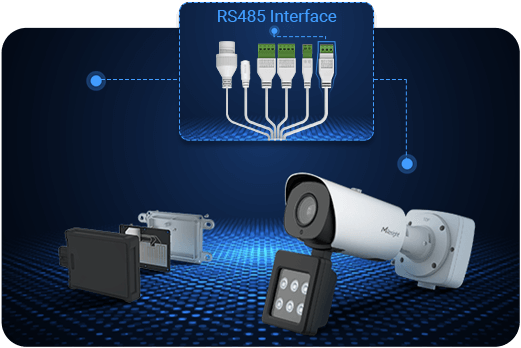

| RS485 | 1 (Support OSDP Protocol) |
| Video | |
| Max. Image Resolution | 2688x1520 |

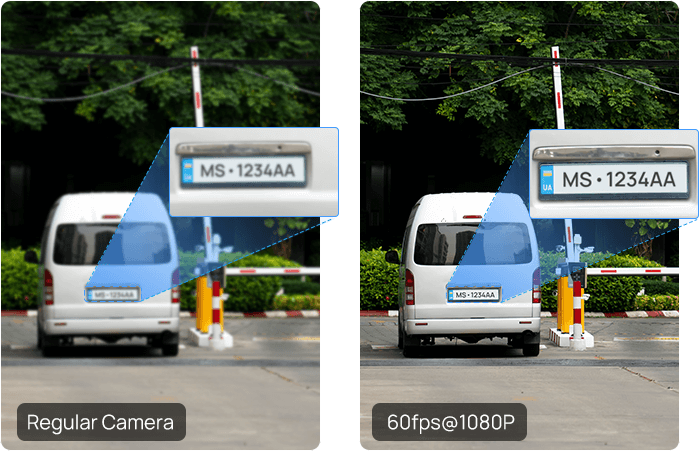

| Primary Stream | 60Hz: 60fps@(2688x1520, 2304x1296, 1920x1080, 1280x720) 50Hz: 50fps@(2688x1520, 2304x1296, 1920x1080, 1280x720) |
| Secondary Stream | 60Hz: 60fps@(704x576, 640x480, 640x360, 352x288, 320x240) 50Hz: 50fps@(704x576, 640x480, 640x360, 352x288, 320x240) |
| Tertiary Stream | 60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 352x288, 320x240) 50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 352x288, 320x240) |
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG |
| Video Bit Rate | 16Kbps~16Mbps(CBR/VBR Adjustable) |
| Privacy Masking | Up to 8 Areas (Mask Area and Mosaic Area are optional) |
| ROI | Up to 8 areas |
| Image Setting | Brightness/Contrast/Sharpness |
| Network | |
| Network Storage | NAS (Support NFS, SMB/CIFS), ANR |
| Protocol | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, LLDP, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL |
| Audio | |
| Audio Compression | G.711/AAC/G.722/G.726 |
| Audio Sampling Rate | 8/16/32/44.1/48KHz |
| Audio Bit Rate | 16~256kbps |
| Two-way Audio | Support |
| System | |
| System Compatibility | API, MQTT, HTTP, TCP, ONVIF Profile G & M & S & T |
| Storage | microSD/SDHC/SDXC Card Local Storage, up to 1TB |
| Advanced Function | BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark |
| SIP/VoIP Support | Yes, Voice & Video-over-IP |
| Event Trigger | Black/White List, Motion Detection, Network Disconnection, External Input, Audio Alarm, etc. |
| Event Action | FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc. |
| General | |
| Working Temperature | -40℃~60℃ |
| Working Humidity | 0~95% (Non-condensing) |
| Power Supply | PoE (802.3at) / DC 12~28V *Heater and supplementary light are mutually exclusive under PoE power supply. |
| Power Consumption | Min.: 4.1W (DC 12~28V), 4.9W(PoE) Max.: 24.6W (DC 12~28V), 28.9W(PoE) |
| Weather Proof | Up to IP67-rated for Weather-resistant Performance |
| Weight | 1445.8g 2100g (With Supplement Light) |
| Dimensions | 346mmX134mmX223mm |
| Warranty | 3 Years (5 Years Optional) |
| Certifications | |
| EMC | CE-EMC (EN 55032, EN 55035), FCC (PART 15B), RCM-EMC (AS/NZS CISPR 32:2015+A1(2020)) |
| Safety | CE-LVD (EN IEC 62368-1), RCM-LVD (IEC 62368-1:2018) |
| Environment | CE-ROHS (Directive (EU) 2015/863 amending 2011/65/EU) |
* Naming Convention
R - High Frame Rate (60fps)
F - Motorized Vari-focal Lens
L - LPR Supported
W - Supplement Light Supported
P - PoE Supported
C/E - AI Series
